LOVOL TD824-1F461F38K Tractor Parts Catalogue 22

Meppon Parts Posted on by






TD804.311-3 前桥总成-3 31FRONT AXLE ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

5133799/1.41.539

驱动叉轴油封

DRIVING FORK SHAFT OIL SEAL

2

2011-11_

10

14274534/10352/04

螺栓M12X1.25X30



12

2011-11_

11

GBT1152-M10X1

油杯

OIL CUP

4

2011-11_

12

5140018/20

轴用挡圈

RETAINER RING FOR SHAFT

4

2011-11_

13

5137107/20

太阳轮

SUN GEAR

4

2011-11_

14

4997571/1.41.549

齿圈挡环

GEAR RETAINER RING

2

2011-11_

15

5142047/20

齿圈支座

GEAR RING SUPPORT SEAT

2

2011-11_

16

5108749/1.41.543

齿圈

GEAR RING

2

2011-11_

17

5142020/12

锁紧螺母

LOCKING NUT

2

2011-11_

18

5137689/20

行星架

PLANET CARRIER

2

2011-11_

19

JBT982-22

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

2

5104199/1.40.228

转向节衬套

STEERING BURL BUSH

2

2011-11_

20

10305114/14530

螺塞

SCREW PLUG

2

2011-11_

21

14233634/10357/04

螺栓

BOLT

24

2011-11_

22

4997509/1.41.547

行星齿轮轴

PLANET GEAR SHAFT

6

2011-11_

22

4997509/1.41.547

行星齿轮轴

PLANET GEAR SHAFT

6

2011-11_

23

4997510/1.41.552

行星齿轮轴承挡圈

PLANET GEAR BEARING RETAINER RING

12

2011-11_

24

5101693/1.41.546

滚针

NEEDLE

19

2011-11_

25

5108747/1.41.545

行星齿轮

PLANETARY GEAR

6

2011-11_

3

5142230-FT/12

左转向节

LEFT STEERING BURL

1

2011-11_

3.1

5142232-FT/12

右转向节

RIGHT STEERING BURL

1

2011-11_

4

8A5137109/12

轮毂油封

HUB OIL SEAL

2

2011-11_

5

5136951/12

前轮毂轴承

FRONT HUB BEARING

4

2011-11_

6

8A5142013/13

前驱动轮毂

FRONT DRIVING HUB

2

2011-11_

7

4985063/1.21.067

定位销

THIMBLE

4

2011-11_








TD804.311-3 前桥总成-3(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8

9

5137457/12

5137239/12

调整垫片 转向节主销

ADJUSTING WASHER PIN

999

4

2011-11_

2011-11_








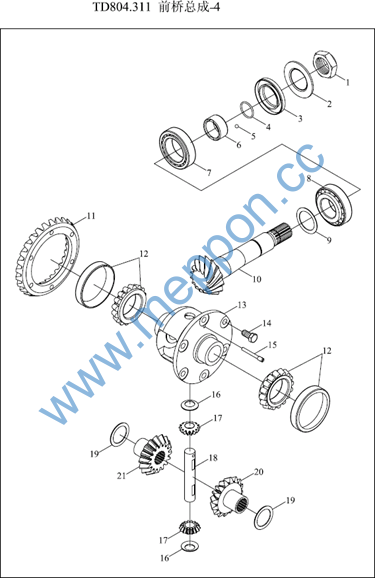

TD804.311-4 前桥总成-4 31FRONT AXLE ASSEMBLY-4



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

5143242/16

锁紧螺母

LOCKING NUT

1

2011-11_

10

5142024/16

小锥齿轮轴

SMALL TAPER GEAR SHAFT

1

2011-11_

11

5111094/16

大锥齿轮

BIG TAPER GEAR

1

2011-11_

12

GBT307-32012

轴承

BEARING

2

2011-11_

13

4996747/1.41.402

差速器壳体

DIFFERENTIAL HOUSING

1

2011-11_

14

14274434/10357/04

螺栓

BOLT

8

2011-11_

15

4987976/1.32.428

销钉

PIN

1

2011-11_

16

4987975/1.32.425

行星齿轮止推垫圈

PLANET GEAR THRUST WASHER

2

2011-11_

17

885103870/1.32.415B

行星齿轮

PLANETARY GEAR

2

2011-11_

18

5148935/1.32.416

差速器行星齿轮轴

DIFFERENTIAL PLANETARY GEAR SHAFT

1

2011-11_

19

5148936/1.32.424

半轴齿轮止推垫圈

HALF SHAFT GEAR THRUST WASHER

999

2011-11_

2

4997451/1.41.143

油封挡圈

OIL SEAL RETAINER RING

1

2011-11_

20

5103868/1.32.413

左半轴齿轮

LEFT HALF SHAFT GEAR

1

2011-11_

21

5110716/1.41.502

右半轴齿轮

RIGHT HALF SHAFT GEAR

1

2011-11_

3

5135294/16-45X75X12

油封

OIL SEAL

1



4

GBT3452.1-31.5X1.8

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

6

5142026/16

小锥齿轮轴油封环

OIL SEAL RING OF SMALL TAPER PINION

1

2011-11_

7

5133776/16

后轴承

SHAFT

1

2011-11_

8

5143109/16

前轴承

REAR BEARING

1

2011-11_

9

5142032/16

调整垫圈

FRONT BEARING

1

2011-11_


ADJUSTING WASHER










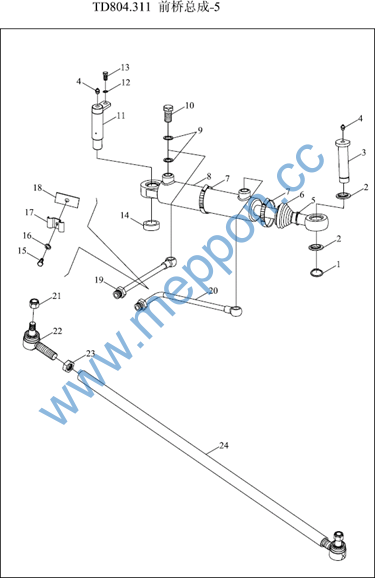

TD804.311-5 前桥总成-5 31FRONT AXLE ASSEMBLY-5



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT894.1-25

挡圈

RETAINER RING

1

2011-11_

10

10184314/14256

空心螺栓

HOLLOW BOLT

2

2011-11_

11

5142236/22

油缸销总成

OIL CYLINDER PIN ASSEMBLY

1

2011-11_

12

GBT7244-8

垫圈

WASHER

1

2011-11_

13

GBT5783-M8X16

螺栓

BOLT

1

2011-11_

14

5111576/1.63.591

油缸销垫圈

CYLINDER PIN WASHER

1

2011-11_

15

GBT5783-M6X16

螺栓

BOLT

1

2011-11_

16

GBT7244-6

重型弹簧垫圈



1

2011-11_

17

4999554/1.63.583

油管夹子

OIL PIPE CLIP

1

2011-11_

18

5138294/1.63.22

支板

BRANCH PLATE

1

2011-11_

19

5145031/22

左转向输油管总成

LEFT STEERING OIL PIPE ASSEMBLY

1

2011-11_

2

5111573/1.63.589

油缸销垫圈

CYLINDER PIN WASHER

2

2011-11_

20

5142238/22

右转向输油管总成

RIGHT STEERING OIL PIPE ASSEMBLY

1

2011-11_

21

12576014/10125

锁紧螺母

LOCKING NUT

2

2011-11_

22

5117314/1.40.516B

球铰接头总成

BALL ARTICULATION JOINT ASSEMBLY

1

2011-11_

23

10726914/10114

锁紧薄螺母

LOCKING THIN NUT

1

2011-11_

24

5142234/14

转向横拉杆合件

STEERING CROSS PULL ROD UNIT

1

2011-11_

3

5111572/1.63.584

油缸销

OIL CYLINDER PIN

1

2011-11_

4

GBT1152-M10X1

油杯

OIL CUP

2

2011-11_

7

JK-3X

环箍

Clip

2

2011-11_

8

5134221/22

转向油缸

STEERING OIL CYLINDER

1

2011-11_

9

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

9

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_
