TA600.62ZC 62-安全带 62-SAFETY BELT



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TA600.62

安全带安装总成

SAFETY BELT INSTALLATION ASSEMBLY

1

2012-01_








FT800.74B.001 74-前配重总成 74-FRONT BALLAST ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6170-M16-8-A3L

1型六角螺母

NUT

2

2011-11_

10

FT650.74.107

牵引耳

TOWING LUG

1

2011-11_

11

GBT97.1-20-A0P

垫圈

WASHER

2

2011-11_

11

GBT97.1-20-A0P

垫圈

WASHER

2

2011-11_

12

GBT5785-M20X1.5X80-A3L

螺栓

BOLT

2

2011-11_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

10

2011-11_

3

GBT97.1-16-A0P

垫圈

WASHER

10

2011-11_

4

FT700.74B.010

右固定块焊接总成

RIGHT FIXING BLOCK WELDMENT ASSEMBLY

1

2011-11_

5

GBT5783-M16X35-A3L

六角头螺栓

BOLT

8

2011-11_

6

FT700.74B.011

左固定块焊接总成

LEFT FIXING BLOCK WELDMENT ASSEMBLY

1

2011-11_

7

FT800.74B.106a

配重块

BALLAST

11

2011-11_

8

F700.74B.107

联接螺栓

CONNECTING BOLT

1

2011-11_

9

FT650.74.108

牵引螺母

TOWING NUT

2

2004-01_

9

TA700.741-02

牵引板

TOWING PLATE

2

2009-12_








FT800.74B.002 74-前配重架总成 74-FRONT BALLAST BRACKET ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

4

GBT5785-M18X1.5X70-10.9-A3L GBT93-18-AOP

GBT97.1-18-A0P FT800.74B.105a FT800.74B.105

六角头螺栓弹簧垫圈 平垫圈

配重架配重架

BOLT

SPRING WASHER WASHER

BALLAST BRACKET BALLAST BRACKET

6

6

6

1

1

2004-01_

2004-01_

2004-01_

2009-08_

2008-03_








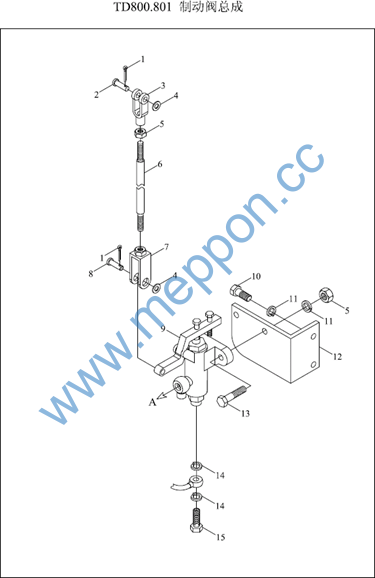

TD800.801 80.1-制动阀总成 80.1-BRAKE VALVE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT91-3.2X20-A0P

开口销

PIN

2

2011-11_

1

GBT91-3.2X20-A0P

开口销

PIN

2

2011-11_

10

GBT5781-M10X25-A3L

六角头螺栓

BOLT

2

2011-11_

11

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

12

TD800.801-01

制动阀支架

BRAKE VALVE BRACKET

1

2011-11_

13

GBT5781-M10X40-A3L

六角头螺栓

BOLT

2

2011-11_

14

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

14

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

15

FT800.40.172

空心螺栓

HOLLOW BOLT

2

2011-11_

2

GBT882-B10X32-A0P

销轴

PIN

1

2011-11_

3

FT65.43.152

左旋连接叉

LEFT REVOLVING CONNECTING FORK

1

2012-12_

3

FT65.43.152

左旋连接叉

LEFT REVOLVING CONNECTING FORK

1

2012-12_

4

GBT97.1-10-A0P

平垫圈

WASHER

2

2011-11_

5

GBT6170-M10-A3L

螺母

NUT

3

2011-11_

6

TD800.801-02

推杆

PUSH ROD

1

2011-11_

7

FT65.80.013

连接叉焊合件

CONNECTING ROD FORK WELDMENT

1



7

TD800.801.1

连接叉焊合

CONNECTING FORK WELDMENT

1

2011-11_

8

GBT882-B10X26-A0P

销轴

PIN

1

2011-11_

9

FT800.80.014

QFJ-10/0.63型断气刹车阀

QFJ-10/0.63 TYPE AIR CUT BRAKE VALVE

1

2012-08_








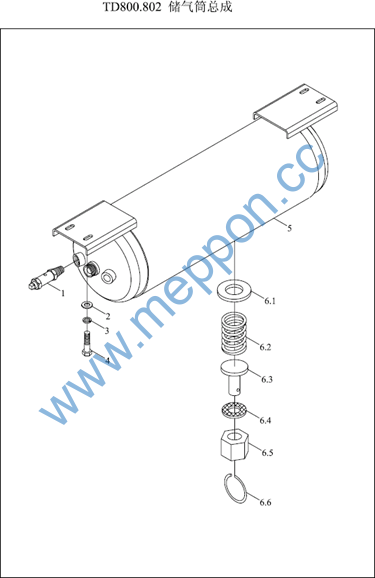

TD800.802 80.2-储气筒总成 80.2-AIR CYLINDER ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.80.014

安全阀总成

SAFETY VALVE ASSEMBLY

1

2011-11_

2

GBT97.1-10-AOP

垫圈

WASHER

4

2011-11_

3

GBT93-10-A0P

标准型弹簧垫圈

WASHER

1

2012-08_

4

GBT5783-M10X25-A3L

螺栓

BOLT

4

2011-11_

5

TD800.802.1

贮气筒焊合

AIR HOLDER WELDMENT

1

2011-11_

5

TD800.802.1

贮气筒焊合

AIR HOLDER WELDMENT

1

2011-11_

6

FT300.80.033

放水阀总成

DRAIN VALVE ASSEMBLY

1

2011-11_

6.1

FT300.80.325

挡圈

RETAINER RING

1

2011-11_

6.2

FT300.80.324

放水阀密封用弹簧

SPRING FOR DRAIN VALVE SEAL

1

2011-11_

6.3

FT300.80.322

放水阀阀门

DRAIN VALVE

1

2011-11_

6.4

FT300.80.323

放水阀密封胶垫

DRAIN VALVE SEAL RUBBER WASHER

1

2011-11_

6.5

FT300.80.326

放水阀座

DRAIN VALVE SEAT

1

2011-11_

6.6

FT300.80.320

放水阀拉环

DRAIN VALVE PULL RING

1

2011-11_








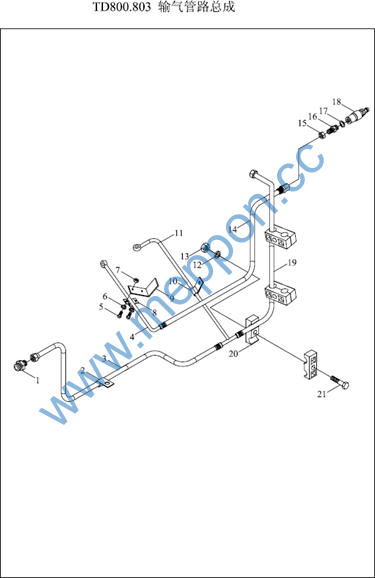

TD800.803 80.3-输气管路总成 80.3-AIR CONVEYING PIPELINE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT700.80G.101

管接头

PIPE JOINT

1

2011-11_

10

TD800.803-02

管夹

PIPE CLAMP

1

2011-11_

11

TD800.803.2

进气管焊合

AIR INLET PIPE WELDMENT

1

2011-11_

11

TD800.803.6

进气管焊合

AIR INLET PIPE WELDMENT

1

2012-10_

12

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

3

2011-11_

13

GBT6170-M12-A3L

螺母

NUT

3

2011-11_

14

TD800.803.5

软管组合件（二）

HOSE COMBINATION (2)

1

2011-11_

15

GBT6171-M18X1.5-A3L

1型六角螺母

NUT

1

2011-11_

16

FT800.80L.212

输出接头体

OUTPUT JOINT BODY

1

2011-11_

17

FT65.80.213

输出接头体密封垫

OUTPUT JOINT BODY SEAL GASKET

1

2011-11_

18

FT65.80.018

快速接头

QUICK JOINT

1

2011-11_

19

TD800.803.4

软管组合件（一）

HOSE COMBINATION (1)

1

2011-11_

2

FT250.80.142

管夹Ⅰ

PIPE CLAMP I

2

2011-11_

20

FT750.40.108

双孔管夹

DOUBLE-HOLE PIPE CLIP

6

2011-11_

21

GBT5783-M12X55-A3L

六角头螺栓

BOLT

3



3

TD800.803.3

贮气筒进气管焊合

AIR INLET PIPE WELDMENT OF AIR HOLDER

1

2011-11_

4

TD800.803.1

出气管焊合

AIR OUTLET PIPE WELDMENT

1

2011-11_

4

TD800.803.1

出气管焊合

AIR OUTLET PIPE WELDMENT

1

2011-11_

5

GBT5783-M4X10-A2L

六角头螺栓

BOLT

2

2011-11_

6

GBT93-4-A0P

标准型弹簧垫圈

WASHER

2

2011-11_

7

GBT6170-M4-A2L

1型六角螺母

NUT

2

2011-11_

7

GBT6170-M4-A2L

1型六角螺母

NUT

2

2011-11_

8

FT800A.80.201

固定夹

LOCKING CLAMP

1

2011-11_

9

TD800.803-01

支架

SUPPOT BRACKET

1

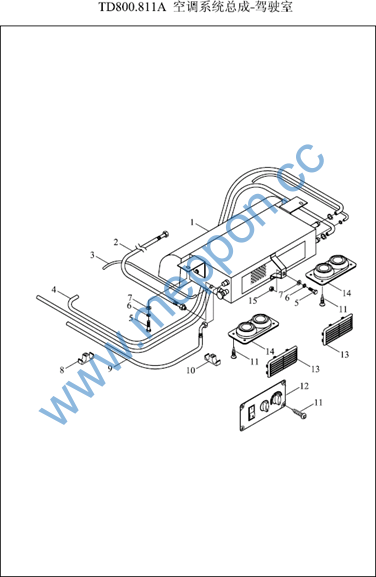

2011-11_
