LOVOL TD824-1F461F38K Tractor Parts Catalogue 19
TD800.57C-4 57.4-分配器装配总成-4 DISTRIBUTOR INSTALLATION ASSEMBLY-4
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
FT800A.57.020 |
分配器总成 |
DISTRIBUTER ASSEMBLY |
1 |
2011-11_ |
|
1 |
GBT879-5X24 |
销 |
PIN |
3 |
2011-11_ |
|
10 |
GBT97.1-8 |
垫圈 |
WASHER |
1 |
2011-11_ |
|
11 |
FT800A.57.120 |
手柄轴 |
HANDLE SHAFT |
1 |
2011-11_ |
|
12 |
FT800A.57.119 |
限位套4 |
LIMITING SLEEVE 4 |
3 |
2011-11_ |
|
13 |
FT800A.57.114 |
固定板 |
FIXED PLATE |
1 |
2011-11_ |
|
14 |
FT800A.57.112 |
弹簧 |
SPRING |
1 |
2011-11_ |
|
15 |
FT800A.57.013 |
单面摩擦盘总成 |
SINGLE FRICTION DISC ASSEMBLY |
2 |
2011-11_ |
|
16 |
FT800A.57.118 |
操纵曲柄 |
CONTROL CRANK |
1 |
2011-11_ |
|
17 |
GBT879-5X35 |
销 |
PIN |
1 |
2011-11_ |
|
18 |
FT800A.57.110 |
挡板 |
RETAINER PLATE |
1 |
2011-11_ |
|
19 |
GBT899-GM10-M10X60-8.8 |
螺栓 |
BOLT |
3 |
2011-11_ |
|
2 |
E300.57.135 |
销轴 |
PIN |
1 |
2011-11_ |
|
20 |
GBT93-10 |
垫圈10 |
WASHER 10 |
3 |
2011-11_ |
|
21 |
GBT6170-M10 |
螺母M10 |
NUT M10 |
3 |
2011-11_ |
|
22 |
FT800A.57.113 |
球头 |
BALL JOINT |
1 |
2013-10_ |
|
3 |
T30.57.133-2 |
反馈臂 |
FEEDBACK ARM |
1 |
2011-11_ |
|
4 |
T30.57.109 |
反馈轴 |
FEEDBACK SHAFT |
1 |
2011-11_ |
|
5 |
GBT3452.1-9.5X2.65 |
O形密封圈 |
O RING |
2 |
2011-11_ |
|
6 |
T30.57.120 |
反馈小臂 |
FEEDBACK ARM |
1 |
2011-11_ |
|
7 |
T30.57.125 |
销轴 |
PIN |
1 |
2011-11_ |
|
8 |
GBT91-2X12 |
开口销 |
PIN |
1 |
2011-11_ |
|
9 |
T30.57.119 |
摆杆 |
UPPER PART U-HOOK |
1 |
2011-11_ |

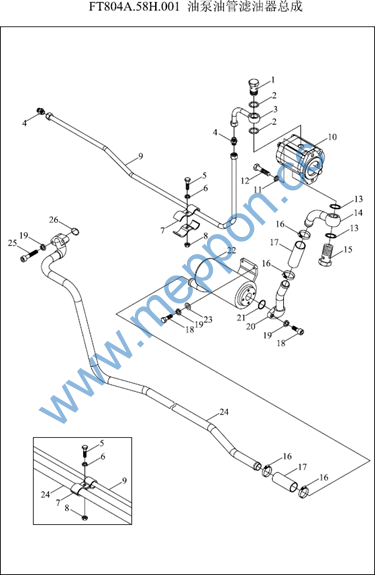

FT804A.58H.001 58-油泵油管滤油器总成 58-OIL PUMP/PIPE/FILTER ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT700.58G.103 |
空心螺栓-2 |
HOLLOW BOLT -2 |
1 |
2004-01_ |
|
10 |
FT700.58G.010 |
齿轮泵 |
GEAR PUMP |
1 |
2004-01_ |
|
10 |
FT700.58B.020 |
齿轮泵 |
GEAR PUMP |
1 |
2009-01_ |
|
11 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
2 |
2011-11_ |
|
12 |
GBT5783-M10X30-A3L |
螺栓 |
BOLT |
2 |
2011-11_ |
|
13 |
JBT982-27 |
组合密封垫圈 |
COMBINED SEAL GASKET |
2 |
2011-11_ |
|
13 |
JBT982-27 |
组合密封垫圈 |
COMBINED SEAL GASKET |
2 |
2011-11_ |
|
14 |
FT750.58.050 |
吸油短管焊合-2 |
OIL SUCTION SHORT PIPE WELDMENT-2 |
1 |
2011-11_ |
|
14 |
FT750.58.050 |
吸油短管焊合-2 |
OIL SUCTION SHORT PIPE WELDMENT-2 |
1 |
2011-11_ |
|
15 |
FT700.58G.101 |
空心螺栓-1 |
HOLLOW BOLT -1 |
1 |
2011-11_ |
|
16 |
JBT8870-d40 |
喉箍 |
HOOP |
4 |
2011-11_ |
|
17 |
FT650.58.105 |
胶管 |
RUBBER HOSE |
2 |
2011-11_ |
|
18 |
GBT5783-M8X20-A2L |
螺栓 |
BOLT |
4 |
2011-11_ |
|
19 |
GBT93-8-A0P |
垫圈 |
WASHER |
6 |
2011-11_ |
|
2 |
JBT982-22 |
组合密封垫圈 |
COMBINED SEAL GASKET |
2 |
2009-01_ |
|
2 |
JBT982-18 |
组合密封垫圈 |
COMBINED SEAL GASKET |
2 |
2004-01_ |
|
2 |
JBT982-18 |
组合密封垫圈 |
COMBINED SEAL GASKET |
2 |
2004-01_ |
|
20 |
FT750.58.040 |
吸油短管焊合-1 |
OIL SUCTION SHORT PIPE WELDMENT-1 |
1 |
2011-11_ |
|
21 |
GBT3452.1-32.5X2.65G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2011-11_ |
|
22 |
FT804A.58.080 |
滤油器总成 |
OIL FILTER ASSEMBLY |
1 |
2011-11_ |
|
22.1 |
FT804A.58.080-01 |
滤芯 |
FILTER |
1 |
2011-11_ |
|
23 |
GBT97.1-8-A0P |
平垫圈 |
WASHER |
2 |
2011-11_ |
|
24 |
FT750.58.030 |
吸油长管焊合 |
OIL SUCTION LONG PIPE WELDMENT |
1 |
2011-11_ |
|
25 |
GBT5783-M8X50-A2L |
六角头螺栓 |
BOLT |
2 |
|
|
26 |
GBT3452.1-26.5X2.65G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2011-11_ |
FT804A.58H.001 58-油泵油管滤油器总成(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
3 |
FT700.58G.021 |
压力油管焊合-1 |
PRESSURE OIL PIPE WELDMENT-1 |
1 |
2004-01_ |
|
3 |
TD800.581.2 |
油泵出油管焊合 |
OIL PUMP OUTPUT PIPE WELDMENT |
1 |
2011-09_ |
|
3 |
FT700.58G.021a |
压力油管焊合-1 |
PRESSURE OIL PIPE WELDMENT-1 |
1 |
2009-01_ |
|
4 |
FT700.58A.101 |
卡套式直通接头体 |
JOINT |
2 |
2011-11_ |
|
5 |
GBT5783-M6X30-A2L |
螺栓 |
BOLT |
3 |
2011-11_ |
|
6 |
GBT93-6-A0P |
弹簧垫圈 |
SPRING WASHER |
3 |
2011-11_ |
|
7 |
FT650.58.060 |
油管夹与胶垫胶合 |
OIL PIPE CLAMP AND RUBBER WASHER |
6 |
2011-11_ |
|
8 |
GBT6170-M6-A2L |
螺母 |
NUT |
3 |
2011-11_ |
|
9 |
FT804A.58.020 |
压力油管总成-2 |
PRESSURE OIL PIPE ASSEMBLY-2 |
1 |
2011-11_ |
|
9 |
FT804A.58.020a |
高压油管总成 |
HIGH PRESSURE OIL PIPE ASSEMBLY |
1 |
2011-09_ |

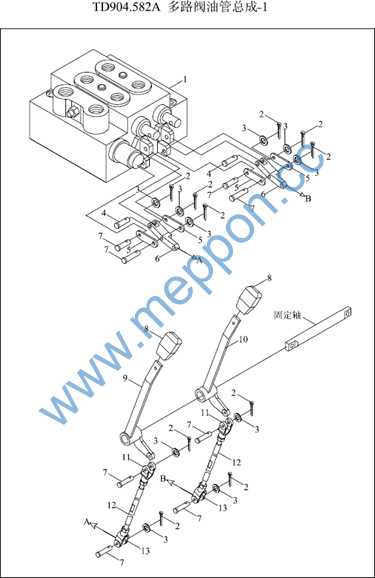

TD904.582A-1 58.2.1-多路阀油管总成-1 MULTI-WAY VALVE OIL PIPE ASSEMBLY-1
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT654.58.020 |
多路阀总成 |
MULTI-WAY VALVE ASSEMBLY |
1 |
2011-11_ |
|
10 |
FT804A.58L.021 |
操纵杆焊合-1 |
CONTROL ROD WELDMENT-1 |
1 |
2011-11_ |
|
11 |
FT804A.58L.133 |
右旋拉杆叉 |
RIGHT REVOLVING PULL ROD FORK |
2 |
2011-11_ |
|
12 |
FT804A.58L.134 |
拉杆 |
PULL ROD |
2 |
2011-11_ |
|
13 |
FT804A.58L.136 |
左旋拉杆叉 |
LEFT REVOLVING PULL ROD FORK |
2 |
2011-11_ |
|
2 |
GBT91-2X12-A0P |
开口销 |
PIN |
10 |
2011-11_ |
|
3 |
GBT97.1-6-A0P |
平垫圈 |
WASHER |
8 |
2011-11_ |
|
4 |
GBT882-B6X24-A0P |
销轴 |
PIN |
2 |
2011-11_ |
|
5 |
FT654.58.103 |
联接板 |
CONNECTING PLATE |
4 |
2011-11_ |
|
6 |
FT804A.58L.132 |
摇臂 |
ROCKER |
2 |
2011-11_ |
|
7 |
GBT882-B6X28-A0P |
销轴 |
PIN |
6 |
2011-11_ |
|
8 |
FT65.57.013 |
手柄头总成 |
HANDLE HEAD ASSEMBLY |
2 |
2004-01_ |
|
8 |
FT65.57.013 |
手柄头总成 |
HANDLE HEAD ASSEMBLY |
2 |
2004-01_ |
|
8 |
TB504.552-04 |
手柄头总成 |
HANDLE HEAD ASSEMBLY |
2 |
2010-10_ |
|
9 |
FT804A.58L.022 |
操纵杆焊合-2 |
CONTROL ROD WELDMENT-2 |
1 |
2011-11_ |

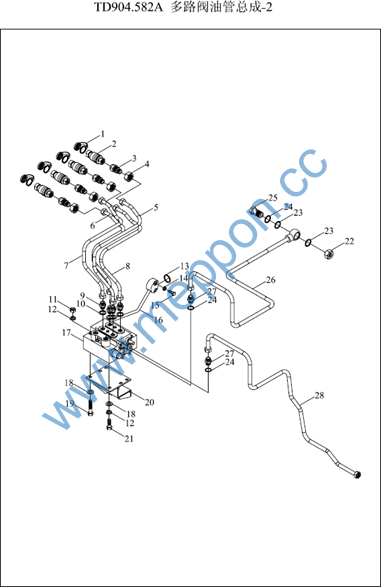

TD904.582A-2 58.2.2-多路阀油管总成-2 MULTI-WAY VALVE OIL PIPE ASSEMBLY-2
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT354.58A.103 |
防尘盖 |
DUSTPROOF COVER |
4 |
2011-11_ |
|
10 |
JBT982-18 |
组合密封垫圈 |
COMBINED SEAL GASKET |
4 |
2011-11_ |
|
10 |
JBT982-18 |
组合密封垫圈 |
COMBINED SEAL GASKET |
4 |
2011-11_ |
|
11 |
GBT6170-M10-A3L |
螺母 |
NUT |
3 |
2013-07_ |
|
12 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
4 |
2011-11_ |
|
13 |
GBT3452.1-12.5X2.65G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2011-11_ |
|
14 |
GBT93-8-A0P |
垫圈 |
WASHER |
2 |
2011-11_ |
|
15 |
GBT5783-M8X35-A2L |
六角头螺栓 |
BOLT |
2 |
2013-07_ |
|
16 |
FT904.58A.020 |
分配器进油管焊合 |
DISTRIBUTOR OIL INLET PIPE WELDMENT |
1 |
2011-11_ |
|
17 |
FT654.58.020 |
多路阀总成 |
MULTI-WAY VALVE ASSEMBLY |
1 |
2011-11_ |
|
18 |
GBT95-10-A0P |
垫圈 |
WASHER |
4 |
2011-11_ |
|
19 |
GBT5782-M10X70-A2L |
六角头螺栓 |
BOLT |
3 |
2011-11_ |
|
2 |
FT654.58.010a |
快换接头 |
QUICK CHANGING JOINT |
4 |
2011-11_ |
|
20 |
FT804.58L.012 |
多路阀安装支架焊合 |
MULTI-WAY VALVE INSTALLATION BRACKET |
1 |
2011-11_ |
|
21 |
GBT5783-M10X20-A3L |
螺栓 |
WELDMENT |
1 |
2011-11_ |
|
BOLT |
|||||
|
22 |
FT800.55.151 |
放油螺母 |
1 |
2011-11_ |
|
|
23 |
JBT982-20 |
组合密封垫圈 |
OIL DISCHARGING NUT |
2 |
2011-11_ |
|
24 |
JBT982-22 |
组合密封垫圈 |
COMBINED SEAL GASKET |
3 |
2011-11_ |
|
25 |
TD904.582-01 |
放油空心螺栓 |
COMBINED SEAL GASKET |
1 |
2007-10_ |
|
25 |
FT804.58.101 |
空心螺栓 |
OIL DISCHARGING HOLLOW BOLT |
1 |
2004-01_ |
|
HOLLOW BOLT |
|||||
|
26 |
FT804.58L.013 |
回油管焊合-1 |
1 |
2011-11_ |
|
|
27 |
FT654.58B.102 |
卡套式端直通接头体1 |
OIL RETURN PIPE WELDMENT-1 |
2 |
2011-11_ |
|
28 |
FT904.58A.010 |
多路阀进油管总成 |
STRAIGHT THREAD JOINT BODY 1 |
1 |
2011-11_ |
|
3 |
FT654.58B.101b |
油管接头 |
MULTI-WAY VALVE OIL INLET PIPE ASSEMBLY |
4 |
2011-11_ |
|
4 |
GBT6173-M27X2-A0P |
六角薄螺母 |
JOINT |
4 |
2011-11_ |
TD904.582A-2 58.2.2-多路阀油管总成-2(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
5 6 7 8 9 |
FT804.58.040 FT804.58.060 FT804.58.030 FT804.58.050 FT804.58.112 |
输出油管焊合-1-2输出油管焊合-2-1输出油管焊合-1-1输出油管焊合-2-2卡套式端直通接头体 |
OIL OUTLET PIPE WELDMENT-1-2 OIL OUTLET PIPE WELDMENT-2-1 OIL OUTLET PIPE WELDMENT-1-1 OIL OUTLET PIPE WELDMENT-2-2 STRAIGHT PIPE JOINT BODY |
1 1 1 1 4 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ 2011-11_ |

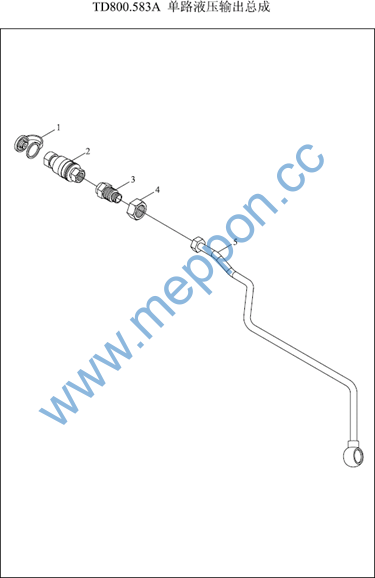

TD800.583A 58.3-单路液压输出总成 58.3-SINGLE-WAY HYDRAULIC OUTPUT ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 2 3 4 5 |
FT354.58A.103 FT354.58A.030 FT754.58.102 GBT6173-M27X2-A3L FT800.55.021 |
防尘盖 快换接头油管接头 六角薄螺母 液压输出管焊合 |
DUSTPROOF COVER QUICK CHANGING JOINT JOINT NUT HYDRAULIC OUTPUT PIPE WELDMENT |
1 1 1 1 1 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ 2011-11_ |
