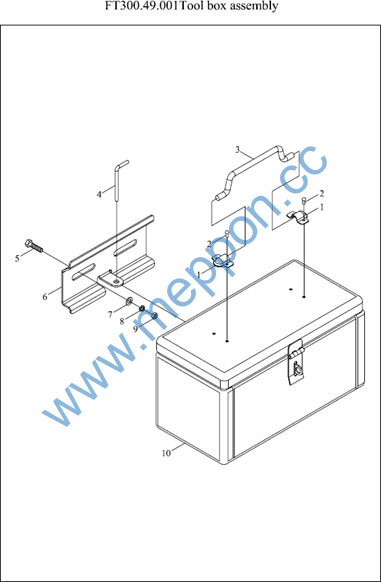

FT300.49.001 49-工具箱总成 49-TOOL BOX ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M12X25-A3L

六角头螺栓

BOLT

2

2011-11_

1

FT65.49.101

提手座

HANDLE SEAT

2

2003-11_

10

FT300.49.012

工具箱焊合总成

TOOL BOX WELDMENT ASSEMBLY

1

2003-11_

2

GBT 867-4X8

半圆头铆钉

RIVET

2

2003-11_

3

FT65.49.115

提手

HANDLE

1

2003-11_

4

FT65.49.102

插销

CROSS PIN

1

2003-11_

5

GBT5783-M12X35-A3L

螺栓

BOLT

2

2003-11_

5

GBT5783-M12X35-A3L

螺栓

BOLT

2

2003-11_

6

FT65.49.103

固定支板

FIXING SUPPORT PLATE

1

2003-11_

7

GBT97.1-12-A0P

平垫圈

WASHER

2

2003-11_

8

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

2

2003-11_

9

GBT6170-M12-A3L

螺母

NUT

2

2003-11_

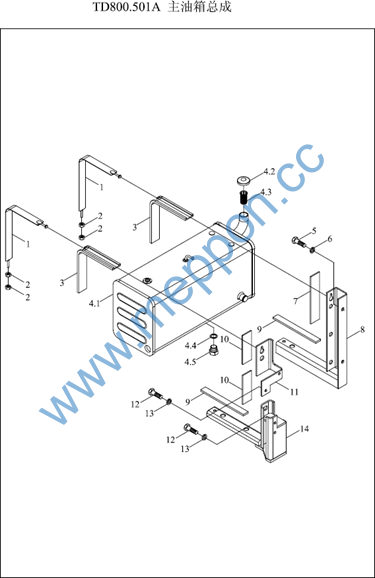

TD800.501A 50.1-主油箱总成 50.1-MAIN OIL TANK ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.50.051

主油箱轧带总成

MAIN OIL TANK BELT ASSEMBLY

2

2011-11_

1

FT800A.50.051

主油箱轧带总成

MAIN OIL TANK BELT ASSEMBLY

2

2011-11_

10

TD800.501-05

油箱短胶垫

OIL TANK SHORT RUBBER GASKET

2

2011-11_

11

TD800.501.3

上支架焊合

UPPER BRACKET WELDMENT

1

2011-11_

12

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

13

GBT5783-M10X20-A3L

螺栓

BOLT

4

2011-11_

14

TD800.501.4

下支架焊合

LOWER BRACKET WELDMENT

1

2011-11_

2

GBT6170-M10-A3L

螺母

NUT

4

2011-11_

3

FT800A.50.209

主油箱轧带橡胶条

MAIN OIL TANK BELT RUBBER STRIP

2

2011-11_

4

TD800.501A.1

主油箱总成

MAIN OIL TANK ASSEMBLY

1

2011-11_

4.1

TD800.501A.1.2

主油箱焊合

MAIN OIL TANK WELDMENT

1

2011-11_

4.2

TD800.501A.1.1

油箱盖

OIL TANK COVER

1

2011-11_

4.3

FT300.50.015

滤网总成

FILTER MESH ASSEMBLY

1

2011-11_

4.4

JBT982-16

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

4.5

FT65.50.226

放油螺塞

OIL DISCHARGING SCREW PLUG

1

2011-11_

5

GBT5783-M16X35-A3L

六角头螺栓

BOLT

2

2011-11_

6

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

2

2011-11_

7

FT800A.50.207

主油箱橡胶垫（一）

MAIN OIL TANK RUBBER WASHER (1)

1

2011-11_

8

TD800.501.2

主油箱前支架焊合

MAIN OIL TANK FRONT BRACKET WELDMENT

1

2011-11_

9

TD800.502-01

油箱胶垫

OIL TANK RUBBER WASHER

2

2011-11_








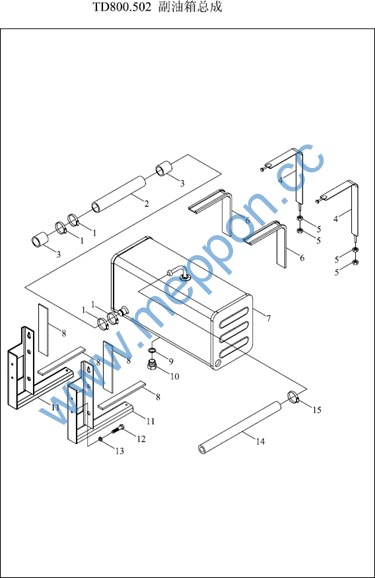

TD800.502 50.2-副油箱总成 50.2-AUXILIARY OIL TANK ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q67645

卡箍

CLAMP HOOP

4

2011-11_

10

FT65.50.226

放油螺塞

OIL DISCHARGING SCREW PLUG

1

2011-11_

11

TD800.502.2

副油箱支架焊合

AUXILIARY OIL TANK BRACKET WELDMENT

2

2011-11_

11

TD800.502.2

副油箱支架焊合

AUXILIARY OIL TANK BRACKET WELDMENT

2

2011-11_

12

GBT5783-M10X20-A3L

螺栓

BOLT

4

2011-11_

13

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

14

TD800.502-04

排气软管

EXHAUST HOSE

1



14

TD800.505-01

呼吸软管

BREATH HOSE

1

2006-05_

15

Q673B23

钢带型弹性环箍

CLAMP

2

2011-11_

2

TD800.502-03

主副油箱连接管

MAIN/ASSISTANT OIL TANK CONNECTING PIPE

1



2

TD800.502-03a

主副油箱连接管

MAIN/ASSISTANT OIL TANK CONNECTING PIPE

1

2006-04_

3

TD800.502-05

橡胶连接管

RUBBER CONNECTING PIPE

2

2011-11_

4

TD800.502.3

副油箱扎带焊合

AUXILIARY OIL TANK FASTENING TIE

2

2011-11_

5

GBT6170-M10-A3L

螺母

WELDMENT

4

2011-11_

6

TD800.502-02

副油箱扎带橡胶条

NUT

2

2011-11_


AUXILIARY OIL TANK FASTENING TIE RUBBER



7

TD800.502.1

副油箱焊合

STRIP

1

2011-11_

8

TD800.502-01

油箱胶垫



4

2011-11_

9

JBT982-16

组合密封垫圈

AUXILIARY OIL TANK WELDMENT

1

2011-11_


OIL TANK RUBBER WASHER




COMBINED SEAL GASKET










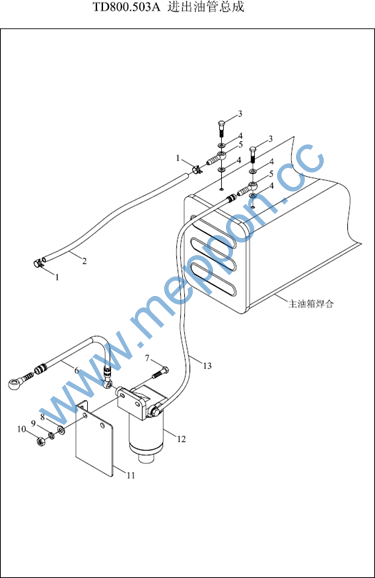

TD800.503A 50.3-进出油管总成 50.3-OIL INLET/OUTLET PIPE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q673B155

钢带型弹性环箍

CLAMP

2

2011-11_

10

GBT6170-M8-8-A2L

Ⅰ型六角螺母

I-TYPE HEXAGON NUT

2

2012-08_

11

TD800.503A-01

安装支架

INSTALLATION BRACKET

1

2011-11_

12

FT800A.50.061a

旋装柴滤器总成

FUEL FILTER ASSEMBLY

1

2011-11_

13

TD800.503A.1

出油管总成

OIL OUTLET PIPE ASSEMBLY

1

2011-11_

2

FT800A.50P.101a

回油管

OIL RETURN PIPE

1



2

FT700.50G.121

回油管

OIL RETURN PIPE

1

2011-11_

3

FT65.50.106

空心螺栓

HOLLOW BOLT

2

2011-11_

4

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

4

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

5

FT800A.50.162

油管接头

JOINT

1

2011-11_

6

FT800A.50P.081

输油管总成

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

7

GBT5783-M8X30-A2L

螺栓

BOLT

2

2011-11_

8

GBT97.1-8-A0P

平垫圈

WASHER

2

2011-11_

9

GBT93-8-A0P

垫圈

WASHER

2

2011-11_








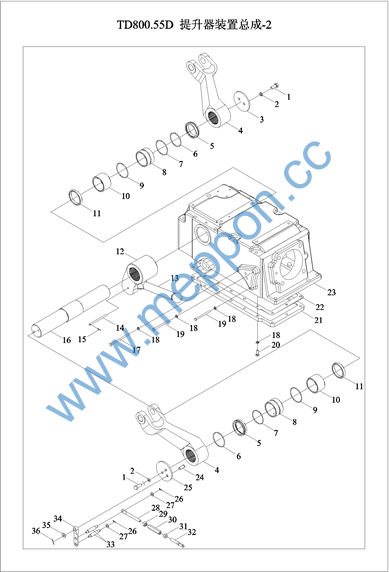

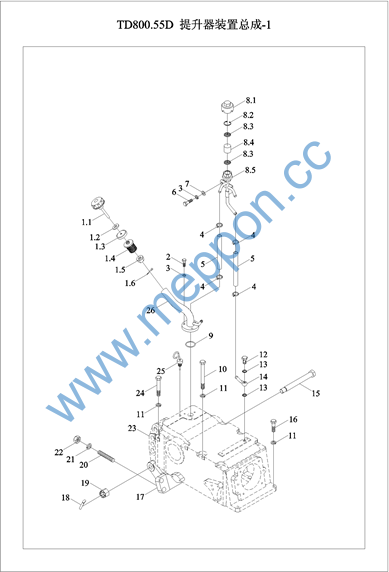

TD800.55D-1 55.1-提升器装置总成-1 LIFT INSTALLATION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0.1

TD-B02223

TD提升器维修包

RISER KIT

1

2014-01_

1

TA700.55A.7

螺塞总成

PLUG,THREADED

1

2013-05_

1

FT300.55B.029

油管塞总成

OIL PIPE PLUG ASSEMBLY

1

2011-11_

1.1

FT700.55D.029

手轮总成Ⅰ

HANDLE WHEEL ASSEMBLY I

1

2011-11_

1.2

JBT982-8

组合垫圈

COMBINED GASKET

1

2011-11_

1.3

FT700.55D.129

盖板

COVER PLATE

1

2011-11_

1.4

FT300.55B.165

张紧胶套

TENSION RUBBER SLEEVE

1

2011-11_

1.5

FT300.55B.166

调节螺母

ADJUSTING NUT

1

2011-11_

1.6

GBT91-3.2X16-A0P

开口销

PIN

1

2011-11_

10

TD800.55B-02

六角头螺栓

BOLT

8

2011-11_

11

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

12

2011-11_

12

FT700.55D.147

空心螺栓

HOLLOW BOLT

1

2011-11_

13

JBT982-8

组合垫圈

COMBINED GASKET

2

2011-11_

14

TD800.55B.4

呼吸连接钢管总成

BREATH CONNECT STEEL PIPE ASSEMBLY

1

2011-11_

15

FT800.55.120a

连接螺栓

CONNECTING BOLT

1

2011-11_

16

GBT5783-M12X40-A3L

螺栓

BOLT

2

2011-11_

17

FT800.55.119b

上拉杆支座

UPPER PULL ROD SUPPORT SEAT

1

2011-11_

18

GBT91-4X36-A0P

开口销

PIN

1

2011-11_

19

GBT6181-M20-A9L

螺母

NUT

1

2011-11_

19

GBT6181-M20-A9L

螺母

NUT

1

2011-11_

2

GBT5781-M8X30-A2L

六角头螺栓

BOLT

3

2011-11_

21

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

22

GBT6170-M16-A2L

螺母

NUT

4

2011-11_

23

TD800.55D.1

提升器总成

LIFTER ASSEMBLY

1

2011-11_

24

GBT899-GM16-M16X50-8.8-A3L

双头螺柱

8.8-A3L STUD

8

2011-11_








TD800.55D-1 55.1-提升器装置总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

25

TA700.55.4

油位标尺总成

DIPSTICK ASSEMBLY

1

2011-11_

25.1

2011.10.15

油位标尺总成

DIPSTICK ASSEMBLY

1

2011-11_

26

TD800.55B.2

加油管焊合

OIL FILLING PIPE WELDMENT

1

2011-11_

3

GBT93-8-A0P

垫圈

WASHER

4

2011-11_

4

Q67516

A型蜗杆传动式软管环箍

A-TYPE WORM TRANSMISSION HOSE CLAMP

4

2011-11_

5

TD800.55B.3-01

连接胶管

CONNECTING RUBBER PIPE

2

2011-11_

6

GBT5783-M8X16-A2L

螺栓

BOLT

1

2011-11_

7

GBT97.1-8-A0P

平垫圈

WASHER

1

2011-11_

8

TD800.55B.3

呼吸器总成



1

2011-11_

8.1

FT700.55D.136

呼吸器盖

RESPIRATOR COVER

1

2011-11_

8.1

FT700.55D.136

呼吸器盖

RESPIRATOR COVER

1

2011-11_

8.2

GBT893.1-26

孔用弹性挡圈

SNAP RING

1

2011-11_

8.3

FT650.40.167

座板

SEAT PLATE

2

2011-11_

8.4

FT700.55D.109

呼吸器滤芯

BREATH FILTER ELEMENT

1

2011-11_

8.5

TD800.55B.3.1

呼吸体焊合

BREATHER BODY WELDMENT

1

2011-11_

9

GBT3452.1-34.5X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_
