TD800.458 45.8-后连接装置总成 45.8–REAR CONNECTING EQUIPMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5782-M16X140-A2L

BOLT

4

2011-11_

10

GBT6170-M16-A3L

NUT M16-A3L

8

2011-11_

2

GBT93-16-A0P

SPRING WASHER

8

2011-11_

3

GBT96.1-16-A0P

WASHER

8

2011-11_

4

FT800A.45.112

SHOCK ABSORBER SEAT

8

2011-11_

5

FT800A.45.110

ABSORBER

8

2011-11_

6

FT800A.45.111

SPACER SPOOL

4

2011-11_

7

FT800A.45.014

FLOOR REAR CONNECTING WELDMENT

2

2011-11_

8

GBT5783-M16X90-8.8-A2L

BOLT

4



9

GBT97.1-16-A0P

WASHER

4

2011-11_

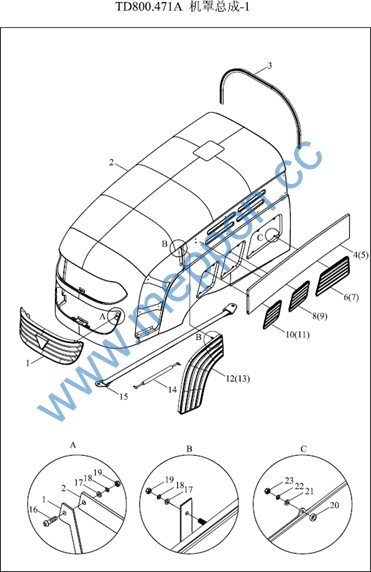

TD800.471A-1 47.1.1-机罩总成-1 BONNET ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TG1204.471A-05

BONNET FRONT MESH BOARD

1

2011-11_

10

FT800B.47.306

LEFT FRONT LOWER GRID

1

2011-11_

11

FT800B.47.307

RIGHT FRONT LOWER GRID

1

2011-11_

11

FT800B.47.307

RIGHT FRONT LOWER GRID

1

2011-11_

12

TG1204.471A-03

BONNET LEFT MESH PLATE

1

2011-11_

12

TG1204.471A-03

BONNET LEFT MESH PLATE

1

2011-11_

13

TG1204.471A-04

BONNET RIGHT MESH PLATE

1

2011-11_

14

TD800.471A-01

BONNET PNEUMATIC SPRING

2

2011-11_

15

TD800.471A-02

BONNET PULL WIRE

1

2011-11_

16

GBT5783-M6X16－A3L

BOLT

19

2011-11_

17

GBT97.1-6-A0P

WASHER

20

2011-11_

18

GBT93-6-A0P

SPRING WASHER

20

2011-11_

19

GBT6170-M6-A2L

NUT

20

2011-11_

2

TD800.471A.1

BONNET WELDMENT

1

2011-11_

20

TB400B.471-18

PAD BLOCK

24

2011-11_

21

GBT97.1-5-A0P

WASHER

40

2011-11_

22

GBT93-5-A0P

WASHER

40

2011-11_

23

GBT6170-M5-A2L

NUT

40

2011-11_

3

FT800B.47.242

BONNET SEAL STRIP

1

2011-11_

4

FT800B.47.304

LEFT REAR ADORN BOARD

1

2011-11_

5

FT800B.47.305

RIGHT REAR ADORN BOARD

1

2011-11_

6

FT800B.47.310

LEFT REAR LOWER GRID

1

2011-11_

7

FT800B.47.311

RIGHT REAR LOWER GRID

1

2011-11_

7

FT800B.47.311

RIGHT REAR LOWER GRID

1

2011-11_

8

FT800B.47.308

LEFT MIDDLE LOWER GRID

1

2011-11_








TD800.471A-1 47.1.1-机罩总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

9

FT800B.47.309

RIGHT MIDDLE LOWER GRID

1

2011-11_








TD800.471A-2 47.1.2-机罩总成-2 BONNET ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT91-5X32-A0P

PIN

2

2011-11_

10

GBT97.1-10-A0P

WASHER

3

2011-11_

11

GBT93-10-A0P

WASHER

3

2011-11_

12

GBT5783-M10X45-A3L

BOLT

2

2011-11_

13

GBT5783-M10X30-A3L

BOLT

1

2011-11_

14

GBT882-B16X90-A0P

PIN

2

2011-11_

15

GBT5783-M12X30-A3L

BOLT

3

2011-11_

16

GBT93-12-A0P

SPRING WASHER

3

2011-11_

17

GBT97.1-12-A0P

WASHER

3

2011-11_

18

GBT6170-M10-A3L

NUT

2

2011-11_

2

GBT97.1-16-A0P

WASHER

2

2011-11_

3

FT800B.47B.162

HINGE LOWER SEAT

1

2011-11_

4

GBT5782-M12X50-A3L

BOLT

3

2011-11_

5

FT800B.47.060a

BONNET LOW BRACKET WELDMENT

1

2011-11_

6

GBT97.1-12-A0P

WASHER

3

2011-11_

7

GBT93-12-A0P

SPRING WASHER

3

2011-11_

8

GBT6170-M12-A3L

NUT

3

2011-11_

9

FT800B.47B.161

HINGE UPPER SEAT

2

2011-11_








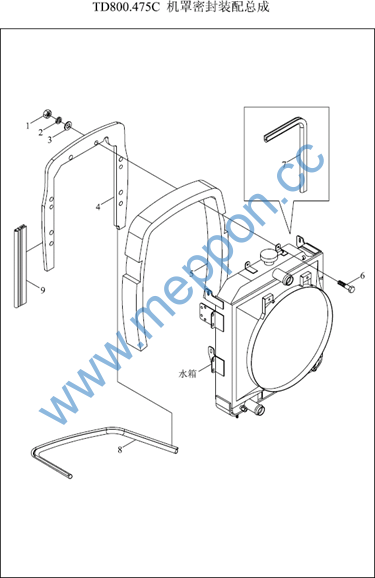

TD800.472A 47.2-机罩下围板总成 47.2-BONNET LOW PLATE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5



5

FT800B.47.241 GBT5783-M8X25-A2L GBT93-8-A0P GBT97.1-8-A0P TD800.472A.1



TD800.472A.1

BONNET LOW PLATE SEAL STRIP BOLT

WASHER WASHER

BONNET LOW PLATE WELDMENT BONNET LOW PLATE WELDMENT

1

4

4

4

1



1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_








TD800.472B 47.2-机罩下围板总成 47.2-BONNET LOW PLATE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

FT800B.47.241 TD800.472B.1 GBT5783-M8X25-A2L GBT97.1-8-A0P GBT93-8-A0P

BONNET LOW PLATE SEAL STRIP BONNET LOW PLATE WELDMENT BOLT

WASHER WASHER

1

1

6

6

6

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

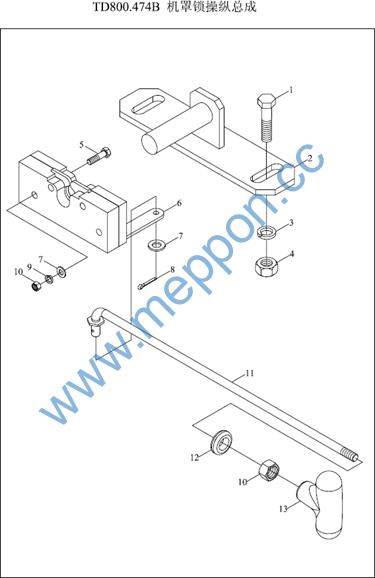

TD800.474B 47.4-机罩锁操纵总成 47.4-BONNET LOCK CONTROL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X30-A3L

BOLT

2

2011-11_

1

GBT5783-M8X30-A3L

BOLT

2

2009-04_

10

GBT6170-M6-A2L

NUT

5

2011-11_

11

TD800.474B.2

WELDED PUSHING ROD

1

2011-11_

12

TB450.473-02

RUBBER RING

1

2011-11_

13

FT800A.47.056

HANDLE ASSEMBLY

1

2011-11_

2

TD800.474B.1

BONNET LOCK COLUMN WELDMENT

1

2011-11_

2

TD800.474B.1

BONNET LOCK COLUMN WELDMENT

1

2011-11_

3

GBT93-10-A0P

WASHER

2

2011-11_

4

GBT97.1-8-A0P

WASHER

2

2009-04_

4

GBT97.1-10-A0P

WASHER

2

2011-11_

5

GBT5783-M6X35-8.8-A1L

BOLT

4



6

TH350.473-01

BONNET LOCK

1



6

TG1654.471A.2.1-01

BONNET LOCK

1

2011-02_

7

GBT97.1-6-A0P

WASHER

5

2011-11_

8

GBT91-1.6X26-A0P

PIN

1

2011-11_

9

GBT93-6-A0P

SPRING WASHER

4

2011-11_

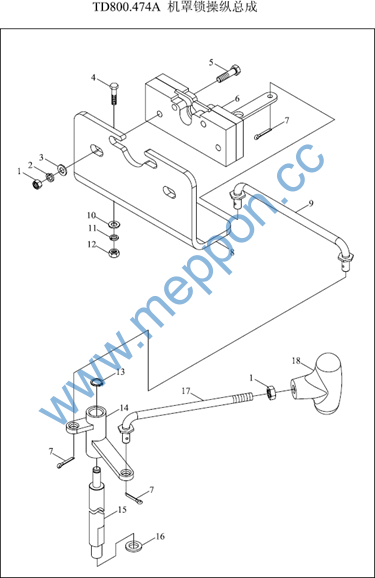

TD800.474A 47.4-机罩锁操纵总成 47.4-BONNET LOCK CONTROL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6170-M6-A2L

NUT

5

2011-11_

10

GBT97.1-8-A0P

WASHER

3

2011-11_

11

GBT93-8-A0P

WASHER

3

2011-11_

12

GBT6170-M8-A2L

NUT

3

2011-11_

13

GBT894.1-10

SNAP RING

1

2011-11_

14

FT800A.47.092

ROCKER WELDMENT

1

2011-11_

15

TD800.474A-01

RETAINER

1

2011-11_

16

GBT97.1-14-A0P

WASHER

1

2011-11_

17

FT800A.47.098

PULL ROD WELDMENT (2)

1

2011-11_

18

FT800A.47.056

HANDLE ASSEMBLY

1

2011-11_

2

GBT93-6-A0P

SPRING WASHER

4

2011-11_

3

GBT97.1-6-A0P

WASHER

7

2011-11_

4

GBT5782-M8X70-A2L

BOLT

3

2011-11_

5

GBT818-M6X40-A1L

SCREW

4

2011-11_

6

FT800.47.127

BONNET LOCK ASSEMBLY

1

2011-11_

7

GBT91-1.6X10-A0P

PIN

3



8

TD800.474A-02

BONNET LOCK BRACKET

1

2011-11_

9

FT800A.47.096

PULL ROD WELDMENT (1)

1

2011-11_
