TD800.451D-4 45.1-驾驶室总成-4 DRIVER’S CAB ASSEMBLY-4



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.45.040

LEFT DOOR ASSEMBLY

1

2011-11_

0

FT800A.45.045

RIGHT DOOR ASSEMBLY

1

2011-11_

1

FT800A.45.502

RIGHT DOOR FRAME SEAL STRIP

1

2011-11_

1

FT800A.45.402

LEFT DOORFRAME SEAL STRIP

1

2011-11_

10

FT65.45.404

GLASS MAT BLOCK (1)

2

2011-11_

11

FT65.45.407

DOOR WASHER (1)

2

2011-11_

12

FT65.45.403

DOOR GLASS WASHER (1)

2

2011-11_

13

FT65.45.408

DOOR WASHER (2)

2

2011-11_

14

FT65.45.406

DOOR GLASS WASHER (2)

2

2011-11_

15

FT65.45.405

GLASS MAT BLOCK (2)

2

2011-11_

16

GBT6170-M8-A2L

NUT

2

2011-11_

2

FT800A.45.041

LEFT DOOR WELD ASSEMBLY

1

2011-11_

2

FT800A.45.042

RIGHT DOOR FRAME WELD ASSEMBLY

1

2011-11_

3

FT65.45.504

DOOR HINGE

2

2011-11_

4

GBT619-32

Clip

2



5

FT65.45.421

PNEUMATIC SPRING HOUSING

2

2011-11_

6

GBT619-45

Clip

1

2010-05_

7

FT65.45.536

AIR SPRING

2

2011-11_

8

FT65.45.056

RIGHT DOOR LOCK ASSEMBLY

1

2011-11_

8

FT65.45.055

LEFT DOOR LOCK ASSEMBLY

1

2011-11_

9

FT800A.45.501

RIGHT DOOR GLASS

1

2011-11_

9

FT800A.45.401

LEFT DOOR GLASS

1

2011-11_

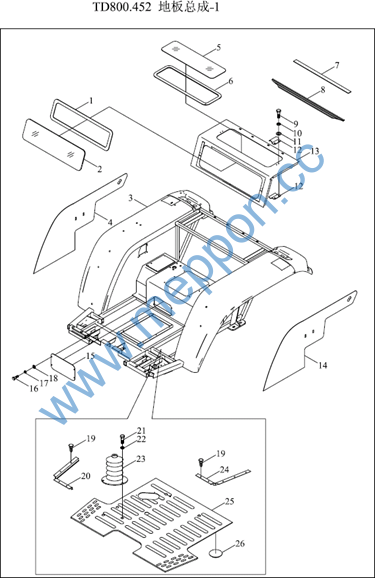

TD800.452-1 45.2.1-地板总成-1 FLOOR ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD800.452-01

REAR LOWER WINDOW GLASS

1

2011-11_

10

GBT96-5-A0P

WASHER

8

2011-11_

11

GBT97.1-5-A0P

WASHER

8

2011-11_

12

TD800.452-07

GLASS CLAMP

8

2011-11_

13

TD800.452-03a

REAR PLATE UPHOLSTERY

1

2011-11_

14

FT800A.45.307

LEFT MUD GUARD UPHOLSTERY

1

2011-11_

15

TD800.452-14

FRONT BLOCK PLATE

1

2011-02_

15

FT65.45C.351

FRONT BLOCK PLATE

1

2004-01_

16

GBT5783-M6x16-A2L

BOLT

6

2011-11_

17

GBT93-6-A0P

SPRING WASHER

6

2011-11_

18

GBT97.1-6-A0P

WASHER

6

2011-11_

19

TG1254.452-18

BIG ADORNING BUTTON

13

2011-11_

2

TD800.452-02

REAR LOWER WINDOW GLASS SEAL STRIP

1

2011-11_

20

FT800A.45.222

RIGHT FLOOR MAT PRESSURE STRIP

1

2011-11_

21

GBT5783-M5X12-A2L

BOLT

3

2011-11_

22

GBT96-5-A0P

WASHER

3

2011-11_

23

FT65.45.393

THROTTLE PEDAL SEAL SLEEVE

1

2011-11_

24

FT800A.45.444

LEFT FLOOR MAT PRESSURE PIECE

1

2011-11_

25

FT800A.45.301

FRONT FLOOR MAT

1

2011-11_

26

TD800.452-04

PLUG COVER

1

2011-11_

3

TD800.452Q.1

FLOOR WELDMENT ASSEMBLY

1

2011-11_

4

FT800A.45.308

RIGHT MUD GUARD UPHOLSTERY

1

2011-11_

5

TD800.452-06

REAR FLOOR UPPER GLASS

1

2011-11_

6

TD800.452-08

SEAL STRIP

1

2011-11_

7

FT65.45.801

REAR LOWER WINDOW RUBBER MAT

1

2011-11_








TD800.452-1 45.2.1-地板总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8

8

9

FT800A.45.999 FT800A.45.999 GBT5783-M5X30-A2L

REAR PLATE UPHOLSTERY PRESSURE STRIP REAR PLATE UPHOLSTERY PRESSURE STRIP BOLT

1

1

8

2011-11_

2011-11_

2011-11_

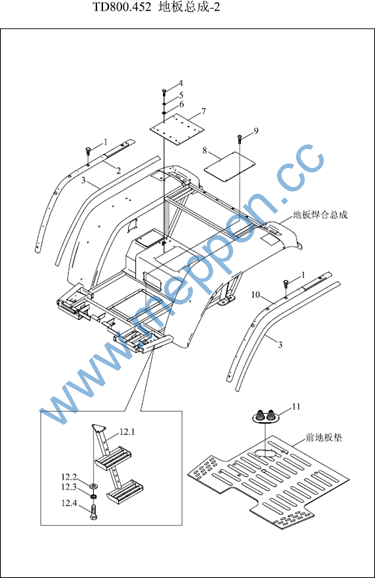

TD800.452-2 45.2.2-地板总成-2 FLOOR ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TG1254.452-18

BIG ADORNING BUTTON

13

2011-11_

10

FT65T.45.317

LEFT MUD GUARD UPHOLSTERY PRESSURE PIECE

1

2011-11_

11

TF1004.452-11

SEAL SLEEVE

1

2011-11_

12

TD800.452.2

PEDAL INSTALLATION ASSEMBLY

2

2011-11_

12.1

TD800.452.2.1

PEDAL WELDMENT

2

2011-11_

12.2

GBT97.1-10-AOP

WASHER

6

2011-11_

12.3

GBT93-10-AOP

WASHER

6

2011-11_

2

FT65T.45.318

RIGHT MUD GUARD UPHOLSTERY PRESSURE PIECE

1

2011-11_

3

TD800.452-10

LONG RUBBER WASHER

2

2011-11_

5

GBT93-6-A0P

SPRING WASHER

6

2011-11_

6

GBT97.1-6-A0P

WASHER

6

2011-11_

7

FT800A.45.031

SEAL PLATE WELDMENT

1

2011-11_

8

FT800A.45C.102

COVER PLATE

1

2011-11_

9

GBT68-M5X12-A2L

SCREW

4

2011-11_

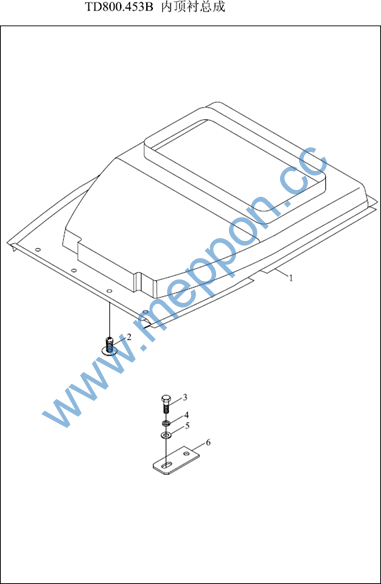

TD800.453B 45.3-内顶衬总成 45.3-INNER TOP LINER ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5



6

FT800A.45.952 QCT350-6

GBT5783-M8X20-A2L GBT93-8-A0P GBT97.1-8-A0P



FT800A.45.947

INNER TOP LINER ASSEMBLY PLASTIC SPLIT PIN

BOLT WASHER WASHER



AIR CONDITION REAR BRACKET CONDOLE EAR

1

22

7

7

7



2

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_








TD800.454A 45.4-操纵盖板总成 45.4-CONTROLLING COVER PLATE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

FT804A.45.097 FT65.45.101 GBT93-5-AOP GBT97.1-5-A0P FT804A.45.315

COVER PLATE COMBINATION FAN

WASHER WASHER

MIDDLE FLOOR MAT

1

4

4

4

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

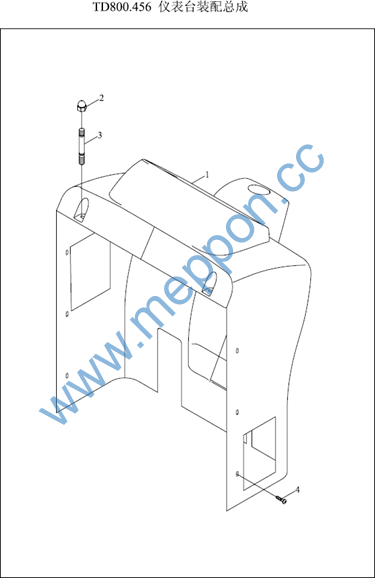

TD800.456 45.6-仪表台装配总成 45.6-DASHBOARD INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

4

FT800A.45.020 FT65.45.999

GBT901-M6X40-A1L GBT818-M6X20-4.8-A2L FT800A.45.900

DASHBOARD ASSEMBLY NUT

STUD SCREW

PLASTIC SCREW

1

2

2

6

6

2011-11_

2011-11_

2011-11_

2010-06_

2008-06_

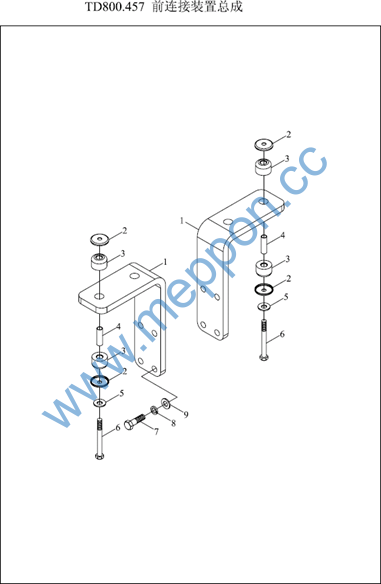

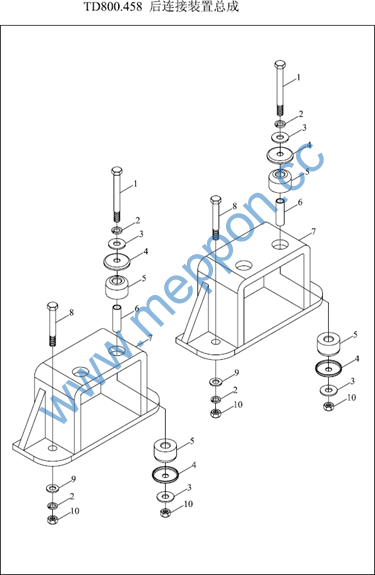

TD800.457 45.7-前连接装置总成 45.7-FRONT CONNECTION EQUIPMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5



6

7

8

9

TD800.457-01 FT800A.45.112 FT800A.45.110 FT800A.45.111 GBT96-16-A0P



GBT5782-M16X130-A2L GBT5783-M16X45 GBT97.1-16-A0P GBT93-16-A0P

FRONT CONNECTING PLATE SHOCK ABSORBER SEAT ABSORBER

SPACER SPOOL WASHER



BOLT BOLT WASHER

SPRING WASHER

2

8

8

4

4



4

8

8

8

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_



2011-11_

2011-11_
