No.

Part code and specification

Part name

Quantity

Remark

TD904.422A

Transfer case transmission shaft & sleeve cover assembly

1

1

GB/T 5783-M10×30-A3L

Bolt

2

2

TD904.422A.1

Transfer Case Transmission Shaft and Bonnet Installation

1

3

GB/T 93-10-A0P

Washer

6

4

GB/T 5783-M10×25-A3L

Bolt

4

5

GB/T 899-AM16-M16×1.5×50-A3L

Stud

2

6

GB/T 93-16-A0P

Washer

2

7

GB/T 6176-M16×1.5

Nut

2

No.

Part code and specification

Part name

Quantity

Remark

TD904.422A

Transfer case transmission shaft & sleeve cover assembly

1

TD904.422A.1

Transfer case transmission shaft and bonnet installation

1

1

FT804A.42.016

Outer sleeve weldment (2)

1

2

FT804.42.123b

Hub spline bush

3

3

GB/T879.1-3.5×40

Pin

3

4

FT804A.42.130a

Front transmission shaft

1

5

GB 3452.1-45.0×3.55G

O-ring

4

6

FT804.42.015

Inner sleeve weldment (2)

1

7

FT804A.42.129

Bracket

1

8

JB/T 7940.1-M10×1

Oil cup

1

9

GB/T 5783-M10×30-A3L

Bolt

8

10

GB/T 93-10-A0P

Washer

8

11

GB/T 9877.1-FB30×52×7D

Oil sealing

2

12

FT804.42.128

Rubber ring

1

13

GB/T 276-6006

Bearing

1

14

FT804.42.127

Bracket cover

1

15

FT804.42.014

Outer sleeve weldment (1)

1

16

FT804.42.125b

Middle transmission shaft

1

17

FT804.42.011

Outer sleeve weldment (1)

1

18

GB/T879.1-6×40

Pin

3

No.

Part code and specification

Part name

Quantity

Remark

TD904.423

Transfer Case Control Assembly

1

1

FT65.38.051

Pull/Push Handle

1

2

GB/T 6170-M10-A3L

Nut

2

3

FT804A.42.121

Guide Pipe

1

4

GB/T 93-10-A0P

Washer

2

5

GB/T 5783-M10×25-A3L

Bolt

2

6

FT804A.42.122

Control Rod

1

7

FT804.42.150

Pull Rod Front Fork

1

8

GB/T 882-B8×26

Pin Shaft

1

9

GB/T 879.2-5×30

Pin

1

10

GB/T 879.1-8×30

Pin

1

11

FT804A.42.012

Rocker Weldment

1

12

GB/T 97.1-8-A0P

Washer

1

13

GB/T 91-3.2×20-A0P

Pin

1

14

FT804.42B.160

Spacer sleeve

1

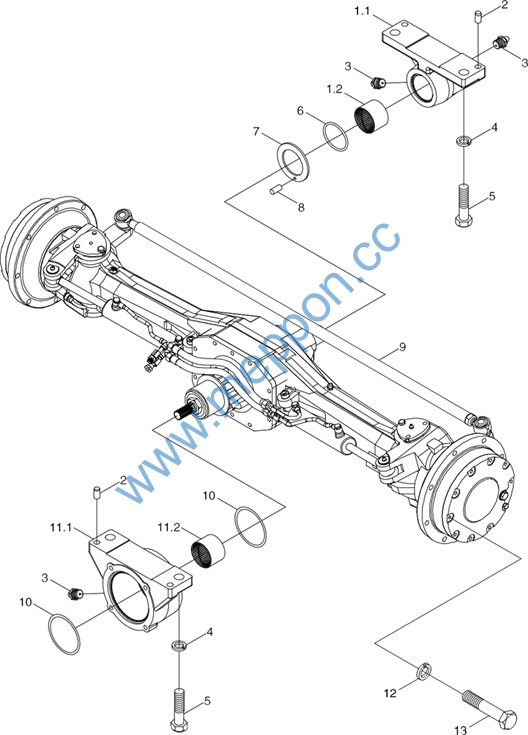

No.

Part code and specification

Part name

Quantity

Remark

TD904.311

Front axle assembly

1

1

TD804.311.2

Front driving axle front bracket assembly

1

1.1

FT804.31.108

Front driving axle front bracket

1

1.2

FT804.31.109

Front driving axle front bracket bush

1

2

GB/T 119.1-12h8×24-AOP

Pin

4

3

JB/T 7940.1-M10×1

Oil cup

3

4

GB/T 93-18-AOP

Washer

4

5

GB/T 5786-M18×1.5×60-A3L

Bolt

4

6

TD804.311-01-52.6×3.55G

O-ring

1

7

FT804.31.110

Washer

1

8

GB/T 119.1-5h8×12-AOP

Pin

1

9

TD904.311.1

Front driving axle assembly

1

10

TD804.311-02-99.6×5.3G

O-ring

2

11

TD804.311.1

Front driving axle rear bracket assembly

1

11.1

FT804.31.104

Front driving axle rear bracket

1

11.2

FT804.31.103

Front driving axle rear bracket bush

1

12

FT654.32.104

Washer

16

13

GB/T 5786-M16×1.5×40-10.9-A3L

Bolt

16

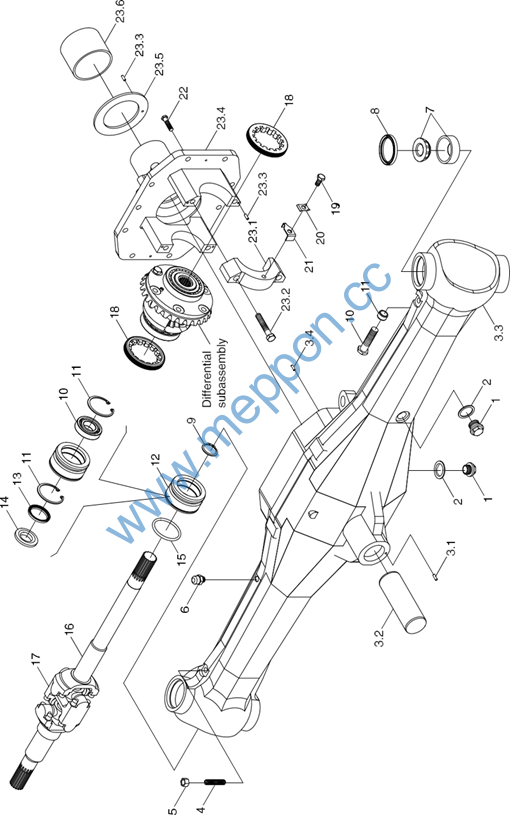

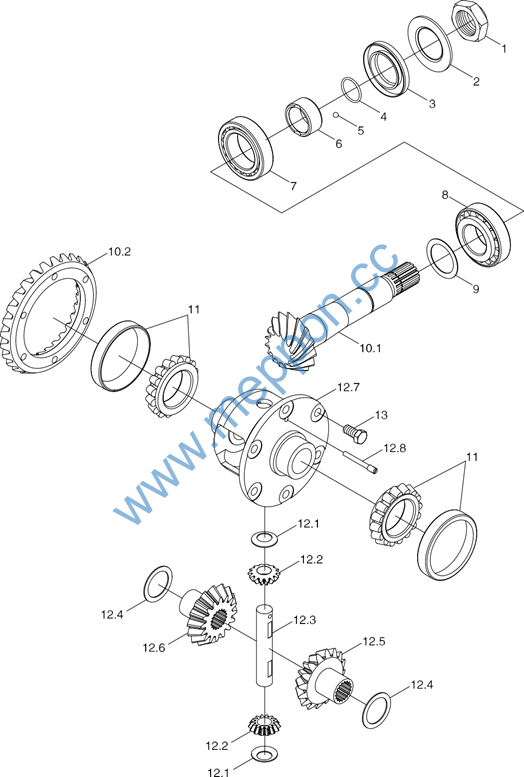

No.

Part code and specification

Part name

Quantity

Remark

TD904.311.1

Front axle assembly

1

1

10305114/14530

Screw plug M22×1.5

2

2

JB/T 982-22

Compound seal washer

2

3

20101010044

Axle housing combination

1

3.1

4966244/1.41.016

Location pin 5×15

1

3.2

11/5140017

Front axle swing pin

1

3.3

30101030013

Axle housing

1

3.4

4988170/1.40.021

Location pin 10×20

2

4

5100194/1.40.045

Limitation screw M12×1.25×55

2

5

14048814/10128

Nut M12×1.25

2

6

13413290/24628

Vent plug assembly

1

7

5119699/1.40.240

Main pin ball hinge pair

4

8

5121471/1.40.232

Seal ring

4

9

11068376/12245

Circlip 35

2

10

GB/T 276-6007 (35×62×14)

Bearing

2

11

11061076/12246

Circlip 62

4

12

4996755/1.40.038

Half axle bearing seat

2

13

5136002/1.41.538

Oil seal 40×62×10

2

14

4996762/1.41.537

Half axle oil seal circlip

2

15

4966231/1.40.023

O-ring 80×2.62

2

16

8A5142040/20

Right universal transmission shaft assembly

1

17

8A5142043/20

Left universal transmission shaft assembly

1

18

4996750/1.41.008

Adjusting nut M100×2×13

2

19

GB/T 5786-M10×1.25×20

Bolt

2

20

562659/1.41.032

Adjusting nut lock piece

2

21

4996751/1.41.015

Adjusting nut thrust piece

2

22

14274634/10357/04

Lock bolt M12×1.25×35

10

23

5144526/15

Bevel drive bracket unit

1

23.1

14275334/10357/04

Lock bolt M12×1.25×70

4

23.2

4996748/1.41.005

Bevel gear bracket cover

2

23.3

4966244/1.41.016

Location pin 5×15

5

23.4

5144525/15

Bevel gear bracket

1

23.5

5136119/15

Rear friction reduction ring

1

23.6

5136120/15

Bevel drive bracket bush

1

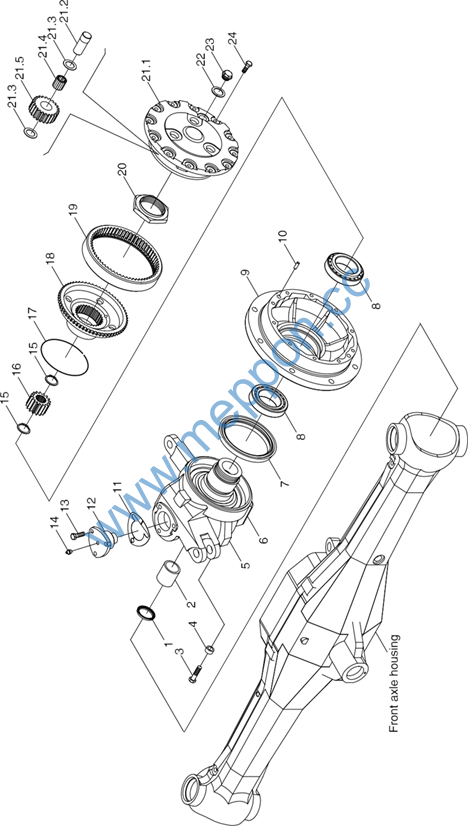

No.

Part code and specification

Part name

Quantity

Remark

TD904.311.1

Front driving axle assembly

1

1004.31.013

Left hub reducer assembly

1

1004.31.012

Right hub reducer assembly

1

1

8A5133799/1.41.539

Driving fork shaft oil seal 42×62×17

1

2

5104199/1.40.228

Steering knuckle bush

1

3

5126628-FT/1.40.211

Limitation bolt M12×1.25×42

1

4

5148495-FT/12

Spacing sleeve

On demand

5

12/5142002-FT

Left steering knuckle

1

6

12/5142001-FT

Right steering knuckle

1

7

8A5137109/12

Hub oil seal 165×190×17

1

8

5136951/12

Front hub bearing

2

9

8A5142013/13

Front driving hub

1

10

4985063/1.21.067

Location pin 12×20

2

11

5137457/12

Adjusting gasket 0.15mm

On demand

5137458/12

Adjusting gasket 0.20mm

On demand

5137460/12

Adjusting gasket 0.30mm

On demand

12

5137239/12

Steering knuckle king pin

2

13

14274534/10357/04

Bolt M12×1.25×30

6

14

GB/T 1152-M10×1

Oil cup

2

15

5140018/20

Circlip for shaft 30

2

16

5137107/20

Sun wheel

1

17

4997571/1.41.549

Gear ring circlip

1

18

5142047/20

Gear ring seat

1

19

5108749/1.41.543

Gear ring

1

20

5142020/12

Gear ring seat nut

1

21

5137724/20

Planet carrier combination

1

21.1

5137689/20

Planet carrier

1

21.2

4997509/1.41.547

Planet gear shaft

3

21.3

4997510/1.41.552

Planet gear bearing circlip

6

21.4

5101693/1.41.546

Needle bearing

3

21.5

5108747/1.41.545

Planetary gear

3

22

JB/T 982-22

Compound seal washer

1

23

10305114/14530

Screw plug M22×1.5

1

24

14233634/10357/04

Bolt M10×1.25×30

12
