LOVOL TD824-1F161F29K Tractor Parts Catalogue 09
TD904.311 Front Axle Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.311.1 |
Front driving axle assembly |
1 |
||
1 |
5143242/16 |
Lock nut |
1 |
|
2 |
4997451/1.41.143 |
Oil seal circlip |
1 |
|
3 |
5135294/16 |
Oil seal 45×75×10 |
1 |
|
4 |
GB/T 3452.1-31.5×1.8 |
O seal ring |
1 |
|
5 |
GB/T 308-6.35 |
Steel ball |
1 |
|
6 |
5142026/16 |
Small bevel gear shaft oil seal ring |
1 |
|
7 |
5133776/16 |
Rear bearing |
1 |
|
8 |
5143109/16 |
Front bearing |
1 |
|
9 |
5142032/16 |
Adjusting washer 3.0mm |
1 |
|
10.1 |
5142024/16 |
Small bevel gear shaft oil seal ring |
1 |
|
10.2 |
5111094/16 |
Big bevel gear |
1 |
|
11 |
GB/T 297-32012 (60×95×23) |
Bearing |
2 |
|
12 |
5117219/1.41 |
Differential assembly |
1 |
|
12.1 |
4987975/1.32.425 |
Planetary gear thrust washer |
2 |
|
12.2 |
885103870/1.32.415B |
Planetary gear |
2 |
|
12.3 |
5148935/1.32.416 |
Differential planetary gear shaft |
1 |
|
12.4 |
5148936/1.32.424 |
Half axle gear thrust washer 1.6mm |
2 |
|
5148937/1.32.424 |
Half axle gear thrust washer 1.8mm |
|||
5148938/1.32.424 |
Half axle gear thrust washer 1.7mm |
|||
12.5 |
885103868/1.32.413 |
Left half axle gear |
1 |
|
12.6 |
885110716/1.41.502 |
Right half axle gear |
1 |
|
12.7 |
4996747/1.41.402 |
Differential housing |
1 |
|
12.8 |
4987976/1.32.428 |
Pin |
1 |
|
13 |
14274434/10357/04 |
Bolt M12×1.25×25 |
8 |
89
Foton TD824-1F161F29K Wheeled Tractor
TD904.311 Front Axle Assembly-5
90
Foton TD824-1F161F29K Wheeled Tractor
TD904.311 Front Axle Assembly-5
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.311.1 |
Front driving axle assembly |
1 |
||
804.31B.017 |
Steering cylinder assembly |
1 |
||
1 |
11066870/12245 |
Circlip 20 |
2 |
|
2 |
5100730/1.63.589 |
Cylinder pin washer |
4 |
|
3 |
4987671/1.63.584 |
Cylinder pin |
2 |
|
4 |
GB/T 1152-M10×1 |
Oil cup |
4 |
|
5 |
Plastic tie rope |
2 |
||
6 |
1004 cylinder shield |
2 |
||
7 |
JK-3X |
Clamp (Φ50~Φ70) |
4 |
|
8 |
5142046/22 |
Steering cylinder |
2 |
|
9 |
JB/T 982-14 |
Compound seal washer |
8 |
|
10 |
10184314/14256 |
Hollow bolt M14 |
4 |
|
11 |
5142048/22 |
Cylinder pin assembly |
2 |
|
12 |
GB/T 7244-8 |
Washer |
2 |
|
13 |
GB/T 5783-M8×16 |
Bolt |
2 |
|
14 |
5142223/22 |
Cylinder pin spacing sleeve |
2 |
|
15 |
804.31.022 |
Left cylinder right steering transfer pipe assembly |
1 |
|
16 |
804.31.021 |
Left cylinder left steering transfer pipe assembly |
1 |
|
17 |
5145419A/22 |
Cylinder hose (D=8×470) |
2 |
|
18 |
1004.31.022 |
Right cylinder left steering transfer pipe assembly |
1 |
|
19 |
1004.31.023 |
Right cylinder right steering transfer pipe assembly |
1 |
|
20 |
GB/T 5783-M6×16 |
Bolt |
2 |
|
21 |
GB/T 7244-6 |
Spring washer |
2 |
|
22 |
4999554/1.63.583 |
Oil pipe clip |
2 |
|
23 |
5138294/1.63.22 |
Support plate |
2 |
|
5142233 |
Steering tie rod assembly |
1 |
||
24 |
12576014/10125 |
Lock nut M18×1.5 |
2 |
|
25 |
5117314/1.40.516B |
Ball joint assembly |
1 |
|
26 |
10726914/10114 |
Lock thin nut M24×1.5 |
1 |
|
27 |
5142234/14 |
Steering tie rod unit |
1 |
91
Foton TD824-1F161F29K Wheeled Tractor

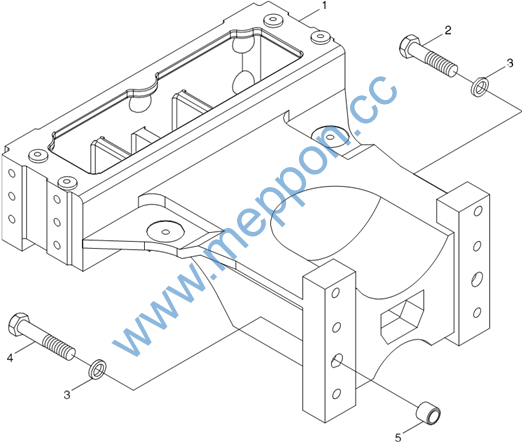

TD804.312 Bracket Assembly
92
Foton TD824-1F161F29K Wheeled Tractor
TD804.312 Bracket Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TD804.312 TD804.312-01 TD800.312-02 TB604.312-04 TD800.312A-02
FT800.31.120 |
Bracket assembly Bracket Bolt M16 × 95-10.9-A2L Washer Bolt M16 × 105-10.9-A2L
Bracket Connecting Sleeve |
1 1 6 8 2
2 |
93
Foton TD824-1F161F29K Wheeled Tractor

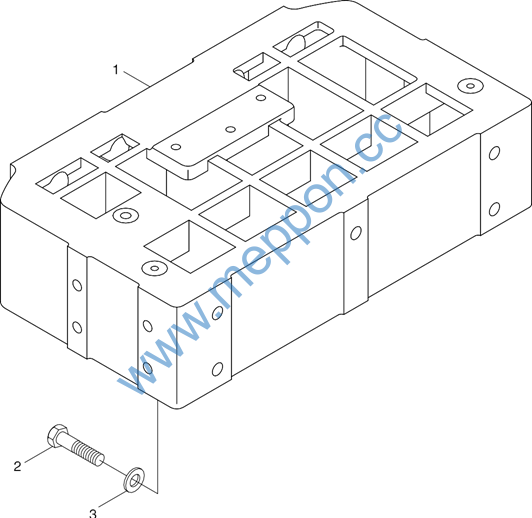

TD800.313A Bracket Front Body Assembly
94
Foton TD824-1F161F29K Wheeled Tractor
TD800.313A Bracket Front Body Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TD800.313A TD800.313A-01 GB/T 5783-M16×55-10.9-A3L FT800.34.108 |
Bracket front body assembly Bracket front body Bolt Flat washer |
1 1 5 5 |
95
Foton TD824-1F161F29K Wheeled Tractor

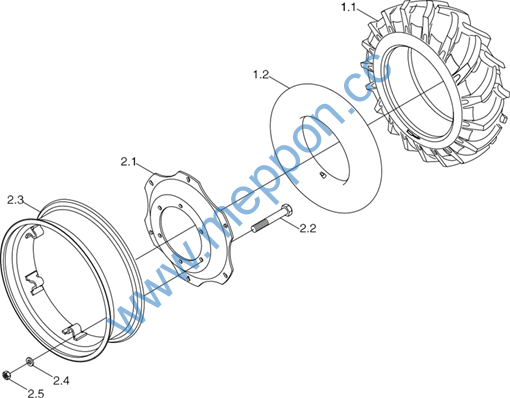

FT804B.32F.001 Front Drive Wheel Assembly
96
Foton TD824-1F161F29K Wheeled Tractor
FT804B.32F.001 Front Drive Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT804B.32F.001 |
Front drive wheel assembly |
1 |
||
1 |
TE324.34.1.2 |
Inner tube/tyre assembly 11.2-24 |
1 |
|
1.1 |
GB/T 2979-11.2-24-6PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2 |
GB/T 2979-11.2-24-R |
Inner tube of tractor drive wheel |
1 |
|
2 |
FT804B.32F.010 |
Rim spoke combination |
1 |
|
2.1 |
FT804.32.103 |
Spoke |
1 |
|
2.2 |
GB/T 5785-M14×1.5×70-10.9-A3L |
Bolt |
6 |
|
2.3 |
FT804.32F.011 |
W10×Φ24 rim welded assembly |
1 |
|
2.4 |
FT804.32.104 |
Washer |
6 |
|
2.5 |
GB/T 6171-M14×1.5-10-A3L |
Nut |
6 |
97
Foton TD824-1F161F29K Wheeled Tractor
FT804.34F.001 Rear Drive Wheel Assembly
98
Foton TD824-1F161F29K Wheeled Tractor
FT804.34F.001 Rear Drive Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT804.34F.001 |
Rear drive wheel assembly |
1 |
||
1 |
TD804.34B.2 |
Inner tube/tyre assembly 16.9-34 |
1 |
|
1.1 |
GB/T 2979-16.9-34-10PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2 |
GB/T 2979-16.9-34-R |
Inner tube of tractor drive wheel |
1 |
|
2 |
FT804.34F.011 |
Rim spoke assembly |
1 |
|
2.1 |
FT804.34.107 |
Rim bolt |
8 |
|
2.2 |
FT804.34.013a |
W15L spoke welding |
1 |
|
2.3 |
FT804.34F.012 |
Rim welding |
1 |
|
2.4 |
FT800.34.108 |
Plain washer |
8 |
|
2.5 |
GB/T 6171-M16×1.5-10-A3L |
Hexagon nut, type 1 |
8 |
99
Foton TD824-1F161F29K Wheeled Tractor

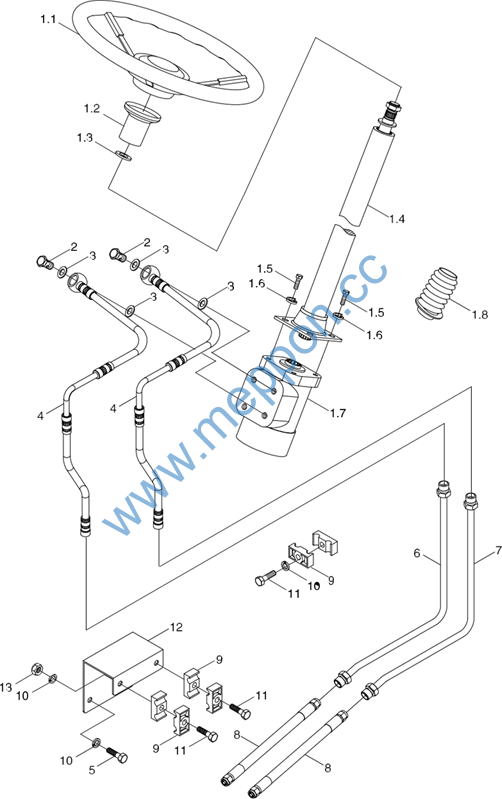

FT804A.40A.001 Fully Hydraulic Steering Assembly-1
