LOVOL TD824-1F161F29K Tractor Parts Catalogue 07
TD800.412G PTO Gear Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.412G |
PTO gear assembly |
1 |
||
1 |
FT800A.41.139 |
PTO transmission shaft locking nut |
1 |
|
2 |
FT800A.41.140 |
PTO transmission shaft front retainer ring |
1 |
|
3 |
GB/T 276-6210 |
Bearing |
1 |
|
4 |
FT800A.41.141 |
PTO transmission shaft middle retainer ring |
1 |
|
5 |
TD800.412F-03 |
PTO low-gear driven gear |
1 |
|
6 |
Q/LWZ B120 |
Roller bearing K68×78×34 |
2 |
|
7 |
FT800A.41.113 |
PTO high-gear sliding sleeve |
2 |
|
8 |
FT800.37.118 |
Ⅲ – Ⅳ gear joggle sleeve |
1 |
|
9 |
FT800.37.119 |
Ⅲ – Ⅳ joggle gear seat |
1 |
|
10 |
TD800.412G-02 |
PTO high-gear driven gear |
1 |
|
11 |
FT800A.41.142 |
PTO transmission shaft rear retainer ring |
1 |
|
12 |
GB/T 899-AM14-M14×1.5×65-A3L |
Stud |
4 |
|
13 |
GB/T 93-14-A0P |
Washer |
4 |
|
14 |
GB/T 6176-M14×1.5-A3L |
Nut |
4 |
|
15 |
GB/T 297-30212 |
Bearing |
2 |
|
16 |
FT800A.41.124 |
PTO shaft rear bearing seat |
1 |
|
17 |
GB/T 9877.1-FB70×90×10D |
Oil sealing |
2 |
|
18 |
FT800A.41.125 |
PTO transmission shaft rear oil sealing seat |
1 |
|
19 |
FT800A.41.108 |
PTO transmission shaft |
1 |
65
Foton TD824-1F161F29K Wheeled Tractor
TD800.413 PTO Control Mechanism Assembly
66
Foton TD824-1F161F29K Wheeled Tractor
TD800.413 PTO Control Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.413 |
PTO Control Mechanism Assembly |
1 |
||
1 |
FT800A.41.013 |
PTO Control Rod Assembly |
1 |
|
1.1 |
FT65.38.051 |
Pull/Push Handle |
1 |
|
1.2 |
GB/T 6170-M10-A2L |
Nut |
2 |
|
1.3 |
FT800A.41.147 |
PTO Control Rod |
1 |
|
1.4 |
FT804.42.150 |
Pull Rod Front Fork |
1 |
|
1.5 |
GB/T 97.1-8-AOP |
Washer |
1 |
|
1.6 |
GB/T 91-3×20-AOP |
Cotter Pin |
1 |
|
1.7 |
GB/T 882-B8×26-A2L |
Pin Shaft |
1 |
|
1.8 |
FT800A.41.146 |
PTO Rocker |
1 |
|
2 |
GB/T 818-M6×16-A2L |
Screw |
2 |
|
3 |
FT800A.41.173 |
Seal Liner Seat |
1 |
|
4 |
GB/T 93-6-A0P |
Washer |
2 |
|
5 |
GB/T 6170-M6-A2L |
Nut |
2 |
|
6 |
TD800.413-01 |
Limit screw |
1 |
|
7 |
GB/T 6172.1-M12-A3L |
Nut |
1 |
|
8 |
GB/T 3452.1-17×1.8G |
Rubber O-ring |
1 |
|
9 |
FT800.41.011 |
PTO Control Inner Rocker Assembly |
1 |
|
10 |
GB/T 879.1-8×35 |
Pin |
1 |
|
11 |
GB/T 879.1-5×35 |
Pin |
1 |
|
12 |
FT800.37.194 |
Locking Screw |
2 |
|
13 |
FT800A.41.241 |
Hot-Dipped Galvanized Sheet Steel |
2 |
|
14 |
FT800.41.240 |
Fork Head |
1 |
|
15 |
GB/T 6172.1-M16-A3L |
Nut |
1 |
|
16 |
GB/T 71-M12×35-A3L |
Screw |
1 |
|
17 |
GB/T 308-10-G100-b |
Steel ball |
1 |
|
18 |
FT800.37.139 |
Spring |
1 |
|
19 |
FT800.41.106a |
Fork Shaft |
1 |
|
20 |
FT800A.41.114 |
PTO High and Low Gear Fork |
1 |
67
Foton TD824-1F161F29K Wheeled Tractor

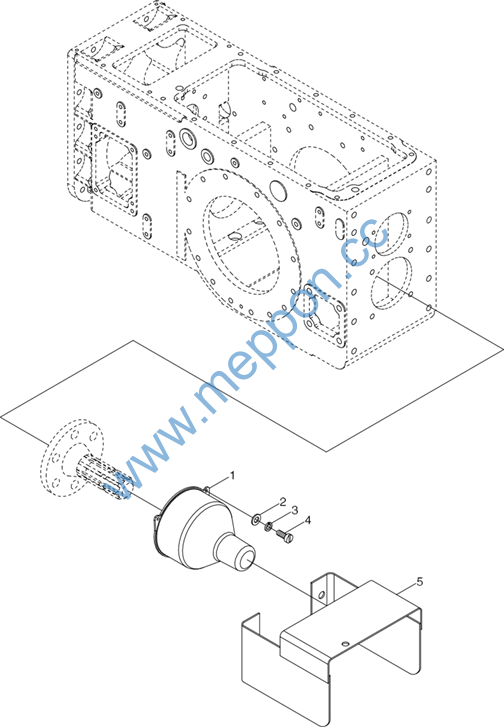

TD800.414B PTO Bonnet Assembly
68
Foton TD824-1F161F29K Wheeled Tractor
TD800.414B PTO Bonnet Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TD800.414B TD800.411A-02 GB/T 97.1-5-A0P GB/T 93-5-A0P GB/T 65-M5×12-A2L
FT800A.41.016 |
PTO Bonnet Assembly PTO Shaft Head Bonnet Flat Washer Washer Slotted Cheese Head Screw
Sleeve Bonnet Weldment |
1 1 2 2 2
1 |
69
Foton TD824-1F161F29K Wheeled Tractor

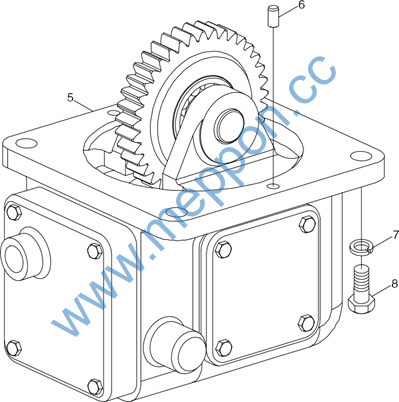

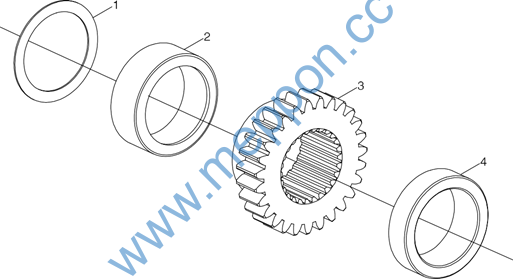

TD904.421B Transfer Case Assembly-1
70
Foton TD824-1F161F29K Wheeled Tractor
TD904.421B Transfer Case Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.421B |
Transfer case assembly |
1 |
||
1 |
FT804.42.109 |
Adjusting washer |
On demand |
|
2 |
FT804.42.101 |
Spacer sleeve |
1 |
|
3 |
FT804.42.102a |
Driving gear of transfer case |
1 |
|
4 |
FT804.42.111 |
Spacer sleeve |
1 |
|
5 |
TD904.421A.1 |
Transfer case housing assembly |
1 |
|
6 |
GB/T 119.1-8h8×16-A0P |
Pin |
2 |
|
7 |
GB/T 93-14-A0P |
Washer |
4 |
|
8 |
GB/T 5781-M14×35-A3L |
Bolt |
4 |
71
Foton TD824-1F161F29K Wheeled Tractor
TD904.421B Transfer Case Assembly-2
72
Foton TD824-1F161F29K Wheeled Tractor
TD904.421B Transfer Case Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.421B |
Transfer case assembly |
1 |
||
TD904.421A.1 |
Transfer case housing assembly |
1 |
||
1 |
GB/T 75-M10×25-A3L |
Screw |
1 |
|
2 |
GB/T 6170-M10-A3L |
Nut |
1 |
|
3 |
FT804.42.104a |
Middle gear shaft |
1 |
|
4 |
GB/T 283-NJ305E |
Bearing |
2 |
|
5 |
GB/T 893.1-62 |
Circlip |
1 |
|
6 |
FT804.42B.161a |
Washer |
1 |
|
7 |
FT804.42.103a |
Middle gear |
1 |
|
8 |
FT804.42.105a |
Transfer case housing |
1 |
|
9 |
JB/T 982-18 |
Washer |
1 |
|
10 |
FT804.42.110 |
Plug |
1 |
|
11 |
FT804.42.118b |
Transfer gear shaft |
1 |
|
12 |
FT804.42.117c |
Gear bush |
1 |
|
13 |
FT804.42.119a |
Spacer sleeve |
1 |
|
14 |
FT804.42.116a |
Driven gear of transfer case |
1 |
|
15 |
FT804.42.114 |
Engaging bush |
1 |
|
16 |
FT804.42.115 |
Engaging gear seat |
1 |
|
17 |
GB/T 894.1-38 |
Circlip |
1 |
|
18 |
GB/T 276-6306 |
Bearing |
1 |
|
19 |
FT804.42.112 |
Rear cover |
1 |
|
20 |
GB/T 93-10-A0P |
Washer |
4 |
|
21 |
GB/T 5783-M10×25-A3L |
Bolt |
4 |
73
Foton TD824-1F161F29K Wheeled Tractor

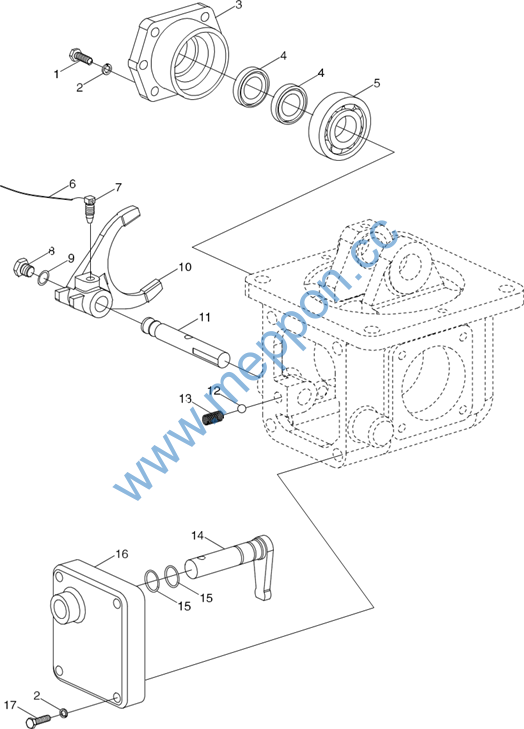

TD904.421B Transfer Case Assembly-3
74
Foton TD824-1F161F29K Wheeled Tractor
TD904.421B Transfer Case Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD904.421B |
Transfer case assembly |
1 |
||
TD904.421A.1 |
Transfer case housing assembly |
1 |
||
1 |
GB/T 5783-M10×30-A3L |
Screw |
4 |
|
2 |
GB/T 93-10-A0P |
Washer |
8 |
|
3 |
FT804.42.120 |
Front cover |
1 |
|
4 |
GB/T 9877.1-FB30×52×7D |
Oil seal |
2 |
|
5 |
GB/T 276-6306 |
Bearing |
1 |
|
6 |
TD904.421.2-04 |
Locking steel wire |
1 |
|
7 |
FT800.37.194 |
Fasten screw |
1 |
|
8 |
FT804.42.110 |
Plug |
1 |
|
9 |
JB/T 982-18 |
Washer |
1 |
|
10 |
FT804.42.107 |
Release shift fork |
1 |
|
11 |
FT804.42.108 |
Shift fork shaft |
1 |
|
12 |
GB/T 308-10-G100-b |
Steel ball |
1 |
|
13 |
FT804.42.151 |
Spring |
1 |
|
14 |
FT804.42.010 |
Rotating shaft weldment |
1 |
|
15 |
GB/T 3452.1-17.0×1.80G |
O-ring |
2 |
|
16 |
FT804.42.106 |
Side cover |
1 |
|
17 |
GB/T 5783-M10×45-A3L |
Bolt |
4 |
75
Foton TD824-1F161F29K Wheeled Tractor

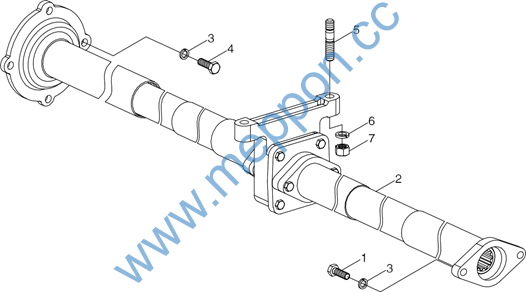

TD904.422A Transfer Case Transmission Shaft & Sleeve Cover Assembly-1
76
