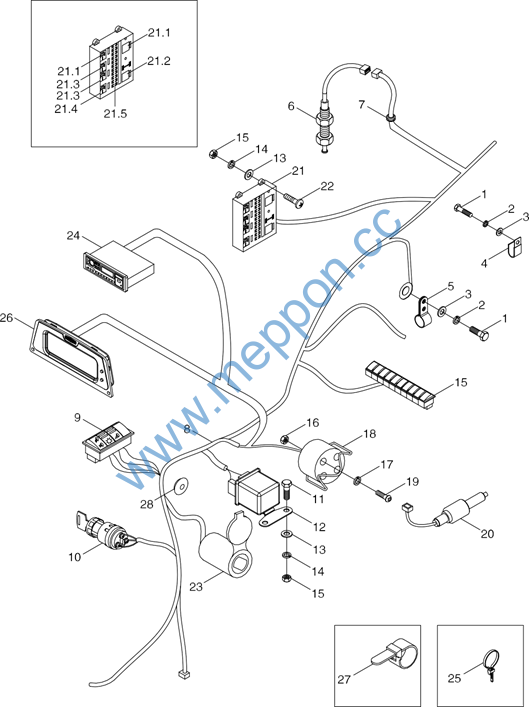

TS06482010000K Harness Installation Assembly, Body
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06482010000K |
Harness Installation Assembly, Body |
1 |
||
1 |
GBT5783-M8X25-8.8-A2L |
Hexagon Head Bolt |
5 |
|
2 |
GBT93-8-A0P |
Standard Spring Washer |
5 |
|
3 |
GBT97.1-8-A0P |
Plain Washer |
5 |
|
4 |
FT65.48.095 |
Harness Fastener (1) |
2 |
|
5 |
TS06482010005 |
Harness Fastener |
3 |
|
6 |
FT800A.48L.088 |
Parking Brake Switch |
1 |
|
7 |
FT65.48.094 |
Wire Through Ring (2) |
2 |
|
8 |
TS06482010013 |
Body Harness Assembly |
1 |
|
9 |
TS04482010006 |
Two-Function Rocker Switch |
1 |
|
10 |
TB550.482.3 |
Ignition Lock |
1 |
|
11 |
GBT5783-M6X16-8.8-A2L |
Hexagon Head Bolt |
4 |
|
12 |
FT300.48.055 |
Starting Relay |
1 |
|
13 |
GBT97.1-6-A0P |
Plain Washer |
8 |
|
14 |
GBT93-6-A0P |
Standard Spring Washer |
8 |
|
15 |
TS06482010002 |
Control Panel Rocker Switch |
1 |
|
16 |
GBT6170-M4-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
17 |
GBT93-4-A0P |
Standard Spring Washer |
2 |
|
18 |
FT800.48B.068 |
Work Lamp Socket |
1 |
|
19 |
GBT68-M4X35-4.8-A1L |
Slotted Countersunk Head Screw |
2 |
|
20 |
TB550.484.2 |
Brake Lamp Switch |
2 |
|
21 |
TS06482010010K |
Central Electric Box Assembly |
1 |
|
21.1 |
FT300.48D.2.2.2 |
Preheating Relay |
2 |
|
21.2 |
GE20H16Y.34.6-04 |
Main Power Source Relay |
1 |
|
21.3 |
TS06482010004 |
Double-Contact Relay |
2 |
|
21.4 |
FT300.48.513 |
Electronic Flasher |
1 |
|
21.5 |
TD9600000500 |
Common Type Fuse (5A) |
7 |
|
21.5 |
TD9600000700 |
Common Type Fuse (10A) |
5 |
|
21.5 |
TD9600000800 |
Common Type Fuse (15A) |
4 |
|
21.5 |
TD9600000900 |
Common Type Fuse (20A) |
2 |
|
21.5 |
TD9600001100 |
Common Type Fuse (25A) |
1 |
|
22 |
GBT818-M6X25-4.8-A2L |
Cross Recessed Pan Head Screw |
4 |
209
Lovol TC5A904-090K Wheeled Tractor
TS06482010000K Harness Installation Assembly, Body(extension)
210
Lovol TC5A904-090K Wheeled Tractor
TS06482010000K Harness Installation Assembly, Body(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
23 24 25 26 27
28 |
TS06482010006 TS04482010010 Q67405100 TS06482010009 3203505D9-L
TS06482010011 |
Antenna Mp3 Player Plastic Fastening Strap Electronic Clock Tie Band
Wire Through Ring |
1 1 2 1 12
1 |
211
Lovol TC5A904-090K Wheeled Tractor

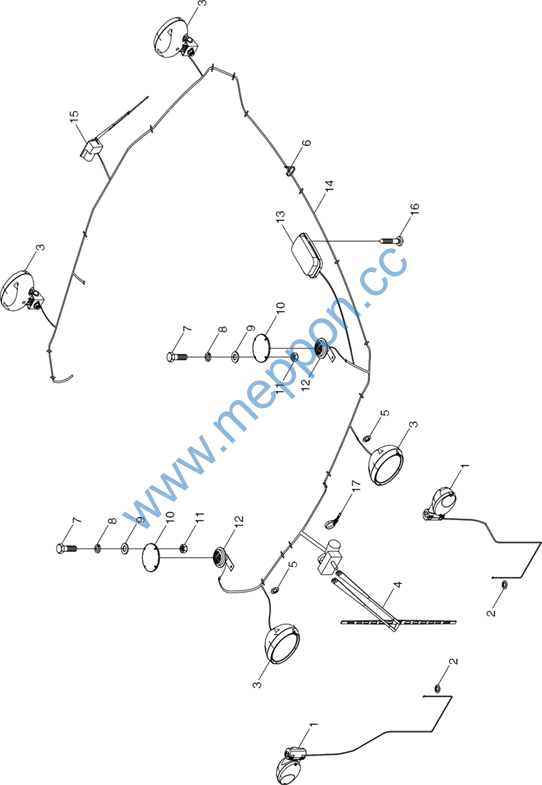

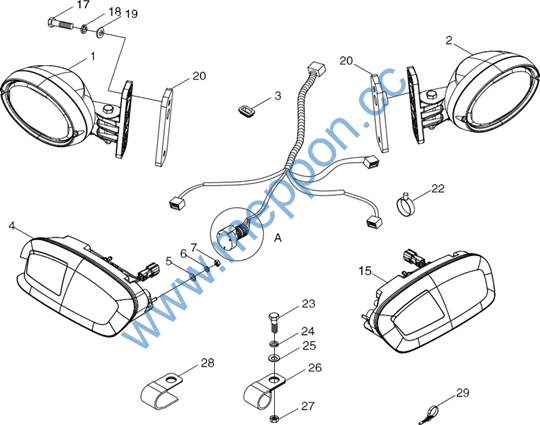

TC05483040000K Harness Installation Assembly, Front Lamp(001)
212
Lovol TC5A904-090K Wheeled Tractor
TC05483040000K Harness Installation Assembly, Front Lamp(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC05483040000K |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
TC05483040003K |
Right Headlamp Assembly |
1 |
|
2 |
GBT6170-M8-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
3 |
GBT5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
1 |
|
4 |
GBT93-8-A3L |
Standard Spring Washer |
1 |
|
5 |
GBT97.1-8-A3L |
Plain Washer |
1 |
|
6 |
FT65.48.340 |
Horn Assembly |
1 |
|
7 |
TC05483040002K |
Left Headlamp Assembly |
1 |
|
8 |
GBT97.1-6-A3L |
Plain Washer |
8 |
|
9 |
GBT93-6-A3L |
Standard Spring Washer |
8 |
|
10 |
GBT5783-M6X16-8.8-A2L |
Hexagon Head Bolt |
4 |
|
11 |
TS04483010007 |
Washer |
2 |
|
12 |
FT65.48.095 |
Harness Fastener (1) |
10 |
|
13 |
GBT6170-M6-8-A2L |
Hexagon Nut, Style 1 |
4 |
|
14 |
TC05483040001K |
Headlamp Harnss Assembly |
1 |
|
15 |
3203505D9-L |
Lock Cable Ties |
3 |
|
16 |
TS06483010004 |
Decorative Strip |
1 |
|
17 |
GBT97.1-5-A3L |
Plain Washer |
2 |
|
18 |
GBT93-5-A3L |
Standard Spring Washer |
2 |
|
19 |
GBT6170-M5-8-A2L |
Hexagon Nut, Style 1 |
2 |
213
Lovol TC5A904-090K Wheeled Tractor

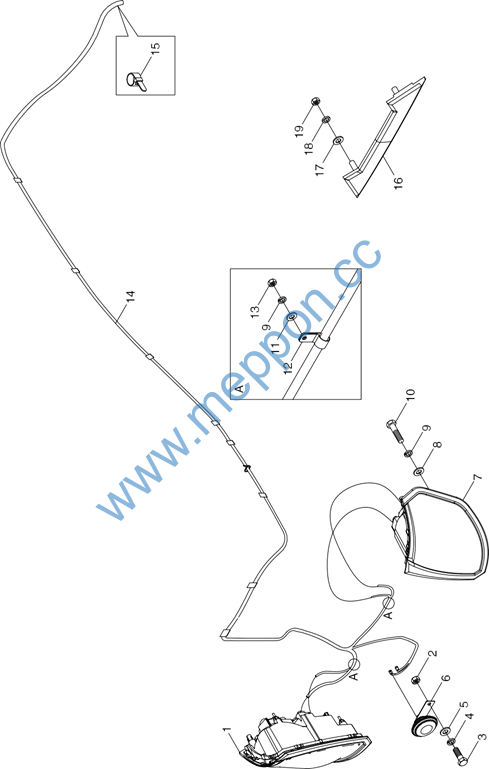

TS06484010000 Harness Installation Assembly, Rear Lamp
214
Lovol TC5A904-090K Wheeled Tractor
TS06484010000 Harness Installation Assembly, Rear Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06484010000 |
Harness Installation Assembly, Rear Lamp |
1 |
||
1 |
TS06484010003 |
Left Rear Lamp Assembly |
1 |
|
2 |
TS06484010004 |
Right Rear Lamp Assembly |
1 |
|
3 |
TS04486010002 |
Wire Through Ring |
2 |
|
4 |
TS06484010001 |
Left Taillamp Assembly |
1 |
|
5 |
GBT 97.1-5-A0P |
Plain Washer |
9 |
|
6 |
GBT 93-5-A0P |
Standard Spring Washer |
9 |
|
7 |
GBT 6170-M5-8-A2L |
Hexagon Nut, Style 1 |
9 |
|
8 |
TS06484010013 |
Rear Trailer Socket Installation Plate |
1 |
|
9 |
GBT 97.1-6-A0P |
Plain Washer |
4 |
|
10 |
GBT 93-6-A0P |
Standard Spring Washer |
4 |
|
11 |
GBT 5783-M6X12-8.8-A2L |
Hexagon Head Bolt |
4 |
|
12 |
TD900.484.2 |
Rear Trailer Socket |
1 |
|
13 |
TS06484010012 |
Washer Installation Plate |
1 |
|
14 |
TS06484010011 |
Washer Assembly |
1 |
|
15 |
TS06484010002 |
Right Taillamp Assembly |
1 |
|
16 |
TS06484010005 |
Retro Reflector |
2 |
|
17 |
GBT 5783-M8X25-8.8-A2L |
Hexagon Head Bolt |
4 |
|
18 |
GBT 93-8-A0P |
Standard Spring Washer |
4 |
|
19 |
GBT 97.1-8-A0P |
Plain Washer |
4 |
|
20 |
TS06484010015 |
Rear Work Lamp Shock Absorbing Pad |
2 |
|
21 |
GBT 819.1-M5X35-4.8-A1L |
Cross Recessed Countersunk Head Screw |
3 |
|
22 |
3203505D9-L |
Tie Band |
1 |
|
23 |
GBT 5783-M10X25-8.8-A3L |
Hexagon Head Bolt |
2 |
|
24 |
GBT 93-10-A0P |
Standard Spring Washer |
2 |
|
25 |
GBT 97.1-10-A0P |
Plain Washer |
2 |
|
26 |
TF1204.481B-01 |
Harness Fastener |
2 |
|
27 |
GBT 6170-M10-8-A3L |
Hexagon Nut, Style 1 |
2 |
|
28 |
FT65.48.095 |
Harness Fastener (1) |
1 |
|
29 |
Q67405100 |
Plastic Fastening Strap |
2 |
215
Lovol TC5A904-090K Wheeled Tractor

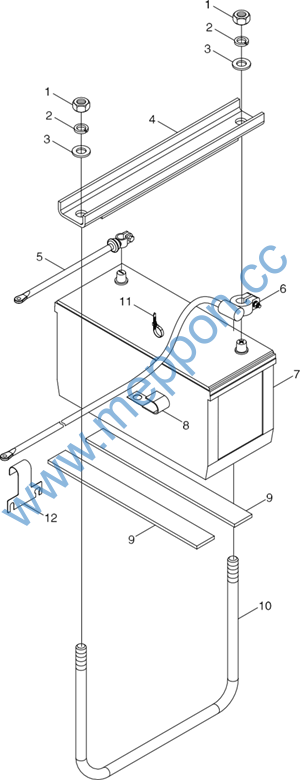

TS06485010000 Battery Installation Assembly
216
Lovol TC5A904-090K Wheeled Tractor
TS06485010000 Battery Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06485010000 |
Battery Installation Assembly |
1 |
||
1 |
GBT 6170-M8-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
2 |
GBT 93-8-A0P |
Standard Spring Washer |
2 |
|
3 |
GBT 97.1-8-A0P |
Plain Washer |
2 |
|
4 |
TG1204.485-02 |
Battery Pressing Plate |
1 |
|
5 |
FT65.48.091 |
Battery Bonding |
1 |
|
6 |
FT65.48.090a |
Battery Power Source Wire |
1 |
|
7 |
TG1204.485.1 |
Battery Assembly |
1 |
|
8 |
FT800A.48L.106 |
Harness Clip |
2 |
|
9 |
TB450.485.1 |
Battery Shock Absorbing Mat |
2 |
|
10 |
TG1204.485-01 |
Battery U-Shape Pull Rod |
1 |
|
11 |
Q67405100 |
Plastic Fastening Strap |
1 |
|
12 |
FT65.48.112 |
Power Source Wire Fixing Plate |
1 |
217
Lovol TC5A904-090K Wheeled Tractor
TS06486010000 Dome Lamp Harness Mounting Assembly
218
Lovol TC5A904-090K Wheeled Tractor
TS06486010000 Dome Lamp Harness Mounting Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06486010000 |
Dome Lamp Harness Mounting Assy |
1 |
||
1 |
TS06486010004 |
Armrest Lamp Assembly |
2 |
|
2 |
FT65.48.094 |
Wire Through Ring (2) |
2 |
|
3 |
TS06486010003 |
Dome Lamp Assembly |
4 |
|
4 |
TS06486010005 |
Front Wiper Assembly |
1 |
|
5 |
FT65.48.093 |
Wire Through Ring (1) |
4 |
|
6 |
3203505D9-L |
Tie Band |
16 |
|
7 |
GBT 818-M4X16-4.8-A2L |
Cross Recessed Pan Head Screw |
8 |
|
8 |
GBT 93-4-A0P |
Standard Spring Washer |
8 |
|
9 |
GBT 97.1-4-A0P |
Plain Washer |
8 |
|
10 |
FT800.48B.067 |
Speaker Mask |
2 |
|
11 |
GBT 6170-M4-8-A2L |
Hexagon Nut , Style 1 |
8 |
|
12 |
TS04486010003 |
Speaker Assembly |
2 |
|
13 |
TS06486010006 |
Dome Lamp Assembly |
1 |
|
14 |
TS06486010001 |
Dome Harness Assembly |
1 |
|
15 |
TS06486010008 |
Rear Wiper Assembly |
1 |
|
16 |
GBT 845-ST4.8X16 |
Cross Recessed Pan Head Tapping Screw |
2 |
|
17 |
Q67405200 |
Plastic Fastening Strap |
2 |
219
Lovol TC5A904-090K Wheeled Tractor

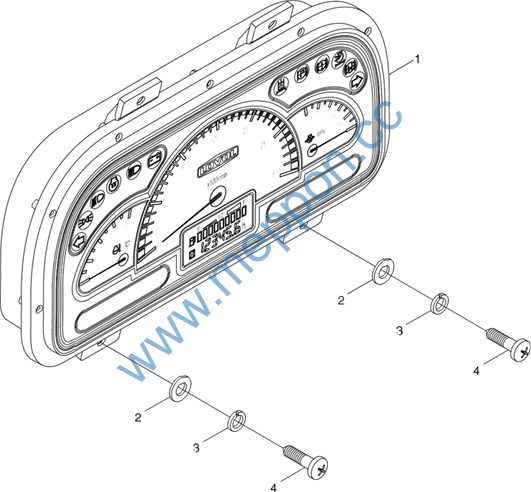

TS06487010000 Compound Instrument Assembly
