LOVOL TC5A904-090K Tractor Parts Catalogue 20
TS06487010000 Compound Instrument Assembly
|
No. |
Part code and specification |
Part name |
Quantity |
Remark |
|
1 2 3 4 |
TS06487010000 TS06487010001 GBT 96.1-6-A0P GBT 93-6-A0P GBT 818-M6X16-4.8-A2L |
Compound Instrument Assembly Compound Instrument Assembly Big Washer Standard Spring Washer Cross Recessed Pan Head Screw |
1 1 4 4 4 |
221
Lovol TC5A904-090K Wheeled Tractor

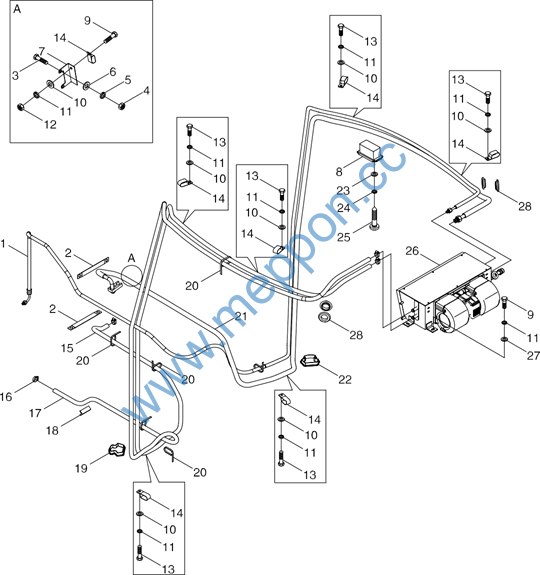

TS06811010000 Air Conditioning System-Cab
222
Lovol TC5A904-090K Wheeled Tractor
TS06811010000 Air Conditioning System-Cab
|
No. |
Part code and specification |
Part name |
Quantity |
Remark |
|
TS06811010000 |
Air Conditioning System – Cab |
1 |
||
|
1 |
TS06811010003 |
Liquid Storage Bottle – Evaporator Hose |
1 |
|
|
2 |
TD800.811A-04 |
Pipe Clip |
2 |
|
|
3 |
GBT 5783-M10X40-8.8-A3L |
Hexagon Head Bolt |
1 |
|
|
4 |
GBT 6170-M10-8-A3L |
Hexagon Nut, Style 1 |
1 |
|
|
5 |
GBT 93-10-A0P |
Standard Spring Washer |
1 |
|
|
6 |
GBT 97.1-10-A3L |
Plain Washer |
1 |
|
|
7 |
TS06811010011 |
Support Plate |
1 |
|
|
8 |
TS06811010001 |
Control Panel |
1 |
|
|
9 |
GBT 5783-M8X25-8.8-A2L |
Hexagon Head Bolt |
7 |
|
|
10 |
GBT 97.1-8-A2 |
Plain Washer |
7 |
|
|
11 |
GBT 93-8-A0P |
Standard Spring Washer |
11 |
|
|
12 |
GBT 6170-M8-10-A2L |
Hexagon Nut, Style 1 |
1 |
|
|
13 |
GBT 5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
4 |
|
|
14 |
TS06811010007 |
Fixing Clip |
6 |
|
|
15 |
TS06811010005 |
Heater Water Inlet Pipe |
1 |
|
|
16 |
Q676B25 |
C-Type Worm Drive Hose Hoop |
4 |
|
|
17 |
TS06811010006 |
Heater Water Return Pipe |
1 |
|
|
18 |
TS06812010005 |
Paste Piece |
1 |
|
|
19 |
TS06811010008 |
Guard Ring 1 |
1 |
|
|
20 |
Q67407200 |
Plastic Fastening Strap |
9 |
|
|
21 |
TS06811010004 |
Evaporator – Compressor Hose |
1 |
|
|
22 |
TS06811010009 |
Guard Ring 2 |
1 |
|
|
23 |
GBT 97.1-5-A0P |
Plain Washer |
4 |
|
|
24 |
GBT 93-5-A0P |
Standard Spring Washer |
4 |
|
|
25 |
GBT 818-M5X16-4.8-A2L |
Cross Recessed Pan Head Screw |
4 |
|
|
26 |
TS06811010002 |
Evaporator |
1 |
|
|
27 |
GBT 96.1-8-A0P |
Big Washer |
4 |
|
|
28 |
TS06811010013 |
Guard Ring |
4 |
223
Lovol TC5A904-090K Wheeled Tractor
TS06812010000 Air Conditioning System-Engine
224
Lovol TC5A904-090K Wheeled Tractor
TS06812010000 Air Conditioning System-Engine
|
No. |
Part code and specification |
Part name |
Quantity |
Remark |
|
TS06812010000 |
Air Conditioning System – Engine |
1 |
||
|
1 |
Q67407200 |
Plastic Fastening Strap |
1 |
|
|
2 |
TS06812010005 |
Paste Piece |
1 |
|
|
3 |
TS06812010004 |
Protection Rubber Strip |
1 |
|
|
4 |
TS06812010002 |
Condenser – Compressor High-Pressure Hose |
1 |
|
|
5 |
TD800.811A-04 |
Pipe Clip |
1 |
|
|
6 |
TS06812010001 |
Condenser |
1 |
|
|
7 |
GBT 5783-M6X25-8.8-A2L |
Hexagon Head Bolt |
1 |
|
|
8 |
GBT 93-6-A0P |
Standard Spring Washer |
1 |
|
|
9 |
GBT 97.1-6-A0P |
Plain Washer |
1 |
|
|
10 |
GBT 5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
4 |
|
|
11 |
GBT 93-8-A0P |
Standard Spring Washer |
4 |
|
|
12 |
GBT 97.1-8-A3L |
Plain Washer |
4 |
|
|
13 |
GBT 6170-M10-8-A3L |
Hexagon Nut, Style 1 |
2 |
|
|
14 |
GBT 93-10-A0P |
Standard Spring Washer |
3 |
|
|
15 |
GBT 97.1-10-A3L |
Plain Washer |
3 |
|
|
16 |
TS06812010003 |
Compressor |
1 |
|
|
17 |
TD800.811-20 |
Bolt |
1 |
|
|
18 |
GBT 5783-M10X40-8.8-A3L |
Hexagon Head Bolt |
1 |
|
|
19 |
GBT 5786-M10X125X35-8.8-A2L |
Hexagon Head Bolt |
1 |
