LOVOL TC5A904-090K Tractor Parts Catalogue 18
Lovol TC5A904-090K Wheeled Tractor
TD800.503A Oil Inlet/Outlet Pipe Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD800.503A |
Oil Inlet/Outlet Pipe Assembly |
1 |
||
1 |
Q67627 |
B-Type Worm Drive Hose Hoop |
2 |
|
2 |
FT700.50G.121 |
Oil Return Pipe |
1 |
|
3 |
FT65.50.106 |
Hollow Bolt |
2 |
|
4 |
JBT 982-14 |
Combined Seal Gasket |
4 |
|
5 |
FT800A.50.162 |
Oil Pipe Joint |
1 |
|
6 |
FT800A.50P.081 |
Oil Pipe Assembly |
1 |
|
7 |
GBT 5783-M8X30-8.8-A2L |
Hexagon Head Bolt |
2 |
|
8 |
GBT 97.1-8-A0P |
Plain Washer |
2 |
|
9 |
GBT 93-8-A0P |
Standard Spring Washer |
2 |
|
10 |
GBT 6170-M8-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
11 |
TD800.503A-01 |
Assembly Bracket |
1 |
|
12 |
FT800A.50.061a |
Diesel Filter Assembly |
1 |
|
13 |
TD800.503J.1 |
Oil Delivery Pipe Assembly |
1 |
|
14 |
Q67405300 |
Plastic Fastening Strap |
1 |
197
Lovol TC5A904-090K Wheeled Tractor

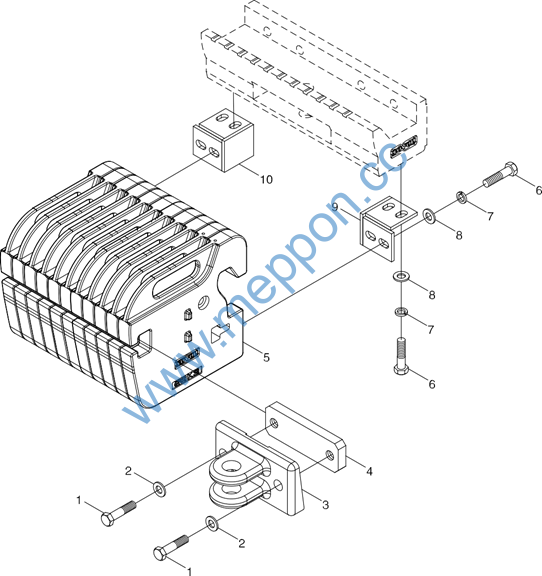

FT800.74B.001 Front Counterweight Assembly-1
198
Lovol TC5A904-090K Wheeled Tractor
FT800.74B.001 Front Counterweight Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.74B.001 |
Front Counterweight Assembly |
1 |
||
1 |
GBT 5785-M20X1.5X80-8.8-A3L |
Hex Bolt |
2 |
|
2 |
GBT 97.1-20-A0P |
Flat Washer |
2 |
|
3 |
FT650.74.107 |
Towing Lug |
1 |
|
4 |
TA700.741-02 |
Towing Plate |
1 |
|
5 |
FT800.74B.010 |
Small Front Counterweight Assembly |
1 |
|
6 |
GBT 5783-M16X35-8.8-A3L |
Hex Bolt |
8 |
|
7 |
GBT 93-16-A0P |
Standard Spring Washer |
8 |
|
8 |
GBT 97.1-16-A0P |
Flat Washer |
8 |
|
9 |
TC05742010001 |
Left Fixing Plate Welding Assembly |
1 |
|
10 |
TC05742010002 |
Right Fixing Block Welding Assembly |
1 |
199
Lovol TC5A904-090K Wheeled Tractor
FT800.74B.001 Front Counterweight Assembly-2
200
Lovol TC5A904-090K Wheeled Tractor
FT800.74B.001 Front Counterweight Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.74B.001 |
Front Counterweight Assembly |
1 |
||
FT800.74B.010 |
Small Front Counterweight Assembly |
1 |
||
1 |
GBT 6170-M16-8-A3L |
Style 1, Hex Nut |
4 |
|
2 |
GBT 93-16-A0P |
Spring Washer |
4 |
|
3 |
GBT 97.1-16-A0P |
Washer |
4 |
|
4 |
FT800.74B.106a |
Counterweight |
9 |
|
5 |
FT800.74B.104 |
Counterweight |
2 |
|
6 |
FT700.74B.107 |
Connecting Bolt |
2 |
201
Lovol TC5A904-090K Wheeled Tractor

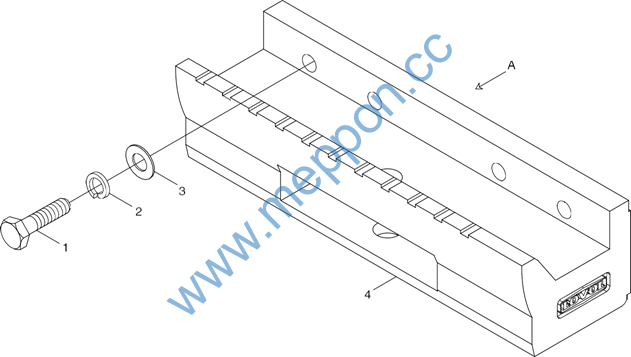

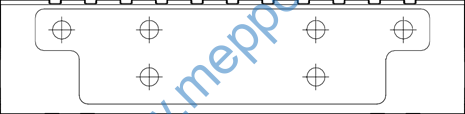

FT800.74B.002 Front Ballast Bracket Assembly
202
Lovol TC5A904-090K Wheeled Tractor
FT800.74B.002 Front Ballast Bracket Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
FT800.74B.002 GBT 5785-M18X1.5X70-A3L GBT 93-18-AOP GBT 97.1-18-AOP FT800.74B.105a |
Front Ballast Bracket Assembly Bolt Spring Washer Flat Washer Ballast Bracket |
1 6 6 6 1 |
203
Lovol TC5A904-090K Wheeled Tractor

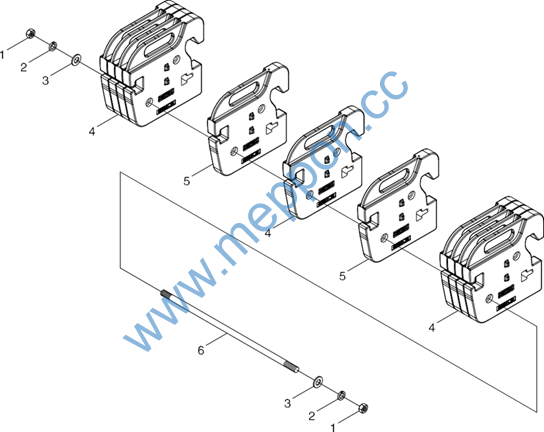

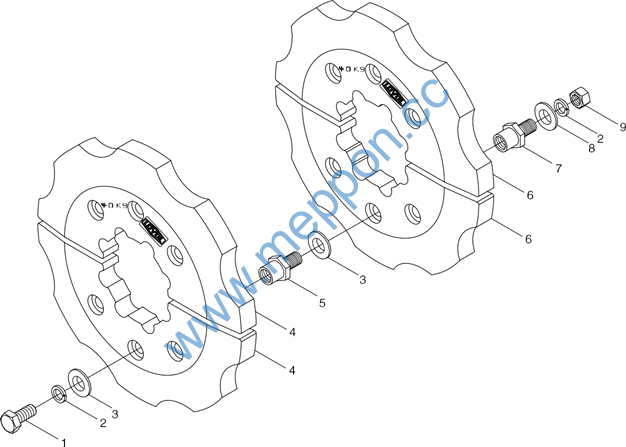

FT800.91B.001 Rear Ballast Assembly
204
Lovol TC5A904-090K Wheeled Tractor
FT800.91B.001 Rear Ballast Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.91B.001 |
Rear Ballast Assembly |
1 |
||
1 |
GBT 5783-M16X40-A3L |
Bolt |
6 |
|
2 |
GBT 93-16-AOP |
Washer |
12 |
|
3 |
FT800.34.108 |
Flat Washer |
12 |
|
4 |
FT804.91.105 |
Rear Ballast |
2 |
|
5 |
FT804.91.102 |
Ballast Screw II |
6 |
|
6 |
FT800.91B.103 |
Rear Ballast II |
2 |
|
7 |
FT804.91.101 |
Ballast Screw I |
6 |
|
8 |
GBT 97.1-16-AOP |
Flat Washer |
6 |
|
9 |
GBT 6170-M16-A3L |
Nut |
6 |
205
Lovol TC5A904-090K Wheeled Tractor

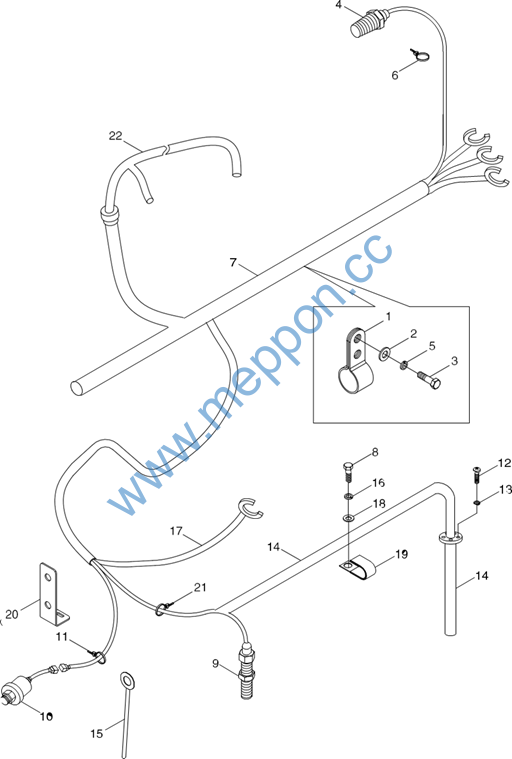

TS06481120000 Harness Installation Assembly, Engine
206
Lovol TC5A904-090K Wheeled Tractor
TS06481120000 Harness Installation Assembly, Engine
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06481120000 |
Harness Installation Assembly, Engine |
1 |
||
1 |
TF1204.481B-01 |
Harness Fastener |
3 |
|
2 |
GBT97.1-10-A0P |
Plain Washer |
3 |
|
3 |
GBT5783-M10X20-8.8-A3L |
Hexagon Head Bolt |
3 |
|
4 |
FT65.48.072 |
Water Temperature Sensor |
1 |
|
5 |
GBT93-10-A0P |
Standard Spring Washer |
3 |
|
6 |
Q67405200 |
Plastic Fastening Belt |
1 |
|
7 |
TS06481010013 |
Engine Harness Assembly |
1 |
|
8 |
GBT5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
2 |
|
9 |
TS10481010002 |
Rotating Speed Sensor |
1 |
|
10 |
FT65.48.073a |
Oil Pressure Alarm |
1 |
|
11 |
Q67405100 |
Plastic Fastening Belt |
4 |
|
12 |
GBT818-M4X10-4.8-A2L |
Cross Recessed Pan Head Screw |
5 |
|
13 |
GBT93-4-A0P |
Standard Spring Washer |
5 |
|
14 |
TD800.484.2 |
Oil Amount Sensor |
1 |
|
15 |
TS04481010003 |
Bonding |
1 |
|
16 |
GBT93-8-A0P |
Standard Spring Washer |
1 |
|
17 |
TS06481070004 |
Preheating Plug Transit Wire |
1 |
|
18 |
GBT97.1-8-A0P |
Plain Washer |
1 |
|
19 |
FT304.48L.203 |
Harness Fastener |
3 |
|
20 |
TS06481070003 |
Fuse Fixing Seat |
1 |
|
21 |
Q67405400 |
Plastic Fastening Belt |
1 |
|
22 |
TS06481010011 |
Air Conditioner Dryer Harness |
1 |
207
Lovol TC5A904-090K Wheeled Tractor

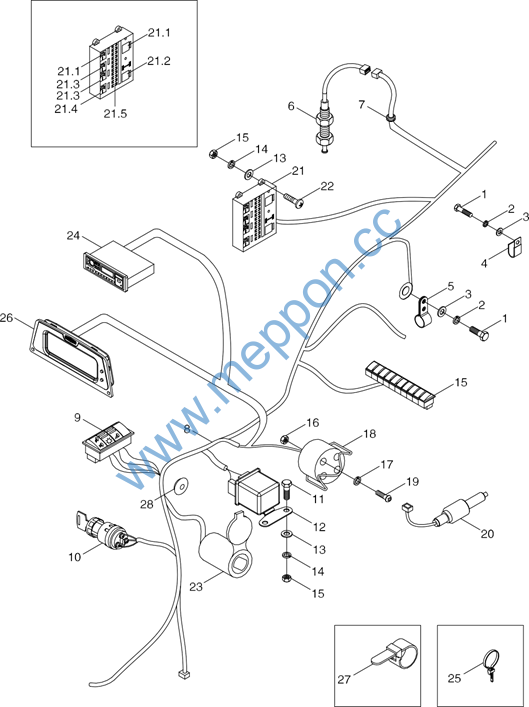

TS06482010000K Harness Installation Assembly, Body
