LOVOL TC5A904-090K Tractor Parts Catalogue 15
TS06582010000K Hydraulic System Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06582010000K |
Hydraulic System Assembly |
1 |
||
1 |
TS12582030014 |
Control Handle Head |
1 |
|
2 |
GBT6170-M10-8-A3L |
Hexagon Nut, Style 1 |
1 |
|
3 |
TS12582030007 |
Distributor Control Assembly |
1 |
|
3.1 |
TS12582030009 |
Distributor Control Press |
1 |
|
3.1.1 |
TS12582030010 |
Control Handle Weldment |
1 |
|
3.1.2 |
TB704.58A.11.1-01 |
Nylon Sleeve |
2 |
|
3.2 |
TS12582030008 |
Sleeve |
1 |
|
3.3 |
TS04552010001 |
Fixing Shaft |
1 |
|
3.4 |
GBT894.1-20 |
Circlip For Shaft |
2 |
|
4 |
GBT5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
2 |
|
5 |
GBT93-8-A0P |
Standard Spring Washer |
2 |
|
6 |
TS12582030019 |
Connecting Sleeve Weldment |
1 |
|
7 |
TS12582030012 |
Control Connecting Lever Assembly |
1 |
|
7.1 |
TB504.552D.3-02 |
Left-Hand Pull Rod Fork |
1 |
|
7.2 |
GBT6170-M8-LH-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
7.3 |
TS12582030013 |
Control Connecting Lever |
1 |
|
7.4 |
GBT6170-M8-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
7.5 |
TS12582030021 |
Right-Hand Connecting Fork |
1 |
|
8 |
GBT91-3.2X18-A0P |
Split Pin |
1 |
|
9 |
GBT97.1-8-A0P |
Plain Washer |
2 |
|
10 |
GBT882-B8X28-A0P |
Pin Shaft |
1 |
|
11 |
GBT882-B8X30-A0P |
Pin Shaft |
1 |
|
12 |
GBT91-3.2X16-A0P |
Split Pin |
1 |
|
13 |
GBT6171-M12X1.25-8-A2L |
Hexagon Nut, Style 1 |
1 |
161
Lovol TC5A904-090K Wheeled Tractor

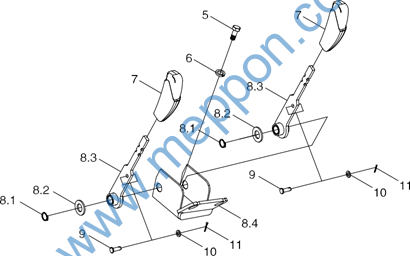

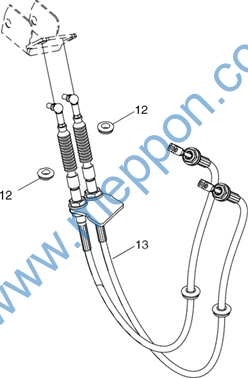

TS06582010000K Hydraulic System Assembly-5
162
Lovol TC5A904-090K Wheeled Tractor
TS06582010000K Hydraulic System Assembly-5
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06582010000 |
Hydraulic System Assembly |
1 |
||
1 |
GBT5783-M10X25-8.8-A3L |
Hexagon Head Bolt |
2 |
|
2 |
GBT93-10-A0P |
Standard Spring Washer |
2 |
|
3 |
GBT97.1-10 |
Plain Washer |
2 |
|
4 |
TS12582030016 |
Upper Pull Rod Fixing Clamp Subassembly |
1 |
|
4.1 |
FT800.56.263a |
Fixing Clip |
1 |
|
4.2 |
TS12582030017 |
Connecting Plate Weldment |
1 |
|
4.3 |
GBT97.1-8-A0P |
Plain Washer |
1 |
|
4.4 |
GBT91-2.5X14-A0P |
Split Pin |
1 |
|
5 |
GBT5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
3 |
|
6 |
GBT93-8-A0P |
Standard Spring Washer |
3 |
|
7 |
TS04582010025 |
Handle End |
2 |
|
8 |
TS04582010058 |
Multi-Way Valve Control Assembly |
1 |
|
8.1 |
GBT894.1-14 |
Circlip For Shaft |
2 |
|
8.2 |
GBT97.1-14-A0P |
Plain Washer |
2 |
|
8.3 |
TS04582010043 |
Control Lever Press |
2 |
|
8.4 |
TS04582010059 |
Installation Seat Weldment |
1 |
|
9 |
TG1654.583C-01 |
Pin Shaft |
2 |
|
10 |
GBT97.1-6-A0P |
Plain Washer |
2 |
|
11 |
GBT91-2X14-A0P |
Split Pin |
2 |
|
12 |
TS04582010027 |
Rubber Ring |
2 |
|
13 |
TS06582010007 |
Flexible Shaft Mechanism Assembly |
2 |
163
Lovol TC5A904-090K Wheeled Tractor

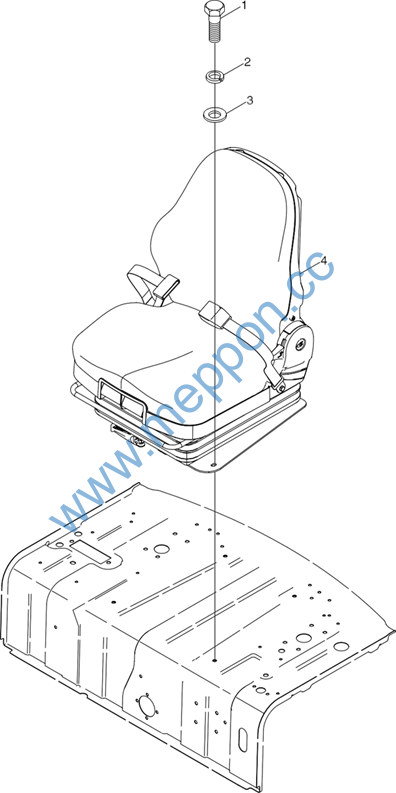

TS06441010000 Seat Assembly
164
Lovol TC5A904-090K Wheeled Tractor
TS06441010000 Seat Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
FT800A.44.001 FT800A.44.011 GBT 5783-M12X35-A3L GBT 93-12-A0P GBT 97.1-12-A0P |
Seat Installation Assembly Seat Assembly Bolt Washer Washer |
1 1 4 4 4 |
165
Lovol TC5A904-090K Wheeled Tractor

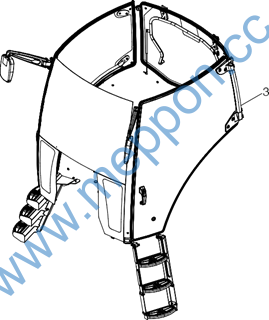

TS06451030000 Cab Assembly
166
Lovol TC5A904-090K Wheeled Tractor
TS06451030000 Cab Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4 |
TS06451030000 TS06453015000 TS06451020001 TS06451020002 TS06451010003 |
Cab Assembly Top Cover Assembly Cab Welding Assembly Cab Accessories Assembly Oecd Nameplate |
1 1 1 1 2 |
167
Lovol TC5A904-090K Wheeled Tractor

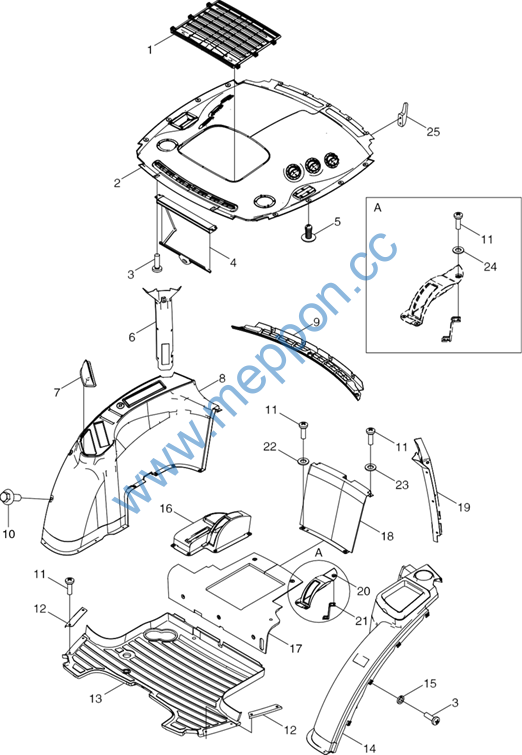

TS06453040000 Upholstery Assembly
168
Lovol TC5A904-090K Wheeled Tractor
TS06453040000 Upholstery Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06453040000 |
Upholstery Assembly |
1 |
||
1 |
TS06453017000 |
Sun Visor Subassembly |
1 |
|
2 |
TS06453011000 |
Dome Trimming Assembly |
1 |
|
3 |
GBT 818-M6X20-4.8-O |
Cross Recessed Pan Head Screw |
43 |
|
4 |
TF1004.451.5-01 |
Visor Curtain |
1 |
|
5 |
Q69208 |
Plastic Cotter Pin |
36 |
|
6 |
TS06453013500 |
Right Rear Post Housing |
1 |
|
7 |
TS06453013600 |
Electronic Clock Mask |
1 |
|
8 |
TS06453013200 |
Right Mudguard Trimming Assembly |
1 |
|
9 |
TS06453016000 |
Inner Circular Air Outlet |
1 |
|
10 |
GBT 16674.1-M6X16-8.8 |
Hexagon Flange Bolt |
4 |
|
11 |
GBT 819.2-M6X25-A2-70 |
Cross Recessed Countersunk Head Screw |
4 |
|
12 |
TS06453014000 |
Floor Cushion Pressing Plate |
2 |
|
13 |
TS06453012000 |
Floor Cushion |
1 |
|
14 |
TS06453013100 |
Left Mudguard Trimming Assembly |
1 |
|
15 |
GBT 93-6-O |
Standard Spring Washer |
32 |
|
16 |
TS12453020002 |
Assistant Clutch Shield |
1 |
|
17 |
TS06453012100 |
Middle Floor Cushion |
1 |
|
18 |
TS06453013300 |
Rear Wall Trimming |
1 |
|
19 |
TS06453013400 |
Left Rear Post Housing |
1 |
|
20 |
TS06453013701 |
Parking Brake Shield |
1 |
|
21 |
TS06453013703 |
Shield Installation Plate Weldment |
1 |
|
22 |
GBT 96.1-6-A3L |
Large Washer |
2 |
|
23 |
GBT 96.1-6-O |
Large Washer |
2 |
|
24 |
GBT 97.1-6-O |
Plain Washer |
28 |
|
25 |
TS06453010002 |
Clothes Hook |
2 |
169
Lovol TC5A904-090K Wheeled Tractor

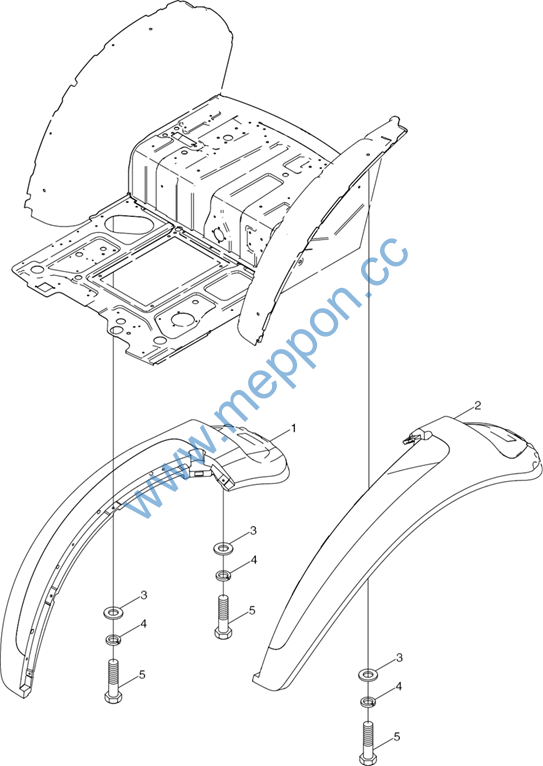

TS06455010000 Rear Mudguard Trimming Assembly
170
Lovol TC5A904-090K Wheeled Tractor
TS06455010000 Rear Mudguard Trimming Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06455010000 |
Rear Mudguard Trimming Assembly |
1 |
||
1 |
TS06455012000 |
Right Rear Mudguard Trimming Assembly |
1 |
|
2 |
TS06455011000 |
Left Rear Mudguard Trimming Assembly |
1 |
|
3 |
GBT 96.1-6 |
Big Washer |
14 |
|
4 |
GBT 93-6-O |
Standard Spring Washer |
14 |
|
5 |
GBT 5783-M6X25-8.8 |
Hexagon Head Bolt |
14 |
171
Lovol TC5A904-090K Wheeled Tractor

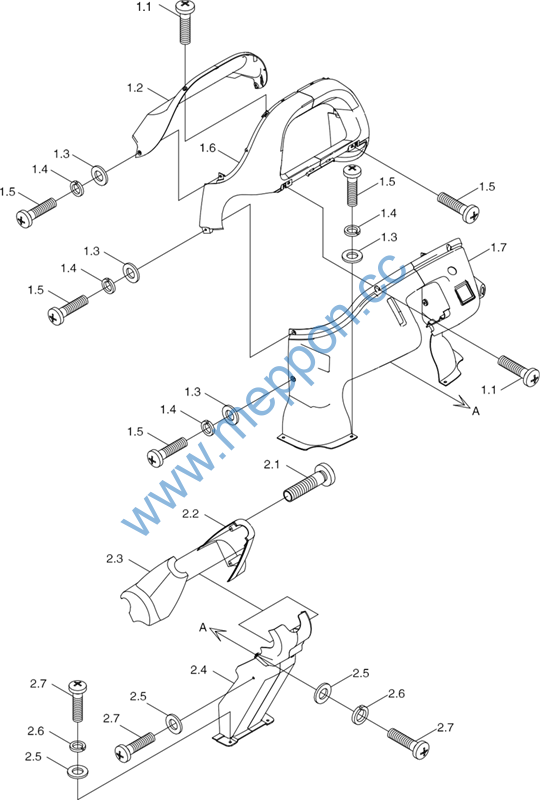

TS06456010000 Instrument Panel Assembly
172
