LOVOL TC5A904-090K Tractor Parts Catalogue 16
Lovol TC5A904-090K Wheeled Tractor
TS06456010000 Instrument Panel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06456010000 |
Instrument Panel Assembly |
1 |
||
1 |
TS06456010001 |
Instrument Panel Case Assembly |
1 |
|
1.1 |
GBT 845-ST4.8X16-O |
Cross Recessed Pan Head Tapping Screw |
4 |
|
1.2 |
TS06456010002 |
Instrument Panel Upper Cover |
1 |
|
1.3 |
GBT 97.1-6-O |
Plain Washer |
12 |
|
1.4 |
GBT 93-6-O |
Standard Spring Washer |
12 |
|
1.5 |
GBT 818-M6X20-4.8-O |
Cross Recessed Pan Head Screw |
14 |
|
1.6 |
TS06456010003 |
Instrument Panel Middle Cover |
1 |
|
1.7 |
TS06456010004 |
Instrument Panel Lower Cover |
1 |
|
2 |
TS06456010005 |
Steering Gear Housing Assembly |
1 |
|
2.1 |
GBT 845-ST4.8X16-O |
Cross Recessed Pan Head Tapping Screw |
2 |
|
2.2 |
TS06456010008 |
Right Cover Plate Of Steering Gear |
1 |
|
2.3 |
TS06456010007 |
Left Cover Plate Of Steering Gear |
1 |
|
2.4 |
TS06456010006 |
Lower Cover Plate Of Steering Gear |
1 |
|
2.5 |
GBT 96.1-6-O |
Big Washer |
6 |
|
2.6 |
GBT 93-6-O |
Standard Spring Washer |
4 |
|
2.7 |
GBT 818-M6X20-4.8-O |
Cross Recessed Pan Head Screw |
6 |
173
Lovol TC5A904-090K Wheeled Tractor

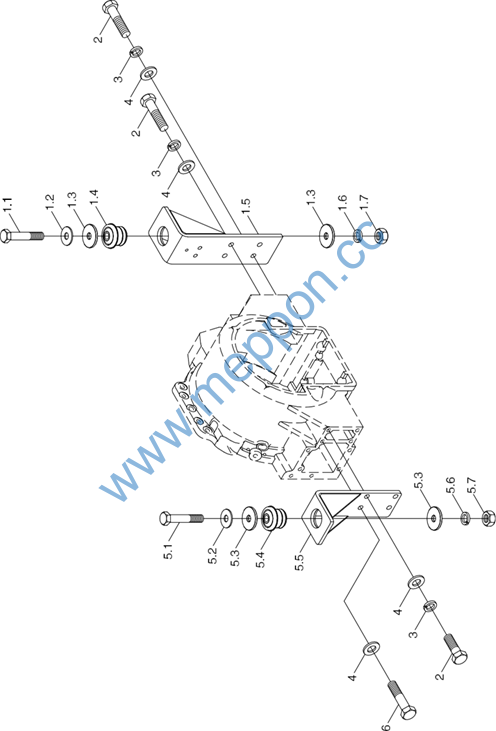

TS06457020000 Front Connection Assembly
174
Lovol TC5A904-090K Wheeled Tractor
TS06457020000 Front Connection Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06457020000 |
Front Connection Assembly |
1 |
||
1 |
TS06457020001 |
Right Front Connection |
1 |
|
1.1 |
GBT 5782-M16X100-10.9-A2L |
Hexagon Head Bolt |
1 |
|
1.2 |
GBT 96.1-16-A0P |
Big Washer |
1 |
|
1.3 |
TB400.457B-02 |
Circlip |
2 |
|
1.4 |
TB400.457B-01 |
Shock Absorbing Block |
1 |
|
1.5 |
TS06457020002 |
Right Front Connection Installation Seat Weldment |
1 |
|
1.6 |
GBT 93-16-A0P |
Standard Spring Washer |
1 |
|
1.7 |
GBT 6170-M16-10-A3L |
Hexagon Nut, Style 1 |
1 |
|
2 |
GBT 5783-M16X40-10.9-A3L |
Hexagon Head Bolt |
6 |
|
3 |
GBT 93-16-A0P |
Standard Spring Washer |
6 |
|
4 |
GBT 97.1-16-A0P |
Plain Washer |
8 |
|
5 |
TS06457010001 |
Left Front Connection |
1 |
|
5.1 |
GBT 5782-M20X110-10.9-A3L |
Hexagon Head Bolt |
1 |
|
5.2 |
GBT 96.1-20-A0P |
Big Washer |
1 |
|
5.3 |
TD800.457B.1-02 |
Circlip (2) |
2 |
|
5.4 |
TD800.457B.1.2 |
Shock Absorbing Block |
1 |
|
5.5 |
TS06457010002 |
Left Front Connection Installation Seat Weldment |
1 |
|
5.6 |
GBT 93-20-A0P |
Standard Spring Washer |
1 |
|
5.7 |
GBT 6170-M20-10-A3L |
Hexagon Nut, Style 1 |
1 |
|
6 |
GBT 5783-M16X45-10.9-A3L |
Hexagon Head Bolt |
2 |
175
Lovol TC5A904-090K Wheeled Tractor
TS06458010000 Rear Connection Assembly
176
Lovol TC5A904-090K Wheeled Tractor
TS06458010000 Rear Connection Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06458010000 |
Rear Connection Assembly |
1 |
||
1 |
TS06458010001 |
Rear Connection |
2 |
|
1.1 |
GBT 5782-M20X110-10.9-A3L |
Hexagon Head Bolt |
1 |
|
1.2 |
GBT 96.1-20-A0P |
Big Washer |
1 |
|
1.3 |
TD800.457B.1-01 |
Circlip |
2 |
|
1.4 |
TD800.457B.1.2 |
Shock Absorbing Block |
1 |
|
1.5 |
TS06458010002 |
Rear Connection Bracket Weldment |
1 |
|
1.6 |
GBT 95-20-A0P |
Plain Washer |
1 |
|
1.7 |
GBT 93-20-A0P |
Standard Spring Washer |
1 |
|
1.8 |
GBT 6170-M20-10-A3L |
Hexagon Nut, Style 1 |
1 |
|
2 |
GBT 5783-M16X80-10.9-A3L |
Hexagon Head Bolt |
4 |
|
3 |
GBT 97.1-16-A0P |
Plain Washer |
4 |
|
4 |
GBT 93-16-A0P |
Standard Spring Washer |
4 |
|
5 |
GBT 6170-M16-10-A3L |
Hexagon Nut, Style 1 |
4 |
177
Lovol TC5A904-090K Wheeled Tractor

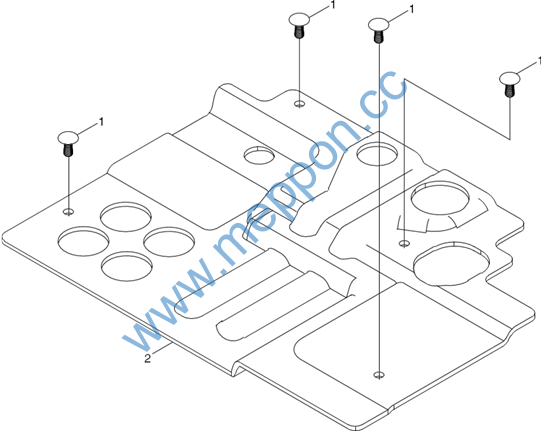

TS06459010000 Heat Insulation Assembly
178
Lovol TC5A904-090K Wheeled Tractor
TS06459010000 Heat Insulation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 |
TS06459010000 Q69208 TS06459010001 |
Heat Insulation Assembly Plastic Cotter Pin Heat Insulation Layer |
1 4 1 |
179
Lovol TC5A904-090K Wheeled Tractor

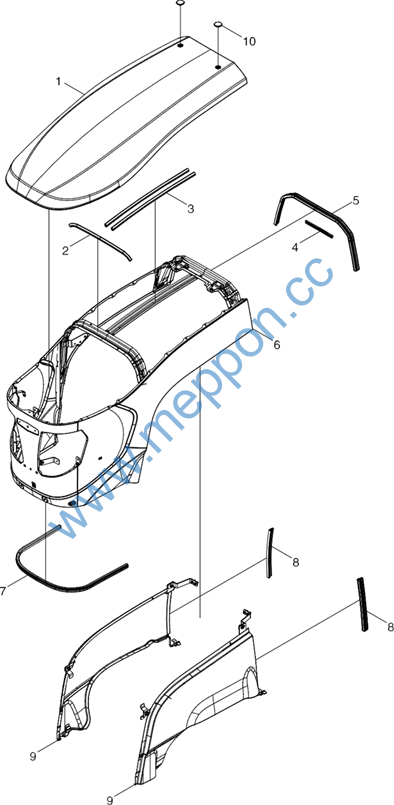

TS06471010000 Bonnet Assembly-1
180
Lovol TC5A904-090K Wheeled Tractor
TS06471010000 Bonnet Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06471010000 |
Bonnet Assembly |
1 |
||
1 |
TS06471012001 |
Bonnet Upper Cover Plate |
1 |
|
2 |
TS06471010007 |
Front Shock Absorbing Strip |
1 |
|
3 |
TS06471010004 |
Middle Shock Absorbing Strip |
2 |
|
4 |
TS06471010008 |
Rear Shock Absorbing Strip |
1 |
|
5 |
TS06471010001 |
Bonnet Rear Seal Strip |
1 |
|
6 |
TS06471011000 |
Bonnet Welding Assembly |
1 |
|
7 |
TS06471010002 |
Front Lower Buffer Strip |
1 |
|
8 |
TS06471010006 |
Bonnet Side Rear Seal Strip |
2 |
|
9 |
TS06471014000 |
Bonnet Lower Side Plate Assembly |
1 |
|
10 |
TS06471010005 |
Rubber Plug |
2 |
181
Lovol TC5A904-090K Wheeled Tractor

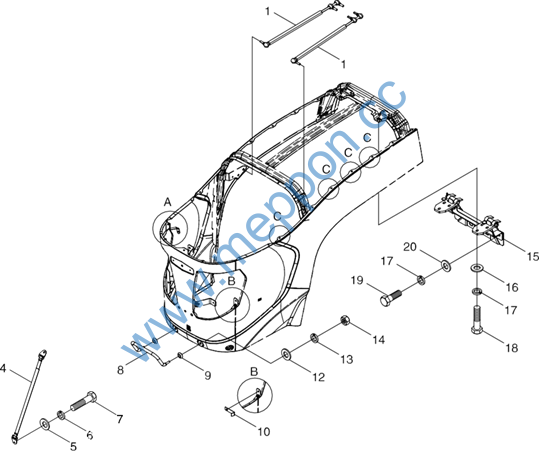

TS06471010000 Bonnet Assembly-2
182
Lovol TC5A904-090K Wheeled Tractor
TS06471010000 Bonnet Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06471010000 |
Bonnet Assembly |
1 |
||
1 |
TS06471019000 |
Bonnet Air Spring Assembly |
2 |
|
2 |
TS06471011040 |
Upper Support Plate Of Right Front Mesh Plate |
1 |
|
3 |
TS06471011041 |
Lower Support Plate Of Right Front Mesh Plate |
1 |
|
4 |
TS06471010003 |
Bonnet Pull Wire |
1 |
|
5 |
GBT 97.1-8-A0P |
Plain Washer |
1 |
|
6 |
GBT 93-8-A0P |
Standard Spring Washer |
1 |
|
7 |
GBT 5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
1 |
|
8 |
TS04471010003 |
Bonnet Front Handle |
1 |
|
9 |
TD800.471A-05 |
Bonnet Front Handle Washer |
2 |
|
10 |
TS06471011038 |
Upper Support Plate Of Left Front Mesh Plate |
1 |
|
11 |
TS06471011039 |
Lower Support Plate Of Left Front Mesh Plate |
1 |
|
12 |
GBT 97.1-12-A0P |
Plain Washer |
2 |
|
13 |
GBT 93-12-A0P |
Standard Spring Washer |
6 |
|
14 |
GBT 6170-M12-8-A3L |
Hexagon Nut, Style 1 |
2 |
|

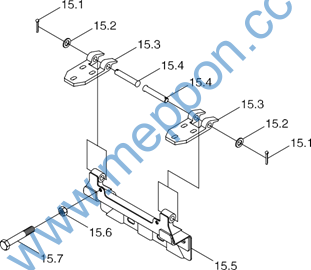

15 |
TS06471013000 |
Bonnet Hinge Chain Assembly |
1 |
|
15.1 |
GBT 91-5X32-A0P |
Split Pin |
2 |
|
15.2 |
GBT 97.1-16-A0P |
Plain Washer |
2 |
|
15.3 |
FT800B.47B.161 |
Hinge Chain Upper Seat |
2 |
|
15.4 |
GBT 882-B16X90-A0P |
Pivot |
2 |
|
15.5 |
TS06471013001 |
Bonnet Lower Bracket Weldment |
1 |
|
15.6 |
GBT 6170-M8-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
15.7 |
GBT 5783-M8X55-8.8-A2L |
Hexagon Head Bolt |
2 |
|
16 |
GBT 97.1-10-A0P |
Plain Washer |
6 |
|
17 |
GBT 93-10-A0P |
Standard Spring Washer |
6 |
|
18 |
GBT 5783-M10X35-8.8-A3L |
Hexagon Head Bolt |
6 |
|
19 |
GBT 5783-M12X35-8.8-A3L |
Hexagon Head Bolt |
4 |
|
20 |
GBT 96.1-12-A0P |
Large Washer |
4 |
|
21 |
GBT 5783-M6X16-8.8-A2L |
Hexagon Head Bolt |
21 |
|
22 |
GBT 97.1-6-A0P |
Plain Washer |
36 |
|
23 |
GBT 93-6-A0P |
Standard Spring Washer |
21 |
|
24 |
GBT 6170-M6-8-A2L |
Hexagon Nut, Style 1 |
21 |
183
Lovol TC5A904-090K Wheeled Tractor
TS06473010000 Bonnet Lock Device Assembly
184
