LOVOL TC5A904-090K Tractor Parts Catalogue 14
FT800.56A.001 Hitch Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.56A.001 |
Hitch Assembly |
1 |
||
1 |
FT800.56.026 |
Right Limit Rod Clevis Welded Assembly |
1 |
|
2 |
FT800.56.011a |
Limit Rod Assembly |
2 |
|
2.1 |
FT800.56.018 |
Limit Rod Riveting Assembly |
2 |
|
2.2 |
FT800.56.019 |
Limit Rod Lock Pin Assembly |
2 |
|
2.3 |
FT800.56.036 |
Limit Rod Guide Pipe Welding |
2 |
|
2.4 |
FT800.56.264 |
Trapezoidal Nut |
2 |
|
2.5 |
FT800.56.107 |
Adjustment Screw |
2 |
|
3 |
FT800.56.101 |
Pin |
2 |
|
4 |
GBT 91-4X50-A0P |
Split Pin |
4 |
|
5 |
FT800.56.103 |
Pin |
2 |
|
6 |
FT800.56.104 |
Limit Rod Bolt |
2 |
|
7 |
FT800.56A.012a |
Lower Pull Rod Assembly |
2 |
|
8 |
GBT 91-5X40-AOP |
Split Pin |
2 |
|
9 |
GBT 9459-M24X2-8.8-A3L |
Thin Hexagon Slotted Nut |
2 |
|
10 |
GBT 95-24-AOP |
Plain Washer |
2 |
|
11 |
FT800.56.014 |
Left Limit Rod Clevis Welded Assembly |
1 |
|
12 |
GBT 16674.1-M16X35-10.9-A3L |
Hexagon Flange Bolt |
8 |
|
13 |
GBT 6171-M24X2-8-A3L |
Hexagon Nut-Type 1 |
2 |
|
14 |
GBT 93-24-A0P |
Standard Spring Washer |
2 |
149
Lovol TC5A904-090K Wheeled Tractor

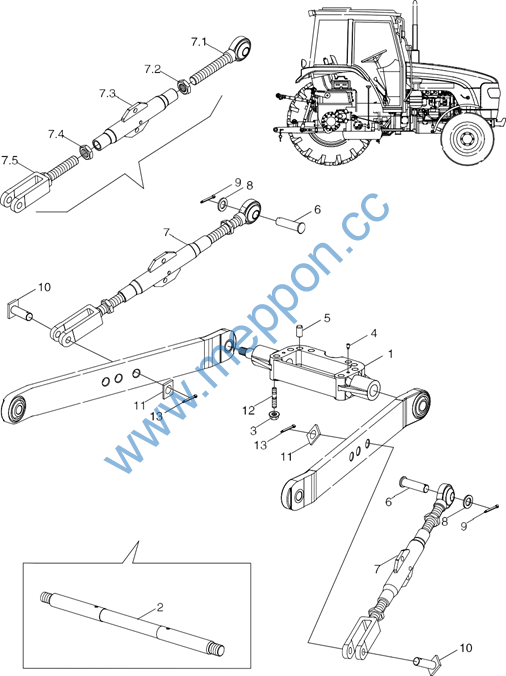

FT800.56A.001 Hitch Assembly-3
150
Lovol TC5A904-090K Wheeled Tractor
FT800.56A.001 Hitch Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.56A.001 |
Hitch Assembly |
1 |
||
1 |
FT800.56.112d |
Lower Pull Rod Bracket |
1 |
|
2 |
FT800.56.102d |
Lower Pull Rod Supporting Rod |
1 |
|
3 |
SPL-CO-M16-F3 |
Hex. Flange Nut |
6 |
|
4 |
GBT 72-M8X16-14H-A2L |
Slotted Cone End Positioning Screw |
2 |
|
5 |
GBT 119.1-20m6X35-A0P |
Cylindrical Pin |
2 |
|
6 |
FT800.56.124 |
Pin |
2 |
|
7 |
FT800.56A.015a |
Lifting Lever Assembly |
2 |
|
7.1 |
FT800.56.020a |
Upper Screw Riveting Assembly |
2 |
|
7.2 |
FT800.56.265 |
Trapezoidal Nuttr30x3 |
2 |
|
7.3 |
FT800.56A.042 |
Lifting Lever Guide Pipe Welding |
2 |
|
7.4 |
FT800.56A.264 |
Left -Hand Trapezoid Nut Tr30x3 |
2 |
|
7.5 |
FT800.56A.040 |
Lower Clevis Component Of Lifting Lever |
2 |
|
8 |
FT800.56A.262 |
Washer |
2 |
|
9 |
GBT 91-5X50-A0P |
Split Pin |
2 |
|
10 |
FT800.56A.041 |
Lift Rod Rear Connecting Pin Welding |
2 |
|
11 |
FT800.56A.261 |
Baffle(Ii) |
2 |
|
12 |
GBT 899-GM16-M16X95-10.9-A3L |
Stud |
6 |
|
13 |
GBT 91-4X50-A0P |
Split Pin |
2 |
151
Lovol TC5A904-090K Wheeled Tractor

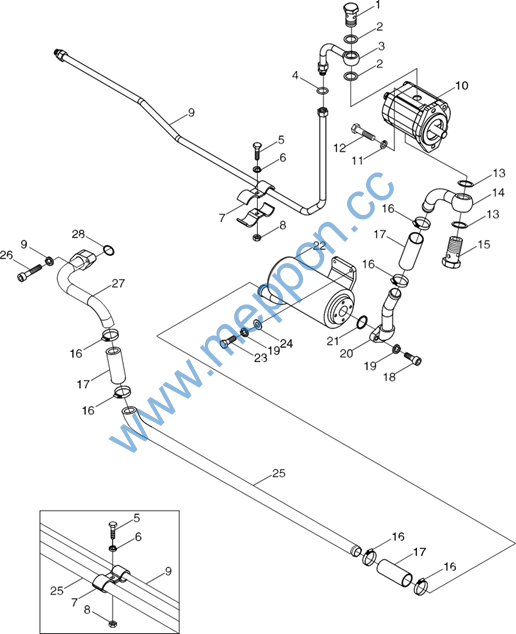

TD924.581 Oil Pump/Pine/Filter Assembly
152
Lovol TC5A904-090K Wheeled Tractor
TD924.581 Oil Pump/Pine/Filter Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TD924.581 |
Oil Pump/Pine/Filter Assembly |
1 |
||
1 |
FT750.58A.101 |
Hollow Bolt-1 |
1 |
|
2 |
JBT 982-27 |
Assembled Seal Washer |
2 |
|
3 |
TD924.581.1 |
Oil Pump Outlet Pipe Weldment |
1 |
|
4 |
TS09580020006 |
O-Ring 12X2-L15-L16-S16 |
1 |
|
5 |
GBT 5783-M6X25-8.8-A2L |
Hex Bolt |
3 |
|
6 |
GBT 93-6-A0P |
Standard Spring Washer |
3 |
|
7 |
FT650.58.060 |
Oil Pipe Clip And Gasket Paste |
6 |
|
8 |
GBT 6170-M6-8-A2L |
Type 1 Hex Nut |
3 |
|
9 |
TD924.581.2 |
High-Pressure Oil Pipe Assembly |
1 |
|
10 |
FT800.58C.012 |
Gear Pump |
1 |
|
11 |
GBT 93-10-A0P |
Standard Spring Washer |
2 |
|
12 |
GBT 70.1-M10X30-8.8-A3L |
Hexagon Socket Head Cap Screw |
2 |
|
13 |
JBT 982-33 |
Assembled Seal Washer |
2 |
|
14 |
FT750.58A.050 |
Oil Suction Short Pipe Weldment 2 |
1 |
|
15 |
FT750.58A.102 |
Hollow Bolt-2 |
1 |
|
16 |
Q67645 |
B Type Worm Drive Type Hose Clamp |
6 |
|
17 |
FT650.58.105 |
Hose |
3 |
|
18 |
GBT 70.1-M8X25-8.8-A2L |
Hexagon Socket Head Cap Screw |
2 |
|
19 |
GBT 93-8-A0P |
Standard Spring Washer |
6 |
|
20 |
FT750.58.040 |
Oil Suction Short Pipe Weldment 1 |
1 |
|
21 |
GBT 3452.1-26.5X2.65G |
Hydraulic Pneumatic O-Ring |
1 |
|
22 |
FT750.58A.080 |
Oil Filter Assembly |
1 |
|
23 |
GBT 5783-M8X25-8.8-A2L |
Hex Bolt |
2 |
|
24 |
GBT 97.1-8-A0P |
Flat Washer |
2 |
|
25 |
FT800.58C.103 |
Oil Suction Long Pipe |
1 |
|
26 |
GBT 70.1-M8X30-8.8-A2L |
Hexagon Socket Head Cap Screw |
2 |
|
27 |
FT800.58C.040 |
Oil Suction Short Pipe Weldment |
1 |
|
28 |
GBT 3452.1-32.5X2.65G |
Hydraulic Pneumatic O-Ring |
1 |
153
Lovol TC5A904-090K Wheeled Tractor

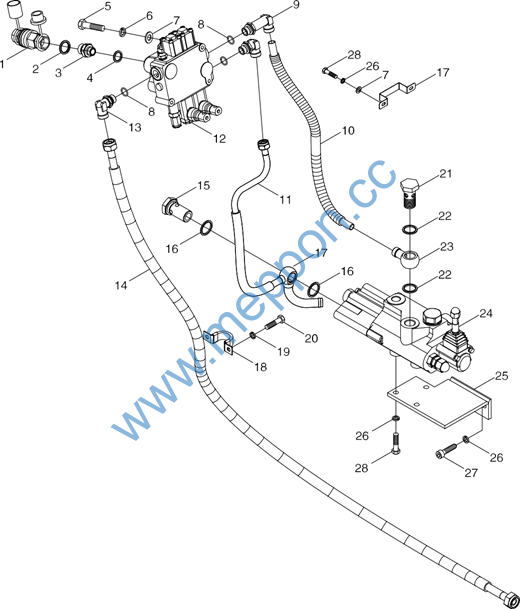

TS06582010000K Hydraulic System Assembly-1
154
Lovol TC5A904-090K Wheeled Tractor
TS06582010000K Hydraulic System Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06582010000 |
Hydraulic System Assembly |
1 |
||
1 |
FT354.58A.030 |
Quick-Change Connector |
4 |
|
2 |
JBT982-20 |
Compound Seal Washer |
4 |
|
3 |
TC02582010003K |
Straight Thread Connector, Body |
4 |
|
4 |
TBT982-18 |
Compound Seal Washer |
4 |
|
5 |
GBT5783-M6X60-8.8-A2L |
Hexagon Head Bolt |
3 |
|
6 |
GBT93-6-AOP |
Standard Spring Washer |
5 |
|
7 |
GBT97.1-6-AOP |
Plain Washer |
5 |
|
8 |
TS09580010006 |
O-Ring 1.5X2.2-M18x1.5 |
3 |
|
9 |
TS06582010006 |
Adjustable Right Angle Connector |
1 |
|
10 |
TS06582030001 |
Distributor Oil Inlet Pipe Assembly |
1 |
|
11 |
TS12582030003 |
Multi-Way Valve Oil Return Pipe Assembly |
1 |
|
12 |
TS06582010012 |
Multi-Way Valve Assembly |
1 |
|
13 |
GBT3738-L15 |
24° Cone Connectors–Straight Thread Elbow |
2 |
|
14 |
TS12582030001 |
Multi-Way Valve Oil Inlet Pipe Assembly |
1 |
|
15 |
FT65.55.139 |
Hollow Bolt |
1 |
|
16 |
JBT982-27 |
Compound Seal Washer |
2 |
|
17 |
TS06582010004 |
Rubber Pipe Limitation Plate |
1 |
|
18 |
YC4.29A-07 |
Oil Drainage Pipe Clip |
1 |
|
19 |
GBT93-8-AOP |
Standard Spring Washer |
2 |
|
20 |
GBT5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
2 |
|
21 |
FT65.58J.112 |
Hollow Bolt |
1 |
|
22 |
JBT982-24 |
Compound Seal Washer |
2 |
|
23 |
TD924.582A-01 |
Joint |
1 |
|
24 |
FT800.58A.010 |
Fp-L15e Single-Valve Distributor |
1 |
|
25 |
FT904A.58.030 |
Distributor Bracket Weldment |
1 |
|
26 |
GBT93-10-AOP |
Standard Spring Washer |
5 |
|
27 |
GBT70.1-M10X25-8.8-A3L |
Hexagon Socket Head Cap Screw |
2 |
|
28 |
GBT5783-M6X12-8.8-A2L |
Hexagon Head Bolt |
2 |
155
Lovol TC5A904-090K Wheeled Tractor

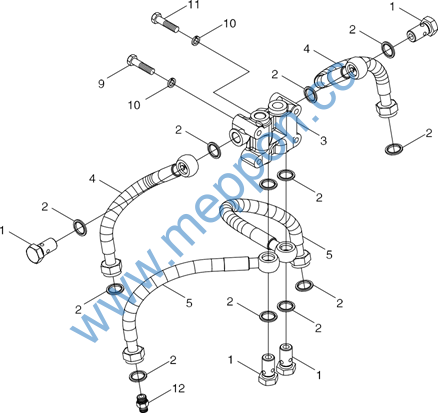

TS06582010000K Hydraulic System Assembly-2
156
Lovol TC5A904-090K Wheeled Tractor
TS06582010000K Hydraulic System Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06582010000 |
Hydraulic System Assembly |
1 |
||
1 |
FT650.40.102 |
Hollow Bolt M20x1.5 |
6 |
|
2 |
JBT982-20 |
Compound Seal Washer |
16 |
|
3 |
FT800.58A.107a |
Oil Pipe Connecting Block |
1 |
|
4 |
TD924.582.4 |
Oil Cylinder Inlet Pipe Assembly 1 |
2 |
|
5 |
TD924.582.5 |
Oil Cylinder Inlet Pipe Assembly 2 |
2 |
|
6 |
GBT3733-L16A |
Straight Thread Connector-Body |
6 |
|
7 |
TD924.582.1 |
Distributor Outlet Pipe Assembly 2 |
1 |
|
8 |
TD924.582.2 |
Distributor Outlet Pipe Assembly 1 |
1 |
|
9 |
GBT5782-M8X65-8.8-A2L |
Hexagon Head Bolt |
2 |
|
10 |
GBT93-8-A0P |
Standard Spring Washer |
2 |
|
11 |
GBT5782-M8X45-8.8-A2L |
Hexagon Head Bolt |
2 |
|
12 |
TD924.582.6 |
Slow-Down Valve Assembly |
2 |
157
Lovol TC5A904-090K Wheeled Tractor

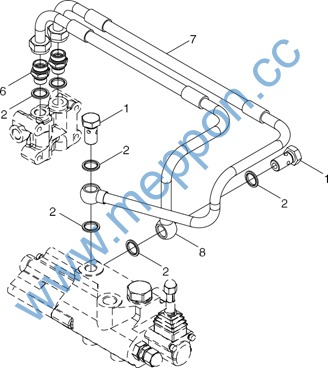

TS06582010000K Hydraulic System Assembly-3
158
Lovol TC5A904-090K Wheeled Tractor
TS06582010000K Hydraulic System Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06582010000 |
Hydraulic System Assembly |
1 |
||
1 |
FT65.55.139 |
Hollow Bolt |
2 |
|
2 |
JBT982-27 |
Compound Seal Washer |
4 |
|
3 |
TA820.582.1 |
Oil Return Filter Outlet Pipe Assembly 1 |
1 |
|
4 |
Q67638 |
B-Type Worm Drive Hose Hoop |
2 |
|
5 |
TD924.582.8 |
Oil Return Hose |
1 |
|
6 |
GBT70.1-M8X25-8.8-A2L |
Hexagon Socket Button Head Screw |
2 |
|
7 |
GBT93-8-A0P |
Standard Spring Washer |
6 |
|
8 |
GBT3452.1-22.4X1.80G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
9 |
TD924.582.9 |
Oil Return Filter Outlet Pipe Assembly |
1 |
|
10 |
GBT5783-M8X25-8.8-A2L |
Hexagon Head Bolt |
4 |
|
11 |
GBT97.1-8-A0P |
Plain Washer |
4 |
|
12 |
FT800.58A.105 |
Oil Return Filter Bracket |
1 |
|
13 |
FT800.58A.040a |
Oil Return Filter Assembly |
1 |
|
14 |
FT800.58A.037 |
Oil Return Filter Inlet Pipe Assembly |
1 |
|
15 |
Q67645 |
B-Type Worm Drive Hose Hoop |
2 |
|
16 |
FT904A.58.890 |
Oil Return Hose |
1 |
159
Lovol TC5A904-090K Wheeled Tractor

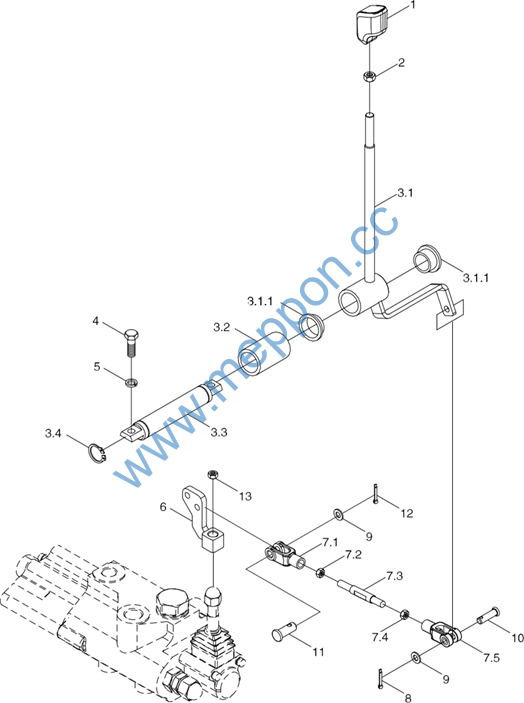

TS06582010000K Hydraulic System Assembly-4
