LOVOL TC5A904-090K Tractor Parts Catalogue 13
Lovol TC5A904-090K Wheeled Tractor
TS06551030000 Lifter Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06551030000 |
Lifter Assembly |
1 |
||
1 |
TS06551030002 |
Breather Assembly |
1 |
|
1.1 |
FT700.55D.136 |
Breather Cap |
1 |
|
1.2 |
GBT 893.1-26 |
Circlip For Hole |
1 |
|
1.3 |
FT650.40.167 |
Base Plate |
2 |
|
1.4 |
FT700.55D.109 |
Breather Filter Element |
1 |
|
1.5 |
TS06551030003 |
Breather Body Welding |
1 |
|
2 |
GBT 3452.1-36.5X2.65G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
3 |
GBT 93-8-A0P |
Standard Spring Washer |
2 |
|
4 |
GBT 5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
1 |
|
5 |
TA700.55A.7-01a |
Oil Filling Plug Assembly |
1 |
|
6 |
Q67522 |
Hoop, Worm Drive Hose, Type A |
2 |
|
7 |
TD800.55.3-01 |
Connection Hose |
1 |
|
8 |
TD800.55J.1a |
Oil Filler Welding Assembly |
1 |
|
9 |
GBT 5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
1 |
|
10 |
JBT 982-33 |
Compound Seal Washer |
1 |
|
11 |
TS06551030001 |
Lifter Assembly |
1 |
137
Lovol TC5A904-090K Wheeled Tractor
TS06551030000 Lifter Assembly-2
138
Lovol TC5A904-090K Wheeled Tractor
TS06551030000 Lifter Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |

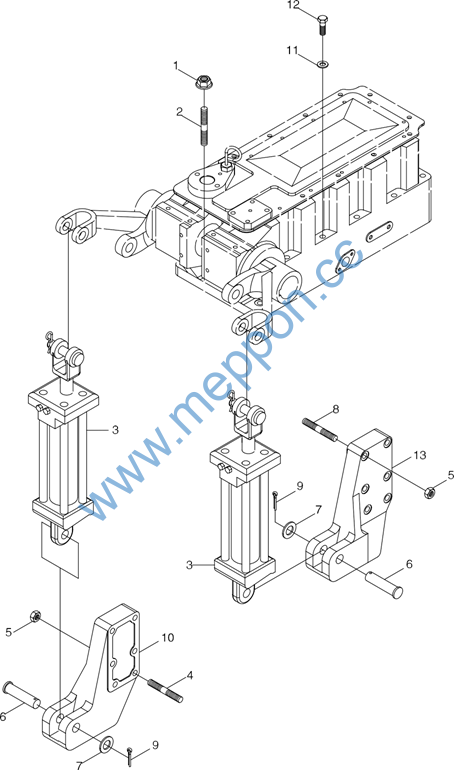

TS06551030000 |
Lifter Assembly |
1 |
||
1 |
GBT 899-GM12-M12X40-10.9-A3L |
Double-End Stud |
3 |
|
2 |
SPL-CO-M12-10-F3 |
Hexagon Flange Nut |
3 |
|
3 |
FT800.55A.012 |
Lifting Cylinder Assembly |
2 |
|
4 |
GBT 899-GM18-M18X65-10.9-A3L |
Double-End Stud |
8 |
|
5 |
SPL-CO-M18-F3 |
Hexagon Flange Nut |
12 |
|
6 |
FT800.55A.116 |
Pin Shaft |
2 |
|
7 |
FT800.55A.105 |
Washer |
2 |
|
8 |
GBT 899-GM18-M18X55-10.9-A3L |
Double-End Stud |
4 |
|
9 |
GBT 91-6X40-A0P |
Split Pin |
2 |
|
10 |
FT800.55A.104c |
Left Cylinder Bracket |
1 |
|
11 |
TB404.312B-01 |
Washer |
10 |
|
12 |
TD800.55-02 |
Hexagon Head Bolt |
10 |
|
13 |
FT800.55A.114c |
Right Cylinder Bracket |
1 |
139
Lovol TC5A904-090K Wheeled Tractor
TS06551030000 Lifter Assembly-3
140
Lovol TC5A904-090K Wheeled Tractor
TS06551030000 Lifter Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06551030000 |
Lifter Assembly |
1 |
||
TS06551030001 |
Lifter Assembly |
1 |
||
1 |
GBT 5781-M8X20-4.8-A2L |
Hexagon Head Bolt |
13 |
|
2 |
GBT 93-8-A0P |
Standard Spring Washer |
13 |
|
3 |

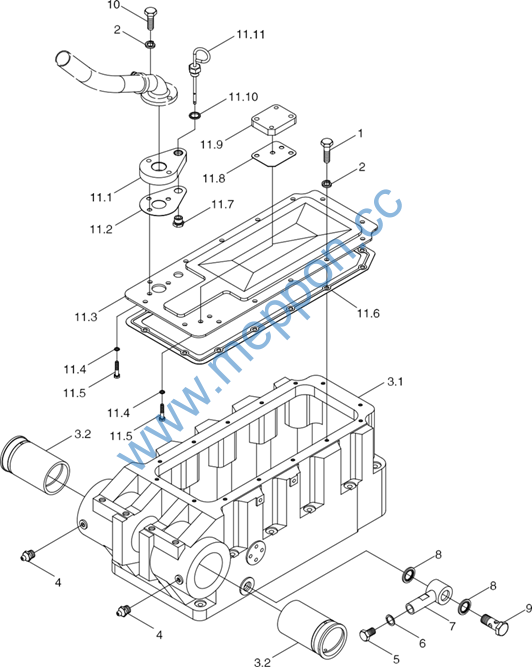

FT800.55A.015 |
A Lifter Shell Pressing Assembly |
1 |
|
3.1 |
FT800.55A.103 |
Lift Housing |
1 |
|
3.2 |
FT800.55A.111 |
Copper Sleeve |
2 |
|
4 |
JBT 7940.1-M10X1 |
Straight Type Pressure Oil Filling Cup |
2 |
|
5 |
JB/ZQ4451-M18X1.5 |
Screw Plug |
1 |
|
6 |
JB/ZQ4454-M18X22 |
Gasket (Disabled) |
1 |
|
7 |
FT800.55A.016 |
Hinge Joint Assembly |
1 |
|
8 |
JBT 982-24 |
Compound Seal Washer |
2 |
|
9 |
FT800.55A.118 |
Hollow Bolt |
1 |
|
10 |
GBT 5782-M8X45-8.8-A2L |
Hexagon Head Bolt |
3 |
|
11 |
TD800.55.8 |
Upper Cover Assembly |
1 |
|
11.1 |
TD800.55.8-03 |
Oil Filling Block |
1 |
|
11.2 |
TD800.55.8-04 |
Oil Filling Port |
1 |
|
11.3 |
TD800.55.8-01 |
Upper Cover Plate |
1 |
|
11.4 |
GBT 5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
4 |
|
11.5 |
GBT 93-8-A0P |
Standard Spring Washer |
4 |
|
11.6 |
TD800.55.8-02 |
Upper Cover Plate |
4 |
|
11.7 |
TD800.55.8-06 |
Support Pad |
1 |
|
11.8 |
TD800.55.8-05 |
Support Pad |
1 |
|
11.9 |
TD800.55.8-07 |
Hollow Bolt |
1 |
|
11.10 |
JBT 982-16 |
Compound Seal Washer |
1 |
|
11.11 |
FT800.55A.011 |
Oil Dipstick Assembly |
1 |
141
Lovol TC5A904-090K Wheeled Tractor
TS06551030000 Lifter Assembly-4
142
Lovol TC5A904-090K Wheeled Tractor
TS06551030000 Lifter Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06551030000 |
Lifter Assembling Assy |
1 |
||
TS06551030001 |
Lift Assembly |
1 |
||

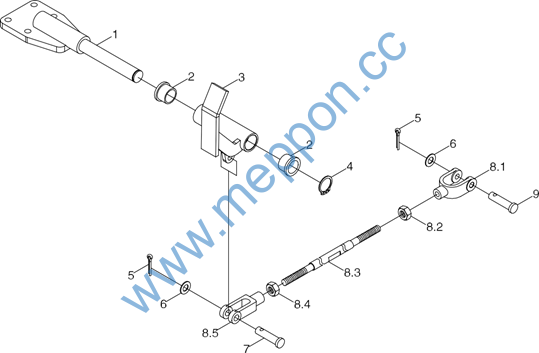

TS12550020001 |
Feedback Mechanism |
1 |
||
1 |
TD800.55.2.3 |
Support Assembly |
1 |
|
2 |
TD800.55.2a-01 |
Nylon Jacket |
2 |
|
3 |
TS12550020004 |
Rocker Arm Welding |
1 |
|
4 |
GBT 894.1-20 |
Circlip For Shaft |
1 |
|
5 |
GBT 91-3.2X16-A0P |
Split Pin |
2 |
|
6 |
GBT 97.1-8-A0P |
Flat Washer |
2 |
|
7 |
GBT 882-B8X30 |
Pin Roll |
1 |
|
8 |
TS12550020002 |
Adjusting Rod Assembly |
1 |
|
8.1 |
TS12550020003 |
Right-Hand Tie Rod |
1 |
|
8.2 |
GBT6170-M8-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
8.3 |
TD800.55.2a.4-01 |
Adjusting Rod |
1 |
|
8.4 |
GBT6170-M8-LH-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
8.5 |
TD800.55.2.2-03 |
Left Fork |
1 |
|
9 |
GBT 882-B8X45 |
Pin Roll |
1 |
143
Lovol TC5A904-090K Wheeled Tractor
TS06551030000 Lift assembly-5
144
Lovol TC5A904-090K Wheeled Tractor
TS06551030000 Lift assembly-5
No. |
Part code and specification |
Part name |
Quantity |
Remark |

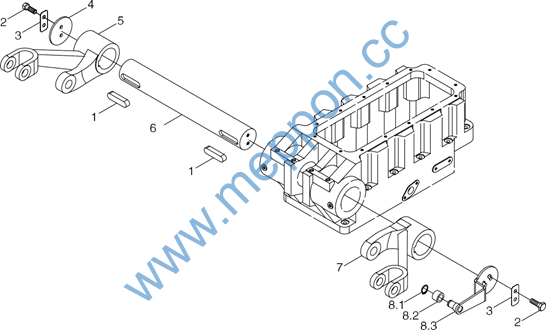

TS06551030000 |
Lift Assembly |
1 |
||
TS06551030001 |
Lifter Assembly |
1 |
||
1 |
GBT 1096-20X12X80 |
Flat Key |
2 |
|
2 |
GBT 5783-M10X20-8.8-A3L |
Hexagon Head Bolt |
4 |
|
3 |
FT800.55A.112 |
Stop Pad |
2 |
|
4 |
FT800.55A.115 |
Lift Arm Plate |
2 |
|
5 |
TD800.55.4 |
Left Arm Pressure |
1 |
|
6 |
FT800.55A.107 |
Lift Shaft |
1 |
|
7 |
TD800.55.5 |
Right Arm Pressing |
1 |
|
8 |
TD800.55.1 |
Feedback Arm Assembly |
1 |
|
8.1 |
GBT 894.1-20 |
Ring |
1 |
|
8.2 |
TD800.55.1-01 |
Roller |
1 |
|
8.3 |
TD800.55.1.1 |
Feedback Arm Welding |
1 |
145
Lovol TC5A904-090K Wheeled Tractor

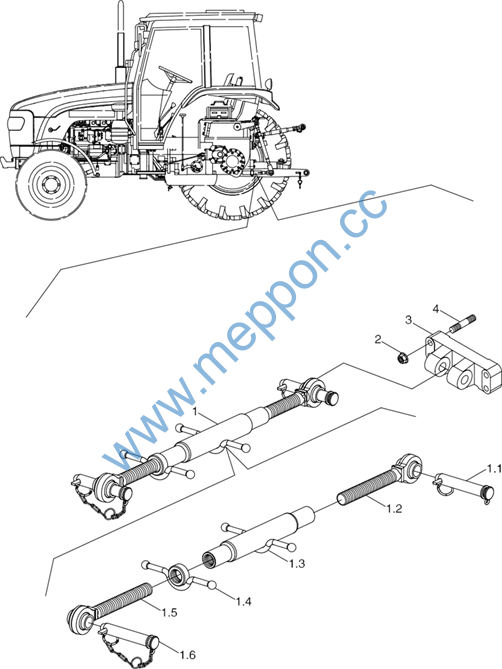

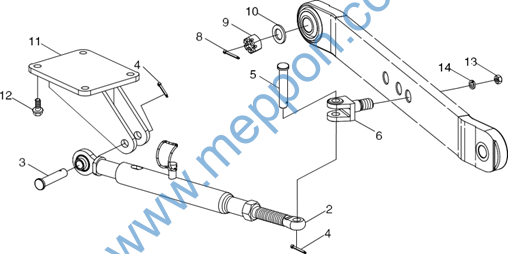

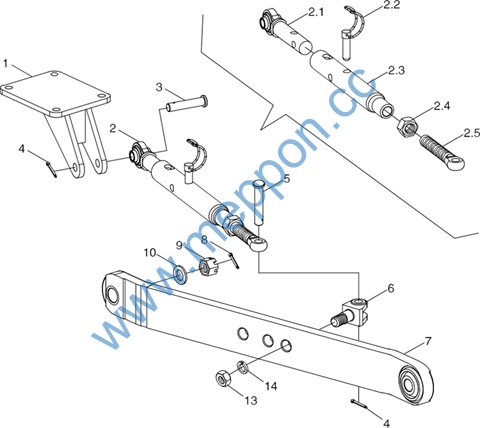

FT800.56A.001 Hitch Assembly-1
146
Lovol TC5A904-090K Wheeled Tractor
FT800.56A.001 Hitch Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.56A.001 |
Hitch Assembly |
1 |
||
1 |
FT800.56A.017 |
Upper Pull Rod Assembly |
1 |
|
1.1 |
TD800.56A.1.1 |
Front Connecting Pin Assembly Of Upper Pull Rod |
1 |
|
1.2 |
FT800.56.025 |
Front Adjusting Screw Extrusion Assembly Of Upper Pull Rod |
1 |
|
1.3 |
FT800.56.024 |
Adjusting Solenoid Handle Welded Assembly |
1 |
|
1.4 |
FT800.56.029 |
Upper Pull Rod Lock Nut Assembly |
1 |
|
1.5 |
FT800.56.023 |
Rear Adjusting Screw Extrusion Assembly Of Upper Pull Rod |
1 |
|
1.6 |
FT800.56.027 |
Upper Pull Rod Pin And Lock Pin Assembly |
1 |
|
2 |
SPL-CO-M16-F3 |
Hex. Flange Nut |
4 |
|
3 |
FT800.56A.101a |
Upper Pull Rod Support |
1 |
|
4 |
GBT 899-M16X65-8.8-A3L |
Stud |
4 |
