LOVOL TC5A904-090K Tractor Parts Catalogue 12
Lovol TC5A904-090K Wheeled Tractor
TS06435010000 Parking Brake Control Mechanism Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06435010000 |
Parking Brake Control Mechanism Assembly |
1 |
||
1 |
GBT 119.1-8h8X16-A0P |
Cylindrical Pin |
2 |
|
2 |
GBT 91-3.2X20-A0P |
Split Pin |
2 |
|
3 |
GBT 97.1-10-A0P |
Plain Washer |
4 |
|
5 |
GBT 3452.1-15X2.65G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
2 |
|
6 |
GBT 5783-M8X35-8.8-A2L |
Hexagon Head Bolt |
4 |
|
6 |
FT800.43.169 |
Brake Camshaft |
1 |
|
7 |
GBT 93-8 |
Standard Spring Washer |
4 |
|
8 |
GBT 97.1-8-A0P |
Plain Washer |
4 |
|
9 |
GBT 6171-M10X1-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
10 |
FT800.21.240 |
Pull Rod Front Fork |
1 |
|
11 |
GBT 879.1-8X30 |
Elastic Cylindrical Pin |
1 |
|
12 |
GBT 879.1-5X30 |
Elastic Cylindrical Pin |
1 |
|
13 |
FT800A.43.321 |
Revolving Rod |
1 |
|
14 |
FT800.43.132 |
Cover Seat |
1 |
|
15 |
FT800.43.194 |
Bolt |
2 |
|
16 |
GBT 854-10 |
Tab Washer With Long Tab |
2 |
|
17 |
FT800.43.131 |
Pressing Plate |
1 |
|
18 |
FT800.43.023 |
Friction Disc Subassembly |
2 |
|
19 |
FT800.43.024 |
Middle Friction Disc Subassembly |
1 |
|
20 |
GBT 894.1-48 |
Circlip For Shaft |
1 |
|
21 |
FT800.43.136 |
Spline Wheel |
1 |
|
22 |
FT800.43.141 |
Steel Disc |
2 |
|
23 |
FT800.43.142 |
Adjusting Gasket |
On Demand |
|
24 |
GBT 882-B10X30 |
Pin Shaft |
1 |
|
25 |
FT800.43.145 |
Adjusting Gasket |
On Demand |
|
26 |
GBT 93-10 |
Standard Spring Washer |
4 |
|
27 |
GBT 5783-M10X30-8.8-A3L |
Hexagon Head Bolt |
4 |
125
Lovol TC5A904-090K Wheeled Tractor

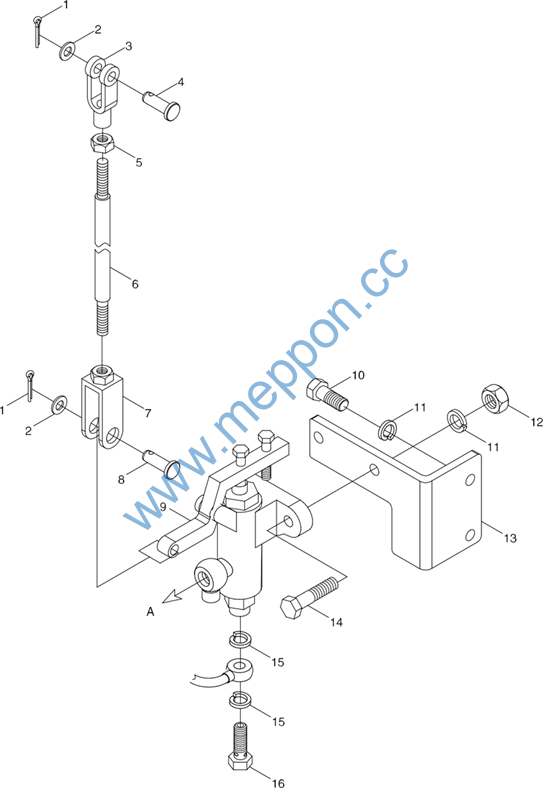

TS06801010000 Brake Valve Assembly
126
Lovol TC5A904-090K Wheeled Tractor
TS06801010000 Brake Valve Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06801010000 |
Brake Valve Assembly |
1 |
||
1 |
GBT 91-3.2X20-A0P |
Cotter Pin |
2 |
|
2 |
GBT 97.1-10-A0P |
Plain Washer |
4 |
|
3 |
FT65.43.152 |
Left Fork |
1 |
|
4 |
GBT 882-B10X35-A0P |
Pin Shaft |
1 |
|
5 |
GBT 6170-M10-LH-8-A3L |
Hexagon Nut, Type 1 |
1 |
|
6 |
TS06801010002 |
Brake Valve Rod |
1 |
|
7 |
TD800.801.1 |
Connecting Fork Weldment |
1 |
|
8 |
GBT 882-B10X26-A0P |
Pin Shaft |
1 |
|
9 |
FT800.80.014 |
Qfj10/0.63 Type Gas Brake Valve |
1 |
|
10 |
GBT 5783-M10X25-8.8-A3L |
Hexagon Head Bolt |
2 |
|
11 |
GBT 93-10-A0P |
Standard Spring Washer |
4 |
|
12 |
GBT 6170-M10-8-A3L |
Hexagon Nut, Type 1 |
2 |
|
13 |
TS06801010001 |
Brake Valve Bracket |
1 |
|
14 |
GBT 5783-M10X35-8.8-A3L |
Hexagon Head Bolt |
2 |
|
15 |
JBT 982-14 |
Compound Seal Washer |
4 |
|
16 |
FT800.40.172 |
Hollow Bolt |
2 |
127
Lovol TC5A904-090K Wheeled Tractor
TS06802010000 Air holder assembly
128
Lovol TC5A904-090K Wheeled Tractor
TS06802010000 Air holder assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06802010000 |
Air Holder Assembly |
1 |
||
1 |
TS06802010005 |
The Left Cylinder Mounting Plate |
1 |
|
2 |
GBT 93-10-A0P |
Standard Spring Washer |
8 |
|
3 |
GBT 5783-M10X25-8.8-A3L |
Hex Bolt |
4 |
|
4 |
TS06802010004 |
Air Holder Weldment |
1 |
|
5 |
TD800.484B.7 |
Air Pressure Alarm |
1 |
|
6 |
FT65.80.014 |
Safety Valve |
1 |
|
7 |
GBT 6170-M10-8-A3L |
Type 1 Hex Nut |
4 |
|
8 |
GBT 97.1-10-A0P |
Flat Washer |
4 |
|
9 |
TS06802010006 |
Right Cylinder Mounting Plate |
1 |
|
10 |
FT300.80.033 |
Water Drainage Valve Assembly |
1 |
|
11 |
Q67516 |
A Type Worm Drive Hose Ring Hoop |
1 |
|
12 |
TS06802010007 |
Pure Rubber Hose |
1 |
|
13 |
FT304.48L.203 |
Wire Harness Fastening Clip |
1 |
129
Lovol TC5A904-090K Wheeled Tractor

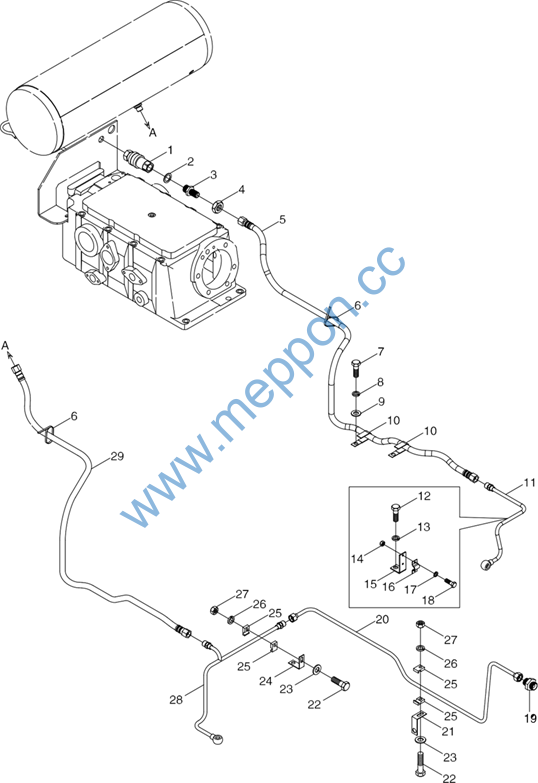

TS06803010000 Air deliver pipeline assembly
130
Lovol TC5A904-090K Wheeled Tractor
TS06803010000 Air deliver pipeline assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06803010000 |
Air Deliver Pipeline Assembly |
1 |
||
1 |
FT65.80.018 |
Quick-Change Joint |
1 |
|
2 |
FT65.80.213 |
Output Joint Body Seal Gasket |
1 |
|
3 |
FT800.80L.212 |
Output Joint Body |
1 |
|
4 |
GBT 6173-M18X1.5-05-A3L |
Hexagon Thin Nut |
1 |
|
5 |
TD800.803.5 |
Hose Combined Unit (2) |
1 |
|
6 |
Q67405200 |
Plastic Fastening Belt |
3 |
|
7 |
GBT 5783-M10X20-8.8-A3L |
Hexagon Head Bolt |
1 |
|
8 |
GBT 93-10-A0P |
Standard Spring Washer |
1 |
|
9 |
GBT 97.1-10-A0P |
Plain Washer |
1 |
|
10 |
TD800.803-07 |
Hose Fastening Clip |
2 |
|
11 |
TS06803010004 |
Air Outlet Pipe Weldment |
1 |
|
12 |
GBT 5783-M12X20-8.8-A3L |
Hexagon Head Bolt |
1 |
|
13 |
GBT 93-12-A0P |
Standard Spring Washer |
1 |
|
14 |
GBT 6170-M4-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
15 |
TD800.803-01 |
Trestle |
1 |
|
16 |
FT800A.80.201 |
Fixing Clip |
1 |
|
17 |
GBT 93-4-A0P |
Standard Spring Washer |
2 |
|
18 |
GBT 5783-M4X10-8.8-A2L |
Hexagon Head Bolt |
2 |
|
19 |
FT700.80G.101 |
Pipe Joint |
1 |
|
20 |
TD800.803.7 |
Air Outlet Pipe Assembly |
1 |
|
21 |
TD800.803-06 |
Pipe Clip Trestle 2 |
1 |
|
22 |
GBT 5783-M8X35-8.8-A2L |
Hexagon Head Bolt |
2 |
|
23 |
GBT 97.1-8-A0P |
Plain Washer |
2 |
|
24 |
TD800.803-05 |
Pipe Clip Trestle |
1 |
|
25 |
TB454.40X-01 |
Single-Hole Pipe Clip |
4 |
|
26 |
GBT 93-8-A0P |
Standard Spring Washer |
2 |
|
27 |
GBT 6170-M8-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
28 |
TS06803010002 |
Brake Valve Inlet Pipe Welding |
1 |
|
29 |
TS06803010005 |
Air Intake Hose Assembly |
1 |
131
Lovol TC5A904-090K Wheeled Tractor

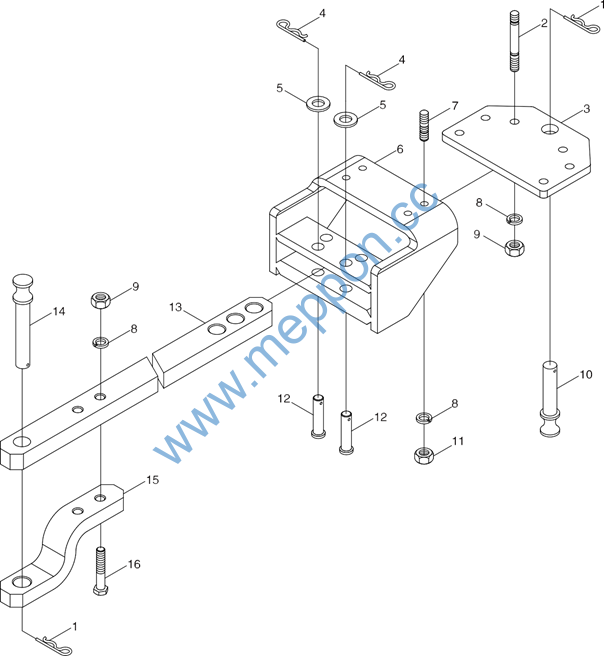

FT800.35B.001 Towing Mechanism Assembly
132
Lovol TC5A904-090K Wheeled Tractor
FT800.35B.001 Towing Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT800.35B.001 |
Towing Mechanism Assembly |
1 |
||
1 |
FT800.35.112 |
Spring Lock Pin |
2 |
|
2 |
GBT 899-GM16-M16X110-A2L |
Stud |
6 |
|
3 |
FT800.35.012 |
Lower Link Seat Bottom Plate Weldment |
1 |
|
4 |
FT300.35A.131 |
Lock Pin |
2 |
|
5 |
GBT97.1-20-A0P |
Washer |
2 |
|
6 |
FT800.35B.010 |
Towing Bracket Weldment |
1 |
|
7 |
GBT 899-GM16-M16X40-A2L |
Stud |
4 |
|
8 |
GBT 93-16-A0P |
Washer |
12 |
|
9 |
GBT 6170-M16-A0P |
Nut |
8 |
|
10 |
FT800.35.101 |
Oscillating Pin |
1 |
|
11 |
GBT 6173-M16X1.5-A3L |
Nut |
4 |
|
12 |
FT800.35B.103 |
Limiting Pin |
2 |
|
13 |
FT800.35A.101 |
Swing Rod |
1 |
|
14 |
FT800.35.109 |
Towing Pin |
1 |
|
15 |
FT800.35.104 |
Connecting Swing Rod |
1 |
|
16 |
GBT 5782-M16X90-A3L |
Bolt |
2 |
133
Lovol TC5A904-090K Wheeled Tractor
FT800.53.001 Tow Equipment Assembly
134
Lovol TC5A904-090K Wheeled Tractor
FT800.53.001 Tow Equipment Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 |
FT800.53.001 FT800.53.101a FT800.53.102 FT800.53.111 GBT 899-GM16-M16X75-8.8-A2L
GBT 93-16-AOP GBT 6170-M16-A2L |
Tow Equipment Assembly Tow Bracket Pothook Pin Spring Lock Pin Stud
Washer Nut |
1 1 1 1 6
6 6 |
135
Lovol TC5A904-090K Wheeled Tractor

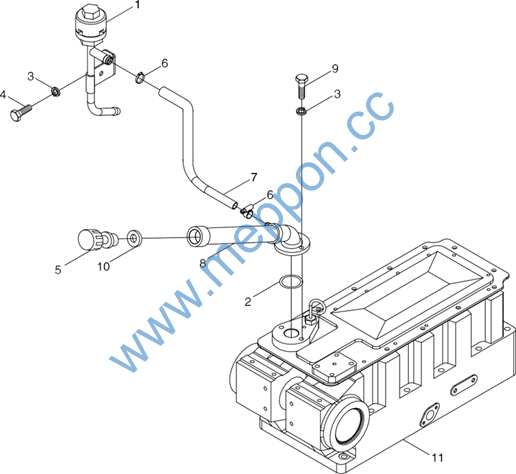

TS06551030000 Lifter Assembly-1
136
