LOVOL TC5A904-090K Tractor Parts Catalogue 11
Lovol TC5A904-090K Wheeled Tractor
TS06401010000 Steering Wheel and Steering Column Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06401010000 |
Steering Wheel And Steering Column Assembly |
1 |
||
1 |
GBT 5783-M10X25-8.8-A3L |
Hexagon Head Bolt |
8 |
|
2 |
GBT 93-10-A0P |
Standard Spring Washer |
8 |
|
3 |
TS04401010001 |
Steering Wheel Assembly |
1 |
|
4 |
TS06401010002 |
Steering Column Assembly |
1 |
|
5 |
TS06401010003 |
Connecting Plate |
1 |
|
6 |
GBT 6170-M10-8-A3L |
Hexagon Nut, Style 1 |
4 |
|
7 |
FT804.40L.032 |
Steering Gear And Valve Block Assembly |
1 |
113
Lovol TC5A904-090K Wheeled Tractor

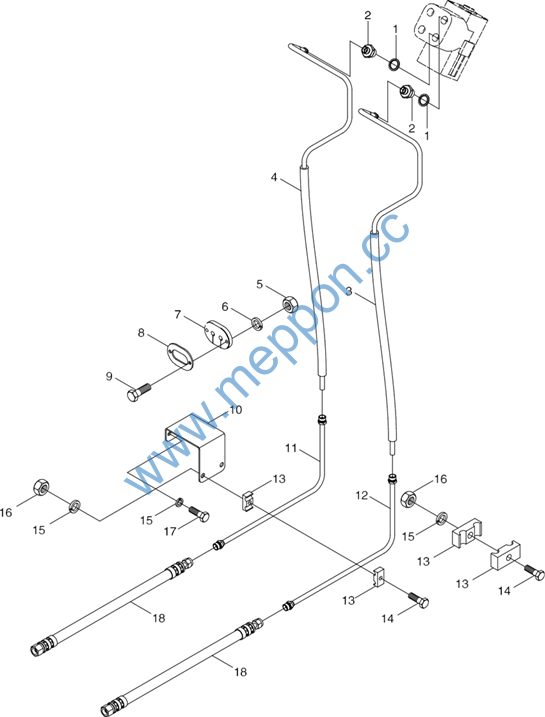

TS06402010000 Fully Hydraulic Steering Pipeline Assembly-1
114
Lovol TC5A904-090K Wheeled Tractor
TS06402010000 Fully Hydraulic Steering Pipeline Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06402010000 |
Fully Hydraulic Steering Pipeline Assembly |
1 |
||
1 |
JBT 982-20 |
Compound Seal Washer |
2 |
|
2 |
TD1100.402G-01 |
Joint Body M20-16 |
2 |
|
3 |
TS06402010007 |
Left Oil Outlet Pipe Assembly Of Steering Gear |
1 |
|
4 |
TS06402010006 |
Right Oil Outlet Pipe Assembly Of Steering Gear |
1 |
|
5 |
GBT 6170-M6-8-A2L |
Hexagon Nut, Type 1 |
2 |
|
6 |
GBT 93-6-A0P |
Standard Spring Washer |
2 |
|
7 |
TD904.402X-03 |
Shock Absorbing Pad-01 |
1 |
|
8 |
TD904.402X-01 |
Clamping Plate -01 |
1 |
|
9 |
GBT 5783-M6X25-8.8-A2L |
Hexagon Head Bolt |
2 |
|
10 |
FT800A.40.103 |
Fixing Plate |
1 |
|
11 |
TD900.402D.2 |
Left Oil Delivery Tube Assembly |
1 |
|
12 |
TD900.402D.3 |
Right Oil Delivery Tube Assembly |
1 |
|
13 |
FT354.40C.121 |
Double-Pipe Clip |
6 |
|
14 |
GBT 5783-M8X40-8.8-A2L |
Hexagon Head Bolt |
3 |
|
15 |
GBT 93-8-A0P |
Standard Spring Washer |
5 |
|
16 |
GBT 6170-M8-8-A2L |
Hexagon Nut, Type 1 |
3 |
|
17 |
GBT 5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
2 |
|
18 |
TD904.402B.1 |
Steering Rubber Pipe Assembly |
2 |
115
Lovol TC5A904-090K Wheeled Tractor

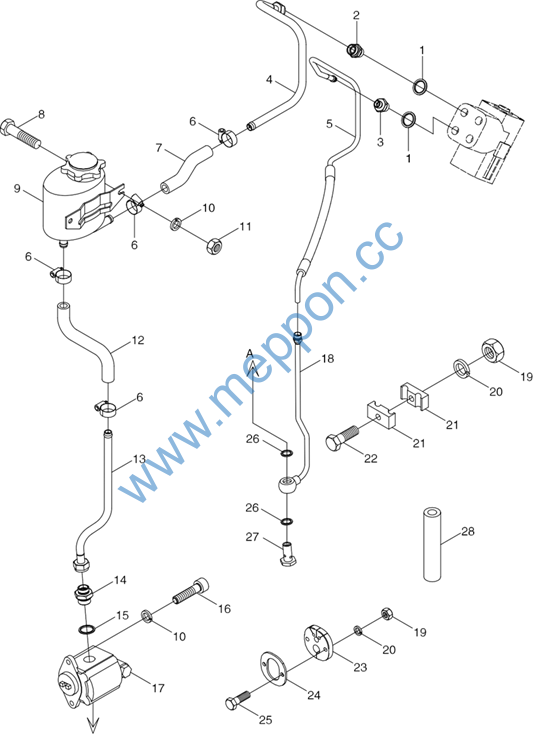

TS06402010000 Fully Hydraulic Steering Pipeline Assembly-2
116
Lovol TC5A904-090K Wheeled Tractor
TS06402010000 Fully Hydraulic Steering Pipeline Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06402010000 |
Fully Hydraulic Steering Pipeline Assembly |
1 |
||
1 |
JBT 982-20 |
Compound Seal Washer |
2 |
|
2 |
GBT 3733-L16A |
Straight Thread Connector-Body |
1 |
|
3 |
TD1100.402G-01 |
Joint Body M20-16 |
1 |
|
4 |
TS06402010004 |
Steering Gear Oil Return Pipe Assembly |
1 |
|
5 |
TS06402010005 |
Steering Gear Oil Inlet Pipe Assembly |
1 |
|
6 |
Q67632 |
B-Type Worm Drive Type Hose Hoop |
4 |
|
7 |
TS06402010003 |
Oil Return Hose |
1 |
|
8 |
GBT 5781-M10X20-4.8-A3L |
Hexagon Head Bolt |
2 |
|
9 |
TD1100.402B.1 |
Steering Oil Tank And Breather Assembly |
1 |
|
10 |
GBT 93-10-A0P |
Standard Spring Washer |
4 |
|
11 |
GBT 6170-M10-10-A3L |
Hexagon Nut, Style 1 |
2 |
|
12 |
FT800A.40.104 |
Oil Inlet Hose |
1 |
|
13 |
TS06402010009 |
Oil Pump And Oil Suction Steel Pipe Assembly |
1 |
|
14 |
TD904.402A-01 |
End Straight Jointm27-M24 |
1 |
|
15 |
JBT 982-27 |
Compound Seal Washer |
1 |
|
16 |
GBT 70.1-M10X25-8.8-A3L |
Hexagon Socket Head Cap Screw |
2 |
|
17 |
FT800A.40.028 |
Steering Pump Assembly |
1 |
|
18 |
TS06402010002 |
Oil Pump Oil Delivery Steel Pipe Assembly |
1 |
|
19 |
GBT 6170-M6-8-A2L |
Hexagon Nut, Style 1 |
3 |
|
20 |
GBT 93-6-A0P |
Standard Spring Washer |
3 |
|
21 |
FT800.40L.108 |
Short Oil Pipe Clip |
2 |
|
22 |
GBT 5781-M6X25-4.8-A2L |
Hexagon Head Bolt |
1 |
|
23 |
TD904.402X-04 |
Shock Absorbing Pad-02 |
1 |
|
24 |
TD904.402X-02 |
Clamping Plate-02 |
1 |
|
25 |
GBT 5783-M6X25-8.8-A2L |
Hexgaon Head Bolt |
2 |
|
26 |
JBT 982-18 |
Compound Seal Washer |
2 |
|
27 |
FT700.40G.109 |
Hollow Bolt |
1 |
|
28 |
FT800A.40.108 |
Transmission Sleeve |
1 |
117
Lovol TC5A904-090K Wheeled Tractor

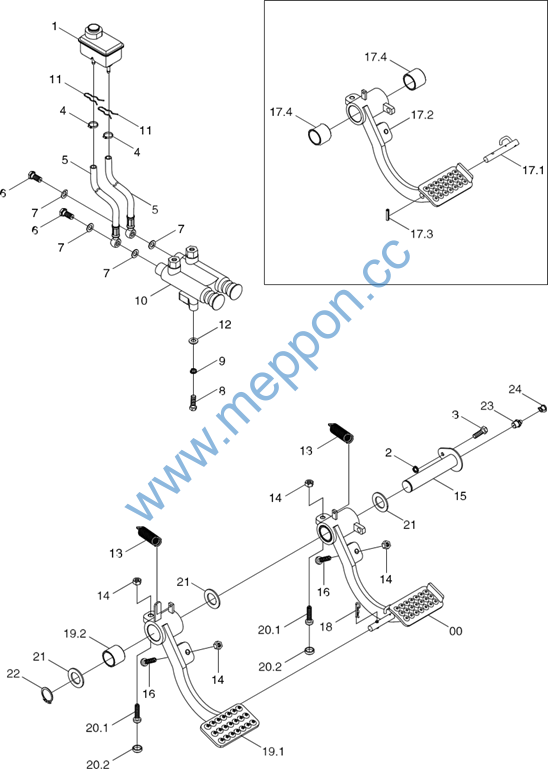

TS06433010000 Service Brake Control Mechanism Assembly-1
118
Lovol TC5A904-090K Wheeled Tractor
TS06433010000 Service Brake Control Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06433010000 |
Service Brake Control Mechanism Assembly |
1 |
||
1 |
TG1204.433.2 |
Brake Oil Tank Assembly |
1 |
|
2 |
GBT 93-8-A0P |
Standard Spring Washer |
1 |
|
3 |
GBT 5783-M8X16-8.8-A3L |
Hexagon Head Bolt – Full Thread |
1 |
|
4 |
Q673B115 |
Steel-Band Spring Hoop |
2 |
|
5 |
TS06433010005 |
Oil Delivery Hose |
2 |
|
6 |
FT800.43.115 |
Oil Pipe Joint Screw |
4 |
|
7 |
JBT 982-12 |
Compound Seal Washer |
8 |
|
8 |
GBT 5783-M10X30-8.8-A3L |
Hexagon Head Bolt |
3 |
|
9 |
GBT 93-10-A0P |
Standard Spring Washer |
3 |
|
10 |
FT800A.43C.018 |
Brake Pump Assembly |
1 |
|
11 |
TG1204.433-04 |
Snap Ring |
2 |
|
12 |
GBT 97.1-10-A0P |
Plain Washer |
3 |
|
13 |
TD800.43-01 |
Pedal Retraction Spring |
2 |
|
14 |
GBT 6170-M10-8-A3L |
Hexagon Nut, Style 1 |
4 |
|
15 |
TS06433010008 |
Brake Pedal Support Shaft Weldment |
1 |
|
16 |
FT800.43.103 |
Adjusting Screw |
2 |
|
17 |
TS10433010006 |
Right Brake Rocker Subassembly |
1 |
|
17.1 |
FT800A.43.065 |
Brake Interlock Lever Weldment |
1 |
|
17.2 |
TS10433010005 |
Right Brake Rocker Weldment |
1 |
|
17.3 |
GBT 879.1-5X16 |
Elastic Cylindrical Pin |
1 |
|
17.4 |
TG1654.212B.1-01 |
Bushing |
2 |
|
18 |
FT800A.43.401 |
Lock Pin |
1 |
|
19 |
TS10433010004 |
Left Brake Rocker Subassembly |
1 |
|
19.1 |
TS10433010003 |
Left Brake Rocker Weldment |
1 |
|
19.2 |
TG1654.212B.1-01 |
Bushing |
1 |
|
20 |
FT800.43.030 |
Adjusting Screw Subassembly |
2 |
|
20.1 |
FT800.43.103 |
Adjusting Screw |
1 |
|
20.2 |
FT800.43.210 |
Buffer Sleeve |
1 |
|
21 |
TF1004.433-01 |
Nylon Spacing Sleeve |
4 |
|
22 |
GBT 894.1-30 |
Circlip For Shaft |
1 |
|
23 |
JBT 7940.1-M8X1 |
Straight Hydraulic Grease Nozzle |
1 |
|
24 |
TD800.311C.1-01 |
Oil Cup Dustproof Cap |
1 |
119
Lovol TC5A904-090K Wheeled Tractor

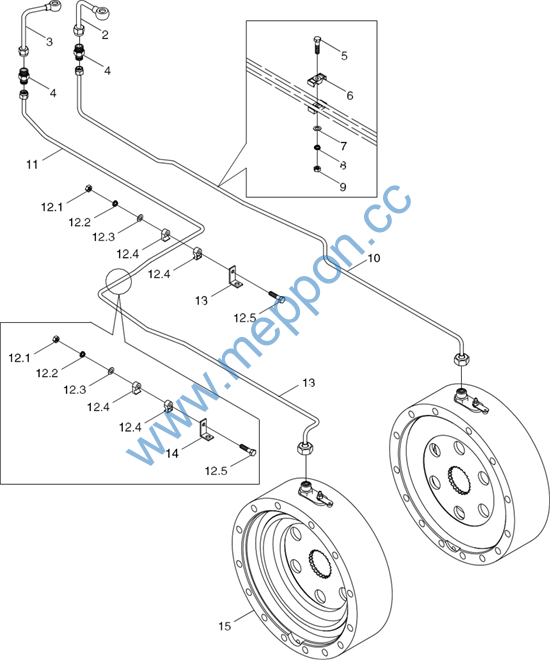

TS06433010000 Service Brake Control Mechanism Assembly-2
120
Lovol TC5A904-090K Wheeled Tractor
TS06433010000 Service Brake Control Mechanism Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06433010000 |
Service Brake Control Mechanism Assembly |
1 |
||
1 |
FT800A.43C.230 |
Seal Sleeve |
2 |
|
2 |
FT800A.43C.012b |
Right Brake Short Oil Pipe Assembly |
1 |
|
3 |
FT800A.43C.011b |
Left Brake Short Oil Pipe Assembly |
1 |
|
4 |
FT800A.43.315 |
Straight Thread Connector, Body |
2 |
|
5 |
GBT 5783-M8X40-8.8-A2L |
Hexagon Head Bolt |
1 |
|
6 |
FT800A.43C.229 |
Double-Hole Pipe Clip |
2 |
|
7 |
GBT 97.1-8-A0P |
Plain Washer |
1 |
|
8 |
GBT 93-8-A0P |
Standard Spring Washer |
1 |
|
9 |
GBT 6170-M8-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
10 |
TS06433010001 |
Right Brake Long Oil Pipe Assembly |
1 |
|
11 |
TS06433010002 |
Left Brake Long Oil Pipe Assembly |
1 |
|
12 |
F600190 |
Pipe Clip Combination (5) |
2 |
|
12.1 |
GBT 6170-M8 |
Nut |
1 |
|
12.2 |
GBT 93-8 |
Standard Spring Washer |
1 |
|
12.3 |
GBT 95-8 |
Plain Washer |
1 |
|
12.4 |
F600209 |
Single-Hole Pipe Clip (2) |
2 |
|
12.5 |
GBT 5783-M8X40-8.8-A2L |
Hexagon Head Bolt |
1 |
|
13 |
FT800A.43.335 |
Oil Pipe Fixing Plate |
1 |
|
14 |
TS06433010009 |
Oil Pipe Fixing Plate |
1 |
|
15 |
FT800.43.015 |
Brake Assembly |
1 |
121
Lovol TC5A904-090K Wheeled Tractor

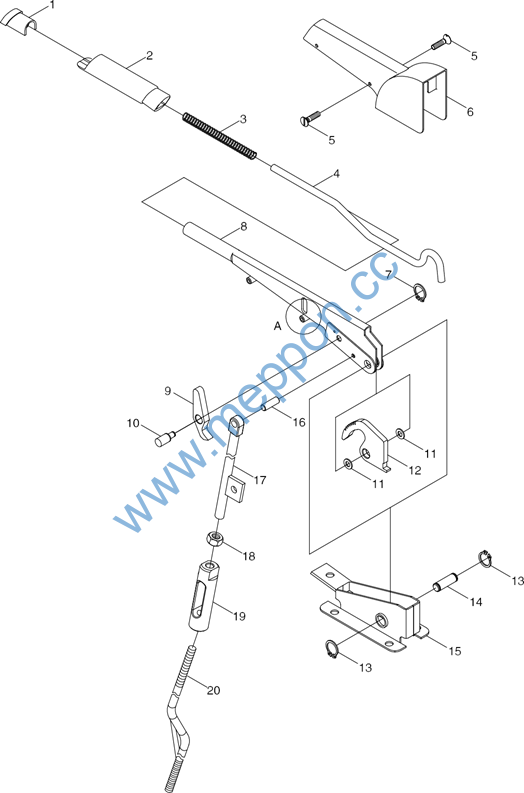

TS06435010000 Parking Brake Control Mechanism Assembly-1
122
Lovol TC5A904-090K Wheeled Tractor
TS06435010000 Parking Brake Control Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS06435010000 |
Parking Brake Control Mechanism Assembly |
1 |
||
TS06435010001 |
Handle Brake Control Handle Assembly |
1 |
||
1 |
FT800A.21.045 |
Button Assembly |
1 |
|
2 |
FT800A.21.319 |
Control Handle Rubber Grip |
1 |
|
3 |
FT800.43.180 |
Spring |
1 |
|
4 |
FT800A.21.315 |
Top Rod |
1 |
|
5 |
GBT 68-M4X10-4.8-A2L |
Slotted Countersunk Head Screw |
4 |
|
6 |
FT800A.21.320 |
Shield |
1 |
|
7 |
GBT 894.1-6 |
Circlip For Shaft |
1 |
|
8 |
FT800A.21.044 |
Control Handle Assembly |
1 |
|
9 |
FT800A.21.314 |
Pawl |
1 |
|
10 |
FT800A.21.322 |
Small Pin Shaft |
1 |
|
11 |
GBT 97.1-14-A0P |
Plain Washer |
2 |
|
12 |
FT800A.43.310 |
Ratchet |
1 |
|
13 |
GBT 894.1-14 |
Circlip For Shaft |
2 |
|
14 |
FT800A.21.321 |
Pin Shaft |
1 |
|
15 |
TS06435010005 |
Fixing Seat Weldment |
1 |
|
16 |
FT800A.21.323 |
Pin |
1 |
|
17 |
FT800A.43.070 |
Handle Brake Short Pull Rod Weldment |
1 |
|
18 |
GBT 6171-M10X1-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
19 |
TG1204.435-01 |
Adjusting Sleeve |
1 |
|
20 |
TS06435010002 |
Handle Brake Long Pull Rod Weldment |
1 |
123
Lovol TC5A904-090K Wheeled Tractor

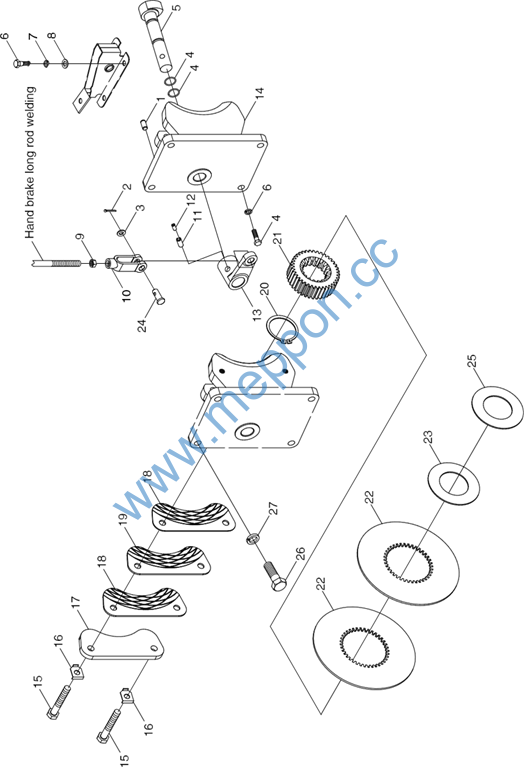

TS06435010000 Parking Brake Control Mechanism Assembly-2
124
