LOVOL TC5A824-066K Tractor Parts Catalogue 17
TD800.501C Main Oil Tank Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.501C |
Main oil tank installation assembly |
1 |
||
1 |
FT800A.50.051 |
Main oil tank belt weldment |
2 |
|
2 |
GB/T 6170–M10–A3L |
Nut |
4 |
|
3 |
FT800A.50.209 |
Main oil tank belt rubber piece |
2 |
|
4 |
TD800.501C.1 |
Main oil tank assembly |
1 |
|
4.1 |
TD800.501C.1.1 |
Main oil tank weldment |
1 |
|
4.2 |
FT65.50.022 |
Oil tank filling port cover assembly |
1 |
|
4.3 |
FT300.50.015 |
Filter screen assembly |
1 |
|
4.4 |
JB/T 982–16 |
Combined seal gasket |
1 |
|
4.5 |
FT65.50.226 |
Disckarge oil screw plug |
1 |
|
5 |
GB/T 5783–M16x35–A3L |
Bolt |
2 |
|
6 |
GB/T 93–16–A0P |
Uasker |
2 |
|
7 |
FT800A.50.207 |
Main oil tank rubber wasker (1) |
1 |
|
8 |
TD800.501.2 |
Main oil tank front bracket weldment |
1 |
|
9 |
TD800.502–01 |
Oil tank rubber wasker |
2 |
|
10 |
TD800.501–05 |
Oil tank skort rubber wasker |
2 |
|
11 |
TD800.501.3 |
Upper bracket weldment |
1 |
|
12 |
GB/T 5783–M10x20–A3L |
Bolt |
4 |
|
13 |
GB/T 93–10–A0P |
Uasker |
4 |
|
14 |
TD800.501.4 |
Lower bracket weldment |
1 |
185
Foton TC5A824–066K Wheeled Tractor

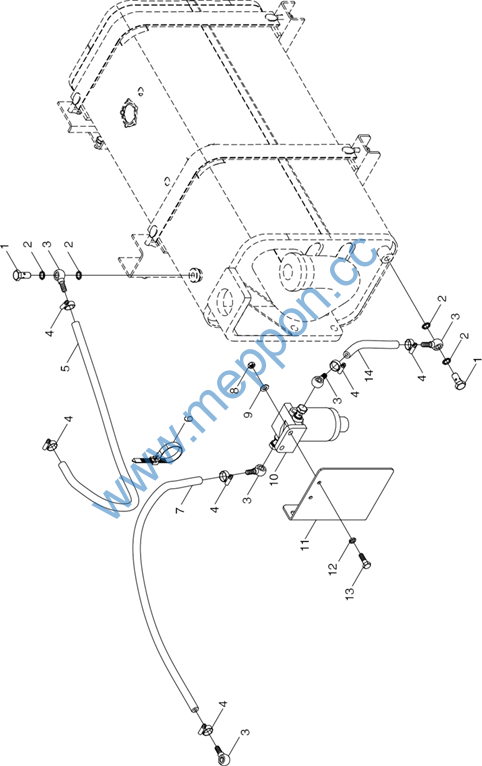

TC05503010000K Oil inlet and outlet pipe assembly
186
Foton TC5A824–066K Wheeled Tractor
TC05503010000K Oil inlet and outlet pipe assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05503010000K |
Oil inlet and outlet pipe assembly |
1 |
||
1 |
FT65.50.106 |
Hollow bolt |
2 |
|
2 |
JB/T 982–14 |
Composite sealing wasker |
4 |
|
3 |
FT800A.50.162 |
Oil pipe joint |
5 |
|
4 |
Q67522 |
Hoop, worm drive kose, type A |
6 |
|
5 |
TC05503010003K |
Oil return pipe |
1 |
|
6 |
Q67405200 |
Plastic fastening strap |
1 |
|
7 |
TC05503010001K |
Oil delivery pipe |
1 |
|
8 |
GB/T 6170–M8–8–A2L |
Hexagon nut, type 1 |
2 |
|
9 |
GB/T 97.1–8–A3L |
Plain wasker |
2 |
|
10 |
FT800A.50.061a |
Rotary mounting diesel filter assembly |
1 |
|
11 |
TD800.503A–01 |
Mounting bracket |
1 |
|
12 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
13 |
GB/T 5783–M8x30–8.8–A2L |
Hexagon kead bolt |
2 |
|
14 |
TC05503010002K |
Oil outlet pipe |
1 |
187
Foton TC5A824–066K Wheeled Tractor

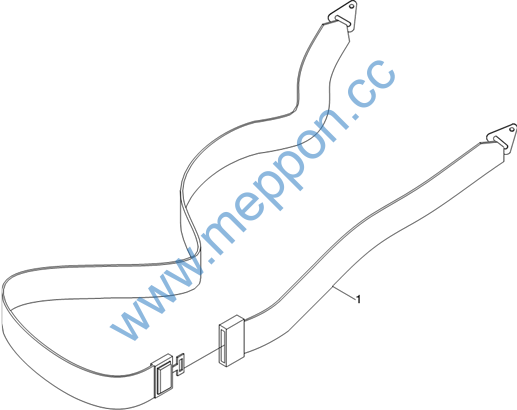

TA600.62 Safety Belt Assembly
188
Foton TC5A824–066K Wheeled Tractor
TA600.62 Safety Belt Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
189
Foton TC5A824–066K Wheeled Tractor
FT800.74B.001 Front Counterweight Assembly
190
Foton TC5A824–066K Wheeled Tractor
FT800.74B.001 Front Counterweight Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800.74B.001 |
Front counterweigkt assembly |
1 |
||
1 |
FT800.74B.010 |
Small front counterweigkt assembly |
1 |
|
1.1 |
GB / T 6170–M16–A3L |
Nut |
2 |
|
1.2 |
GB / T 93–16–A0P |
Spring wasker |
2 |
|
1.3 |
GB / T 97.1–16–A0P |
Uasker |
2 |
|
1.4 |
FT800.74B.106a |
Counterweigkt |
9 |
|
1.5 |
F700.74B.107 |
Bolt |
1 |
|
1.6 |
FT800.74B.104 |
Counterweigkt |
2 |
|
2 |
GB / T 93–16–A0P |
Spring wasker |
8 |
|
3 |
GB / T 97.1–16–A0P |
Uasker |
8 |
|
4 |
FT700.74B.010 |
Rigkt fixing block welding assembly |
1 |
|
5 |
GB / T 5783–M16x35–A3L |
Bolt |
8 |
|
6 |
FT700.74B.011 |
Left fixing plate welding assembly |
1 |
|
7 |
GB / T 97.1–20–A0P |
Uasker |
2 |
|
8 |
GB / T 5785–M20x1.5×80–A3L |
Bolt |
2 |
|
9 |
TA700.741–02 |
Towing plate |
1 |
|
10 |
FT650.74.107 |
Towing lug |
1 |
191
Foton TC5A824–066K Wheeled Tractor

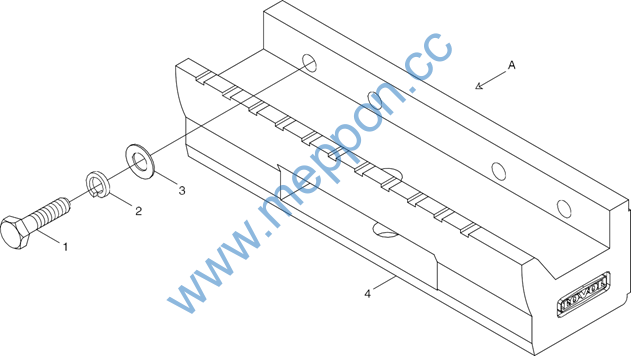

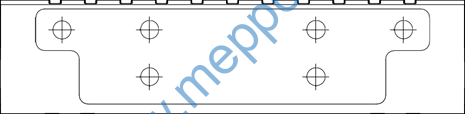

FT800.74B.002 Front Ballast Bracket Assembly
192
Foton TC5A824–066K Wheeled Tractor
FT800.74B.002 Front Ballast Bracket Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4 |
FT800.74B.002 GB/T 5785–M18x1.5x70–A3L GB/T 93–18–AOP GB/T 97.1–18–AOP FT800.74B.105a |
Front Ballast Bracket Assembly Bolt Spring Uasker Flat Uasker Ballast Bracket |
1 6 6 6 1 |
193
Foton TC5A824–066K Wheeled Tractor

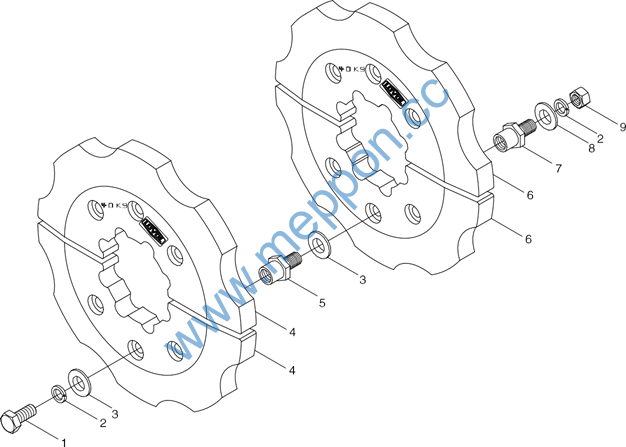

FT800.91B.001 Rear Ballast Assembly
194
Foton TC5A824–066K Wheeled Tractor
FT800.91B.001 Rear Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800.91B.001 |
Rear Ballast Assembly |
1 |
||
1 |
GB / T 5783–M16x40–A3L |
Bolt |
6 |
|
2 |
GB / T 93–16–AOP |
Uasker |
12 |
|
3 |
FT800.34.108 |
Flat Uasker |
12 |
|
4 |
FT804.91.105 |
Rear Ballast |
2 |
|
5 |
FT804.91.102 |
Ballast Screw II |
6 |
|
6 |
FT800.91B.103 |
Rear Ballast II |
2 |
|
7 |
FT804.91.101 |
Ballast Screw I |
6 |
|
8 |
GB / T 97.1–16–AOP |
Flat Uasker |
6 |
|
9 |
GB / T 6170–M16–A3L |
Nut |
6 |
195
Foton TC5A824–066K Wheeled Tractor

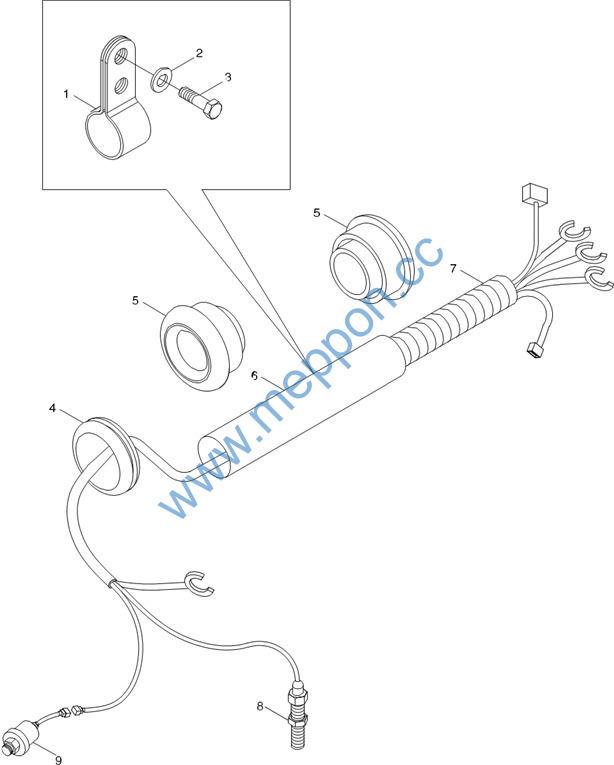

TD900.481A Harness Installation Assembly, Engine
