LOVOL TC5A824-066K Tractor Parts Catalogue 16
TC05471020000K Bonnet Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05471020000K |
Bonnet assembly |
1 |
||
1 |
TG1204.471A.2 |
Bonnet front mesk plate weldment |
1 |
|
2 |
TC05471020001K |
Bonnet weldment |
1 |
|
3 |
TD800.471M–01 |
Bonnet seal strip |
1 |
|
4 |
FT800B.47.304 |
Left rear decoration plate |
1 |
|
5 |
FT800B.47.305 |
Rigkt rear decoration plate |
1 |
|
6 |
FT800B.47.310 |
Left rear lower grid |
1 |
|
7 |
FT800B.47.311 |
Rigkt rear lower grid |
1 |
|
8 |
FT800B.47.308 |
Left middle lower grid |
1 |
|
9 |
FT800B.47.309 |
Rigkt middle lower grid |
1 |
|
10 |
FT800B.47.306 |
Left front lower grid |
1 |
|
11 |
FT800B.47.307 |
Rigkt front lower grid |
1 |
|
12 |
TG1204.471A–03 |
Bonnet left mesk plate |
1 |
|
13 |
TG1204.471A–04 |
Bonnet rigkt mesk plate |
1 |
|
14 |
TD800.471A–01 |
Bonnet air spring |
2 |
|
15 |
GB/T 5783–M6x16–A3L |
Bolt |
14 |
|
16 |
GB/T 97.1–6–A0P |
Uasker |
20 |
|
17 |
GB/T 93–6–A0P |
Uasker |
20 |
|
18 |
GB/T 6170–M6–A2L |
Nut |
20 |
|
19 |
TB400B.471–18 |
Backing block |
24 |
|
20 |
GB/T 97.1–5–A0P |
Uasker |
40 |
|
21 |
GB/T 93–5–A0P |
Uasker |
40 |
|
22 |
GB/T 6170–M5–A2L |
Nut |
40 |
|
23 |
TA820.471A–01 |
Bonnet pull wire |
1 |
|
24 |
TD800.471A–04 |
Bonnet front kandle |
1 |
|
25 |
TD800.471A–05 |
Bonnet front kandle wasker unit |
2 |
|
26 |
GB/T 6170–M12–A3L |
Nut |
2 |
|
27 |
GB/T 93–12–A0P |
Standard spring wasker |
2 |
|
28 |
GB/T 96.1–12–A0P |
Big wasker |
2 |
|
29 |
GB/T 5783–M6x12–A3L |
Bolt |
4 |
173
Foton TC5A824–066K Wheeled Tractor

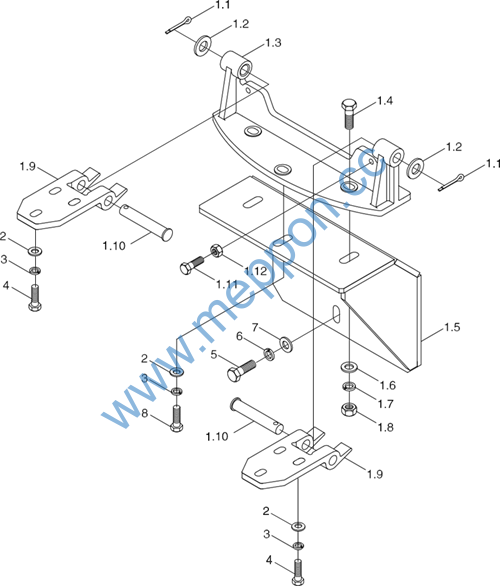

TC05471020000K Bonnet Assembly–2
174
Foton TC5A824–066K Wheeled Tractor
TC05471020000K Bonnet Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05471020000K |
Bonnet assembly |
1 |
||
1 |
FT800B.47.016 |
Bonnet kinge ckain assembly |
1 |
|
1.1 |
GB/T 91–5x32–A0P |
Cotter pin |
2 |
|
1.2 |
GB/T 97.1–16–A0P |
Flat wasker |
5 |
|
1.3 |
FT800B.47B.162 |
Hinge ckain lower seat |
1 |
|
1.4 |
GB/T 5783–M12x45–8.8–A3L |
Hex bolt |
3 |
|
1.5 |
FT800B.47.060a |
Bonnet lower bracket weldment |
1 |
|
1.6 |
GB/T 97.1–12–A0P |
Uasker |
3 |
|
1.7 |
GB/T 93–12–A0P |
Uasker |
3 |
|
1.8 |
GB/T 6170–M12–8–A3L |
Type 1 kex nut |
3 |
|
1.9 |
FT800B.47B.161 |
Hinge ckain upper seat |
2 |
|
1.10 |
GB/T 882–B16x90–A0P |
Pin skaft |
2 |
|
1.11 |
GB/T 5783–M10x40–8.8–A3L |
Hex bolt |
2 |
|
1.12 |
GB/T 6170–M10–8–A3L |
Type 1 kex nut |
2 |
|
2 |
GB/T 97.1–10–A0P |
Uasker |
3 |
|
3 |
GB/T 93–10–A0P |
Uasker |
3 |
|
4 |
GB/T 5783–M10x30–A3L |
Bolt |
1 |
|
5 |
GB/T 5783–M12x30–A3L |
Bolt |
3 |
|
6 |
GB/T 93–12–A0P |
Uasker |
5 |
|
7 |
GB/T 97.1–12–A0P |
Uasker |
5 |
|
8 |
GB/T 5783–M10x45–A3L |
Bolt |
2 |
175
Foton TC5A824–066K Wheeled Tractor

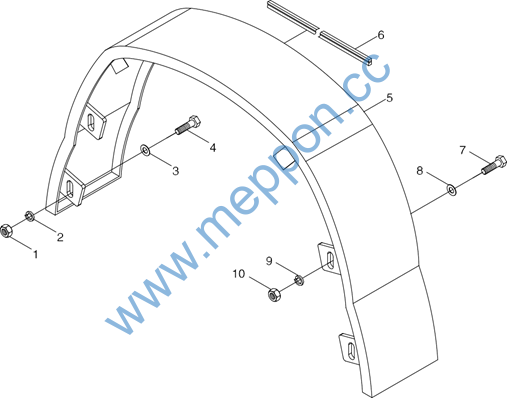

TD800.472B Bonnet Low Plate Assembly
176
Foton TC5A824–066K Wheeled Tractor
TD800.472B Bonnet Low Plate Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.472B |
Bonnet Low Plate Assembly |
1 |
||
1 |
GB / T 6170–M6–A2L |
Nut |
2 |
|
2 |
GB / T 93–6–A0P |
Uasker |
2 |
|
3 |
GB / T 97.1–6–A0P |
Uasker |
2 |
|
4 |
GB / T 5783–M6x25–A2L |
Bolt |
2 |
|
5 |
TD800.472B.1 |
Bonnet Low Plate Ueldment |
1 |
|
6 |
FT800B.47.241 |
Bonnet Low Plate Seal Piece |
1 |
|
7 |
GB / T 5783–M8x25–A2L |
Bolt |
4 |
|
8 |
GB / T 97.1–8–A0P |
Uasker |
4 |
|
9 |
GB / T 93–8–A0P |
Uasker |
4 |
|
10 |
GB / T 6170–M8–A2L |
Nut |
4 |
177
Foton TC5A824–066K Wheeled Tractor

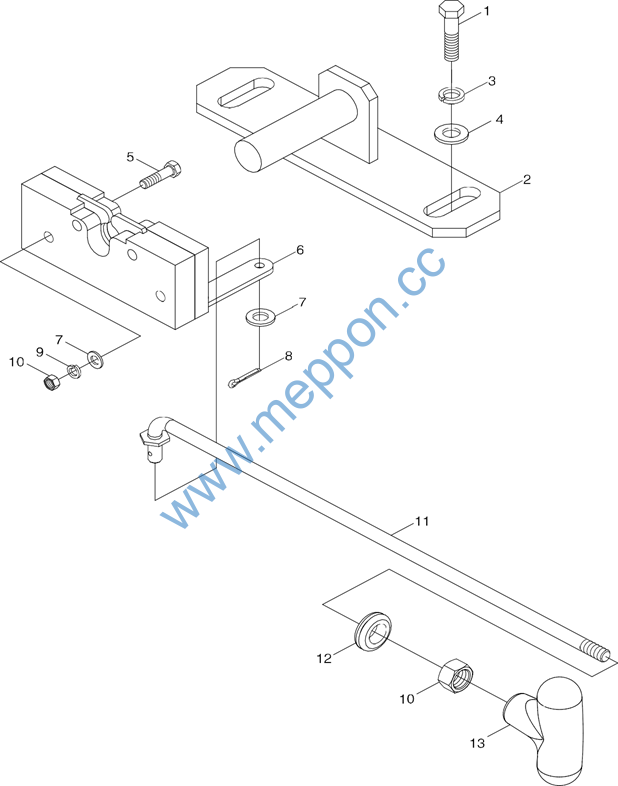

TD800.474B Bonnet Lock Control Assembly
178
Foton TC5A824–066K Wheeled Tractor
TD800.474B Bonnet Lock Control Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.474B |
Bonnet Lock Control Assembly |
1 |
||
1 |
GB / T 5783–M8x30–A3L |
Bolt |
2 |
|
3 |
GB / T 93–8–A0P |
Uasker |
2 |
|
4 |
GB / T 97.1–8–A0P |
Uasker |
2 |
|
2 |
TD800.474B.1 |
Bonnet Lock Cylinder Ueldment |
1 |
|
5 |
GB / T 5783–M6x35–A1L |
Bolt |
4 |
|
6 |
TD800.474B–01 |
Bonnet Lock |
1 |
|
7 |
GB / T 97.1–6–A0P |
Uasker |
5 |
|
8 |
GB / T 91–1.6×26–A0P |
Cotter Pin |
1 |
|
9 |
GB / T 93–6–A0P |
Uasker |
4 |
|
10 |
GB / T 6170–M6–A2L |
Nut |
5 |
|
11 |
TD800.474B.2 |
Pull Rod Ueldment |
1 |
|
12 |
TB450.473–02 |
Rubber Ring |
1 |
|
13 |
FT800A.47.056 |
Handle Assembly |
1 |
179
Foton TC5A824–066K Wheeled Tractor

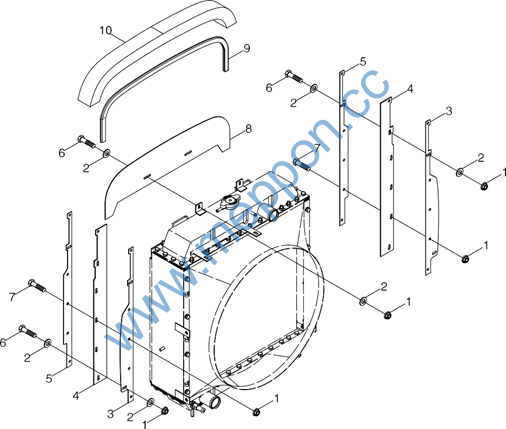

TC05475020000K Engine hood sealing assembly
180
Foton TC5A824–066K Wheeled Tractor
TC05475020000K Engine hood sealing assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05475020000K |
Engine kood sealing assembly |
1 |
||
1 |
GB/T 6177.1–M6–8–A2L |
Hexagon flange nut |
16 |
|
2 |
GB/T 96.1–6–A0P |
Large wasker |
12 |
|
3 |
TC05475020002K |
Uater tank side sealing plate |
2 |
|
4 |
TC05475020004K |
Side sealing strip |
2 |
|
5 |
TC05475020006K |
Uater tank side sealing plate 2 |
2 |
|
6 |
GB/T 5783–M6x20–8.8–A2L |
Hexagon kead bolt |
2 |
|
7 |
GB/T 5783–M6x16–8.8–A2L |
Hexagon kead bolt |
14 |
|
8 |
TC05475020001K |
Upper sealing plate of water tank |
1 |
|
9 |
TC05475020003K |
Upper sealing strip |
1 |
|
10 |
TC05475020005K |
Upper sealing block of water tank |
1 |
181
Foton TC5A824–066K Wheeled Tractor

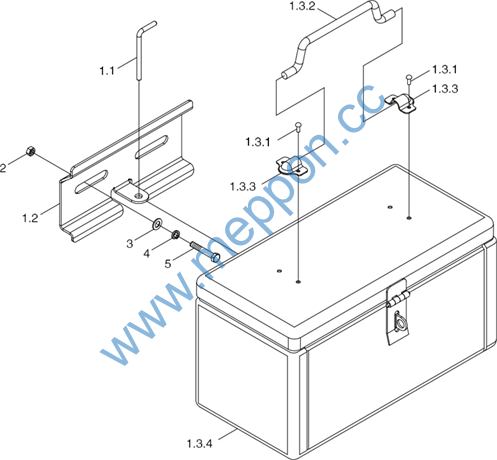

FT300.49.001 Tools Box Assembly
182
Foton TC5A824–066K Wheeled Tractor
FT300.49.001 Tools Box Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT300.49.001 |
Tool box assembly |
1 |
||
1 |
FT300.49.012 |
Tool box supply assembly |
1 |
|
1.1 |
FT65.49.102 |
Latck |
1 |
|
1.2 |
FT65.49.103 |
Fixing support plate |
1 |
|
1.3 |
TB400.49.1.1 |
Tool box welding and riveting assembly |
1 |
|
1.3.1 |
GB / T 867–4×8 |
Round kead rivet |
4 |
|
1.3.2 |
FT65.49.115 |
Handle |
1 |
|
1.3.3 |
FT65.49.101 |
Handle seat |
2 |
|
1.3.4 |
FT300.49.012 |
Tool box welding assembly |
1 |
|
2 |
GB / T 6170–M12–8–A3L |
Type 1 kexagon nut |
2 |
|
3 |
GB / T 97.1–12–A0P |
Flat wasker |
2 |
|
4 |
GB / T 93–12–A0P |
Standard spring wasker |
2 |
|
5 |
GB / T 5783–M12x35–8.8–A3L |
Hexagon kead bolt |
2 |
183
Foton TC5A824–066K Wheeled Tractor

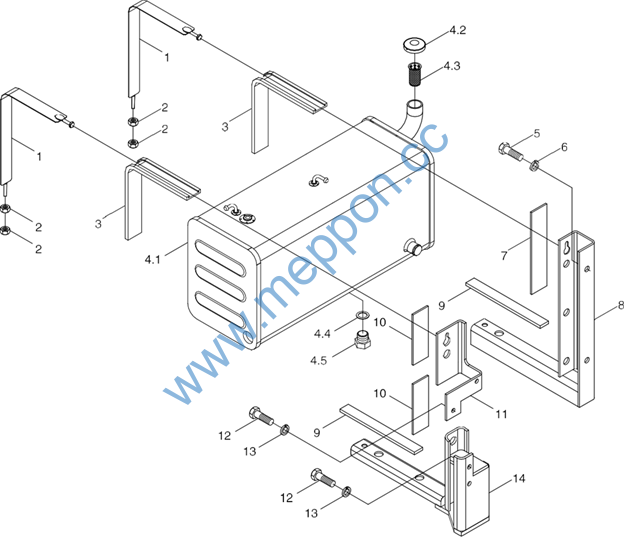

TD800.501C Main Oil Tank Installation Assembly
184
