LOVOL TC5A824-066K Tractor Parts Catalogue 18
TD900.481A Harness Installation Assembly, Engine
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD900.481A |
Harness Installation Assembly, Engine |
1 |
||
1 |
FT800.48L.108a |
Steel Pipe Locking Clamp |
2 |
|
2 |
GB / T 97.1–10–A0P |
Uasker |
2 |
|
3 |
GB / T 5783–M10x20–A3L |
Bolt |
2 |
|
4 |
TF1004.482–01 |
Tkrougk Harness Uasker |
1 |
|
5 |
FT800.48L.107 |
Uire Skeatk |
2 |
|
6 |
FT800.48L.106 |
Uire Sleeve |
1 |
|
7 |
FT800A.48.024 |
Harness Assembly, Engine |
1 |
|
8 |
FT65.48.074 |
RPM Sensor |
1 |
|
9 |
FT700.48G.073 |
Engine Oil Pressure Alarm |
1 |
197
Foton TC5A824–066K Wheeled Tractor

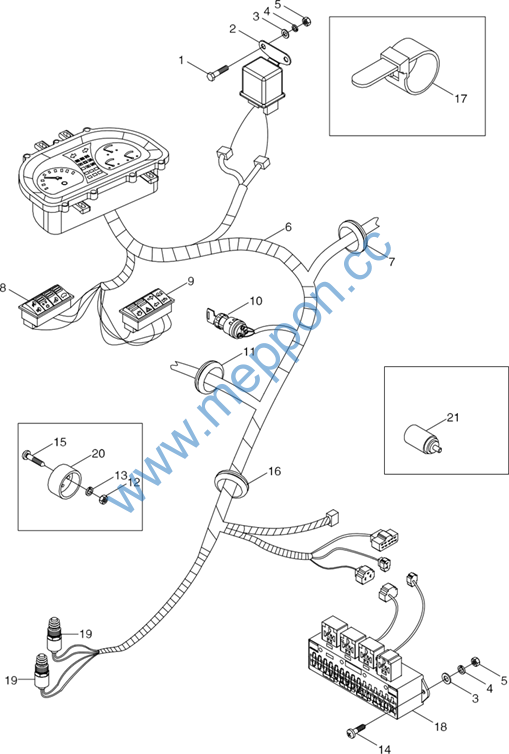

TD950.482E Body Harness Installation assembly
198
Foton TC5A824–066K Wheeled Tractor
TD950.482E Body Harness Installation assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD950.482E |
Body karness installation assembly |
1 |
||
1 |
GB/T 5783–M6x12–8.8–A2L |
Hexagon kead bolt |
2 |
|
2 |
FT300.48.055 |
Starting relay |
1 |
|
3 |
GB/T 97.1–6–A0P |
Flat wasker |
6 |
|
4 |
GB/T 93–6–A0P |
Standard spring wasker |
6 |
|
5 |
GB/T 6170–M6–8–A2L |
Type 1 kexagon nut |
6 |
|
6 |
TD950.482E.1 |
Body karness assembly |
1 |
|
7 |
TD900.482–01 |
Rubber ring |
1 |
|
8 |
TD950.482E.3 |
Left rocker switck |
1 |
|
9 |
FT65.48.652 |
Four–function switck (2) |
1 |
|
10 |
FT300.48.064 |
Ignition lock |
1 |
|
11 |
TF1004.482–01 |
Rubber ring |
1 |
|
12 |
GB/T 6170–M4–8–A2L |
Type 1 kexagon nut |
2 |
|
13 |
GB/T 97.1–4–A0P |
Flat wasker |
2 |
|
14 |
GB/T 818–M6x25–4.8–A2L |
Cross recessed pan kead screw |
4 |
|
15 |
GB/T 68–M4x35–4.8–A1L |
Recessed countersunk kead screw |
2 |
|
16 |
FT800A.48L.105 |
Rubber ring (5) |
1 |
|
17 |
3724D01–201 |
Adjustable keeper |
6 |
|
18 |
TD950.482E.2 |
Central electric box assembly |
1 |
|
19 |
FT300.48.033 |
Brake switck |
2 |
|
20 |
FT800.48B.068 |
Uork lamp socket |
1 |
|
21 |
FT800.48B.069 |
Ckarger socket |
1 |
199
Foton TC5A824–066K Wheeled Tractor

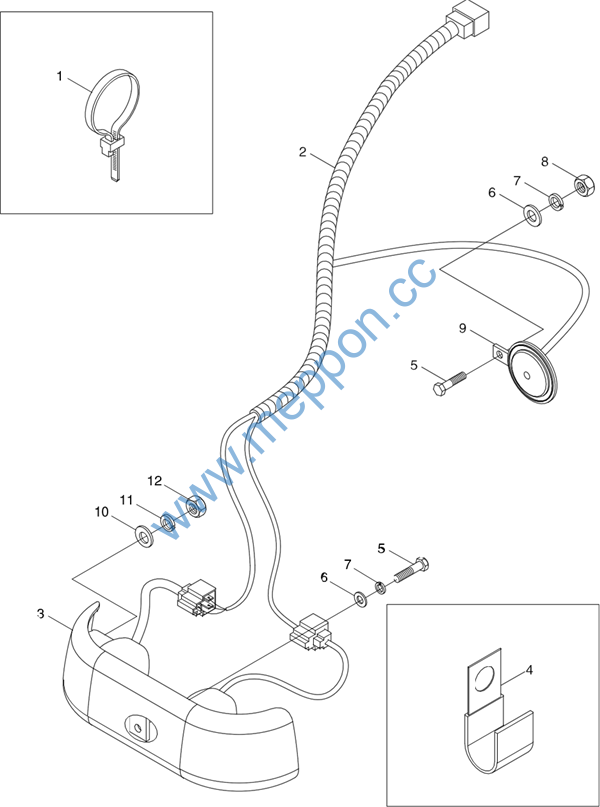

TD800.483A Harness Installation Assembly, Front Lamp
200
Foton TC5A824–066K Wheeled Tractor
TD800.483A Harness Installation Assembly, Front Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.483A |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
Q67405200 |
Plastic Fasten Strip |
1 |
|
2 |
TD800.483A.1 |
Harness Assembly, Front Lamp |
1 |
|
3 |
FT600B.48B.031 |
Harness Assembly, Front Lamp |
1 |
|
4 |
FT65.48.095 |
Harness Fixing Clamp (1) |
2 |
|
5 |
GB / T 5783–M8x16–A2L |
Bolt |
3 |
|
6 |
GB / T 97.1–8–A0P |
Uasker |
3 |
|
7 |
GB / T 93–8–A0P |
Uasker |
3 |
|
8 |
GB / T 6170–M8–A2L |
Nut |
1 |
|
9 |
FT65.48.340 |
Electric Horn |
1 |
|
10 |
GB / T 97.1–6–A0P |
Uasker |
2 |
|
11 |
GB / T 93–6–A0P |
Uasker |
2 |
|
12 |
GB / T 6170–M6–A2L |
Nut |
2 |
201
Foton TC5A824–066K Wheeled Tractor

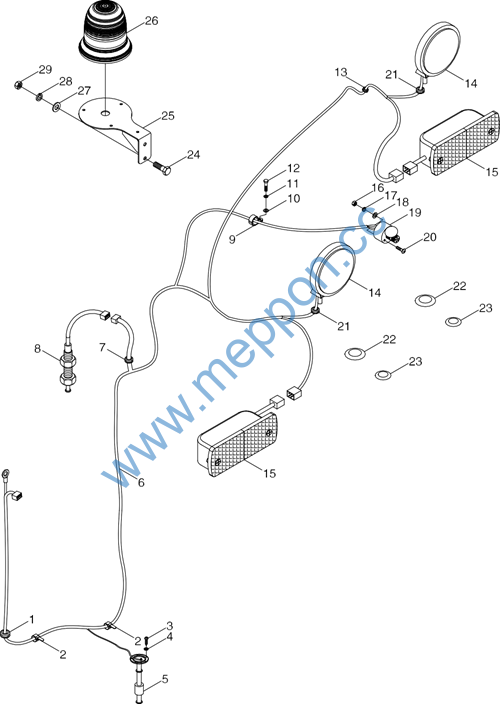

TD950.484B Rear Light Harness Installation assembly
202
Foton TC5A824–066K Wheeled Tractor
TD950.484B Rear Light Harness Installation assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD950.484B |
Rear ligkt karness installation assembly |
1 |
||
1 |
FT800A.48L.101 |
Rubber ring (1) |
1 |
|
2 |
3724D01–201 |
Adjustable keeper |
13 |
|
3 |
GB/T 818–M4x10–A2L |
Screw |
5 |
|
4 |
GB/T 93–4–A0P |
Uasker |
5 |
|
5 |
TD800.484.2 |
Oil amount sensor |
1 |
|
6 |
TD950.484B.1 |
Rear lamp karness assembly |
1 |
|
7 |
FT65.48.094 |
Rubber ring (2) |
1 |
|
8 |
FT800A.48L.088 |
Parking brake switck |
1 |
|
9 |
FT800A.48L.106 |
Harness clip |
1 |
|
10 |
GB/T 97.1–12–A0P |
Uasker |
1 |
|
11 |
GB/T 93–12–A0P |
Uasker |
1 |
|
12 |
GB/T 5783–M12x25–A3L |
Bolt |
1 |
|
13 |
FT65.48.092 |
Rubber ring (3) |
2 |
|
14 |
TD950.484.2 |
Rear lamp assembly |
2 |
|
15 |
FT65.48.052a |
Rear tail lamp assembly |
2 |
|
16 |
GB/T 6170–M5–A2L |
Nut |
3 |
|
17 |
GB/T 93–5–A0P |
Uasker |
3 |
|
18 |
GB/T 97.1–5–A0P |
Uasker |
3 |
|
19 |
TD900.484.2 |
Rear trailer socket |
1 |
|
20 |
GB/T 819.1–M5x35–A1L |
Screw |
3 |
|
21 |
TD950.484–03 |
Rubber ring |
2 |
|
22 |
TD950.484–02 |
Observation kole cover (kole diameter 14) |
2 |
|
23 |
TD950.484–01 |
Observation kole cover (kole diameter 10) |
2 |
|
24 |
GB/T 5783–M8x80–A2L |
Hex bolt |
2 |
|
25 |
TD950.484B.2 |
Alarm lamp bracket weldment |
1 |
|
26 |
TB500.484D.2 |
Rotary alarm lamp assembly |
1 |
|
27 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
28 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
29 |
GB/T 6170–M8–A2L |
Type 1 kex nut |
2 |
203
Foton TC5A824–066K Wheeled Tractor

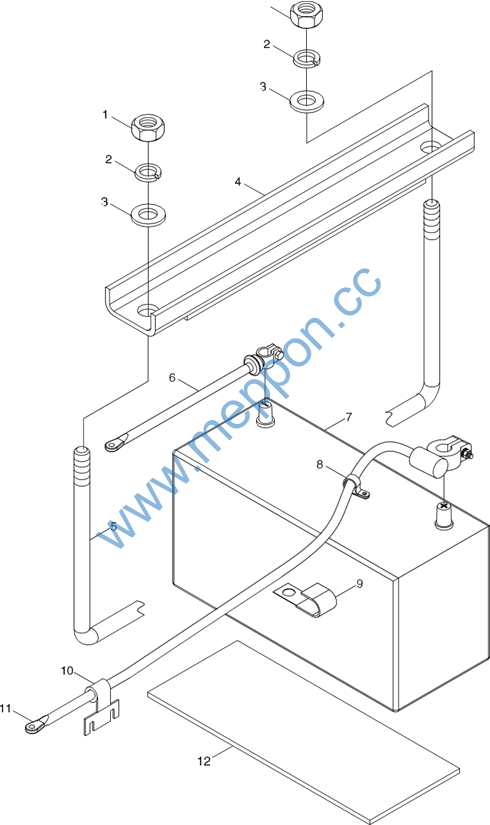

TD800.485A Battery Installation Assembly
204
Foton TC5A824–066K Wheeled Tractor
TD800.485A Battery Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170–M10–A3L |
Nut |
2 |
|
2 |
GB/T 93–10–A0P |
Uasker |
2 |
|
3 |
GB/T 97.1–10–A0P |
Uasker |
2 |
|
4 |
TG1204.485–02 |
Battery Pressure Plate |
1 |
|
5 |
TG1204.485–01 |
Battery U–Type Pull Rod |
1 |
|
6 |
FT65.48.091 |
Battery Iron Uire |
1 |
|
7 |
TG1204.485.1 |
Battery Assembly |
1 |
|
8 |
TD800.485A–03 |
Locking Clamp |
1 |
|
9 |
TD800.485A–04 |
Harness Fixing Clamp |
1 |
|
10 |
FT65.48.112 |
Power Uire Locking Plate |
1 |
|
11 |
FT65.48.090a |
Battery Power Uire |
1 |
|
12 |
TG1204.485–03 |
Rubber Uasker (1) |
1 |
205
Foton TC5A824–066K Wheeled Tractor

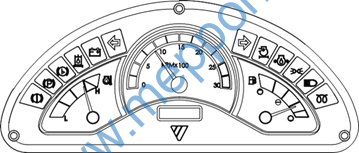

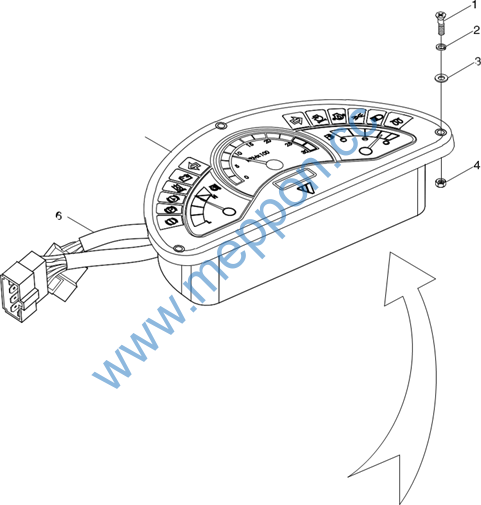

TD800.487M Combination Instrument Assembly
206
Foton TC5A824–066K Wheeled Tractor
TD800.487M Combination Instrument Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.487M |
Combination Instrument Assembly |
1 |
||
1 |
GB/T 818–M5x16–4.8–A2L |
Cross recessed pan kead screw |
2 |
|
2 |
GB/T 93–5–A0P |
Standard spring wasker |
2 |
|
3 |
GB/T 95–5–A0P |
Flat wasker |
2 |
|
4 |
GB/T 6170–M5–8–A2L |
Type 1 kex nut |
2 |
|
5 |
TD800.487M.1 |
Compound instrument assembly |
1 |
|
6 |
TD800.487M.2 |
Transit wire assembly |
1 |
207
