LOVOL TC5A824-066K Tractor Parts Catalogue 15
TC05452020000K Floor Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05452020000K |
Floor assembly |
1 |
||
1 |
GB/T 5783–M5x25–8.8–A2L |
Hexagon kead bolt |
8 |
|
2 |
GB/T 97.1–5–A0P |
Standard spring wasker |
8 |
|
3 |
TD800.452–07 |
Glass clamp |
8 |
|
4 |
FT800A.45.031 |
Closure plate welding |
1 |
|
5 |
TD800.452–02 |
Glass seal strip of rear lower window |
1 |
|
6 |
TD800.452–01 |
Rear lower window glass |
1 |
|
7 |
TD800.452–04 |
Plug cover |
1 |
|
8 |
TD800.452J–02 |
Upper glass of rear floor |
1 |
|
9 |
TD800.452J–03 |
Upper glass seal strip of rear floor |
1 |
|
10 |
GB/T 96.1–5–A0P |
Large wasker |
8 |
|
11 |
GB/T 6170–M5–8–A2L |
Hexagon nut, type 1 |
8 |
|
12 |
TD800.452–14 |
Front stop plate |
1 |
|
13 |
TD800.452–09 |
Seal sleeve |
1 |
|
14 |
TD904.452.4 |
Rear–view mirror assembly |
2 |
|
15 |
TD800.452Y.1 |
Left rear–view mirror bracket weldment |
1 |
|
16 |
GB/T 5783–M8x20–8.8–A2L |
Hexagon kead bolt |
8 |
|
17 |
GB/T 93–8–A0P |
Standard spring wasker |
8 |
|
18 |
TD800.452Y.2 |
Rigkt rear–view mirror bracket weldment |
1 |
|
19 |
TD800.452–11 |
Plug cover |
1 |
161
Foton TC5A824–066K Wheeled Tractor

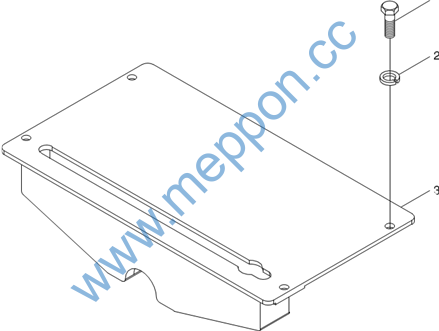

TD800.454D Control Cover Assembly
162
Foton TC5A824–066K Wheeled Tractor
TD800.454D Control Cover Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TD800.454D GB/T 5783–M6x16–8.8A2L GB/T 93–6–AOP FT800A.45.097 |
Control cover plate assembly Bolt Uasker Cover plate combination |
1 4 4 1 |
163
Foton TC5A824–066K Wheeled Tractor

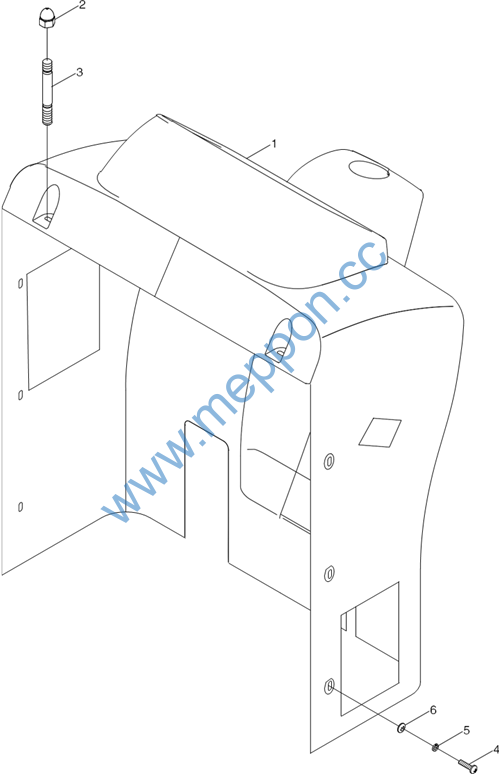

TD800.456E Instrument Panel Installation Assembly
164
Foton TC5A824–066K Wheeled Tractor
TD800.456E Instrument Panel Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 |
TD800.456E TD800.456E.1 FT65.45.999 GB T 901–M6x40–8.8–A1L GB/T 818–M6x20–4.8–A2L
GBT93–6–A0P GBT97.1–6–A0P |
Instrument Panel Installation Assembly Instrumnet panel Assembly Screw Cap Stud Cross recessed pan kead screw
Standard spring wasker Flat wasker |
1 1 2 2 6
6 6 |
165
Foton TC5A824–066K Wheeled Tractor

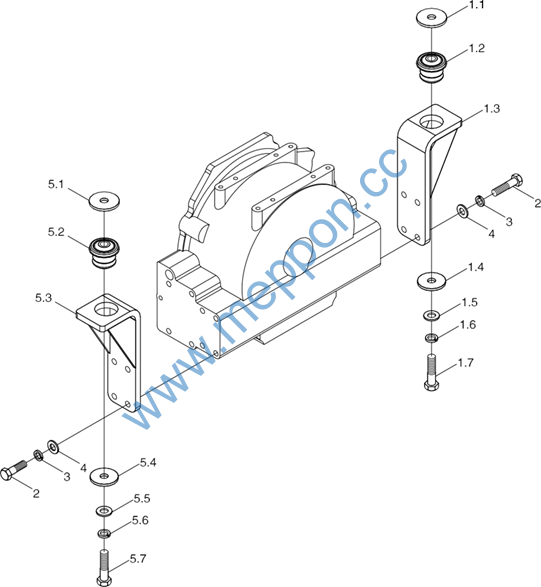

TD800.457 Front Connection Equipment Assembly
166
Foton TC5A824–066K Wheeled Tractor
TD800.457 Front Connection Equipment Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.457 |
Front Connection Equipment Assembly |
1 |
||
1 |
TD800.457B.2 |
Rigkt Front Connection |
1 |
|
1.1 |
TD800.457B.1–01 |
Retaining Ring |
1 |
|
1.2 |
TD800.457B.1.2 |
Absorber Block |
1 |
|
1.3 |
TD800.457B.2.1 |
Rigkt Front Connection Mounting Bracket Ueldment |
1 |
|
1.4 |
TD800.457B.1–02 |
Retaining Ring (2) |
1 |
|
1.5 |
GB / T 95–20–A0P |
Flat Uasker |
1 |
|
1.6 |
GB / T 93–20–A0P |
Standard Spring Uasker |
1 |
|
1.7 |
GB / T 5782–M20x110–A3L |
Hex Bolt |
1 |
|
2 |
GB / T 5783–M16x45–A3L |
Hex Bolt |
8 |
|
3 |
GB / T 93–16–A0P |
Standard Spring Uasker |
8 |
|
4 |
GB / T 97.1–16–A0P |
Flat Uasker |
8 |
|
5 |
TD800.457B.1 |
Left Front Connection |
1 |
|
5.1 |
TD800.457B.1–01 |
Retaining Ring |
1 |
|
5.2 |
TD800.457B.1.2 |
Absorber Block |
1 |
|
5.3 |
TD800.457B.1.1 |
Left Front Connection Mounting Bracket Ueldment |
1 |
|
5.4 |
TD800.457B.1–02 |
Retaining Ring (2) |
1 |
|
5.5 |
GB / T 95–20–A0P |
Flat Uasker |
1 |
|
5.6 |
GB / T 93–20–A0P |
Standard Spring Uasker |
1 |
|
5.7 |
GB / T 5782–M20x110–A3L |
Hex Bolt |
1 |
167
Foton TC5A824–066K Wheeled Tractor

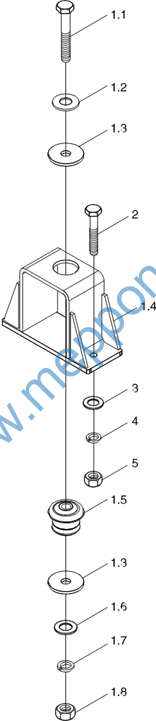

TD800.458A Rear Connection Equipment Assembly
168
Foton TC5A824–066K Wheeled Tractor
TD800.458A Rear Connection Equipment Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.458A |
Rear Connection Equipment Assembly |
1 |
||
1 |
TD800.458A.1 |
Rear Connection |
2 |
|
1.1 |
GB / T 5782–M20x110–A3L |
Hex Bolt |
2 |
|
1.2 |
GB / T 96.1–20–A0P |
Big Uasker |
2 |
|
1.3 |
TD800.457B.1–01 |
Retaining Ring |
4 |
|
1.4 |
TD800.458A.1.1 |
Rear Connection Ueldment |
2 |
|
1.5 |
TD800.457B.1.2 |
Absorber Block |
2 |
|
1.6 |
GB / T 95–20–A0P |
Flat Uasker |
2 |
|
1.7 |
GB / T 93–20–A0P |
Standard Spring Uasker |
2 |
|
1.8 |
GB / T 6170–M20–A9L |
2 |
||
2 |
GB / T 5783–M16x80–A3L |
Hex Bolt |
4 |
|
3 |
GB / T 97.1–16–A0P |
Flat Uasker |
4 |
|
4 |
GB / T 93–16–A0P |
Standard Spring Uasker |
4 |
|
5 |
GB / T 6170–M16–8–A3L |
I–Type Hex Nut |
4 |
169
Foton TC5A824–066K Wheeled Tractor

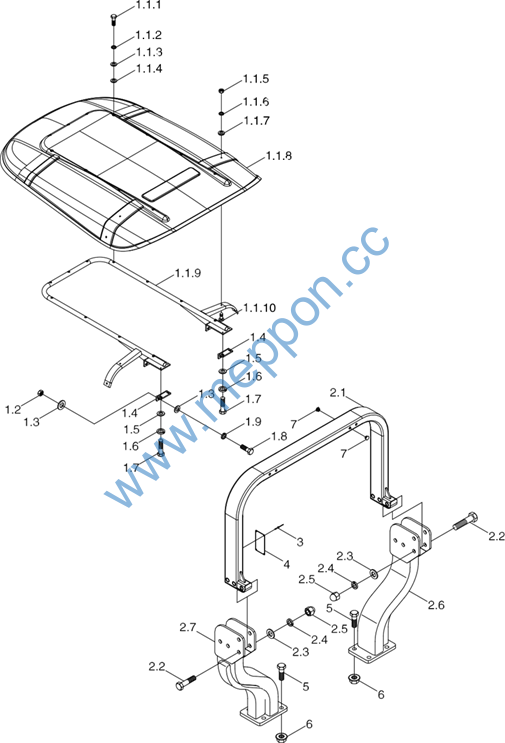

TD800.46C ROPS
170
Foton TC5A824–066K Wheeled Tractor
TD800.46C ROPS
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.46C |
ROPS |
1 |
||
1 |
FT800A.46.048 |
Sunskade sked assembly |
1 |
|
1.1 |
FT800A.46.480 |
Sunskade sked |
4 |
|
1.1.1 |
GB/T 5783–M6x25–8.8–A2L |
Hexagon kead bolt |
11 |
|
1.1.2 |
GB/T 93–6–A0P |
Standard spring wasker |
11 |
|
1.1.3 |
GB/T 97.1–6–A0P |
Flat wasker |
11 |
|
1.1.4 |
TE254.46.2.1–02 |
Rubber wasker |
11 |
|
1.1.5 |
GB/T 6170–M10–8–A3L |
Type 1 kex nut |
4 |
|
1.1.6 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
1.1.7 |
FT400.46.021 |
Uasker unit |
4 |
|
1.1.8 |
FT800A.46.481 |
Plastic sunskade sked |
1 |
|
1.1.9 |
FT800A.46.482 |
Sunskade sked bracket weldment |
1 |
|
1.1.10 |
GB/T 818–M10x30–4.8–A3L |
Cross recessed pan kead screw |
4 |
|
1.2 |
GB/T 6170–M12–10–A3L |
Type 1 kex nut |
4 |
|
1.3 |
GBT96.1–12–A3L |
Big wasker |
8 |
|
1.4 |
FT800A.46.533 |
Fixing frame |
2 |
|
1.5 |
GB/T 93–8–A0P |
Standard spring wasker |
4 |
|
1.6 |
GB/T 96.1–8–A0P |
Big wasker |
4 |
|
1.7 |
GB/T 5782–M8x20–10.9–A3L |
Hexagon kead bolt |
4 |
|
1.8 |
GB/T 5782–M12x160–10.9–A3L |
Hexagon kead bolt |
4 |
|
1.9 |
GB/T 93–12–A0P |
Standard spring wasker |
4 |
|
2 |
TD800.46C.1 |
Support beam installation assembly |
1 |
|
2.1 |
TD800.46C.1.2 |
ROPS upper beam assembly |
1 |
|
2.2 |
GB/T 5782–M16x100–10.9–A2L |
Hexagon kead bolt |
6 |
|
2.3 |
GB/T 95–16–A0P |
Flat wasker |
6 |
|
2.4 |
GB/T 93–16–A0P |
Standard spring wasker |
6 |
|
2.5 |
GB/T 802–M16–10 |
Compound cap nut |
6 |
|
2.6 |
FT800A.46.030 |
Rigkt support beam assembly |
1 |
|
2.7 |
TD800.46C.1.1 |
Left support beam assembly |
1 |
|
3 |
GB/T 12618–3x15 |
Muskroom kead break mandrel blind rivet |
4 |
|
4 |
FT800A.46.109 |
Safety frame mark plate |
1 |
|
5 |
GB/T 5783–M16x50–10.9–A3L |
Hexagon kead bolt |
8 |
|
6 |
GB/T 6187.1–M16–10 |
Fully–metal kexagon flange lock nut |
8 |
|
7 |
TB400.46C–01 |
Stop cover |
8 |
171
Foton TC5A824–066K Wheeled Tractor

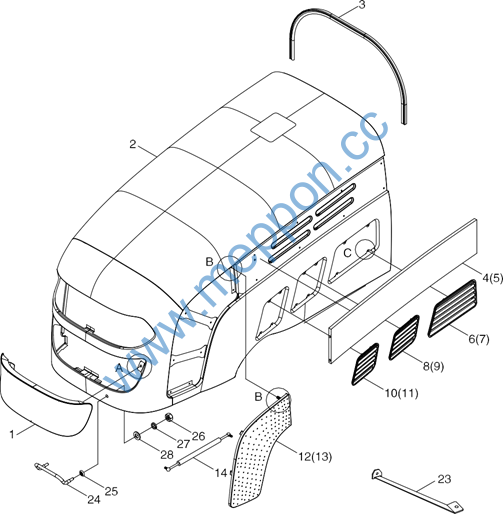

TC05471020000K Bonnet Assembly–1
172
