LOVOL TC5A824-066K Tractor Parts Catalogue 12

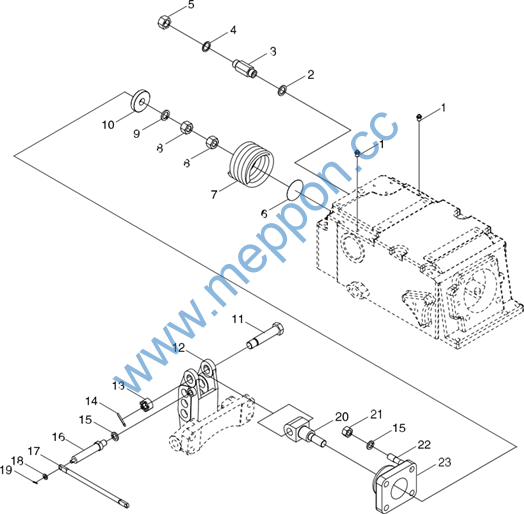

TD800.551B Lift Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.551B |
Lift assembly |
1 |
||
1 |
FT800.55.120a |
Connecting bolt |
1 |
|
2 |
FT800.55.121 |
Bolt |
1 |
|
3 |
TD800.55B–02 |
Hexagon kead bolt |
8 |
|
4 |
TD800.55B–01 |
Hexagon kead bolt |
2 |
|
5 |
TD800.551B.1 |
Lift assembling assembly |
1 |
|
6 |
GB/T 6181–M20–A9L |
Nut |
2 |
|
7 |
GB/T 91–4x36–A0P |
Pin |
2 |
|
8 |
GB/T 6170–M16–A3L |
Nut |
4 |
|
9 |
GB/T 93–16–A0P |
Uasker |
4 |
|
10 |
GB/T 899–GM16–M16x50–8.8–A3L |
Stud |
4 |
|
11 |
FT800.55.119b |
Upper lever bracket |
1 |
125
Foton TC5A824–066K Wheeled Tractor

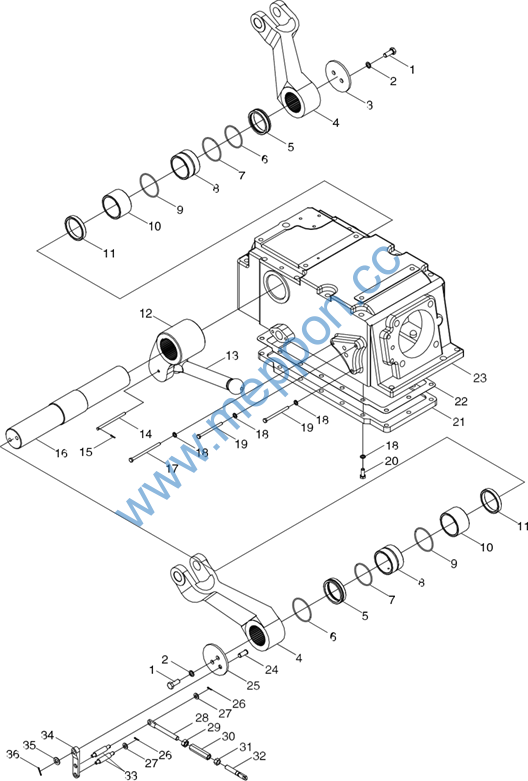

TD800.551B Lift Assembly–2
126
Foton TC5A824–066K Wheeled Tractor
TD800.551B Lift Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.551B |
Lift assembly |
1 |
||
TD800.551B.1 |
Lift assembling assembly |
1 |
||
1 |
GB/T 5783–M10x20 |
Bolt |
4 |
|
2 |
GB/T 93–10 |
Uasker |
4 |
|
3 |
650.55.116 |
Left lifting arm press plate |
1 |
|
4 |
FT800.55.107A |
Lifting arm |
2 |
|
5 |
FT800.55.106 |
Spacing sleeve |
2 |
|
6 |
GB/T 3452.1–60x2.65 |
O–ring |
2 |
|
7 |
GB/T 3452.1–56x2.65 |
O–ring |
2 |
|
8 |
650.55.114 |
Copper skaft busk |
2 |
|
9 |
GB/T 3452.1–56x5.3 |
O–ring |
2 |
|
10 |
650.55.159 |
Skaft busk 亞 |
2 |
|
11 |
650.55.158 |
Spacing sleeve |
2 |
|
12 |
FT800.55.129B |
Inner lifting arm |
1 |
|
13 |
FT800.55.130B |
Piston pusk rod |
1 |
|
14 |
GB/T 882–B6x74 |
Skaft pin |
1 |
|
15 |
GB/T 91–2x20 |
Pin |
1 |
|
16 |
550.55.108 |
Lifting skaft |
1 |
|
17 |
GB/T 5782–M8x100 |
Bolt |
1 |
|
18 |
GB/T 93–8 |
Uasker |
19 |
|
19 |
GB/T 5782–M8x80 |
Bolt |
2 |
|
20 |
GB/T 5781–M8x16 |
Bolt |
16 |
|
21 |
650.55.113–2 |
Bottom cover plate |
1 |
|
22 |
650.55.112–2 |
Paper gasket |
1 |
|
23 |
TD800.551B–01A |
Lift kousing |
1 |
|
24 |
650.55.143–2 |
Skaft pin 亞 |
1 |
|
25 |
650.55.144 |
Rigkt lifting arm press plate |
1 |
|
26 |
GB/T 91–2x14 |
Split pin |
2 |
|
27 |
GB/T 97.1–8 |
Uasker |
2 |
|
28 |
FT65.55.124 |
Rear adjusting lever |
1 |
|
29 |
GB/T 6170–M10 |
Nut |
1 |
|
30 |
FT65.55.123 |
Adjusting screw sleeve |
1 |
127
Foton TC5A824–066K Wheeled Tractor
TD800.551B Lift Assembly–2(extension)
128
Foton TC5A824–066K Wheeled Tractor
TD800.551B Lift Assembly–2(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 34 35
36 |
FT65.55.126 FT65.55.125 FT800.55.143–1 650.55.142 GB/T 97.1–10 GB/T 91–2.5x16 |
Nut Front adjusting lever Skaft pin I Middle arm Uasker
Split pin |
1 1 2 1 1
1 |
129
Foton TC5A824–066K Wheeled Tractor

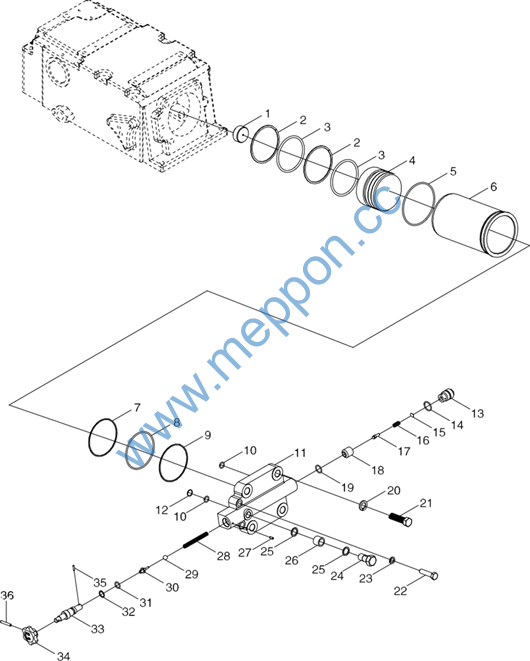

TD800.551B Lift Installation Assembly–3
130
Foton TC5A824–066K Wheeled Tractor
TD800.551B Lift Installation Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.551B |
Lift assembly |
1 |
||
TD800.551B.1 |
Lift assembly |
1 |
||
1 |
650.55.132 |
Piston ball seat |
1 |
|
2 |
GB/T 1235–110x101x2 |
Retainer ring |
2 |
|
3 |
GB/T 3452.1–100x5.3 |
O–ring |
2 |
|
4 |
650.55.131 |
Piston |
1 |
|
5 |
GB/T 3452.1–118x3.55 |
O–ring |
1 |
|
6 |
FT65.55.109A |
Cylinder canister |
1 |
|
7 |
FT65.55.121 |
Rectangular circlip |
1 |
|
8 |
GB/T 3452.1–103x3.55 |
O–ring |
1 |
|
9 |
GB/T 1235–110x104x1.5 |
Retainer ring |
1 |
|
10 |
GB/T 3452.1–12.5x2.65 |
O–ring |
2 |
|
11 |
FT65.55.144A |
Cylinder cover |
1 |
|
12 |
FT65.55.174 |
Tkin wasker |
1 |
|
13 |
650.55.139 |
Safety valve screw plug |
1 |
|
14 |
GB/T 3452.1–23.6x2.65 |
O–ring |
1 |
|
15 |
650.55.152 |
Adjusting gasket |
!” |
|
16 |
300.55.133 |
Spring |
1 |
|
17 |
300.55.134 |
Cylinder safety valve body |
1 |
|
18 |
650.55.136 |
Safety valve seat |
1 |
|
19 |
GB/T 3452.1–19x2.65 |
O–ring |
1 |
|
20 |
GB/T 93–18 |
Spring wasker |
4 |
|
21 |
GB/T 5783–M18x1.5x60 |
Bolt |
4 |
|
22 |
GB/T 5783–M12x50 |
Bolt |
2 |
|
23 |
GB/T 93–12 |
Spring wasker |
2 |
|
24 |
65.55.103 |
Hollow bolt |
1 |
|
25 |
CF250B.55.302 |
Alluminium gasket |
2 |
|
26 |
650.55.149 |
Spacing sleeve |
1 |
|
27 |
GB/T 57–M5x12 |
Screw |
1 |
|
28 |
650.55.135 |
Adjusting valve spring |
1 |
|
29 |
GB/T 308–φ12 |
Steel ball |
1 |
|
30 |
650.55.146 |
Adjusting valve |
1 |
131
Foton TC5A824–066K Wheeled Tractor
TD800.551B Lift Installation Assembly–3(extension)
132
Foton TC5A824–066K Wheeled Tractor
TD800.551B Lift Installation Assembly–3(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 34 35
36 |
GB/T 3452.1–15x2.65 FT65.55.175 FT65.55.141 E300.55.140A 300.55.138
GB/T 879–4x20 |
O–ring Retainer ring Adjusting lever Handwkeel Pin
Elastic cylindrical pin |
1 1 1 1 1
1 |
133
Foton TC5A824–066K Wheeled Tractor
TD800.551B Lift Assembly–4
134
Foton TC5A824–066K Wheeled Tractor
TD800.551B Lift Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.551B |
Lift assembly |
1 |
||
TD800.551B.1 |
Lift assembly |
1 |
||
1 |
GB/T 1152–M10x1 |
Oil cup |
2 |
|
2 |
650.55.151 |
Gasket |
1 |
|
3 |
FT800.55.150 |
Oil drainage joint |
1 |
|
4 |
25.55.117 |
Oil transmission pipe gasket |
1 |
|
5 |
25.55.114 |
Oil transmission pipe nut |
1 |
|
6 |
650.55.153 |
Force adjusting spring adjusting gasket |
1 |
|
7 |
650.55.154 |
Force adjusting spring |
1 |
|
8 |
GB/T 6171–M20x1.5–8 |
Nut |
2 |
|
9 |
GB/T 93–20 |
Spring wasker |
1 |
|
10 |
650.55.103 |
Spring press plate |
1 |
|
11 |
650.55.121 |
Bolt |
1 |
|
12 |
FT800.55.101 |
Connecting frame |
1 |
|
13 |
GB/T 6181–M20–A9L |
Nut |
1 |
|
14 |
GB/T 91–4x36–AOP |
Split pin |
1 |
|
15 |
GB/T 93–16 |
Spring wasker |
5 |
|
16 |
FT800.55.145 |
Pin |
1 |
|
17 |
FT800.55.140 |
Connecting lever |
1 |
|
18 |
GB/T 97.1–8 |
Uasker |
1 |
|
19 |
GB/T 91–2x14 |
Split pin |
1 |
|
20 |
650.55.102 |
Force adjusting sensing joint |
1 |
|
21 |
GB/T 6170–M16 |
Nut |
4 |
|
22 |
GB/T 899–M16–M16x50 |
Stud |
4 |
|
23 |
FT800.55.104 |
Spring seat |
1 |
135
Foton TC5A824–066K Wheeled Tractor

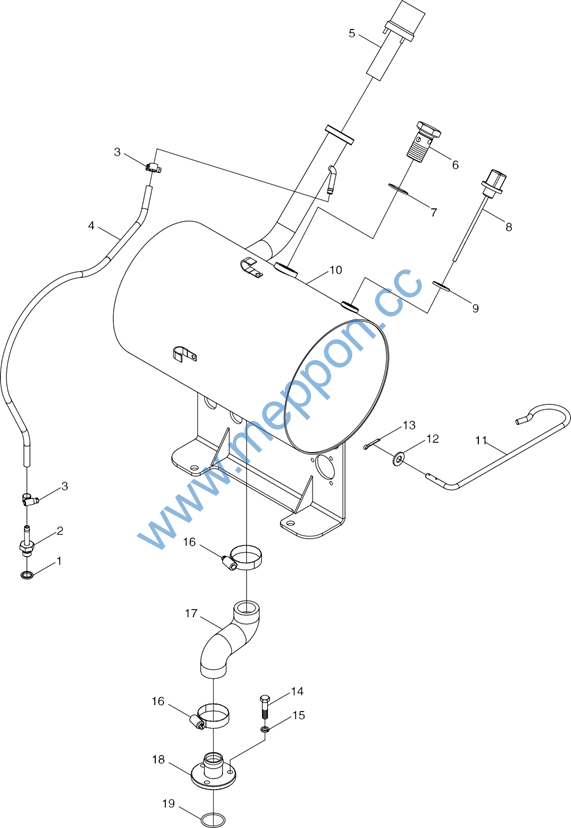

TD800.556 Assistant Oil Tank Assembly
