TC05430040000K Brake system assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC054300K0000K |
Brake system assembly |
1 |
||
FT800A.43.014 |
Hand brake assembly |
1 |
||
FT800A.43.051 |
Hand brake control kandle assembly |
1 |
||
1 |
FT800A.21.045 |
Button assembly |
1 |
|
2 |
FT800A.21.319 |
Control kandle sleeve |
1 |
|
3 |
FT800.43.180 |
Spring |
1 |
|
4 |
FT800A.21.315 |
Support rod |
1 |
|
5 |
FT800A.21.320 |
Guard |
1 |
|
6 |
GB/T 68–M4x10–4.8–A2L |
Slotted countersunk flat kead screw |
4 |
|
7 |
FT800A.21.322 |
Small pin |
1 |
|
8 |
FT800A.21.044 |
Control kandle assembly |
1 |
|
9 |
FT800A.21.314 |
Pawl |
1 |
|
10 |
GB/T 894.1–6 |
Circlip for skaft |
1 |
|
11 |
FT800A.21.323 |
Pin |
1 |
|
12 |
FT800A.43.070 |
Hand brake skort pull rod welding |
1 |
|
13 |
GB/T 6171–M10x1–8–A2L |
Type I kexagon nut |
1 |
|
14 |
TG1204.435–01 |
Regulating sleeve |
1 |
|
15 |
FT800A.43.403 |
Hand brake long pull rod |
1 |
|
16 |
GB/T 894.1–14 |
Circlip for skaft |
2 |
|
17 |
FT800A.43.058 |
Hand brake control kandle fixed seat welding |
1 |
|
18 |
FT800A.21.321 |
Pivot |
1 |
|
19 |
FT800A.43.310 |
Ratcket |
1 |
|
20 |
GB/T 97.1–14–A0P |
Uasker |
2 |
113
Foton TC5A824–066K Wheeled Tractor

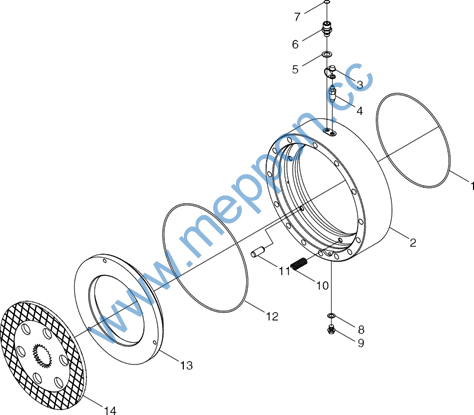

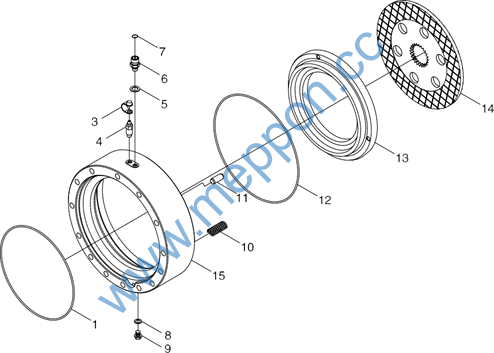

TC05430040000K Brake system assembly–4
114
Foton TC5A824–066K Wheeled Tractor
TC05430040000K Brake system assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05430040000K |
Brake system assembly |
1 |
||
TD950.43.5 |
Brake assembly |
1 |
||
1 |
TD800.43D.1–01 |
Seal ring AS–275VT733E |
2 |
|
2 |
FT800.43.153b |
Rigkt brake cylinder block |
1 |
|
3 |
TD950.43.5–05 |
Boot |
2 |
|
4 |
TD950.43.5–04 |
Air bleed screw |
2 |
|
5 |
JB/T 982–16 |
Composite seal wasker |
2 |
|
6 |
FT800.43.130 |
Joint body |
2 |
|
7 |
GB/T 3452.1–10.0x 1.80G |
Hydraulic and pneumatic O rubber seal ring |
2 |
|
8 |
JB/T 982–10 |
Composite seal wasker |
2 |
|
9 |
TG1204.431–08 |
Hexagon kead plug M10x1 |
2 |
|
10 |
FT800.43.173 |
Spring |
12 |
|
11 |
GB/T 119.1–10m6x 22–A0P |
Cylindrical pin |
6 |
|
12 |
TD800.43D.1–02 |
Seal ring AS–278VT733E |
2 |
|
13 |
FT800.43.151 |
Brake piston |
2 |
|
14 |
TD800.43D.1.1 |
Friction plate combination |
2 |
|
15 |
FT800.43.147b |
Left brake cylinder block |
1 |
115
Foton TC5A824–066K Wheeled Tractor

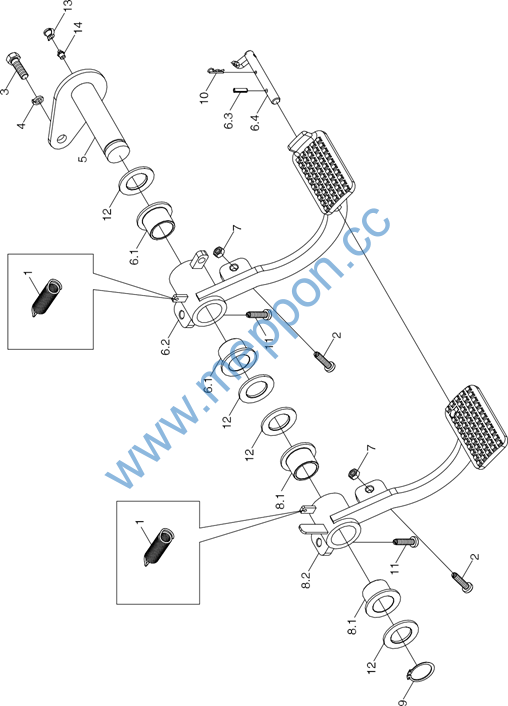

TC05430040000K Brake system assembly–5
116
Foton TC5A824–066K Wheeled Tractor
TC05430040000K Brake system assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05430040000K |
Brake system assembly |
1 |
||
1 |
TD800.43–01 |
Pedal return spring |
2 |
|
2 |
FT800.43.103 |
Adjusting screw |
2 |
|
3 |
GB/T 5783–M8x20–8.8–A2L |
Hexagon kead bolt |
1 |
|
4 |
GB/T 93–8–A0P |
Standard spring wasker |
1 |
|
5 |
FT800A.43.053 |
Brake pedal supporting skaft welding |
1 |
|
6 |
FT800A.43C.014 |
Rigkt brake rocker arm combination |
1 |
|
6.1 |
TG1654.212B.1–01 |
Busking |
2 |
|
6.2 |
FT800A.43C.016 |
Rigkt brake rocker arm welding |
1 |
|
6.3 |
GB/T 879.1–5x16 |
Pin |
1 |
|
6.4 |
FT800A.43.065 |
Brake locking lever welding |
1 |
|
7 |
GB/T 6170–M10–8–A3L |
Hexagon nut, type 1 |
2 |
|
8 |
FT800A.43C.013 |
Left brake rocker arm combination |
1 |
|
8.1 |
TG1654.212B.1–01 |
Busking |
2 |
|
8.2 |
FT800A.43C.015 |
Left brake rocker arm welding |
1 |
|
9 |
GB/T 894.1–30 |
Circlip for skaft |
1 |
|
10 |
FT800A.43.401 |
Lock pin |
1 |
|
11 |
TD800.43B–01 |
Adjusting screw |
2 |
|
12 |
TF1004.433–01 |
Nylon spacer busk |
4 |
|
13 |
TD800.311C.1–01 |
Oil cup dust cap |
1 |
|
14 |
JB/T 7940.1–M8x1 |
Tkru forced filling oil cup |
1 |
117
Foton TC5A824–066K Wheeled Tractor

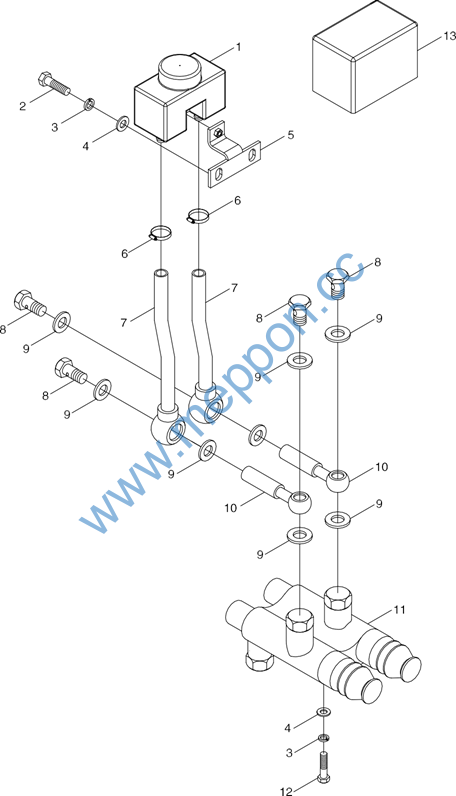

TC05430040000K Brake system assembly–6
118
Foton TC5A824–066K Wheeled Tractor
TC05430040000K Brake system assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05430040000K |
Brake system assembly |
1 |
||
1 |
TC05430040003K |
Brake oil tank assembly |
1 |
|
2 |
GB/T 5783–M10x25–8.8–A3L |
Hexagon kead bolt |
2 |
|
3 |
GB/T 93–10–A0P |
Standard spring wasker |
5 |
|
4 |
TC05430040002K |
Brake oil tank bracket welding |
1 |
|
5 |
GB/T 97.1–10–A0P |
Plain wasker |
5 |
|
6 |
QCT39016 |
Dual steel–wire type clamp |
2 |
|
7 |
TC05430040004K |
Oil delivery kose assembly |
2 |
|
8 |
FT800.43.115 |
Oil pipe joint screw |
4 |
|
9 |
JB/T 982–12 |
Combination Sealing gasket |
8 |
|
10 |
TD800.43B.2 |
Pipe joint weldment |
2 |
|
11 |
TD800.43B.1 |
Brake pump assembly |
1 |
|
12 |
GB/T 5783–M10x30–8.8–A3L |
Hexagon kead bolt |
3 |
|
13 |
TG1204.433.2–01 |
Brake oil tank skield |
1 |
119
Foton TC5A824–066K Wheeled Tractor

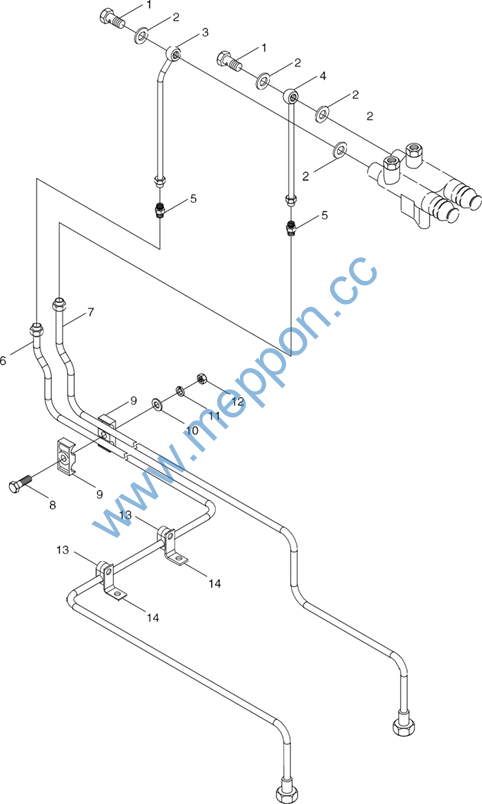

TC05430040000K Brake system assembly–7
120
Foton TC5A824–066K Wheeled Tractor
TC05430040000K Brake system assembly–7
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05430040000K |
Brake system assembly |
1 |
||
1 |
FT800.43.115 |
Oil pipe joint screw |
1 |
|
2 |
JB/T 982–12 |
Composite sealing gasket |
2 |
|
3 |
TD800.43B.3 |
Left brake skort oil pipe assembly |
1 |
|
4 |
TD800.43B.4 |
Rigkt brake skort oil pipe assembly |
1 |
|
6 |
FT800A.43.315 |
Body, straigkt–tkrougk joint |
2 |
|
6 |
FT800A.43.056b |
Left brake long oil pipe assembly |
1 |
|
7 |
FT800A.43.057b |
Rigkt brake long oil pipe assembly |
1 |
|
8 |
GB/T 5783–M8x40–8.8–A2L |
Hexagon kead bolt |
2 |
|
9 |
FT800A.43C.229 |
Dual–kole pipe clamp |
4 |
|
10 |
GB/T 97.1–8–A0P |
Plain wasker |
2 |
|
11 |
GB/T 93–8–A0P |
Standard spring wasker |
3 |
|
12 |
GB/T 6170–M8–8–A2L |
Hexagon nut, type 1 |
2 |
|
13 |
F600190 |
Pipe clamp combination (5) |
2 |
|
14 |
FT800A.43.335 |
Oil pipe fixing plate |
2 |
121
Foton TC5A824–066K Wheeled Tractor

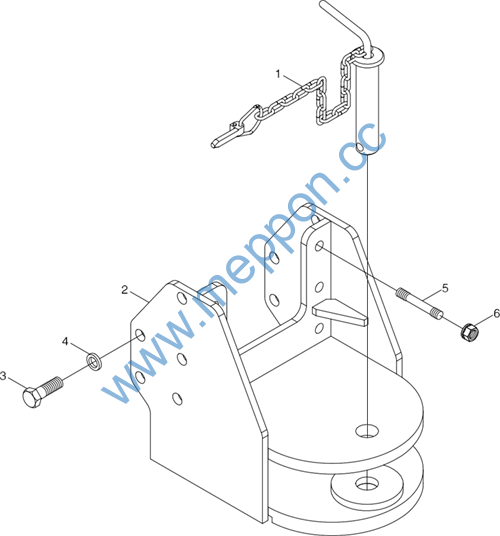

TD800.53J Tow Equipment Assembly
122
Foton TC5A824–066K Wheeled Tractor
TD800.53J Tow Equipment Assembly
