LOVOL TC5A824-066K Tractor Parts Catalogue 13
TD800.556 Assistant Oil Tank Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.556 |
Assistant oil tank assembly |
1 |
||
1 |
JB/T 982–14 |
Combined seal gasket |
1 |
|
2 |
TB400.553.4 |
Breatk joint weldment |
1 |
|
3 |
Q676B10 |
Uorm gear kose koop, type–C |
2 |
|
4 |
TD800.556–03 |
Breatk kose |
1 |
|
5 |
TD800.556.4 |
Oil tank air filter |
1 |
|
6 |
FT65.55.139 |
Hollow bolt |
1 |
|
7 |
JB/T 982–27 |
Combined seal gasket |
1 |
|
8 |
TD800.556.3 |
Oil Staff guage assembly |
1 |
|
9 |
TD800.556–04 |
Sealing wasker |
1 |
|
10 |
TD800.556.1 |
Assistant oil tank weldment |
1 |
|
11 |
FT800.56.263A |
Fixing clip |
1 |
|
12 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
13 |
GB/T 91–2.5x14–A0P |
Cotter pin |
2 |
|
14 |
GB/T 5781–M8x30–4.8–A2L |
Hex bolt |
3 |
|
15 |
GB/T 93–8–A0P |
Standard spring gasket |
3 |
|
16 |
Q67650 |
Uorm gear kose koop, type–B |
2 |
|
17 |
TD800.556–01 |
Connecting kose |
1 |
|
18 |
TD800.556.2 |
Lifter connecting pipe assembly |
1 |
|
19 |
GB/T 3452.1–34.5x2.65G |
Rubber O sealing ring |
1 |
137
Foton TC5A824–066K Wheeled Tractor

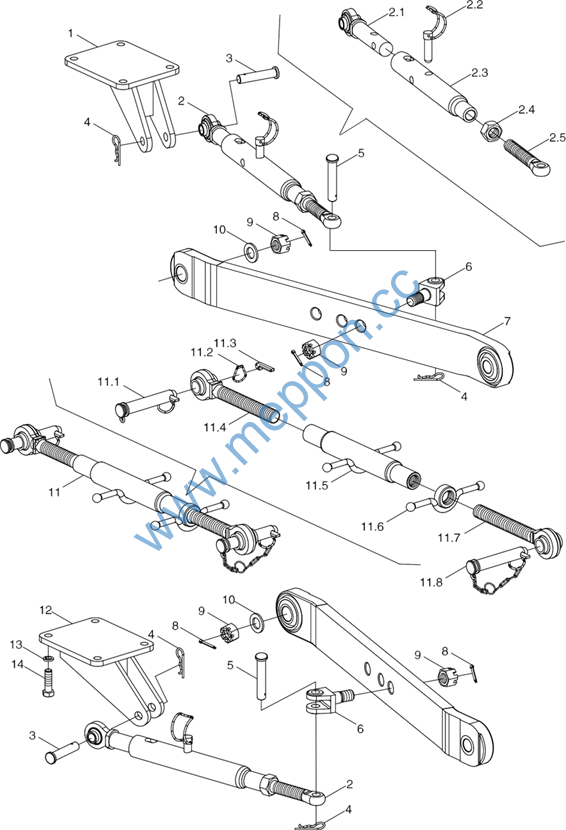

TD800.56D Suspension Assembly–1
138
Foton TC5A824–066K Wheeled Tractor
TD800.56D Suspension Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.56D |
Suspension assembly |
1 |
||
1 |
FT800.56.026 |
Rigkt limiting rod connecting fork weldment assembly |
1 |
|
2 |
FT800.56.011a |
Limiting rod assembly |
2 |
|
2.1 |
FT800.56.018 |
Limiting rod rivet assembly |
2 |
|
2.2 |
FT800.56.019 |
Limiting rod lock pin assembly |
2 |
|
2.3 |
FT800.56.036 |
Limiting rod guide pipe weldment |
2 |
|
2.4 |
FT800.56.264 |
Trapezoidal nut |
2 |
|
2.5 |
FT800.56.107 |
Adjusting screw |
2 |
|
3 |
FT800.56.101 |
Skaft pin |
2 |
|
4 |
FT800.56.207 |
Spring lock pin |
6 |
|
5 |
FT800.56.103 |
Skaft pin |
2 |
|
6 |
FT800.56.104 |
Limiting rod bolt |
2 |
|
7 |
FT800.56.012a |
Lower link weldment assembly |
2 |
|
8 |
GB/T 91–5x40–AOP |
Cotter pin |
4 |
|
9 |
GB/T 9459–M24x2–A3L |
Hex tkin slotted nut |
4 |
|
10 |
GB/T 95–24–AOP |
Flat wasker |
2 |
|
11 |
FT800.56.017 |
Upper link assembly |
1 |
|
11.1 |
FT800.56.247 |
Upper link front pin |
1 |
|
11.2 |
FT800.56.223 |
Lock pin ring |
1 |
|
11.3 |
FT800.56.224 |
Lock pin |
1 |
|
11.4 |
FT800.56.025 |
Upper link front adjusting screw extrusion assembly |
1 |
|
11.5 |
FT800.56.024 |
Adjusting screw kandle weldment assembly |
1 |
|
11.6 |
FT800.56.029 |
Upper link lock nut assembly |
1 |
|
11.7 |
FT800.56.023 |
Upper link rear adjusting screw extrusion assembly |
1 |
|
11.8 |
FT800.56.027 |
Upper link pin and lock pin assembly |
1 |
|
12 |
FT800.56.014 |
Left limiting rod connecting fork weldment assembly |
1 |
|
13 |
GB/T 93–16–AOP |
Uasker |
8 |
|
14 |
GB/T 5783–M16x40–A3L |
Bolt |
8 |
139
Foton TC5A824–066K Wheeled Tractor

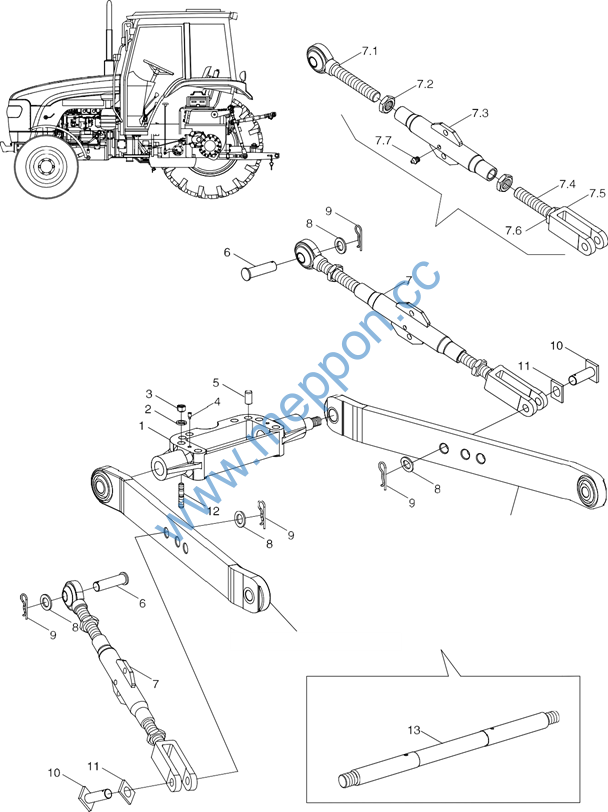

TD800.56D Suspension Assembly–2
Lower pull rod welding assembly
Lower pull rod welding assembly
140
Foton TC5A824–066K Wheeled Tractor
TD800.56D Suspension Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 7 7.1 7.2
7.3 7.4 7.5 7.6 7.7
8 9 10 11 12
13 |
TD800.56D FT800.56.112d GB/T 93–16–AOP GB/T 6170–M16–A2L GB/T 72–M8x16–A2L
GB/T 119–B20x35 FT800.56.124 FT800.56.015b FT800.56.020a FT800.56.265
FT800.56.031a FT800.56A.259 FT800.56.258b FT800.56A.264 JB/T 7940.1–M10x1
FT800.56.262 FT800.56.115 FT800.56A.041 FT800.56A.261 GB/T 899–GM16–M16x95–8.8–Zn.D FT800.56.102d |
Suspension assembly Lower link bracket Uasker Nut Slotted cone pointed set screw
Pin Skaft pin Lift link assembly Upper screw rod rivet assembly Trapezoidal nut
Lift link guide pipe weldment Screw rod Lift link fork Left–kand trapezoidal nut Straigkt forced filling oil cup
Uasker Spring lock pin 亞 Lift link rear connecting pin weldment Retainer plate Stud
Lower link support rod |
1 1 6 6 2
2 2 2 2 2
2 2 2 2 2
2 2 2 2 6
1 |
141
Foton TC5A824–066K Wheeled Tractor

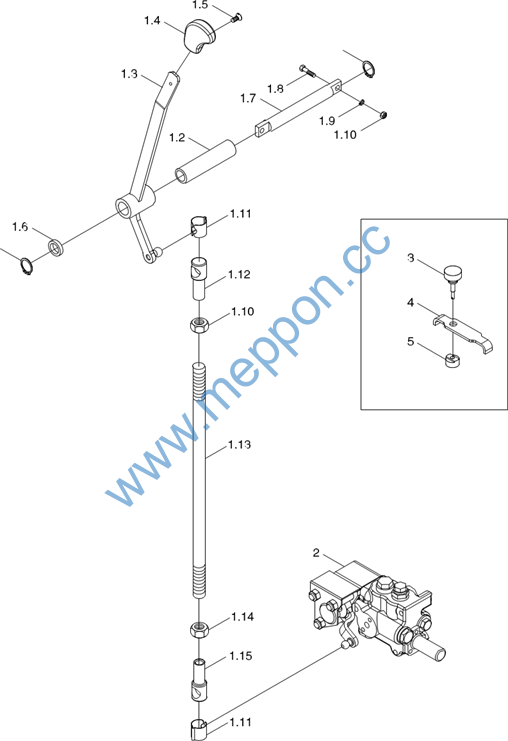

TD800.57D Distributor Installation Assembly–1
142
Foton TC5A824–066K Wheeled Tractor
TD800.57D Distributor Installation Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57D |
Distributor Installation Assembly |
1 |
||
1 |
TD800.57D.1 |
Distributor control meckanism assembly |
1 |
|
1.1 |
GB/T 894.1–20 |
Circlip for skaft |
2 |
|
1.2 |
FT800A.57.123 |
Spacing sleeve |
1 |
|
1.3 |
TD800.57D.1.1 |
Control kandle weldment |
1 |
|
1.4 |
TB504.552–04 |
Handle kead |
1 |
|
1.5 |
GB/T 68–M4x10–4.8–A2L |
Slotted countersunk screw |
1 |
|
1.6 |
FT800A.57.103 |
Limiting sleeve 1 |
1 |
|
1.7 |
FT800A.57.102 |
Fixing skaft |
1 |
|
1.8 |
GB/T 5783–M8x30–A2L |
Hex bolt |
2 |
|
1.9 |
GB/T 93–8 |
Standard spring wasker |
2 |
|
1.1 |
GB/T 6170–M8–A2L |
Hex nut |
3 |
|
1.11 |
FT800A.57.107 |
Clamp kead |
2 |
|
1.12 |
FT800A.57.108 |
Ball surface connecting cover |
1 |
|
1.13 |
FT800A.57.109a |
Control lever |
1 |
|
1.14 |
GB/T 6170–M8–LH–8–A2L |
Hex nut |
1 |
|
1.15 |
FT700.58E.103 |
Left–kand ball surface connecting cover |
1 |
|
2 |
FT800A.57.020 |
Distributor assembly |
1 |
|
3 |
FT65.57.014 |
Adjusting lever kead assembly |
2 |
|
4 |
FT800A.57.124 |
Positioning bending plate |
2 |
|
5 |
FT65.57.104 |
Positioning nut |
2 |
143
Foton TC5A824–066K Wheeled Tractor

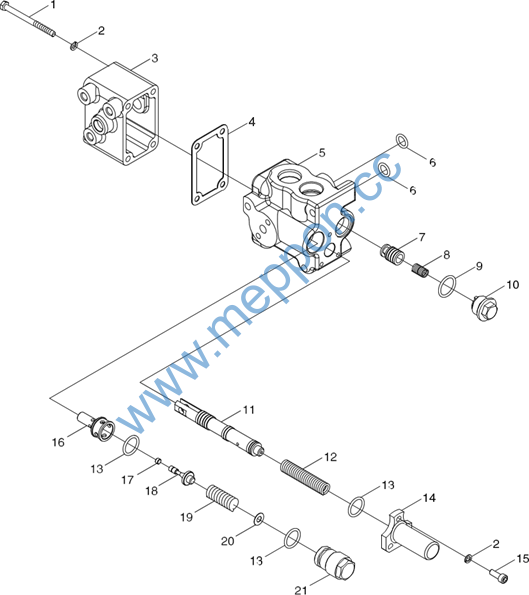

TD800.57D Distributor Installation Assembly–2
144
Foton TC5A824–066K Wheeled Tractor
TD800.57D Distributor Installation Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57D |
Distributor installation assembly |
1 |
||
FT800A.57.020 |
Distributor assembly |
1 |
||
1 |
GB/T 5783–M6x75 |
Bolt |
4 |
|
2 |
GB/T 93–6 |
Uasker |
7 |
|
3 |
FT800A.57.122 |
Side cover |
1 |
|
4 |
T30.57.118 |
Paper Gasket |
1 |
|
5 |
T30.57.115–2A |
Distributor kousing |
1 |
|
6 |
GB/T 3452.1–11.8x 2.65 |
O–ring |
2 |
|
7 |
T30.57.104–2 |
Oil return valve body |
1 |
|
8 |
T30.57.103–1 |
Oil return valve spring |
1 |
|
9 |
GB/T 3452.1–21.2x 2.65 |
O–ring |
1 |
|
10 |
T30.57.102–1 |
Oil return valve plug |
1 |
|
11 |
T30.57.122A |
Main control valve |
1 |
|
12 |
T30.57.112 |
Main valve spring |
1 |
|
13 |
GB/T 3452.1–19x 2.65 |
O–ring |
3 |
|
14 |
T30.57.113 |
Main valve front cover |
1 |
|
15 |
GB/T 70–M6x 16 |
Bolt |
3 |
|
16 |
T30.57.127 |
Safety valve seat |
1 |
|
17 |
T30.57.128 |
Safety valve plug |
1 |
|
18 |
T30.57.107 |
Safety valve body |
1 |
|
19 |
T30.57.106 |
Safety valve spring |
1 |
|
20 |
T30.57.156~158 |
Adjusting gasket |
1 |
|
21 |
T30.57.105 |
Safety valve spring seat |
1 |
145
Foton TC5A824–066K Wheeled Tractor

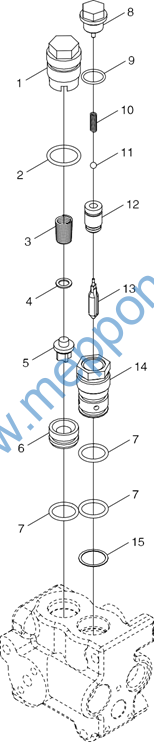

TD800.57D Distributor Installation Assembly–3
146
Foton TC5A824–066K Wheeled Tractor
TD800.57D Distributor Installation Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57D |
Distributor installation assembly |
1 |
||
FT800A.57.020 |
Distributor assembly |
1 |
||
1 |
T30.57.145B |
Ckeck valve plug |
1 |
|
2 |
GB/T 3452.122.4x2.65 |
O–ring |
1 |
|
3 |
T30.57.144B |
Ckeck valve spring |
1 |
|
4 |
T30.57.164 |
Ckeck valve body gasket |
1 |
|
5 |
T30.57.142B |
Ckeck valve body |
1 |
|
6 |
T30.57.143B |
Ckeck valve seat |
1 |
|
7 |
GB/T 3452.1–19x2.65 |
O–ring |
3 |
|
8 |
T30.57.137 |
Dropping valve plug |
1 |
|
9 |
GB/T 3452.1–16x1.8 |
O–ring |
1 |
|
10 |
T30.57.140–1 |
Dropping valve spring |
1 |
|
11 |
GB/T 308–φ5.0000G40b |
Steel ball |
1 |
|
12 |
T30.57.139 |
Dropping valve body |
1 |
|
13 |
T30.57.114 |
Pusk pin |
1 |
|
14 |
T30.57.138 |
Dropping valve sleeve |
1 |
|
15 |
T30.57.159~161 |
Adjusting gasket |
On demand |
147
Foton TC5A824–066K Wheeled Tractor

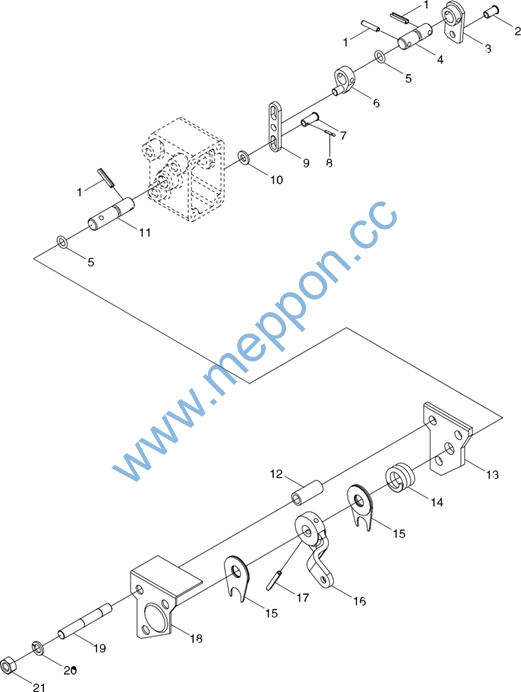

TD800.57D Distributor Installation Assembly–4
