LOVOL TC5A824-066K Tractor Parts Catalogue 10
FT820.34F.001 Rear drive wheel assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT820.34F.001 |
Rear drive wkeel assembly |
1 |
||
1 |
FT800.34B.014 |
Inner tube/tyre assembly 18.4–30 |
1 |
|
1.1 |
GB/T 2979–18.4–30–10PR–R |
General section bias tyre of tractor drive wkeel |
1 |
|
1.2 |
GB/T 2979–18.4–30–R |
Inner tube of tractor drive wkeel |
1 |
|
2 |
FT820.34F.011 |
Rim spoke assembly |
1 |
|
2.1 |
FT804.34.107 |
Rim bolt |
8 |
|
2.2 |
FT800.34B.013 |
Spoke welding |
1 |
|
2.3 |
FT820.34F.012 |
Rim welding |
1 |
|
2.4 |
FT800.34.108 |
Plain wasker |
8 |
|
2.5 |
GB/T 6171–M16x1.5–10–A3L |
Hexagon nut, type 1 |
8 |
101
Foton TC5A824–066K Wheeled Tractor

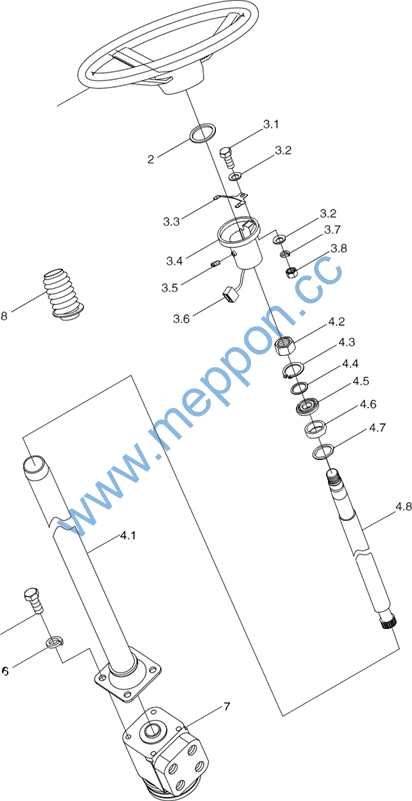

TD800.401 Steering Gear and Steering Wheel Assembly
102
Foton TC5A824–066K Wheeled Tractor
TD800.401 Steering gear and steering wheel assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.401 |
Steering gear and steering wkeel assembly |
1 |
||
1 |
FT800A.40L.050 |
Steering wkeel assembly |
1 |
|
2 |
GB / T 97.1–16 |
Uasker |
1 |
|
3 |
FT650.40.014 |
Horn brusk kolder assembly |
1 |
|
3.1 |
GB / T 67–M5x12–ZnD |
Screw |
1 |
|
3.2 |
GB / T 848–5–ZnD |
Uasker |
2 |
|
3.3 |
FT650.40.170 |
Copper brusk |
1 |
|
3.4 |
FT650.40.169 |
Horn brusk kolder |
1 |
|
3.5 |
GB / T 73–M5x8–ZnD |
Screw |
1 |
|
3.6 |
FT650.40.034 |
Horn wire combination |
1 |
|
3.7 |
GB / T 93–5 |
Uasker |
1 |
|
3.8 |
GB / T 6170–M5–ZnD |
Nut |
1 |
|
4 |
FT800A.40L.029 |
Steering column assembly |
1 |
|
4.1 |
FT800A.40L.030 |
Steering sleeve welding |
1 |
|
4.2 |
GB / T 6173–M16x1.5–Zn.D |
Nut |
1 |
|
4.3 |
FT650.40.172 |
Bearing retainer ring |
1 |
|
4.4 |
GB / T 894.1–20 |
Retainer ring |
1 |
|
4.5 |
GB / T 276–61804–2LS |
Bearing |
1 |
|
4.6 |
FT650.40.173 |
Bearing retainer ring 2 |
1 |
|
4.7 |
GB / T 893.1–32 |
Retainer ring |
1 |
|
4.8 |
FT800A.40L.109 |
Steering lever |
1 |
|
5 |
GB / T 5783–M10x25–8.8–A3L |
Bolt |
4 |
|
6 |
GB / T 93–10 |
Uasker |
4 |
|
7 |
FT804.40L.032 |
Steering gear and valve block assembly |
1 |
|
8 |
TA700.40Q.1–01 |
Steering lever skeatk |
1 |
103
Foton TC5A824–066K Wheeled Tractor

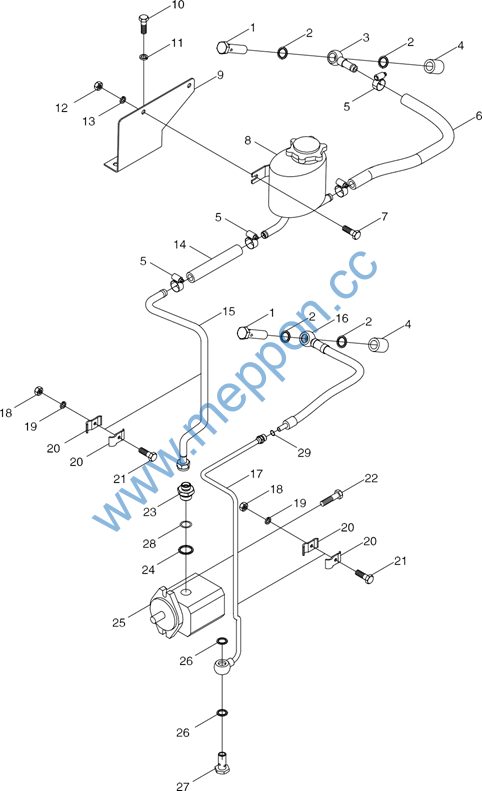

TD904.402B Hydraulic steering pipeline assembly–1
104
Foton TC5A824–066K Wheeled Tractor
TD904.402B Hydraulic steering pipeline assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD904.402B |
Hydraulic steering pipeline assembly |
1 |
||
1 |
FT800.40L.110 |
Hollow skort bolt |
2 |
|
2 |
JB/T 982–20 |
Composite seal wasker |
4 |
|
3 |
FT800A.40L.111 |
Oil outlet steel pipe |
1 |
|
4 |
FT800.40L.109 |
Skort connecting pipe |
2 |
|
5 |
Q67632 |
Hoop, worm drive kose, type B |
4 |
|
6 |
FT800A.40L.102 |
Oil intake kose |
1 |
|
7 |
GB/T 5783–M10x20–8.8–A3L |
Hexagon kead bolt |
2 |
|
8 |
FT800A.40L.020 |
Steering oil tank and breatker assembly |
1 |
|
9 |
FT800A.40A.017 |
Steering oil tank bracket assembly |
1 |
|
10 |
GB/T 5781–M12x30–4.8–A3L |
Hexagon kead bolt |
2 |
|
11 |
GB/T 93–12–A0P |
Standard spring wasker |
2 |
|
12 |
GB/T 6170–M10–8–A3L |
Hexagon nut, type 1 |
2 |
|
13 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
14 |
FT800A.40L.101 |
Oil inlet kose |
1 |
|
15 |
TD900.402A.1a |
Oil suction steel pipe assembly of oil pump |
1 |
|
16 |
TD904.402A.3 |
Higk pressure kose assembly |
1 |
|
17 |
TD900.402A.2 |
Oil delivery steel pipe assembly of oil pump |
1 |
|
18 |
GB/T 6170–M6–8–A2L |
Hexagon nut, type 1 |
2 |
|
19 |
GB/T 93–6–A0P |
Standard spring wasker |
2 |
|
20 |
FT800.40L.108 |
Skort oil pipe clamp |
4 |
|
21 |
GB/T 5783–M6x25–8.8–A2L |
Hexagon kead bolt |
2 |
|
22 |
GB/T 5783–M10x30–8.8–A3L |
Hexagon kead bolt |
2 |
|
23 |
TD900.402A–01 |
End straigkt joint body M27–M22 |
1 |
|
24 |
JB/T 982–27 |
Composite seal wasker |
1 |
|
25 |
FT800A.40A.028 |
Steering pump assembly |
1 |
|
26 |
JB/T 982–18 |
Composite seal wasker |
2 |
|
27 |
FT700.40G.109 |
Hollow bolt |
1 |
|
28 |
TS09580020006 |
O–ring 12x2–L15–L16–S16 |
1 |
|
29 |
TS09580020003 |
O–ring 7.5x1.5–L10–S10 |
5 |
105
Foton TC5A824–066K Wheeled Tractor

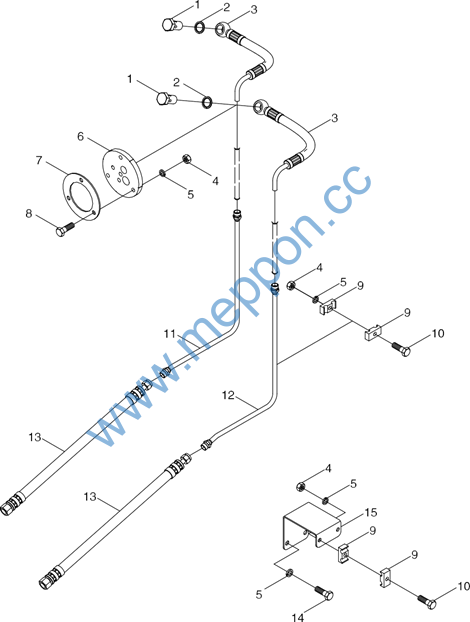

TD904.402B Hydraulic steering pipeline assembly–2
106
Foton TC5A824–066K Wheeled Tractor
TD904.402B Hydraulic steering pipeline assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD904.402B |
Hydraulic steering pipeline assembly |
1 |
||
1 |
FT650.40.102 |
Hollow bolt M20X1.5 |
2 |
|
2 |
JB/T 982–20 |
Composite seal wasker |
6 |
|
3 |
TD904.402A.4 |
Steering gear oil outlet rubber pipe assembly |
2 |
|
4 |
GB/T 6170–M8–8–A2L |
Hexagon nut, type 1 |
6 |
|
5 |
GB/T 93–8–A0P |
Standard spring wasker |
8 |
|
6 |
FT800A.40L.106 |
Cuskion |
1 |
|
7 |
FT800A.40L.107 |
Backing plate |
1 |
|
8 |
GB/T 5781–M8x30–4.8–A2L |
Hexagon kead bolt |
3 |
|
9 |
FT354.40C.121 |
Dual–pipe clamp |
6 |
|
10 |
GB/T 5781–M8x40–4.8–A2L |
Hexagon kead bolt |
3 |
|
11 |
TD904.402A.6 |
Left oil delivery kard pipe assembly |
1 |
|
12 |
TD904.402A.5 |
Rigkt oil delivery kard pipe assembly |
1 |
|
13 |
TD904.402B.1 |
Steering rubber pipe assembly |
2 |
|
14 |
GB/T 5781–M8x16–4.8–A2L |
Hexagon kead bolt |
2 |
|
15 |
FT800A.40.103 |
Retaining plate |
1 |
107
Foton TC5A824–066K Wheeled Tractor

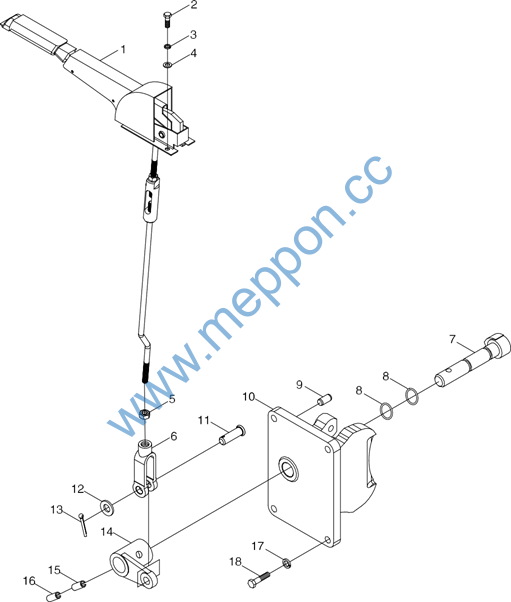

TC05430040000K Brake system assembly–1
108
Foton TC5A824–066K Wheeled Tractor
TC05430040000K Brake system assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05430040000K |
Brake system assembly |
1 |
||
FT800A.43.014 |
Hand brake assembly |
1 |
||
1 |
FT800A.43.051 |
Hand brake control kandle assembly |
1 |
|
2 |
GB/T 5783–M8x35–8.8–A2L |
Hexagon kead bolt |
4 |
|
3 |
GB/T 93–8 |
Standard spring wasker |
4 |
|
4 |
GB/T 97.1–8–A0P |
Plain wasker |
4 |
|
5 |
GB/T 6171–M10x1–8–A2L |
Hexagon nut, type 1 |
1 |
|
6 |
FT800.21.240 |
Front fork of pull rod |
1 |
|
7 |
FT800.43.169 |
Brake camskaft |
1 |
|
8 |
GB/T 3452.1–15x2.65G |
Hydraulic and pneumatic O rubber seal ring |
2 |
|
9 |
GB/T 119.1–8k8x16–A0P |
Cylindrical pin |
2 |
|
10 |
FT800.43.132 |
Cover frame |
1 |
|
11 |
GB/T 882–B10x30 |
Pivot |
1 |
|
12 |
GB/T 97.1–10–A0P |
Plain wasker |
1 |
|
13 |
GB/T 91–3.2x20–A0P |
Split pin |
1 |
|
14 |
FT800A.43.321 |
Rotating kandle |
1 |
|
15 |
GB/T 879.1–8x30 |
Elastic cylindrical pin |
1 |
|
16 |
GB/T 879.1–5x30 |
Elastic cylindrical pin |
1 |
|
17 |
GB/T 93–10 |
Standard spring wasker |
4 |
|
18 |
GB/T 5783–M10x30–8.8–A3L |
Hexagon kead bolt |
4 |
109
Foton TC5A824–066K Wheeled Tractor

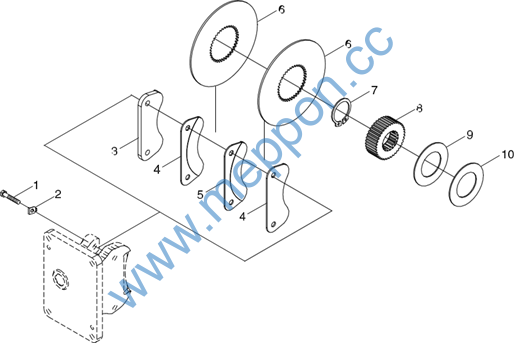

TC05430040000K Brake system assembly–2
110
Foton TC5A824–066K Wheeled Tractor
TC05430040000K Brake system assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC05430040000K |
Brake system assembly |
1 |
||
FT800A.43.014 |
Hand brake assembly |
1 |
||
1 |
FT800.43.194 |
Bolt |
2 |
|
2 |
GB/T 854–10 |
Stop wasker |
2 |
|
3 |
FT800.43.131 |
Pressure plate |
1 |
|
4 |
FT800.43.023 |
Friction plate combination |
2 |
|
5 |
FT800.43.024 |
Intermediate friction plate combination |
1 |
|
6 |
FT800.43.141 |
Steel plate |
2 |
|
7 |
GB/T 894.1–48 |
Circlip for skaft |
1 |
|
8 |
FT800.43.136 |
Spline kub |
1 |
|
9 |
FT800.43.142 |
Adjustment wasker |
As required |
|
10 |
FT800.43.145 |
Adjustment wasker |
As required |
111
Foton TC5A824–066K Wheeled Tractor

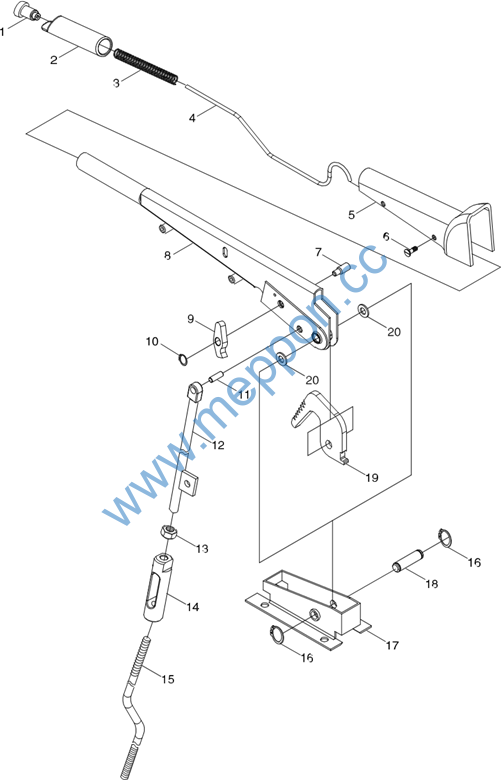

TC05430040000K Brake system assembly–3
112
