LOVOL TC5A824-050K Tractor Parts Catalogue 22
TD800.56H-2 悬挂机构总成-2 SUSPENSION MECHANISM ASSEMBLY-2
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT800.56A.012a |
下拉杆总成 |
LOWER PULL ROD ASSEMBLY |
2 |
2012-05_ |
|
10 |
GBT93-24-A0P |
标准型弹簧垫圈 |
WASHER |
2 |
2012-05_ |
|
11 |
GBT6171-M24X2-8-A3L |
1型六角螺母 |
NUT |
2 |
2012-05_ |
|
12 |
TD800.56G.3 |
左限位链支架焊合 |
LEFT LIMITING CHAIN BRACKET WELD |
1 |
2012-05_ |
|
2 |
TD800.56G.1 |
限位链总成 |
LIMIT CHAIN ASSEMBLY |
2 |
2012-05_ |
|
2.1 |
TD800.56G.1-02 |
连接叉 |
CONNECTING ROD FORK |
1 |
2012-05_ |
|
2.2 |
TD800.56G.1.1 |
左旋调节螺栓总成 |
LEVOROTATORY ADJUSTING BOLT ASSEMBLY |
1 |
2012-05_ |
|
2.3 |
GBT6170-M20-LH-8-A9L |
1型六角螺母 |
NUT |
1 |
2012-05_ |
|
2.4 |
TD800.56G.1-01 |
调节螺管 |
ADJUSTING SOLENOID |
1 |
2012-05_ |
|
2.5 |
GBT6170-M20-8-A3L |
1型六角螺母 |
NUT |
1 |
2012-05_ |
|
2.6 |
TD800.56G.1.2 |
右旋调节螺栓总成 |
DEXTRAL ADJUSTING BOLT ASSEMBLY |
1 |
2012-05_ |
|
3 |
GBT882-B14X55 |
销轴 |
PIN |
2 |
2012-05_ |
|
4 |
GBT97.1-14-A0P |
垫圈14-A0P |
WASHER |
2 |
2012-05_ |
|
5 |
GBT91-4X22-A0P |
开口销 |
PIN |
2 |
2012-05_ |
|
6 |
TD800.56G.2 |
右限位链支架焊合 |
RIGHT LIMITING CHAIN BRACKET WELD |
2 |
2012-05_ |
|
7 |
GBT93-16-A0P |
弹簧垫圈 |
SPRING WASHER |
8 |
2012-05_ |
|
8 |
GBT5783-M16X40-A3L |
六角头螺栓 |
BOLT |
8 |
2012-05_ |
|
9 |
TD800.56G.4 |
锁链总成 |
CHAINS ASSEMBLY |
2 |
2012-05_ |

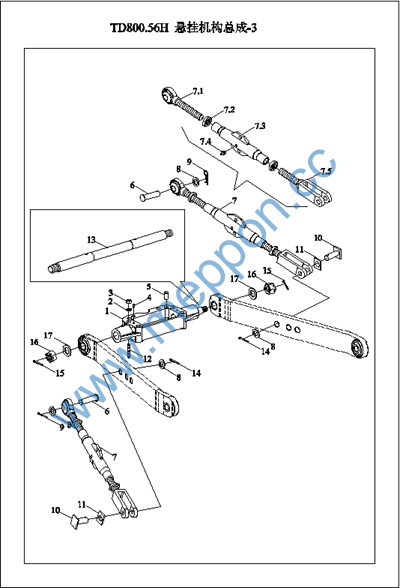

TD800.56H-3 悬挂机构总成-3 SUSPENSION ASSEMBLY-3
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT800.56.112d |
下拉杆支架 |
LOWER PULL ROD BRACKET |
1 |
2012-05_ |
|
10 |
FT800.56A.041 |
提升杆后联接销焊合 |
LIFTING ROD REAR CONNECTING PIN |
2 |
2012-05_ |
|
11 |
FT800.56A.261 |
挡板 |
WELDMENT |
2 |
2012-05_ |
|
12 |
GBT899-GM16-M16X95-8.8-Zn.D |
双头螺柱 |
RETAINER PLATE |
6 |
2012-05_ |
|
13 |
FT800.56.102d |
下拉杆支承杆 |
8.8-A3L STUD |
1 |
2012-05_ |
|
SUPPORT ROD OF LOWER PULL ROD |
|||||
|
14 |
GBT91-4X50-A0P |
开口销 |
2 |
2012-05_ |
|
|
15 |
GBT91-5X40-A0P |
开口销 |
PIN |
2 |
2012-05_ |
|
16 |
GBT95-24-A0P |
平垫圈 |
PIN |
2 |
2020-05_ |
|
17 |
GBT9459-M24X2-A3L |
六角开槽薄螺母 |
WASHER |
2 |
2012-05_ |
|
2 |
GBT93-16-A0P |
弹簧垫圈 |
NUT |
6 |
2012-05_ |
|
SPRING WASHER |
|||||
|
3 |
GBT6170-M16-A3L |
螺母 M16-A3L |
6 |
2012-05_ |
|
|
4 |
GBT72-M8X16-A2L |
开槽锥端定位螺钉 |
NUT |
2 |
2012-05_ |
|
4 |
GBT72-M8X16-A2L |
开槽锥端定位螺钉 |
A2L SCREW |
2 |
2012-05_ |
|
5 |
GBT119-B20X35 |
圆柱销 |
A2L SCREW |
2 |
2012-05_ |
|
6 |
FT800.56.124 |
销轴 |
PIN |
2 |
2012-05_ |
|
PIN |
|||||
|
7 |
FT800.56A.015a |
提升杆总成 |
2 |
2012-05_ |
|
|
7.1 |
FT800.56.020a |
上螺杆铆合总成 |
LIFTING ROD ASSEMBLY |
2 |
2012-05_ |
|
7.2 |
FT800.56.265 |
梯形螺母 |
UPPER SCREW ROD RIVET ASSEMBLY |
2 |
2012-05_ |
|
7.3 |
FT800.56A.042 |
提升杆导管焊合 |
TRAPEZOIDAL NUT |
2 |
2012-05_ |
|
7.4 |
JBT7940.1-M10X1 |
直通式压注油杯 |
LIFTING ROD GUIDE PIPE WELDMENT |
2 |
2012-05_ |
|
STRAIGHT PRESSURE FILLING OIL CUP |
|||||
|
7.5 |
FT800.56A.040 |
提升杆下连接叉组件 |
2 |
2012-05_ |
|
|
8 |
FT800.56.262 |
垫圈 |
LIFTING ROD LOWER CONNECTING FORK |
2 |
2012-05_ |
|
9 |
GBT91-5X50-A0P |
开口销 |
ASSEMBLY |
2 |
2012-05_ |
|
WASHER |
|||||
|
PIN |
|||||
