LOVOL TC5A824-050K Tractor Parts Catalogue 20

FT800.53.001 53-拖挂装置总成 53-TOW EQUIPMENT ASSEMBLY

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

FT800.53.101a FT800.53.102 FT800.53.111

GBT899-GM16-M16X75-8.8-A2L GBT93-16-AOP

GBT6170-M16-A2L

拖挂架连接销轴弹簧锁销双头螺柱垫圈

螺母

TOW BRACKET CONNECTING PIN SHAFT SPRING LOCK PIN

8.8-A3L STUD WASHER

NUT

2011-11_

2004-01_

2011-11_

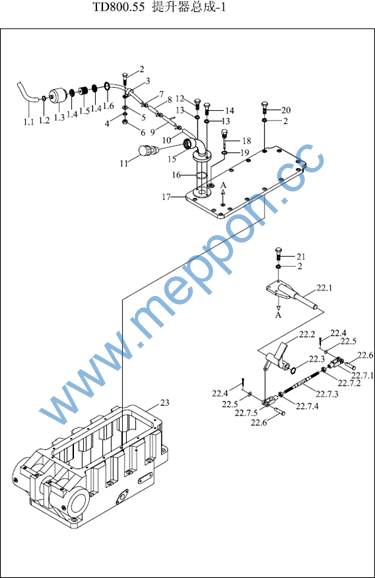

TD800.55-1 55.1-提升器总成-1 LIFTER ASSEMBLY-1

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
1	TD800.55.6a	呼吸器总成		1	2011-11_
1.1	FT800.55A.126	呼吸软管	BREATH HOSE	1	2011-11_
1.2	ZBJ15001-d16	卡箍	CLAMP HOOP	1	2011-11_
1.3	FT650.40.160	呼吸器体	BREATHER BODY	1	2011-11_
1.4	FT650.40.167	座板	SEAT PLATE	1	2011-11_
1.5	FT65.55.129	呼吸器滤芯	BREATH FILTER ELEMENT	1	2011-11_
1.6	GBT893.1-26	孔用弹性挡圈	SNAP RING	1	2011-11_
10	TD800.55.3-01	连接胶管	CONNECTING RUBBER PIPE	1	2011-11_
11	TA700.55A.7	螺塞总成	PLUG,THREADED	1	2012-06_
11	FT300.55B.029	油管塞总成	OIL PIPE PLUG ASSEMBLY	1	2011-11_
12	GBT5781-M8X25-A2L	六角头螺栓	BOLT	1	2004-01_
13	GBT93-8-AOP	垫圈	WASHER	15	2011-11_
14	GBT5781-M8X35-A3L	六角头螺栓	BOLT	1	2011-11_
15	FT800.55A.014	加油口总成	FILLING CAP ASSEMBLY	1	2011-11_
16	GBT3452.1-34.5X2.65G	液压气动用O形橡胶密封圈	O-SEAL RING	1	2011-11_
17	TD800.55-115	上盖板	UPPER COVER PLATE	1	2011-11_
18	FT800.55A.011	油位标尺总成	DIPSTICK ASSEMBLY	1	2011-11_
19	FT700.58.909	回油滤油器支架	OIL RETURN FILTER BRACKET	1	2010-05_
2	GBT5783-M6X25-8.8-A2L	六角头螺栓	BOLT	1	2004-01_
20	GBT5781-M8X30-A3L	六角头螺栓	BOLT	11	2011-11_
21	GBT5781-M8X40-A3L	六角头螺栓	BOLT	4	2011-11_
21	GBT5781-M8X40-A3L	六角头螺栓	BOLT	4	2011-11_
22	TD800.55.2a	反馈机构总成	FEEDBACK MECHANISM ASSEMBLY	1	2009-04_
22	TD800.55.2	反馈机构总成	FEEDBACK MECHANISM ASSEMBLY	1	2008-06_
22.1	TD800.55.2.3	支座总成	SEAT ASSEMBLY	1	2011-11_

TD800.55-1 55.1-提升器总成-1(续)

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
22.2	TD800.55.2.1a	摇臂焊合	ROCKER WELDMENT	1	2009-11_
22.2	TD800.55.2.1	摇臂焊合	ROCKER WELDMENT	1
22.3	GBT894.1-20	挡圈20	BLCOKING RING	1	2011-11_
22.4	GBT91-3.2X16-A0P	开口销	PIN	1	2004-01_
22.5	GBT97.1-8	垫圈	WASHER	2	2011-11_
22.6	GBT882-B8X30-A3L	销轴	PIN	2	2011-11_
22.7	TD800.55.2.2	调节拉杆总成	ADJUSTING PULL ROD ASSEMBLY	1	2011-11_
22.71	TD800.55.2.2-01	右旋拉杆叉	RIGHT REVOLVING PULL ROD FORK	1	2011-11_
22.73	TD800.55.2.2-02	调节杆	ADJUSTING ROD	1	2011-11_
22.75	TD800.55.2.2-03	左旋拉杆叉	LEFT REVOLVING PULL ROD FORK	1	2011-11_
22.75	TD800.55.2.2-03	左旋拉杆叉	LEFT REVOLVING PULL ROD FORK	1	2011-11_
23	FT800.55A.015	提升器壳体压装总成	LIFTER HOUSING ASSEMBLY	1	2011-11_
3	TD800.55.7	管夹	PIPE CLAMP	2	2011-11_
3	TD800.55.7	管夹	PIPE CLAMP	2	2011-11_
4	GBT93-6-A0P	弹簧垫圈	SPRING WASHER	1	2011-11_
5	GBT97.1-6-A0P	平垫圈	WASHER	1	2011-11_
6	GBT6170-M6-A2L	螺母	NUT	1	2011-11_
7	Q67522	C型蜗杆传动式软管环箍	C-TYPE WORM TRANSMISSION HOSE CLAMP	4	2011-09_
7	Q67512	软管环箍	HOSE RING HOOP	4	2004-01_
8	TF1004.55-07	连接胶管	CONNECTING RUBBER PIPE	1	2011-11_
9	TF1004.55.7	3通	TEE	1	2011-11_
9	TF1004.55.7	3通	TEE	1	2011-11_

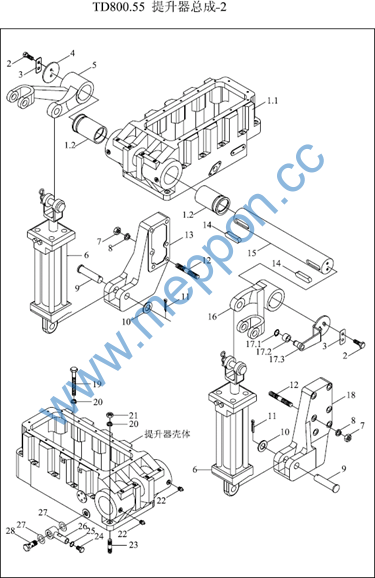

TD800.55-2 55.2-提升器总成-2 LIFTER ASSEMBLY-2

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
1	FT800.55A.015	提升器壳体压装总成	LIFTER HOUSING ASSEMBLY	1	2011-11_
1.1	FT800.55A.103	提升器壳体	LIFTER HOUSING	1	2011-11_
1.2	FT800.55A.111	铜轴套	COPPER SHAFT SLEEVE	2	2011-11_
10	FT800.55A.105	垫圈	WASHER	2	2011-11_
11	GBT91-6X40-A0P	开口销	PIN	2	2011-11_
11	GBT91-6X40-A0P	开口销	PIN	2	2011-11_
13	FT800.55A.104c	左油缸支架	LEFT OIL CYLINDER BRACKET	1	2011-11_
13	FT800.55A.104	左油缸支架	LEFT OIL CYLINDER BRACKET	1	2004-01_
13.1	FT800.55A.104b	左油缸支架	LEFT OIL CYLINDER BRACKET	1	2011-11_
14	GBT1096-20X80	平键	FLAT KEY	2	2011-11_
14	GBT1096-20X80	平键	FLAT KEY	2	2011-11_
15	FT800.55A.107	提升轴	LIFTING SHAFT	1	2011-11_
16	TD800.55.5	右提升臂	RIGHT LIFTING ARM	1	2011-11_
17	TD800.55.1	反馈臂总成	FEEDBACK ARM ASSEMBLY	1	2011-11_
17.1	GBT894.1-20	挡圈20	BLCOKING RING	1	2011-11_
17.2	TD800.55.1-01	滚轮		1	2011-11_
17.3	TD800.55.1.1	反馈臂焊合	FEEDBACK ARM WELDMENT	1	2011-11_
18	FT800.55A.114c	右油缸支架	RIGHT OIL CYLINDER BRACKET	1	2011-11_
18.1	FT800.55A.114b	右油缸支架	RIGHT OIL CYLINDER BRACKET	1	2011-11_
19	GBT5782-M12X140-A3L	六角头螺栓	BOLT	10	2011-11_
2	GBT5783-M10X20-A3L	螺栓	BOLT	4	2011-11_
20	GBT93-12-AOP	垫圈	WASHER	13	2011-11_
21	GBT6170-M12-A3L	螺母	NUT	3	2011-11_
22	JBT7940.1-M10X1	直通式压注油杯	STRAIGHT PRESSURE FILLING OIL CUP	2	2011-11_
23	GBT899-GM12-M12X45-8.8-A3L	双头螺柱	8.8-A3L STUD	3	2011-11_

TD800.55-2 55.2-提升器总成-2(续)

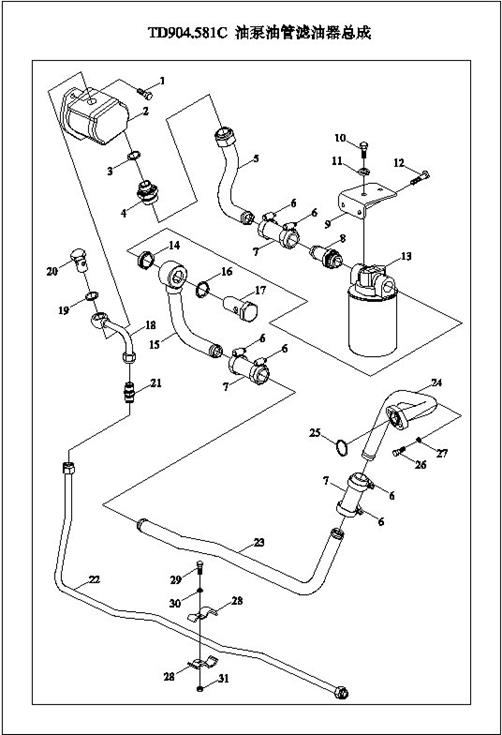

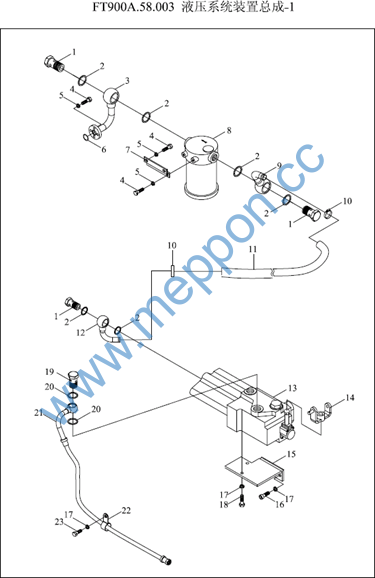

TD904.581C 58.1-油泵油管滤油器总成 58.1-OIL PUMP/PIPE/FILTER ASSEMBLY

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
1	GBT5783-M10X30-8.8-A3L	六角头螺栓	BOLT	2
10	GBT5783-M10X20-8.8-A3L	六角头螺栓	BOLT	2
10	GBT5783-M10X20-8.8-A3L	六角头螺栓	BOLT	2
11	GBT93-10-A0P	标准型弹簧垫圈	WASHER	4
12	GBT5783-M8X20-8.8-A2L	六角头螺栓	BOLT	2
13	TD904.581A.4	旋转式管路过滤器	AIR FILTER	1
14	TD904.581A-03	空心螺栓套管φ30	HOLLOW BOLT SLEEVE	1
15	TD904.581A.3	吸油管焊合3	OIL SUCTION PIPE WELDMENT 3	1
16	JBT982-30	组合密封垫圈	COMBINED SEAL GASKET	4
17	TD904.581A-01	空心螺栓M30×2	HOLLOW BOLT	1
18	FT700.58G.021a	压力油管焊合-1	PRESSURE OIL PIPE WELDMENT-1	1
19	JBT982-22	组合密封垫圈	COMBINED SEAL GASKET	2
2	FT700.58B.020	齿轮泵	GEAR PUMP	1
20	FT654.58.107	空心螺栓-1	HOLLOW BOLT -1	1
21	GBT3737.2-G14	直通接头体	STRAIGHT THREAD JOINT	1
22	TD904.581A.5	压力油管总成2	PRESSURE OIL PIPE ASSEMBLY 2	1
23	FT800.58C.103	吸油长管	OIL SUCTION LONG PIPE	1
24	FT800.58C.040	吸油短管焊合	OIL SUCTION SHORT PIPE WELDMENT	1
25	GBT3452.1-32.5X2.65G	液压气动用O形橡胶密封圈	O-SEAL RING	1
26	GBT5783-M8X30-8.8-A2L	六角头螺栓	BOLT	2
27	GBT93-8-A0P	垫圈	WASHER	4
28	FT650.58.060	油管夹与胶垫胶合	OIL PIPE CLAMP AND RUBBER WASHER	4
29	GBT5783-M6X25-8.8-A2L	六角头螺栓	BOLT	2
3	JBT982-27	组合密封垫圈	COMBINED SEAL GASKET	1
3	JBT982-27	组合密封垫圈	COMBINED SEAL GASKET	1

TD904.581C 58.1-油泵油管滤油器总成(续)
