TD900.484 48.4-后灯线束安装总成 48.4-REAR LAMP HARNESS INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TF1004.482-01

过线胶圈

RUBBER RING

1

2011-11_

1

TF1004.482-01

过线胶圈

RUBBER RING

1

2011-11_

10

GBT97.1-12-A0P

平垫圈

WASHER

1

2011-11_

11

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

1

2011-11_

12

GBT5783-M12X25-A3L

六角头螺栓

BOLT

1

2011-11_

13

FT65.48.092

穿线胶圈（3）

THROUGH HARNESS WASHER 3

2

2011-11_

14

FT800A.48L.053

后照灯总成

REAR LAMP ASSEMBLY

2

2011-11_

15

FT65.48.052a

后尾灯总成

TAIL LAMP ASSEMBLY

1

2012-02_

15

FT800A.48L.052

后尾灯总成

TAIL LAMP ASSEMBLY

2

2011-11_

16

GBT6170-M5-A2L

1型六角螺母

NUT

3

2011-11_

17

GBT93-5-A0P

标准型弹簧垫圈

WASHER

3

2011-11_

18

GBT97.1-5-A0P

垫圈

WASHER

3

2011-11_

19

TD900.484.2

后挂车插座

REAR TRAILER SOCKET

1

2012-02_

19

FT65.48.080

后挂车插座

REAR TRAILER SOCKET

1

2011-11_

2

3724D01-201

可松式扎带

RELEASABLE TIE

6

2011-11_

20

GBT819.1-M5X35-A2L

十字槽沉头螺钉

CUNERSUNK FLAT HEAD SCREW WITH CROSS

3

2011-11_

3

GBT818-M4X10-A2L

螺钉

RECESS

5

2011-11_

4

GBT93-4-A0P

标准型弹簧垫圈

SCREW

5

2011-11_

5

TD800.484.2

油量传感器

WASHER

1

2011-11_

6

TD900.484.1

后灯线束总成

OIL QUANTITY SENSOR

1

2011-05_


REAR LAMP HARNESS ASSEMBLY



6

TD800.484.1a

后灯线束总成



1

2004-01_

7

FT65.48.094

穿线胶圈(二)

REAR LAMP HARNESS ASSEMBLY

3

2011-11_

8

FT800A.48L.088

驻车制动开关

RUBBER RING (2)

1

2011-11_

9

FT800A.48L.106

过线胶圈（五）

PARKING BRAKE SWITCH

1

2011-11_


RUBBER RING (5)










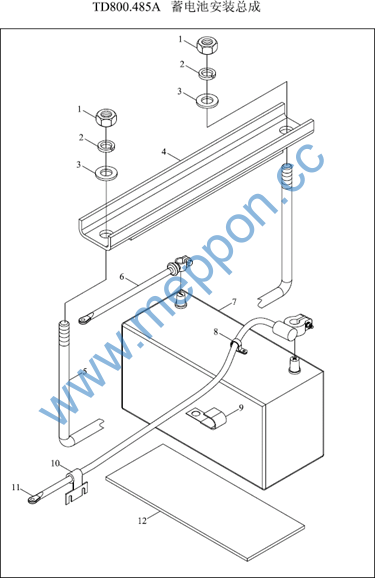

TD800.485A 48.5-蓄电池安装总成 48.5-BATTERY INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6170-M10-A3L

螺母

NUT

2

2011-11_

10

FT65.48.112

电源线固定板

POWER WIRE FIXING PLATE

1

2011-11_

11

FT65.48.090

电源线

POWER WIRE

1



11

FT65.48.090a

蓄电池电源线

BATTERY POWER WIRE

1

2006-04_

11

FT65.48.090

电源线

POWER WIRE

1



12

FT450.48.102

蓄电池减震垫

BATTERY SHOCK ABSORPTION MAT

1

2009-11_

12

TB450.485.1

蓄电池减震垫

BATTERY SHOCK ABSORPTION MAT

1

2010-08_

12

TG1204.485-03

橡胶垫（一）

RUBBER GASKET (1)

1

2011-11_

2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2

2011-11_

3

GBT97.1-10-A0P

平垫圈

WASHER

2

2011-11_

4

TG1204.485-02

电瓶压板

BATTERY PRESS PLATE

1

2011-11_

5

TG1204.485-01

电瓶U型拉杆

U-TYPE PULL ROD OF BATTERY

1

2011-11_

6

FT65.48.091

车身搭铁线

BODY GROUNDING WIRE

1

2011-11_

7

TG1204.485.1

蓄电池总成

BATTERY ASSEMBLY

1

2011-11_

8

TD800.485A-03

固定夹

LOCKING CLAMP

1

2011-11_

9

TD800.485A-04

线束紧固夹

HARNESS TIGHTEN CLIP

1

2011-11_








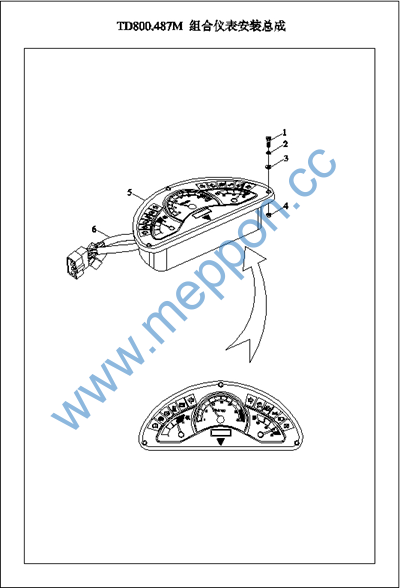

TD800.487M 48.7-组合仪表安装总成 48.7-INSTRUMENT COMBINATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5



6

GBT818-M5X16-4.8-A2L GBT93-5-A0P

GBT95-5-A0P GBT6170-M5-8-A2L TD800.487M.1



TD800.487M.2

十字槽盘头螺钉标准型弹簧垫圈平垫圈 1型六角螺母

仪表总成 过渡线总成

SCREW WASHER WASHER NUT

INSTRUMENT ASSEMBLY TRANSITION WIRE HARNESS

2

2

2

2

1



1

2012-05_

2012-05_

2012-05_

2012-05_

2012-05_



2012-05_








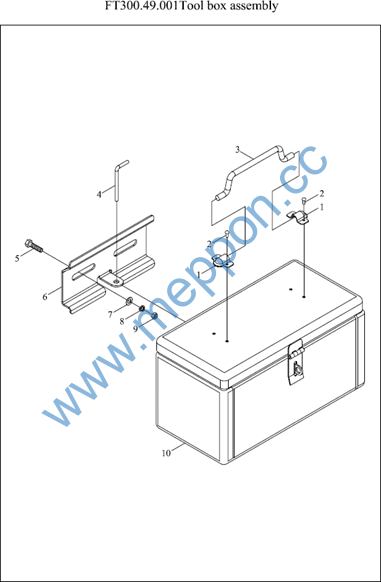

FT300.49.001 49-工具箱总成 49-TOOL BOX ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M12X25-A3L

六角头螺栓

BOLT

2

2011-11_

1

FT65.49.101

提手座

HANDLE SEAT

2

2003-11_

10

FT300.49.012

工具箱焊合总成

TOOL BOX WELDMENT ASSEMBLY

1

2003-11_

2

GBT 867-4X8

半圆头铆钉

RIVET

2

2003-11_

3

FT65.49.115

提手

HANDLE

1

2003-11_

4

FT65.49.102

插销

CROSS PIN

1

2003-11_

5

GBT5783-M12X35-A3L

螺栓

BOLT

2

2003-11_

5

GBT5783-M12X35-A3L

螺栓

BOLT

2

2003-11_

6

FT65.49.103

固定支板

FIXING SUPPORT PLATE

1

2003-11_

7

GBT97.1-12-A0P

平垫圈

WASHER

2

2003-11_

8

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

2

2003-11_

9

GBT6170-M12-A3L

螺母

NUT

2

2003-11_

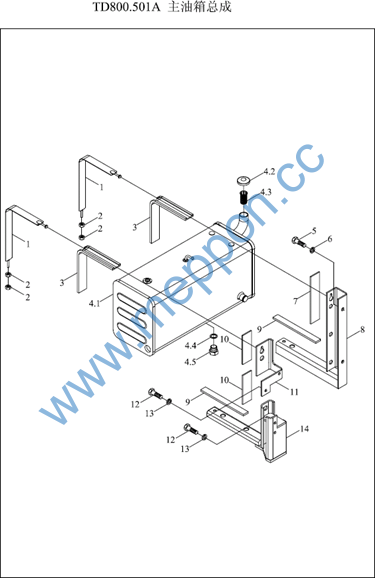

TD800.501A 50.1-主油箱总成 50.1-MAIN OIL TANK ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.50.051

主油箱轧带总成

MAIN OIL TANK BELT ASSEMBLY

2

2011-11_

1

FT800A.50.051

主油箱轧带总成

MAIN OIL TANK BELT ASSEMBLY

2

2011-11_

10

TD800.501-05

油箱短胶垫

OIL TANK SHORT RUBBER GASKET

2

2011-11_

11

TD800.501.3

上支架焊合

UPPER BRACKET WELDMENT

1

2011-11_

12

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

13

GBT5783-M10X20-A3L

螺栓

BOLT

4

2011-11_

14

TD800.501.4

下支架焊合

LOWER BRACKET WELDMENT

1

2011-11_

2

GBT6170-M10-A3L

螺母

NUT

4

2011-11_

3

FT800A.50.209

主油箱轧带橡胶条

MAIN OIL TANK BELT RUBBER STRIP

2

2011-11_

4

TD800.501A.1

主油箱总成

MAIN OIL TANK ASSEMBLY

1

2011-11_

4.1

TD800.501A.1.2

主油箱焊合

MAIN OIL TANK WELDMENT

1

2011-11_

4.2

TD800.501A.1.1

油箱盖

OIL TANK COVER

1

2011-11_

4.3

FT300.50.015

滤网总成

FILTER MESH ASSEMBLY

1

2011-11_

4.4

JBT982-16

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

4.5

FT65.50.226

放油螺塞

OIL DISCHARGING SCREW PLUG

1

2011-11_

5

GBT5783-M16X35-A3L

六角头螺栓

BOLT

2

2011-11_

6

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

2

2011-11_

7

FT800A.50.207

主油箱橡胶垫（一）

MAIN OIL TANK RUBBER WASHER (1)

1

2011-11_

8

TD800.501.2

主油箱前支架焊合

MAIN OIL TANK FRONT BRACKET WELDMENT

1

2011-11_

9

TD800.502-01

油箱胶垫

OIL TANK RUBBER WASHER

2

2011-11_

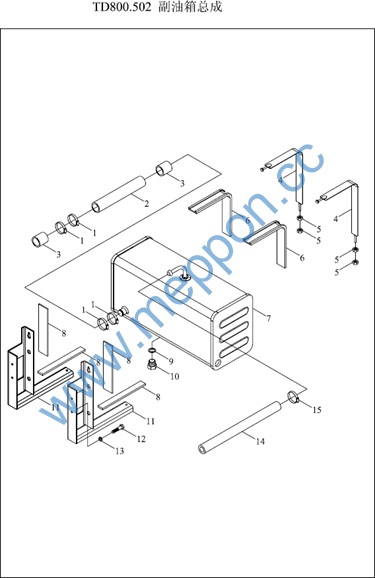

TD800.502 50.2-副油箱总成 50.2-AUXILIARY OIL TANK ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q67645

卡箍

CLAMP HOOP

4

2011-11_

10

FT65.50.226

放油螺塞

OIL DISCHARGING SCREW PLUG

1

2011-11_

11

TD800.502.2

副油箱支架焊合

AUXILIARY OIL TANK BRACKET WELDMENT

2

2011-11_

11

TD800.502.2

副油箱支架焊合

AUXILIARY OIL TANK BRACKET WELDMENT

2

2011-11_

12

GBT5783-M10X20-A3L

螺栓

BOLT

4

2011-11_

13

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

14

TD800.502-04

排气软管

EXHAUST HOSE

1



14

TD800.505-01

呼吸软管

BREATH HOSE

1

2006-05_

15

Q673B23

钢带型弹性环箍

CLAMP

2

2011-11_

2

TD800.502-03

主副油箱连接管

MAIN/ASSISTANT OIL TANK CONNECTING PIPE

1



2

TD800.502-03a

主副油箱连接管

MAIN/ASSISTANT OIL TANK CONNECTING PIPE

1

2006-04_

3

TD800.502-05

橡胶连接管

RUBBER CONNECTING PIPE

2

2011-11_

4

TD800.502.3

副油箱扎带焊合

AUXILIARY OIL TANK FASTENING TIE

2

2011-11_

5

GBT6170-M10-A3L

螺母

WELDMENT

4

2011-11_

6

TD800.502-02

副油箱扎带橡胶条

NUT

2

2011-11_


AUXILIARY OIL TANK FASTENING TIE RUBBER



7

TD800.502.1

副油箱焊合

STRIP

1

2011-11_

8

TD800.502-01

油箱胶垫



4

2011-11_

9

JBT982-16

组合密封垫圈

AUXILIARY OIL TANK WELDMENT

1

2011-11_


OIL TANK RUBBER WASHER




COMBINED SEAL GASKET

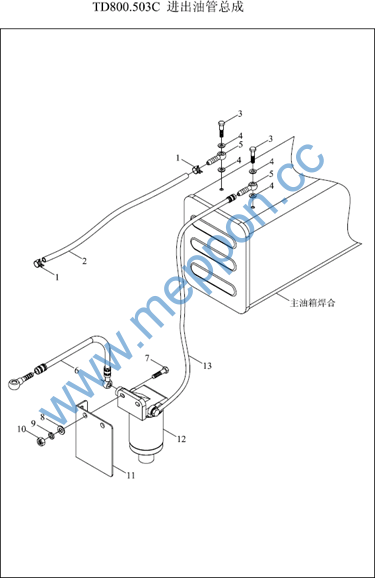

TD800.503C 50.3-进出油管总成 50.3-OIL INLET/OUTLET PIPE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q673B155

钢带型弹性环箍

CLAMP

2

2011-11_

10

GBT6170-M8-A0P

1型六角螺母

NUT

2



11

TD800.503A-01

安装支架

INSTALLATION BRACKET

1

2011-11_

12

FT800A.50.061a

旋装柴滤器总成

FUEL FILTER ASSEMBLY

1

2011-11_

13

TD800.503A.1

出油管总成

OIL OUTLET PIPE ASSEMBLY

1

2011-11_

2

FT800A.50P.101a

回油管

OIL RETURN PIPE

1



2

FT700.50G.121

回油管

OIL RETURN PIPE

1

2008-08_

3

FT65.50.106

空心螺栓

HOLLOW BOLT

2

2011-11_

4

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

4

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

5

FT800A.50.162

油管接头

JOINT

1

2011-11_

6

TD800.503C.1

输油管总成

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

6

TD800.503C.1

输油管总成

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

8

GBT97.1-8-A0P

平垫圈

WASHER

2

2011-11_

9

GBT93-8-A0P

垫圈

WASHER

2

2011-11_
