TD804.402A-2 40.2-全液压转向总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

30

FT800A.40L.107

垫板

PAD BOARD

1

2012-05_

31

GBT93-8-A0P

垫圈

WASHER

3

2012-05_

4

Q67632

软管环箍32

HOSE HOOP 32

4

2012-05_

5

FT800.40L.109

短接管

SHORT CONNECTING PIPE

2

2012-05_

6

FT800A.40L.102

吸油软管

OIL SUCTION HOSE

1

2012-05_

7

FT800A.40L.028a

高压软管总成

HIGH PRESSURE HOSE ASSEMBLY

1

2012-05_

8

FT800A.40L.020

转向油箱及呼吸器总成

STEERING OIL TANK AND BREATH ASSEMBLY

1

2012-05_

9

FT800A.40A.017

转向油箱支架总成

STEERING OIL TANK BRACKET ASSEMBLY

1

2012-05_








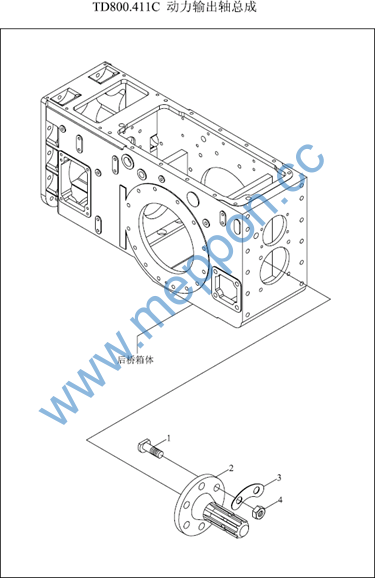

TD800.411C 41.1-动力输出轴总成 41.1-PTO SHAFT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

FT800A.41.143 FT800A.41C.107 FT800A.41.144 GBT6176-M14X1.5-A3L

动力输出轴连接螺栓 Ⅰ35型动力输出轴 锁片

2型六角螺母

PTO SHAFT CONNECTING BOLT TYPE-I 35 PTO SHAFT

LOCK SHIM

HEXAGON NUT, TYPE-2

6

1

3

6

2011-11_

2011-11_

2011-11_

2011-11_







TD800.412F 41.2-动力输出齿轮总成 41.2-PTO GEAR ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark


TD800.412F-1 TD800.412F-2

动力输出齿轮总成-1动力输出齿轮总成-2

PTO GEAR ASSEMBLY-1 PTO GEAR ASSEMBLY-2



2012-05_

2012-05_








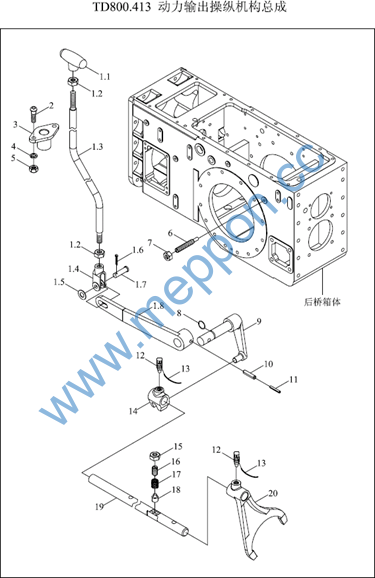

TD800.413 41.3-动力输出操纵机构总成 41.3-PTO CONTROL MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.41.147

动力输出操纵杆

PTO CONTROL ROD

1

2011-11_

1.1

FT800A.41.013

动力输出操纵杆总成

PTO CONTROL ROD ASSEMBLY

1

2011-11_

1.2

GBT6170-M10-A2L

螺母

NUT

2

2004-01_

1.3

FT65.38.051

拉压手柄

PULL/PRESS HANDLE

1

2011-11_

1.4

FT804.42.150

拉杆前叉

PULL ROD FRONT FORK

1

2011-11_

1.5

GBT97.1-8-A0P

平垫圈

WASHER

1

2004-01_

1.6

GBT91-3X20-A0P

开口销

PIN

1

2013-07_

1.7

GBT882-B8X26-A2L

销轴

PIN

1

2004-01_

1.8

FT800A.41.146

动力输出摇臂

PTO ROCKER

1

2013-07_

10

GBT879.1-8X35

弹性圆柱销

PIN

1



11

GBT879.1-5X35

弹性圆柱销

PIN

1

2011-11_

12

FT800.37.194

紧定螺钉

LOCKING SCREW

2

2011-11_

13

FT800A.41.241

热镀锌钢丝

ZINC-COATED STEEL WIRE

2

2011-11_

14

FT800.41.240

拨头

FORK HEAD

1

2011-11_

15

GBT6172.1-M16-A3L

螺母

NUT

1

2011-11_

16

TD800.41-03

锥端紧定螺钉

TAPER LOCKING SCREW

1

2011-11_

17

FT800.41.246

锁定销弹簧

LOCKING PIN SPRING

1

2011-11_

17

FT800.41.246

锁定销弹簧

LOCKING PIN SPRING

1

2011-11_

18

FT800.41.245

锁定销

LOCKING PIN

1

2011-11_

19

FT800.41.106a

拨插轴

FORK SHAFT

1

2010-05_

19

FT800.41.106

拨叉轴

FORK SHAFT

1



2

GBT818-M6X16-A2L

十字槽盘头螺钉

SCREW

2

2004-01_

20

FT800A.41.114

动力输出高低档拨叉

PTO HIGH AND LOW GEAR FORK

1

2011-11_

3

FT800A.41.173

密封衬座

SEAL LINER SEAT

1

2011-11_

4

GBT93-6-A0P

弹簧垫圈

SPRING WASHER

2

2004-01_








TD800.413 41.3-动力输出操纵机构总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

GBT6170-M6-A2L TD800.41-04 GBT6170-M12-A3L GBT3452.1-17X1.8G FT800.41.011

螺母

紧定螺钉螺母

液压气动用O形橡胶密封圈动力输出操纵内摇臂总成

NUT

LOCKING SCREW NUT

O-SEAL RING

PTO CONTROL INNER ROCKER ASSEMBLY

2

1

1

1

1

2004-01_

2011-11_





2011-11_








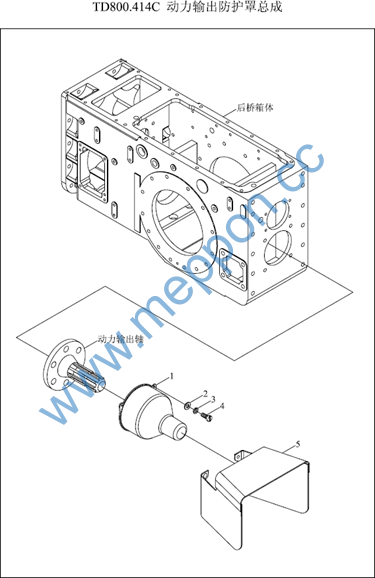

TD800.414C 41.4-动力输出防护罩总成 41.4-PTO BONNET INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

TD800.411A-02 GBT97.1-5-A0P GBT93-5-A0P GBT65-M5X12-A2L FT800A.41.012

动力输出轴头护罩垫圈

标准型弹簧垫圈开槽圆柱头螺钉

动力输出轴安全防护罩焊合件

PTO SHAFT HOOD SHIELD WASHER

WASHER SCREW

PTO BONNET WELDMENT

1

2

2

2

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_








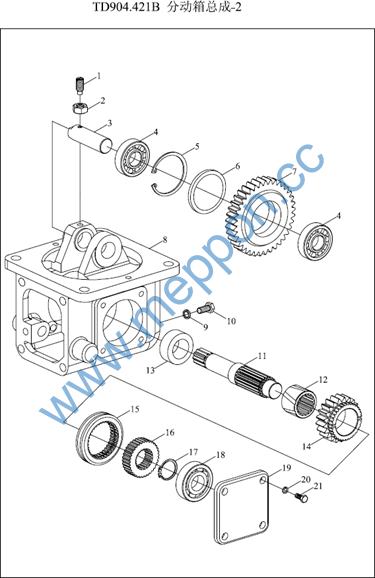

TD904.421B-1 42.1.1-分动箱总成-1 TRANSFER CASE ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT804.42.109

调整垫片

ADJUSTING WASHER

1

2011-11_

2

FT804.42.101

隔套

SPACER BUSH

1

2011-11_

3

FT804.42.102a

主动齿轮

DRIVING GEAR

1

2011-11_

4

FT804.42.111

隔套

SPACER BUSH

1

2011-11_

5

TD904.421A.1

分动箱箱体总成

TRANSFER CASE HOUSING ASSEMBLY

1

2011-11_

6

GBT119.1-8h8X16-A0P

圆柱销

PIN

2

2011-11_

7

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

7

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

8

GBT5781-M14X35-A3L

六角头螺栓

BOLT

4

2011-11_
