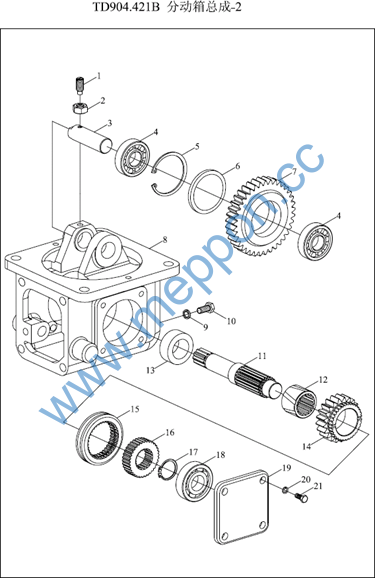

TD904.421B-2 42.1.2-分动箱总成-2 TRANSFER CASE ASSEMBLY-2
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
TD904.421A.1 |
分动箱箱体总成 |
TRANSFER CASE HOUSING ASSEMBLY |
1 |
2011-11_ |
|
1 |
GBT75-M10X25-A3L |
开槽长圆柱端紧定螺钉 |
SCREW |
1 |
2011-11_ |
|
10 |
FT804.42.110 |
螺堵 |
SCREW PLUG |
1 |
2011-11_ |
|
11 |
FT804.42.118b |
分动箱齿轮轴 |
TRANSFER CASE GEAR SHAFT |
1 |
2008-12_ |
|
11 |
FT804.42.118b |
分动箱齿轮轴 |
TRANSFER CASE GEAR SHAFT |
1 |
2008-12_ |
|
11 |
FT804.42.118a |
分动箱齿轮轴 |
TRANSFER CASE GEAR SHAFT |
1 |
2004-01_ |
|
12 |
FT804.42.117c |
齿轮衬套 |
GEAR BUSH |
1 |
2011-11_ |
|
13 |
FT804.42.119a |
隔套 |
SPACER BUSH |
1 |
2011-11_ |
|
14 |
FT804.42.116a |
被动齿轮 |
DRIVEN GEAR |
1 |
2011-11_ |
|
15 |
FT804.42.114 |
啮合套 |
SHIFT COLLAR |
1 |
2011-11_ |
|
16 |
FT804.42.115 |
啮合齿座 |
MESH GEAR SEAT |
1 |
2011-11_ |
|
17 |
GBT894.1-38 |
轴用弹性挡圈 |
SNAP RING |
1 |
2011-11_ |
|
18 |
GBT276-6306 |
深沟球轴承 |
BEARING |
1 |
2011-11_ |
|
19 |
FT804.42.112 |
后盖 |
COVER REAR |
1 |
2011-11_ |
|
2 |
GBT6170-M10 |
螺母M10 |
NUT M10 |
1 |
2011-11_ |
|
20 |
GBT93-10-AOP |
垫圈 |
WASHER |
4 |
2011-11_ |
|
21 |
GBT5781-M10X25-A3L |
六角头螺栓 |
BOLT |
4 |
2011-11_ |
|
3 |
FT804.42.104a |
中间齿轮轴 |
MIDDLE GEAR SHAFT |
1 |
2011-11_ |
|
3 |
FT804.42.104a |
中间齿轮轴 |
MIDDLE GEAR SHAFT |
1 |
2011-11_ |
|
4 |
GBT283-NJ305E |
圆柱滚子轴承 |
BEARING |
2 |
2011-11_ |
|
4 |
GBT283-NJ305E |
圆柱滚子轴承 |
BEARING |
2 |
2011-11_ |
|
5 |
GBT893.1-62 |
孔用挡圈62 |
BLOCKING RING – HOLE |
1 |
2011-11_ |
|
6 |
FT804.42B.161a |
垫圈 |
WASHER |
1 |
2011-11_ |
|
7 |
FT804.42.103a |
中间齿轮 |
MIDDLE GEAR |
1 |
2011-11_ |
|
8 |
FT804.42.105a |
分动箱体 |
TRANSFER CASE BODY |
1 |
2011-11_ |
TD904.421B-2 42.1.2-分动箱总成-2(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
9 9 |
JBT982-18 JBT982-18 |
组合密封垫圈组合密封垫圈 |
COMBINED SEAL GASKET COMBINED SEAL GASKET |
1 1 |
2011-11_ 2011-11_ |

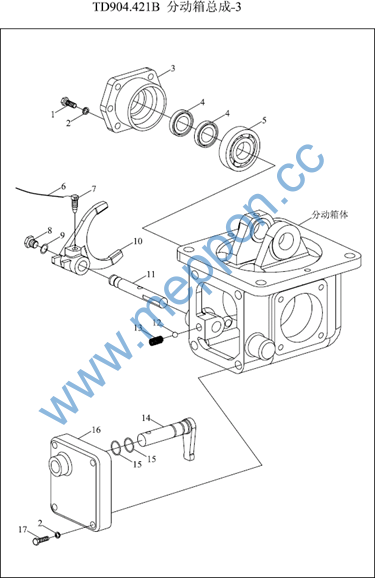

TD904.421B-3 42.1.3-分动箱总成-3 TRANSFER CASE ASSEMBLY-3
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
TD904.421A.1 |
分动箱箱体总成 |
TRANSFER CASE HOUSING ASSEMBLY |
1 |
2011-11_ |
|
1 |
GBT75-M10X30-A3L |
开槽长圆柱端紧定螺钉 |
SCREW |
4 |
2011-11_ |
|
10 |
FT804.42.107 |
分离拨叉 |
RELEASE SHIFT FORK |
1 |
2011-11_ |
|
11 |
FT804.42.108 |
拨叉轴 |
FORK SHAFT |
1 |
2011-11_ |
|
12 |
GBT308-10-G100-b |
钢球 |
BALL |
1 |
2011-11_ |
|
13 |
FT804.42.151 |
弹簧 |
SPRING |
1 |
2011-11_ |
|
14 |
FT804.42.010 |
转轴焊合 |
ROTARY SHAFT WELDMENT |
1 |
2011-11_ |
|
15 |
GBT3452.1-17.0X1.80G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2011-11_ |
|
16 |
FT804.42.106 |
侧盖 |
SIDE COVER |
1 |
2011-11_ |
|
2 |
GBT93-10 |
垫圈10 |
WASHER 10 |
8 |
2011-11_ |
|
3 |
FT804.42.120 |
前盖 |
FRONT COVER |
1 |
2011-11_ |
|
4 |
GBT9877.1-FB30X52X7D |
内包骨架旋转轴唇形密封 |
O RING |
2 |
2011-11_ |
|
5 |
GBT276-6306 |
深沟球轴承 |
BEARING |
1 |
2011-11_ |
|
6 |
TD904.421.2-04 |
锁紧钢丝 |
LOCKING STEEL WIRE |
1 |
2011-11_ |
|
7 |
FT800.37.194 |
紧定螺钉 |
LOCKING SCREW |
1 |
2011-11_ |
|
8 |
FT804.42.110 |
螺堵 |
SCREW PLUG |
1 |
2011-11_ |
|
9 |
JBT982-18 |
组合密封垫圈 |
COMBINED SEAL GASKET |
1 |
2011-11_ |
|
9 |
JBT982-18 |
组合密封垫圈 |
COMBINED SEAL GASKET |
1 |
2011-11_ |

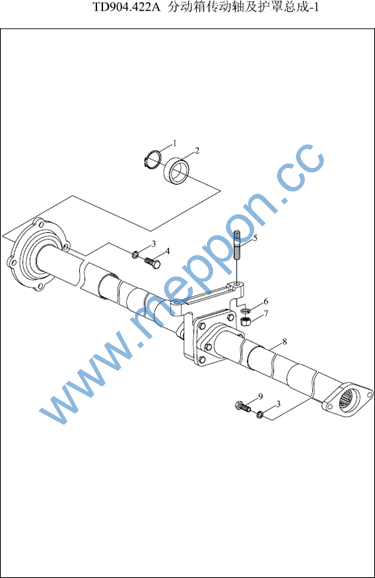

TD904.422A-1 42.2.1-分动箱传动轴及护罩总成-1 TRANSFER CASE COVER ASSEMBLY-1
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT894.1-30 |
挡圈 |
RETAINER RING |
2 |
2011-11_ |
|
2 |
FT804.42.131 |
隔套 |
SPACER BUSH |
1 |
2004-01_ |
|
2 |
FT804.42.131a |
隔套 |
SPACER BUSH |
1 |
2008-12_ |
|
2 |
FT804.42.131a |
隔套 |
SPACER BUSH |
1 |
2008-12_ |
|
3 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
6 |
2011-11_ |
|
4 |
GBT5783-M10X25-A3L |
螺栓 |
BOLT |
4 |
2011-11_ |
|
5 |
GBT899-AM16-M16X1.5X50-A3L |
双头螺柱 |
8.8-A3L STUD |
2 |
2011-11_ |
|
6 |
GBT93-16-A0P |
弹簧垫圈 |
SPRING WASHER |
2 |
2011-11_ |
|
7 |
GBT6176-M16X1.5 |
2型六角螺母 |
HEXAGON NUT, TYPE-2 |
2 |
2011-11_ |
|
8 |
TD904.422A.1 |
分动箱传动轴及护罩装配 |
TRANSFER CASE TRANSMISSION SHAFT AND |
1 |
2011-11_ |
|
BONNET INSTALLATI |
|||||
|
9 |
GBT5783-M10X30-A3L |
螺栓 |
2 |
2011-11_ |
|
|
BOLT |
|||||

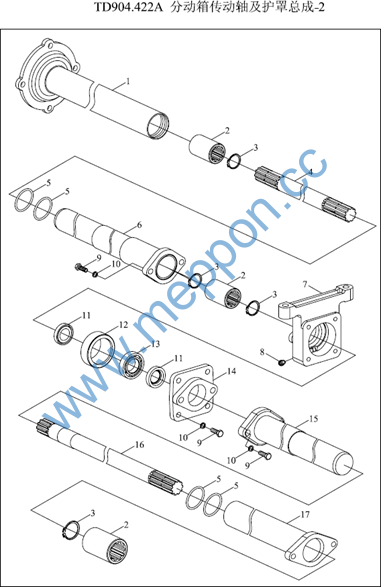

TD904.422A-2 42.2.2-分动箱传动轴及护罩总成-2 TRANSFER CASE COVER ASSEMBLY-2
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
TD904.422A.1 |
分动箱传动轴及护罩装配 |
TRANSFER CASE TRANSMISSION SHAFT AND |
1 |
2011-11_ |
|
1 |
FT804A.42.016 |
外护套焊合（二） |
BONNET INSTALLATI |
1 |
2011-11_ |
|
10 |
GBT93-10-A0P |
标准型弹簧垫圈 |
OUTER SLEEVE WELDMENT (2) |
8 |
2011-11_ |
|
11 |
GBT9877.1-FB30X52X7D |
内包骨架旋转轴唇形密封 |
WASHER |
2 |
2011-11_ |
|
12 |
FT804.42.128 |
橡胶圈 |
O RING |
1 |
2011-11_ |
|
RUBBER RING |
|||||
|
13 |
GBT276-6006 |
轴承 |
1 |
2011-11_ |
|
|
14 |
FT804.42.127 |
支承座盖 |
BEARING |
1 |
2011-11_ |
|
15 |
FT804.42.014 |
内护套焊合（一） |
SUPPORT SEAT COVER |
1 |
2011-11_ |
|
16 |
FT804.42.125b |
中间传动轴 |
INNER SLEEVE WELDMENT (1) |
1 |
2008-12_ |
|
16 |
FT804.42.125a |
中间传动轴 |
MIDDLE TRANSMISSION SHAFT |
1 |
|
|
MIDDLE TRANSMISSION SHAFT |
|||||
|
17 |
FT804.42.011 |
外护套焊合（一） |
1 |
2011-11_ |
|
|
17 |
FT804.42.011 |
外护套焊合（一） |
OUTER SLEEVE WELDMENT (1) |
1 |
2011-11_ |
|
2 |
FT804.42.123a |
花键套 |
OUTER SLEEVE WELDMENT (1) |
3 |
|
|
2 |
FT804.42.123b |
花键套 |
SPLINE BUSH |
3 |
2008-12_ |
|
3 |
GBT894.1-30 |
挡圈 |
SPLINE BUSH |
4 |
2011-11_ |
|
RETAINER RING |
|||||
|
4 |
FT804A.42.130a |
前传动轴 |
1 |
2008-12_ |
|
|
4 |
FT804A.42.130 |
前传动轴 |
FRONT TRANSMISSION SHAFT |
1 |
|
|
5 |
GBT3452.1-45.0X3.55G |
液压气动用O形橡胶密封圈 |
FRONT TRANSMISSION SHAFT |
4 |
|
|
5 |
GBT3452.1-46.2X3.55G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
4 |
2012-11_ |
|
6 |
FT804.42.015 |
内护套焊合（二） |
O-SEAL RING |
1 |
2011-11_ |
|
INNER SLEEVE WELDMENT (2) |
|||||
|
7 |
FT804A.42.129 |
支承座 |
1 |
2011-11_ |
|
|
8 |
JBT7940.1-M10X1 |
直通式压注油杯 |
SUPPORTING SEAT |
1 |
2011-11_ |
|
9 |
GBT5783-M10X30-A3L |
螺栓 |
STRAIGHT PRESSURE FILLING OIL CUP |
8 |
2011-11_ |
|
BOLT |
|||||

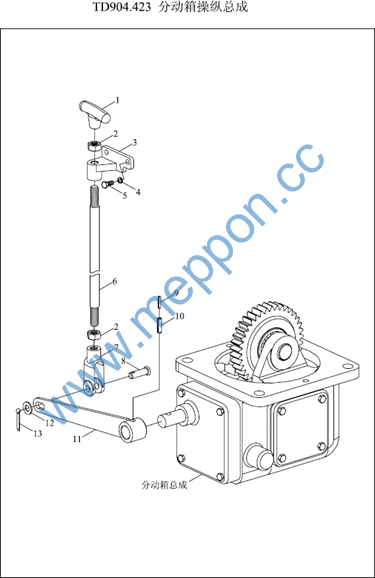

TD904.423 42.3-分动箱操纵总成 42.3-TRANSFER CASE CONTROL ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT65.38.051 |
拉压手柄 |
PULL/PRESS HANDLE |
1 |
2011-11_ |
|
10 |
GBT879.1-8X30 |
弹性圆柱销 |
PIN |
1 |
2011-11_ |
|
11 |
FT804A.42.012 |
摇臂焊合 |
ROCKER WELDMENT |
1 |
2011-11_ |
|
12 |
GBT97.1-8-A0P |
平垫圈 |
WASHER |
1 |
2011-11_ |
|
13 |
GBT91-3.2X20-A0P |
开口销 |
PIN |
1 |
2011-11_ |
|
13 |
GBT91-3.2X20-A0P |
开口销 |
PIN |
1 |
2011-11_ |
|
2 |
GBT6170-M10-A3L |
螺母 |
NUT |
2 |
2011-11_ |
|
3 |
FT804A.42.121 |
导向管 |
GUIDE PIPE |
1 |
2011-11_ |
|
3 |
FT804A.42.121 |
导向管 |
GUIDE PIPE |
1 |
2011-11_ |
|
4 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
2 |
2011-11_ |
|
5 |
GBT5781-M10X25-A3L |
六角头螺栓 |
BOLT |
2 |
2011-11_ |
|
6 |
FT804A.42.122 |
操纵杆 |
CONTROL ROD |
1 |
2011-11_ |
|
7 |
FT804.42.150 |
拉杆前叉 |
PULL ROD FRONT FORK |
1 |
2011-11_ |
|
8 |
GBT882-B8X26 |
销轴 |
PIN |
1 |
2011-11_ |
|
9 |
GBT879.2-5X30 |
弹性圆柱销 |
PIN |
1 |
2011-11_ |

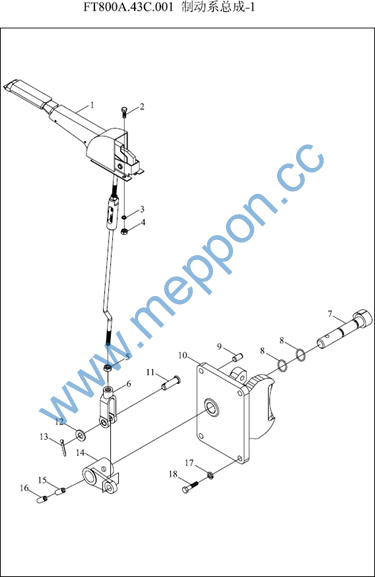

FT800A.43C.001 43-制动系总成 43-BRAKE SYSTEM ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
FT800A.43C.001-1 |
43.1-制动系总成-1 |
43BRAKING SYSTEM ASSEMBLY-1 |
0 |
2011-11_ |
|
0 |
FT800A.43C.001-2 |
43.2-制动系总成-2 |
43BRAKING SYSTEM ASSEMBLY-2 |
0 |
2011-11_ |
|
0 |
FT800A.43C.001-3 |
43.3-制动系总成-3 |
43BRAKING SYSTEM ASSEMBLY-3 |
0 |
2011-11_ |
|
0 |
FT800A.43C.001-5 |
43.5-制动系总成-5 |
43BRAKING SYSTEM ASSEMBLY-5 |
0 |
2011-11_ |
|
0 |
FT800A.43C.001-6 |
43.6-制动系总成-6 |
43BRAKING SYSTEM ASSEMBLY-6 |
0 |
2011-11_ |
|
0 |
FT800A.43C.001-7 |
43.7-制动系总成-7 |
BREAKE SYSTEM ASSEMBLY-7 |
0 |
2011-11_ |
|
0 |
FT800A.43C.001-4 |
43.4-制动系总成-4 |
43BRAKING SYSTEM ASSEMBLY-4 |
0 |
2011-11_ |
|
11 |
GBT6170-M8-A2L |
螺母 |
NUT |
1 |
2011-11_ |
|
9 |
GBT882-B10X30 |
销轴 |
PIN |
1 |
2011-11_ |
