LOVOL TC5A824-050K Tractor Parts Catalogue 13

Meppon Parts Posted on by

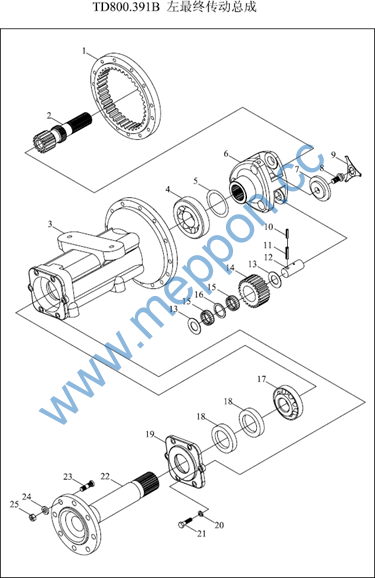

TD800.391B 39.1-左最终传动总成 39.1-LEFT FINAL TRANSMISSION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.39.108

最终传动齿圈

FINAL TRANSMISSION GEAR RING

1

2011-11_

10

GBT879.1-8X32

弹性圆柱销

PIN

3

2011-11_

11

GBT879.1-12X32

弹性圆柱销

PIN

3



12

FT800.39.111

行星齿轮轴

PLANET GEAR SHAFT

3

2011-11_

13

FT800.39.110

行星轮滚针外隔圈

PLANET GEAR ROLL NEEDLE OUTER SPACER

6

2011-11_


RING



14

FT800.39.107

行星齿轮



3

2011-11_

15

FT800.39.118

滚针

PLANETARY GEAR

12



16

FT800.39.109

滚针内隔圈

NEEDLE

3

2011-11_

17

GBT297-30218

圆锥滚子轴承

NEEDLE INNER SPACER RING

1

2011-11_

18

GBT9877.1-FB100X130X12D

内包骨架旋转轴唇形密封

BEARING

2

2011-11_


O RING



19

FT800.39C.131

端盖



1

2011-11_

2

FT800.39.113

左半轴

END COVER

1

2011-11_

20

GBT93-14-A0P

弹簧垫圈

LEFT HALF SHAFT

6

2011-11_

20

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

6

2011-11_

21

GBT5783-M14X40-A3L

六角头螺栓

SPRING WASHER

6

2011-11_


BOLT



22

TD800.391B-01

驱动轴



1

2011-11_

23

FT800.39.101c

驱动轮固定螺栓

DRIVING SHAFT

8

2011-11_

24

FT800.39.130

垫圈

DRIVING WHEEL FIXING BOLT

8

2011-11_

25

GBT6176-M20X1.5-LH-10-A3L

2型六角螺母

WASHER

8

2011-11_

3

FT800.39C.103

半轴壳

HEXAGON NUT, TYPE-2

1

2011-11_


HALF SHAFT HOUSING



4

GBT297-30214

圆锥滚子轴承



1

2011-11_

5

FT800.39.117

调整垫片

BEARING

999

2011-11_

6

FT800.39.104

行星架

ADJUSTING WASHER

1

2011-11_

7

FT800.39.106b

行星架压板

PLANET CARRIER

1

2014-05_

7

FT800.39.106a

行星架压板

PLANET CARRIER PRESSURE PLATE

1

2011-01_








TD800.391B 39.1-左最终传动总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

7

8

8

9

9

FT800.39.106 FT800.39.105 FT800.39.105a FT800.39.112 FT800.39.112a

行星架压板

行星架固定螺栓行星架固定螺栓止推垫片

止推垫片

PLANET CARRIER PRESSURE PLATE PLANET CARRIER FIXING BOLT PLANET CARRIER FIXING BOLT THRUST WASHER

THRUST WASHER

1

1

1

1

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

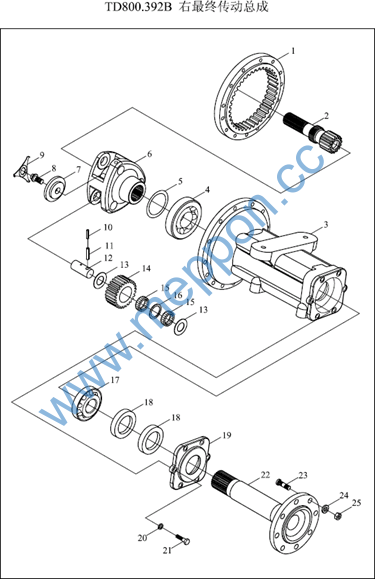

TD800.392B 39.2-右最终传动总成 39.2-RIGHT FINAL TRANSMISSION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800.39.137

粗调整垫

PRIMARY ADJUSTABLE WASHER

1

2014-05_

0

FT800.39.131

粗调整垫

PRIMARY ADJUSTABLE WASHER

1

2014-05_

0

FT800.39.134

精调整垫

FINE ADJUSTABLE WASHER

1

2014-05_

0

FT800.39.135

精调整垫

FINE ADJUSTABLE WASHER

1

2014-05_

0

FT800.39.138

粗调整垫

PRIMARY ADJUSTABLE WASHER

1

2014-05_

0

FT800.39.132

精调整垫

FINE ADJUSTABLE WASHER

1

2014-05_

0

FT800.39.106b

行星架压板

PLANET CARRIER PRESSURE PLATE

1

2014-05_

0

FT800.39.136

精调整垫

FINE ADJUSTABLE WASHER

1

2014-05_

0

FT800.39.133

精调整垫

FINE ADJUSTABLE WASHER

1

2014-05_

1

FT800.39.108

最终传动齿圈

FINAL TRANSMISSION GEAR RING

1

2011-11_

10

GBT879.1-8X32

弹性圆柱销

PIN

3

2011-11_

11

GBT879.1-12X32

弹性圆柱销

PIN

3

2011-11_

12

FT800.39.111

行星齿轮轴

PLANET GEAR SHAFT

3

2011-11_

13

FT800.39.110

行星轮滚针外隔圈

PLANET GEAR ROLL NEEDLE OUTER SPACER

6

2011-11_

14

FT800.39.107

行星齿轮

RING

3

2011-11_


PLANETARY GEAR



15

FT800.39.118

滚针



126

2011-11_

16

FT800.39.109

滚针内隔圈

NEEDLE

3

2011-11_

17

GBT297-30218

圆锥滚子轴承

NEEDLE INNER SPACER RING

1

2011-11_

19

FT800.39C.131

端盖

BEARING

1

2011-11_

2

FT800.39.114

右半轴

END COVER

1

2011-11_


RIGHT HALF SHAFT



20

GBT93-14-A0P

弹簧垫圈



6

2011-11_

20

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

6

2011-11_

21

GBT5783-M14X40-A3L

六角头螺栓

SPRING WASHER

6

2011-11_

22

TD800.391B-01

驱动轴

BOLT

1

2011-11_

23

FT800.39.101d

驱动轮固定螺栓

DRIVING SHAFT

8

2011-11_








TD800.392B 39.2-右最终传动总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

24

FT800.39.130

垫圈

WASHER

8

2011-11_

25

GBT6176-M20X1.5-LH-10-A3L

2型六角螺母

HEXAGON NUT, TYPE-2

8

2011-11_

3

FT800.39C.103

半轴壳

HALF SHAFT HOUSING

1

2011-11_

4

GBT297-30214

圆锥滚子轴承

BEARING

1

2011-11_

5

FT800.39.117a

调整垫片

ADJUSTING WASHER

999

2011-01_

5

FT800.39.117

调整垫片

ADJUSTING WASHER

999

2011-11_

6

FT800.39.104

行星架

PLANET CARRIER

1

2011-11_

7

FT800.39.106

行星架压板

PLANET CARRIER PRESSURE PLATE

1

2011-11_

8

FT800.39.105a

行星架固定螺栓

PLANET CARRIER FIXING BOLT

1

2011-11_

9

FT800.39.112a

止推垫片

THRUST WASHER

1

2011-11_

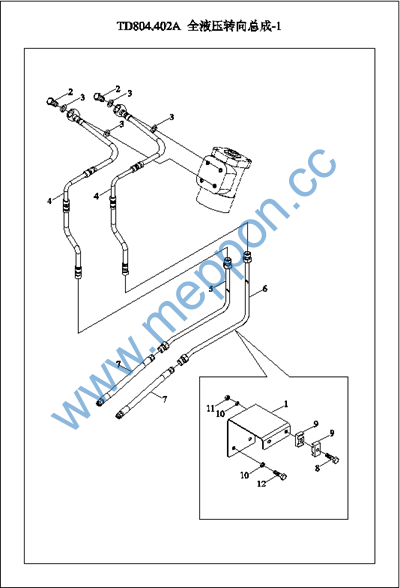

TD804.402A-1 40.1-全液压转向总成-1 40FULL HYDRAULIC STEERING ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.40.103

固定板

FIXED PLATE

1

2012-05_

10

GBT93-8-A0P

垫圈

WASHER

5

2012-05_

11

GBT6170-M8-A2L

螺母

NUT

3

2012-05_

12

GBT5781-M8X16-A2L

六角头螺栓

BOLT

3

2012-05_

2

FT650.40.102

空心螺栓M20X1.5

HOLLOW BOLT M20X1.5

2

2012-05_

3

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

4

2012-05_

4

TD800.402A.1

转向器出油胶管总成

OIL OUTLET HOSE ASSEMBLY OF REDIRECTOR

2

2012-05_

5

FT800A.40.019a

输油左硬管总成

LEFT OIL PIPE ASSEMBLY

1

2012-05_

6

FT800A.40.024a

输油右硬管总成

RIGHT OIL PIPE ASSEMBLY

1

2012-05_

7

FT804A.40.010

油缸右软管总成

OIL CYLINDER RIGHT HOSE ASSEMBLY

2

2012-05_

8

GBT5781-M8X45-A2L

六角头螺栓

BOLT

2

2012-05_

9

FT354.40C.121

双管夹

DOUBLE PIPE CLAMP

6

2012-05_

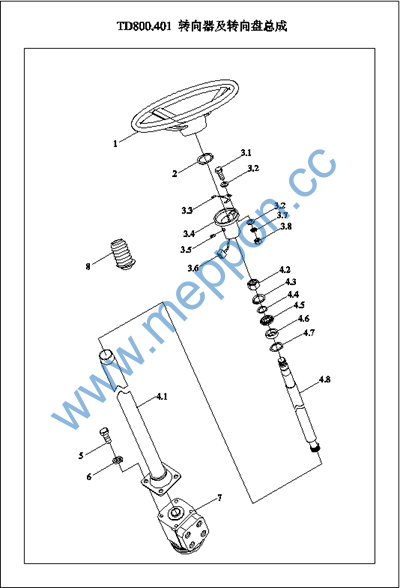

TD800.401 40.1-转向器及转向盘总成 40.1-REDIRECTOR AND STEERING WHEEL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.40L.050

转向盘总成

STEERING WHEEL ASSEMBLY

1

2012-05_

2

GBT97.1-16

垫圈

WASHER

1

2012-05_

3

FT650.40.014

喇叭电刷座总成

HORN BRUSH SEAT ASSEMBLY

1

2012-05_

3.1

GBT67-M5X12-ZnD

开槽盘头螺钉

SLOTTED PAN HEAD SCREW

1

2012-05_

3.2

GBT848-5-ZnD

小垫圈

WASHER

2

2012-05_

3.3

FT650.40.170

铜电刷

COPPER ELECTRIC BRUSH

1

2012-05_

3.4

FT650.40.169

喇叭电刷座

HORN ELECTRIC BRUSH SEAT

1

2012-05_

3.5

GBT73-M5X8-ZnD

开槽平端紧定螺钉

SCREW

1

2012-05_

3.6

FT650.40.034

喇叭线组合件

HORN HARNESS COMBINATION

1

2012-05_

3.7

GBT93-5-A0P

标准型弹簧垫圈

WASHER

1

2012-05_

3.8

GBT6170-M5-ZnD

1型六角螺母

NUT

1

2012-05_

4

FT800A.40L.029

转向管柱总成

STEERING PIPE COLUMN ASSEMBLY

1

2012-05_

4.1

FT800A.40L.030

转向套筒焊合

STEERING SLEEVE WELDMENT

1

2012-05_

4.2

GBT6173-M16X1.5-Zn.D

六角薄螺母

NUT

1

2012-05_

4.3

FT650.40.172

轴承挡圈

BEARING RETAINER RING

1

2012-05_

4.4

GBT894.1-20

挡圈20

BLCOKING RING

1

2012-05_

4.5

GBT276-61804-2LS

轴承

BEARING

1

2012-05_

4.6

FT650.40.173

轴承挡圈2

BEARING RETAINER RING 2

1

2012-05_

4.7

GBT893.1-32

档圈

RETAINER RING

1

2012-05_

4.8

FT800A.40L.109

转向杆

STEERING ROD

1

2012-05_

5

GBT5783-M10X25-8.8-A3L

六角头螺栓

BOLT

4

2012-05_

6

GBT93-10

垫圈10

WASHER 10

4

2012-05_

7

FT650.40.032a

转向器及阀块总成

REDIRECTOR AND VALVE BLOCK ASSEMBLY

1

2010-07_

7

FT804.40L.032

转向器及阀块总成

REDIRECTOR AND VALVE BLOCK ASSEMBLY

1

2011-07_

8

TA700.40Q.1-01

转向杆护套

STEERING ROD SLEEVE

1

2012-05_

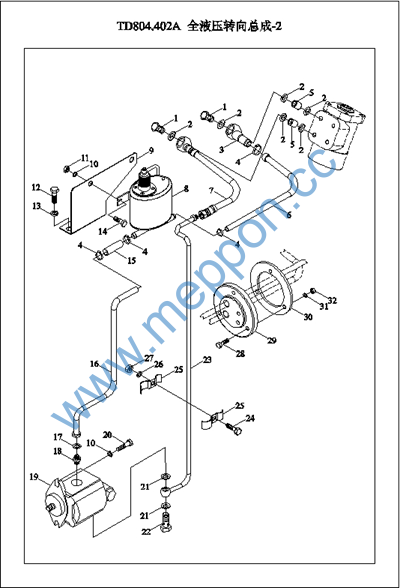

TD804.402A-2 40.2-全液压转向总成-2 40FULL HYDRAULIC STEERING ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.40L.110

空心短螺栓

HOLLOW SHORT BOLT

2

2012-05_

10

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2012-05_

11

GBT6170-M10-A3L

螺母

NUT

2

2012-05_

12

GBT5781-M12X30-A3L

六角头螺栓

BOLT

2

2012-05_

13

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

2

2012-05_

14

GBT5781-M10X20-A3L

六角头螺栓

BOLT

2

2012-05_

15

FT800A.40L.101

进油软管

OIL INLET HOSE

1

2012-05_

16

FT800A.40A.023

油泵吸油钢管总成

OIL PUMP INLET STEEL PIPE WELDMENT

1

2012-05_

17

JBT982-27

组合密封垫圈

COMBINED SEAL GASKET

1

2012-06_

17

JBT982-27

组合密封垫圈

COMBINED SEAL GASKET

1

2012-06_

18

FT700.40G.102

卡套式端直通接头体

STRAIGHT PIPE JOINT BODY

1

2012-05_

19

FT800A.40A.028

转向泵总成

STEERING PUMP ASSEMBLY

1

2012-05_

2

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

6

2012-05_

20

GBT5781-M10X25-A3L

六角头螺栓

BOLT

2

2012-05_

21

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

2

2012-05_

21

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

2

2012-05_

22

FT700.40G.109

空心螺栓

HOLLOW BOLT

1

2012-05_

23

FT800A.40A.026a

油泵输油钢管总成

OIL PUMP STEEL PIPE ASSEMBLY

1

2012-05_

24

GBT5781-M6X30-A2L

六角头螺栓

BOLT

3

2012-05_

25

FT800.40L.108

短油管夹

SHORT OIL PIPE CLAMP

6

2012-05_

26

GBT93-6-A0P

弹簧垫圈

SPRING WASHER

3

2012-05_

27

GBT6170-M6-A2L

螺母

NUT

3

2012-05_

28

GBT5781-M8X30-A2L

六角头螺栓

BOLT

3

2012-05_

29

FT800A.40L.106

减震块

ABSORBER

1

2012-05_

3

FT800A.40L.111

出油钢管

OIL OUTLET STEEL PIPE

1

2012-05_
