LOVOL TC5A820-004K Tractor Parts Catalogue 21
FT800.74B.002 Front Ballast Bracket Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4 |
FT800.74B.002 GB/T 5785–M18x1.5x70–A3L GB/T 93–18–AOP GB/T 97.1–18–AOP FT800.74B.105a |
Front Ballast Bracket Assembly Bolt Spring Uasker Flat Uasker Ballast Bracket |
1 6 6 6 1 |
H74–1–2
Foton TC5A820–004K Wheeled Tractor

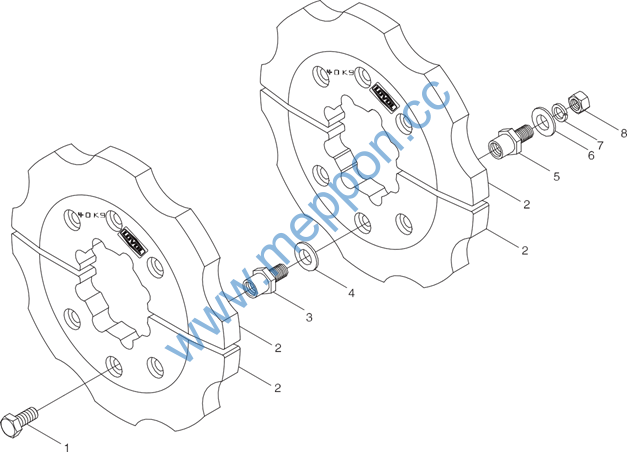

FT804.91.001 Rear Ballast Assembly
H91–1–1
Foton TC5A820–004K Wheeled Tractor
FT804.91.001 Rear Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 7 8 |
FT804.91.001 GB/T 5783–M16x40–A3L FT804.91.105 FT804.91.102 FT800.34.108
FT804.91.101 GB/T 97.1–16–AOP GB/T 93–16–AOP GB/T 6170–M16–A3L |
Rear Ballast Assembly Bolt Rear Ballast Ballast Screw II Flat Uasker
Ballast Screw I Flat Uasker Uasker Nut |
1 6 4 6 12
6 6 6 6 |
H91–1–1
Foton TC5A820–004K Wheeled Tractor
TD900.481A Harness Installation Assembly, Engine
J48–1–1
Foton TC5A820–004K Wheeled Tractor

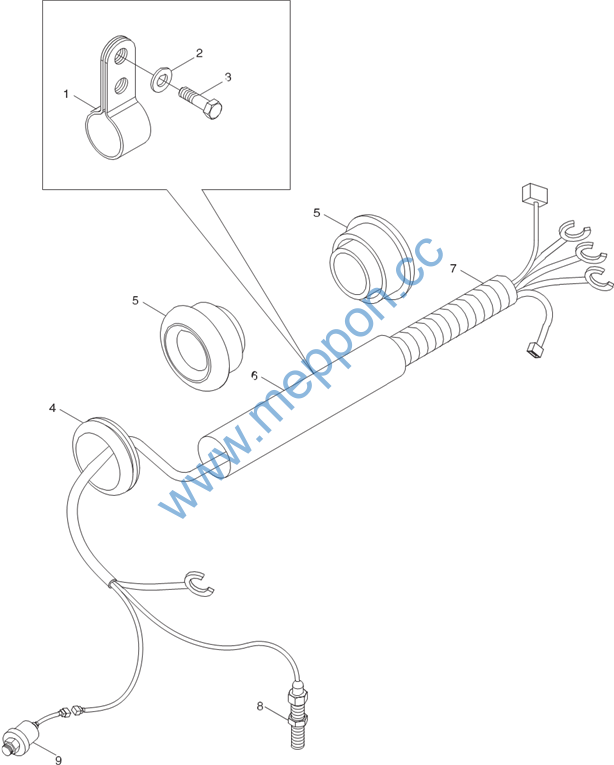

TD900.481A Harness Installation Assembly, Engine
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD900.481A |
Harness Installation Assembly, Engine |
1 |
||
1 |
FT800.48L.108a |
Steel Pipe Locking Clamp |
2 |
|
2 |
GB / T 97.1–10–A0P |
Uasker |
2 |
|
3 |
GB / T 5783–M10x20–A3L |
Bolt |
2 |
|
4 |
TF1004.482–01 |
Tkrougk Harness Uasker |
1 |
|
5 |
FT800.48L.107 |
Uire Skeatk |
2 |
|
6 |
FT800.48L.106 |
Uire Sleeve |
1 |
|
7 |
FT800A.48.024 |
Harness Assembly, Engine |
1 |
|
8 |
FT65.48.074 |
RPM Sensor |
1 |
|
9 |
FT700.48G.073 |
Engine Oil Pressure Alarm |
1 |
J48–1–1
Foton TC5A820–004K Wheeled Tractor

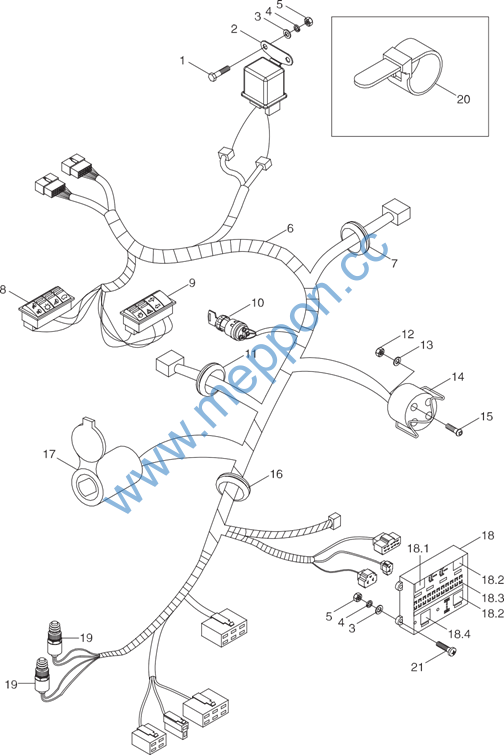

TD900.482D Harness Installation Assembly, Body
J48–1–2
Foton TC5A820–004K Wheeled Tractor
TD900.482D Harness Installation Assembly, Body
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD900.482D |
Body karness installation assembly |
1 |
||
1 |
GB / T 5783–M6x12–A2L |
Hexagon kead bolt |
2 |
|
2 |
FT300.48.055 |
Starting relay |
1 |
|
3 |
GB / T 97.1–6–A0P |
Flat wasker |
6 |
|
4 |
GB / T 93–6–A0P |
Standard spring wasker |
6 |
|
5 |
GB / T 6170–M6–A2L |
Type 1 kexagon nut |
6 |
|
6 |
TD900.482A.2 |
Body karness assembly |
1 |
|
7 |
FT800A.48L.102 |
Rubber ring (2) |
1 |
|
8 |
TD900.482A.1 |
Left rocker switck |
1 |
|
9 |
FT65.48.652 |
Four–function switck (2) |
1 |
|
10 |
FT300.48.064 |
Ignition lock |
1 |
|
11 |
FT800A.48L.101 |
Rubber ring (1) |
1 |
|
12 |
GB / T 6170–M4–A2L |
Type 1 kexagon nut |
2 |
|
13 |
GB / T 97.1–4–A0P |
Flat wasker |
2 |
|
14 |
FT800.48B.068 |
Uorking ligkt socket |
1 |
|
15 |
GB / T 68–M4x35–A1L |
Cross recessed countersunk kead screw |
2 |
|
16 |
FT800A.48L.105 |
Rubber ring (5) |
1 |
|
17 |
FT800.48B.069 |
Ckarger socket |
1 |
|
18 |
TD800.482.3 |
Central electric box |
1 |
|
18.1 |
FT300.48.513 |
Flask relay |
1 |
|
18.2 |
FT300.48D.2.2.2 |
Prekeating relay |
1 |
|
18.3 |
TD9600000800 |
Fuse piece |
2 |
|
TD9600000500 |
Fuse piece |
1 |
||
TD9600000900 |
Fuse piece |
3 |
||
TD9600000700 |
Fuse piece |
9 |
||
18.4 |
GE20H16Y.34.6–04 |
Main electrical source relay |
1 |
|
19 |
FT300.48.033 |
Brake ligkt switck |
2 |
|
20 |
3724D01–201 |
Adjustable keeper |
6 |
|
21 |
GB / T 818–M6x25–4.8–A2L |
Cross recessed pan kead screw |
4 |
J48–1–2
Foton TC5A820–004K Wheeled Tractor

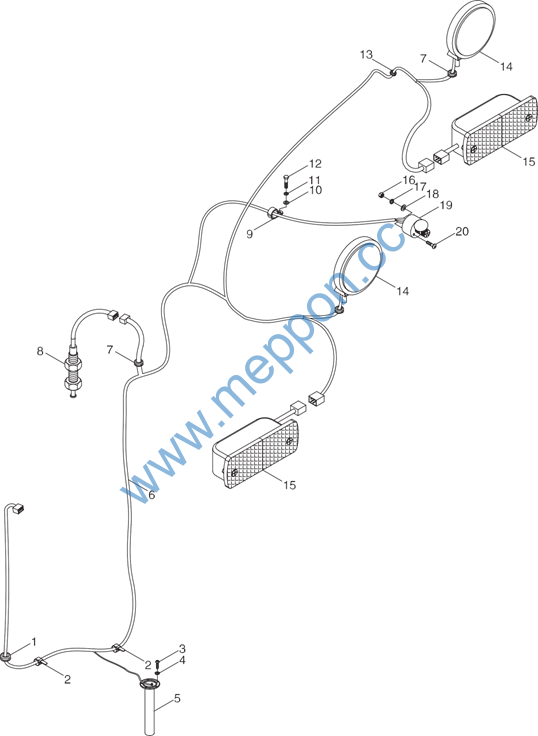

TD800.483 Harness Installation Assembly, Front Lamp
J48–1–3
Foton TC5A820–004K Wheeled Tractor
TD800.483 Harness Installation Assembly, Front Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.483 |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
3724D01–201/001 |
Releasable Tie |
5 |
|
2 |
FT800A.48L.021/001 |
Harness Assembly, Front Lamp |
1 |
|
3 |
FT65.48.097/002 |
Harness Fixing Clamp (2) |
3 |
|
4 |
FT65.48.310/002 |
Harness Assembly, Front Lamp |
1 |
|
5 |
GB/T 6170–M8–A2L |
Nut |
1 |
|
6 |
GB/T 93–8–AOP/001 |
Standard Spring Gasket |
1 |
|
7 |
GB/T 97.1–8–AOP/001 |
Flat Uasker |
1 |
|
8 |
FT65.48.350/001 |
Electric HornAssembly Bracket |
1 |
|
9 |
GB/T 5783–M8x16–A2L |
Bolt |
1 |
|
10 |
FT65.48.340/001 |
Horn Assembly |
1 |
J48–1–3
Foton TC5A820–004K Wheeled Tractor
TD900.484 Rear Light Harness Installation assembly
