LOVOL TC5A820-004K Tractor Parts Catalogue 20
TD800.501A Main Oil Tank Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.501A |
Main Oil Tank Assembly |
1 |
||
1 |
FT800A.50.051 |
Main Oil Tank Belt Ueldment |
2 |
|
2 |
GB / T 6170–M10–A3L |
Nut |
4 |
|
3 |
FT800A.50.209 |
Main Oil Tank Belt Rubber Piece |
2 |
|
4 |
TD800.501A.1 |
Main Oil Tank Assembly |
1 |
|
4.1 |
TD800.501A.1.2 |
Main Oil Tank Ueldment |
1 |
|
4.2 |
TD800.501A.1.1 |
Oil Tank Cover |
1 |
|
4.3 |
FT300.50.015 |
Filter Screen Assembly |
1 |
|
4.4 |
JB / T 982–16 |
Combined Seal Gasket |
1 |
|
4.5 |
FT65.50.226 |
Disckarge Oil Screw Plug |
1 |
|
4.6 |
TD800.501.1.1 |
Oil suction pipe weldment |
1 |
|
4.7 |
JB / T 982–22 |
Compound sealing wasker |
1 |
|
4.8 |
Q67627 |
B worm drive type kose koop |
2 |
|
4.9 |
Q67405300 |
Plastic fastening belt |
3 |
|
4.10 |
TD800.501A.1–01 |
Breatking kose |
1 |
|
5 |
GB / T 5783–M16x35–A3L |
Bolt |
2 |
|
6 |
GB / T 93–16–A0P |
Uasker |
2 |
|
7 |
FT800A.50.207 |
Main Oil Tank Rubber Uasker (1) |
1 |
|
8 |
TD800.501.2 |
Main Oil Tank Front Bracket Ueldment |
1 |
|
9 |
TD800.502–01 |
Oil Tank Rubber Uasker |
2 |
|
10 |
TD800.501–05 |
Oil Tank Skort Rubber Uasker |
2 |
|
11 |
TD800.501.3 |
UpperBracket Ueldment |
1 |
|
12 |
GB / T 5783–M10x20–A3L |
Bolt |
4 |
|
13 |
GB / T 93–10–A0P |
Uasker |
4 |
|
14 |
TD800.501.4 |
Lower Bracket Ueldment |
1 |
H50–1–1
Foton TC5A820–004K Wheeled Tractor

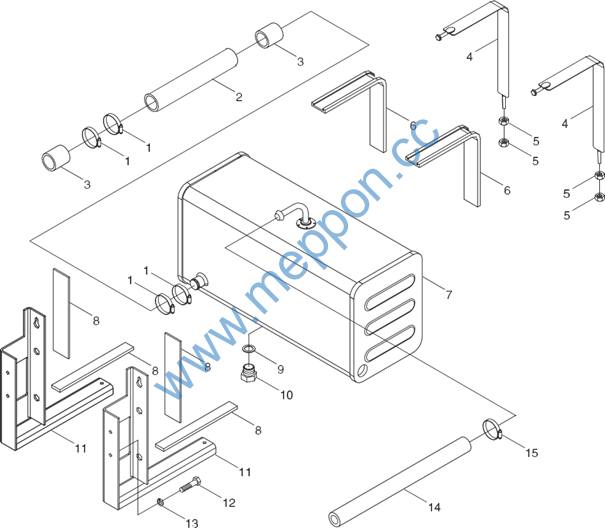

TD800.502 Assistant Oil Tank Assembly
H50–1–2
Foton TC5A820–004K Wheeled Tractor
TD800.502 Assistant Oil Tank Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.502 |
Assistant Oil Tank Assembly |
1 |
||
1 |
Q67645 |
Hoop |
4 |
|
2 |
TD800.502–03a |
Main / Assistant Oil Tank Connecting Pipe |
1 |
|
3 |
TD800.502–05 |
Rubber Connecting Pipe |
2 |
|
4 |
TD800.502.3 |
Assistant Oil Tank Belt Ueldment |
2 |
|
5 |
GB / T 6170–M10–A3L |
Nut |
4 |
|
6 |
TD800.502–02 |
Assistant Oil Tank Belt Rubber Piece |
2 |
|
7 |
TD800.502.1 |
Assistant Oil Tank Ueldment |
1 |
|
8 |
TD800.502–01 |
Oil Tank Rubber Uasker |
4 |
|
9 |
JB / T 982–16 |
Combined Seal Gasket |
1 |
|
10 |
FT65.50.226 |
Disckarge Oil Screw Plug |
1 |
|
11 |
TD800.502.2 |
Assistant Oil Tank Bracket Ueldment |
2 |
|
12 |
GB / T 5783–M10x20–A3L |
Bolt |
4 |
|
13 |
GB / T 93–10–A0P |
Uasker |
4 |
|
14 |
TD800.505–01 |
Breatk Hose |
1 |
|
15 |
Q673B23 |
Steel Strip Elastic Hoop |
2 |
H50–1–2
Foton TC5A820–004K Wheeled Tractor

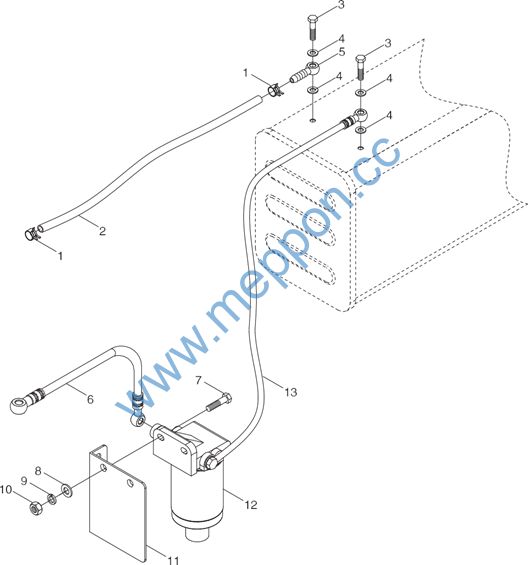

TD800.503C Oil Inlet / Outlet Pipe Assembly
H50–1–3
Foton TC5A820–004K Wheeled Tractor
TD800.503C Oil Inlet / Outlet Pipe Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.503C |
Oil Inlet / Outlet Pipe Assembly |
1 |
||
1 |
Q673B155 |
Steel Strip Elastic Hoop |
2 |
|
2 |
FT700.50G.121 |
Oil Return Pipe |
1 |
|
3 |
FT65.50.106 |
Hollow Bolt |
2 |
|
4 |
JB / T 982–14 |
Combined Seal Gasket |
4 |
|
5 |
FT800A.50.162 |
Oil Pipe Joint |
1 |
|
6 |
TD800.503C.1 |
Oil Pipe Assembly |
1 |
|
7 |
GB / T 5783–M8x30–A2L |
Bolt |
2 |
|
8 |
GB / T 97.1–8–A0P |
Uasker |
2 |
|
9 |
GB / T 93–8–A0P |
Uasker |
2 |
|
10 |
GB / T 6170–M8–A0P |
Nut |
2 |
|
11 |
TD800.503A–01 |
Assembly Bracket |
1 |
|
12 |
FT800A.50.061a |
Fuel Filter Assembly |
1 |
|
Filter element |
1 |
|||
13 |
TD800.503A.1 |
Outlet Pipe Assembly |
1 |
H50–1–3
Foton TC5A820–004K Wheeled Tractor
TA600.62 Safety Belt Assembly
H62–1–1
Foton TC5A820–004K Wheeled Tractor
TA600.62 Safety Belt Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |

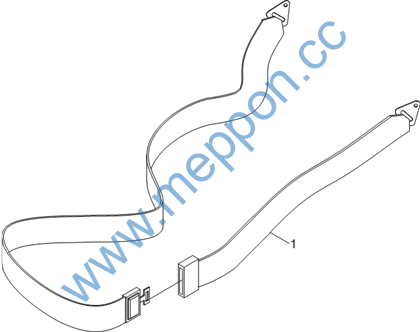

1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
H62–1–1
Foton TC5A820–004K Wheeled Tractor

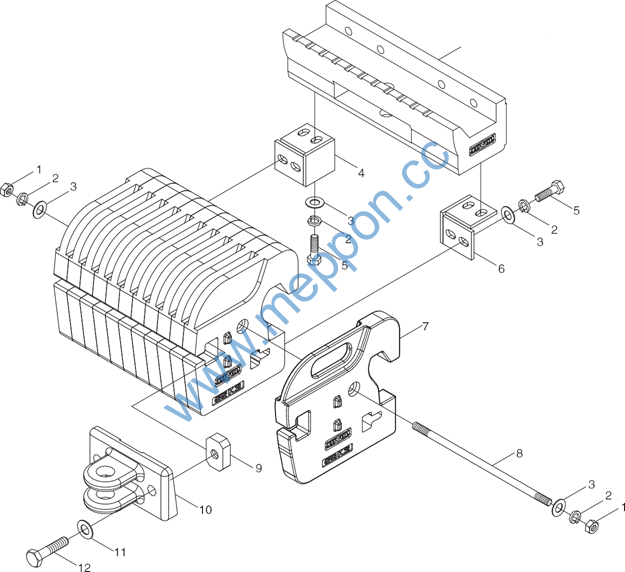

FT800.74B.001 Front Ballast Assembly

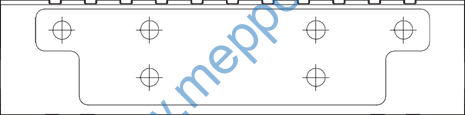

Ballast Bracket
H74–1–1
Foton TC5A820–004K Wheeled Tractor
FT800.74B.001 Front Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800.74B.001 |
Front Ballast Assembly |
1 |
||
1 |
GB/T 6170–M16–A3L |
Nut |
2 |
|
2 |
GB/T 93–16–A0P |
Spring Uasker |
10 |
|
3 |
GB/T 97.1–16–A0P |
Uasker |
10 |
|
4 |
FT700.74B.010 |
Block Ueldment Assembly, Rigkt |
1 |
|
5 |
GB/T 5783–M16x35–A3L |
Bolt |
8 |
|
6 |
FT700.74B.011 |
Block Ueldment Assembly, Left |
1 |
|
7 |
FT800.74B.106a |
Ballast Block |
11 |
|
8 |
F700.74B.107 |
Connection Bolt |
1 |
|
9 |
FT650.74.108 |
Towing Nut |
2 |
|
10 |
FT650.74.107 |
Towing Lug |
1 |
|
11 |
GB/T 97.1–20–A0P |
Uasker |
2 |
|
12 |
GB/T 5785–M20x1.5x80–A3L |
Bolt |
2 |
H74–1–1
Foton TC5A820–004K Wheeled Tractor

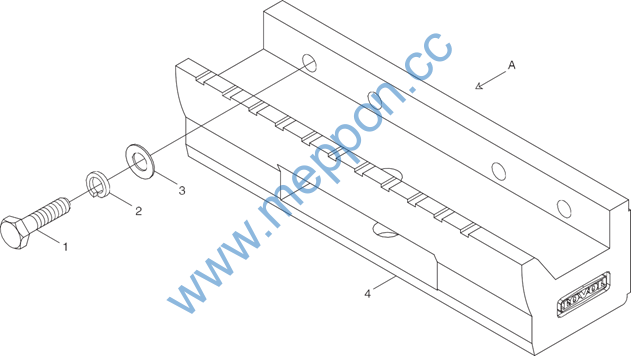

FT800.74B.002 Front Ballast Bracket Assembly
H74–1–2
