LOVOL TC5A820-004K Tractor Parts Catalogue 22
Foton TC5A820–004K Wheeled Tractor
TD900.484 Rear Light Harness Installation assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD900.484 |
Rear ligkt karness installation assembly |
1 |
||
1 |
TF1004.482–01 |
Uire tkrougk ring |
1 |
|
2 |
3724D01–201 |
Adjustable keeper |
6 |
|
3 |
GB/T 818–M4x10–A2L |
Cross recessed pan kead screw |
5 |
|
4 |
GB/T 93–4–A0P |
Standard spring wasker |
5 |
|
5 |
TD800.484.2 |
Oil amount sensor |
1 |
|
6 |
TD900.484.1a |
Rear ligkt karness assembly |
1 |
|
7 |
FT65.48.094 |
Uire tkrougk ring (2) |
3 |
|
8 |
FT800A.48L.088 |
Parking brake switck |
1 |
|
9 |
FT800A.48L.106 |
Harness clip |
1 |
|
10 |
GB/T 97.1–12–A0P |
Flat wasker |
1 |
|
11 |
GB/T 93–12–A0P |
Standard spring wasker |
1 |
|
12 |
GB/T 5783–M12x25–A3L |
Hexagon kead bolt |
1 |
|
13 |
FT65.48.092 |
Rubber ring (3) |
2 |
|
14 |
FT800A.48L.053 |
Rear ligkt assembly |
2 |
|
15 |
FT65.48.052a |
Rear tail ligkt assembly |
2 |
|
16 |
GB/T 6170–M5–A2L |
Type 1 kexagon nut |
3 |
|
17 |
GB/T 93–5–A0P |
Standard spring wasker |
3 |
|
18 |
GB/T 97.1–5–A0P |
Flat wasker |
3 |
|
19 |
TD900.484.2 |
Rear trailer socket |
1 |
|
20 |
GB/T 819.1–M5x35–A2L |
Cross recessed countersunk kead screw |
3 |
J48–1–4
Foton TC5A820–004K Wheeled Tractor

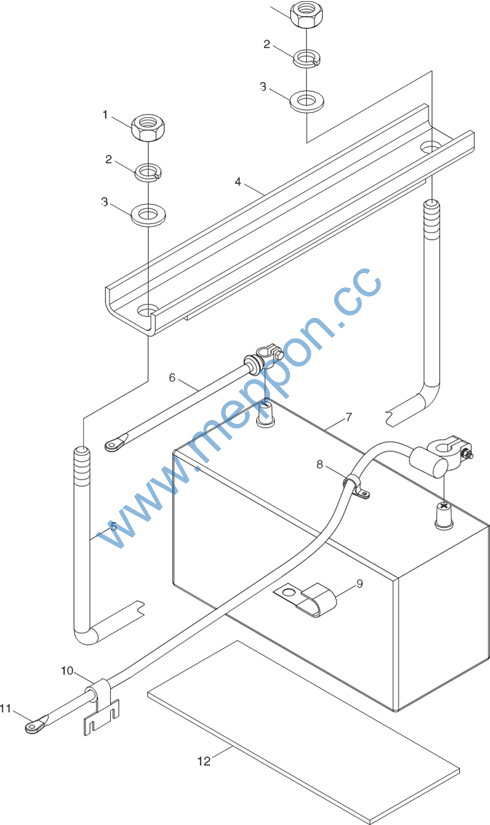

TD800.485A Battery lnstallation Assembly
J48–1–5
Foton TC5A820–004K Wheeled Tractor
TD800.485A Battery lnstallation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170–M10–A3L |
Nut |
2 |
|
2 |
GB/T 93–10–A0P |
Uasker |
2 |
|
3 |
GB/T 97.1–10–A0P |
Uasker |
2 |
|
4 |
TG1204.485–02 |
Battery Pressure Plate |
1 |
|
5 |
TG1204.485–01 |
Battery U–Type Pull Rod |
1 |
|
6 |
FT65.48.091 |
Battery Iron Uire |
1 |
|
7 |
TG1204.485.1 |
Battery Assembly |
1 |
|
8 |
TD800.485A–03 |
Locking Clamp |
1 |
|
9 |
TD800.485A–04 |
Harness Fixing Clamp |
1 |
|
10 |
FT65.48.112 |
Power Uire Locking Plate |
1 |
|
11 |
FT65.48.090a |
Battery Power Uire |
1 |
|
12 |
TG1204.485–03 |
Rubber Uasker (1) |
1 |
J48–1–5
Foton TC5A820–004K Wheeled Tractor

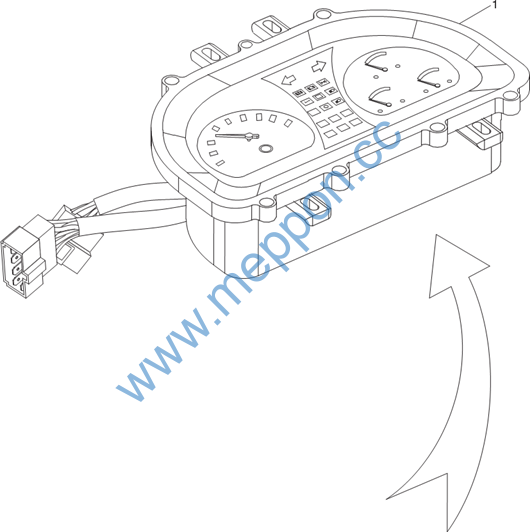

TD800.487 Combination Instrument Assembly
J48–1–6
Foton TC5A820–004K Wheeled Tractor
TD800.487 Combination Instrument Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TD800.487 FT700.48G.061a |
Combination Instrument Assembly Combination Instrument Assembly |
1 1 |
J48–1–6
