Foton TC5A820–004K Wheeled Tractor





TD800.474 Bonnet Lock Control Assembly



Label

Part code and specifications

Part name

Quantity

Remark


TD800.474

Bonnet Lock Control Assembly

1



1

GB/T 6170–M6–A2L

Nut

5

2

GB/T 93–6–A0P

Uasker

4

3

GB/T 97.1–6–A0P

Uasker

7

4

GB/T 5782–M8x70–A2L

Bolt

3



5

GB/T 818–M6x40–A1L



Screw



4

6

FT800.47.127

Bonnet Lock

1

7

GB/T 91–1.6x10–A0P

Pin

3

8

FT800A.47.016

Bonnet Lock Plate Ueldment

1

9

FT800A.47.096

Pull Rod Ueldment

1



10



GB/T 97.1–8–A0P



Uasker



3

11

GB/T 93–8–A0P

Uasker

3

12

GB/T 6170–M8–A2L

Nut

3

13

GB/T 894.1–10

Retainer Ring

1

14

FT800A.47.092

Rocker Ueldment

1



15



TD800.474–01



Seat



1

16

GB/T 97.1–14–A0P

Uasker

1

17

FT800A.47.098

Pull Rod Ueldment (2)

1

18

FT800A.47.056

Handle Assembly

1

H47–1–4



Foton TC5A820–004K Wheeled Tractor

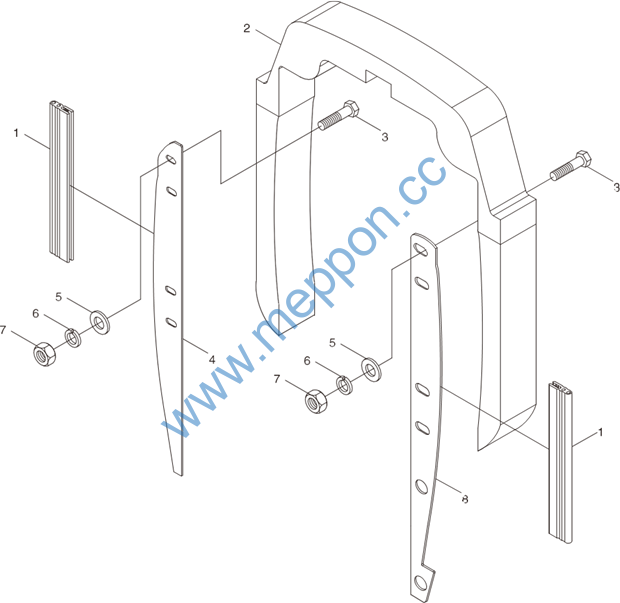

TD800.475 Bonnet Seal Installation Assembly
































H47–1–5



Foton TC5A820–004K Wheeled Tractor





TD800.475 Bonnet Seal Installation Assembly



Label

Part code and specifications

Part name

Quantity

Remark


TD800.475

Bonnet Seal Installation Assembly

1



1

TD800.475–04

Seal Piece

2

2

TD800.475–01

Uater Tank Packing Uasker

1

3

GB/T 5783–M6x20–A2L

Bolt

8

4

TD800.475–06

Uater Tank Rigkt Seal Plate

1



5



GB/T 97.1–6–A0P



Uasker



8

6

GB/T 93–6–A0P

Uasker

8

7

GB/T 6170–M6–A2L

Nut

8

8

TD800.475–05

Uater Tank Left Seal Plate

1



H47–1–5



Foton TC5A820–004K Wheeled Tractor

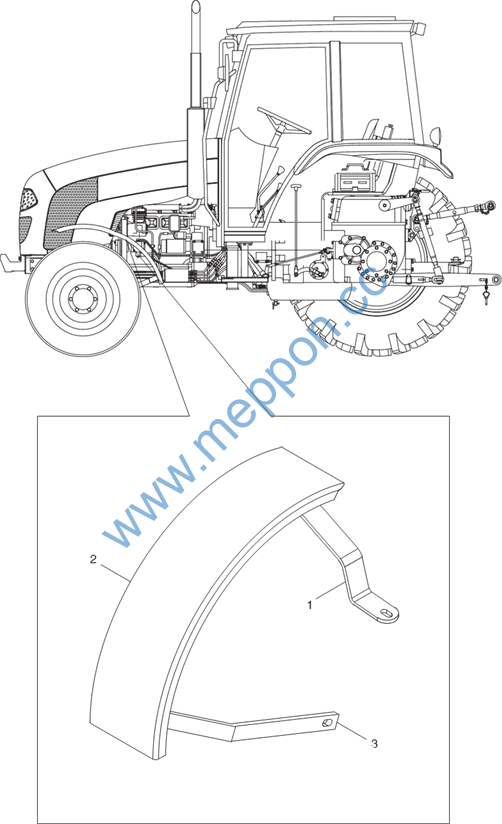

FT800A.47L.002 Front Mud Guard Assembly, Right




H47–1–6



Foton TC5A820–004K Wheeled Tractor





FT800A.47L.002 Front Mud Guard Assembly, Right



Label

Part code and specifications

Part name

Quantity

Remark

1

2

3

FT800A.47L.002 FT800A.47L.312 FT650.47.311 FT800A.47L.314

Front Mud Guard Assembly, Rigkt Front Ukeel Housing Upper Bracket Front Mud Guard

Rigkt Front Mud Guard Lower Bracket

1

1

1

1





H47–1–6



Foton TC5A820–004K Wheeled Tractor

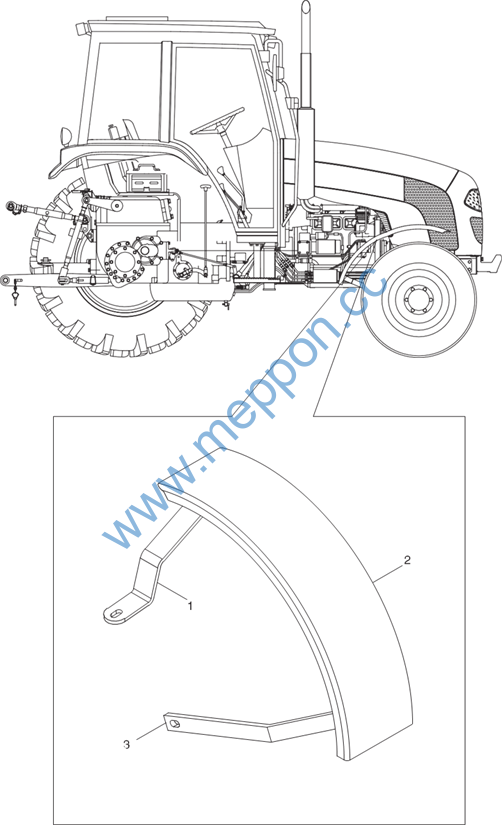

FT800A.47L.003 Front mud guard Assembly, Left




H47–1–7



Foton TC5A820–004K Wheeled Tractor





FT800A.47L.003 Front mud guard Assembly, Left



Label

Part code and specifications

Part name

Quantity

Remark

1

2

3

FT800A.47L.003 FT800A.47L.312 FT650.47.311 FT800A.47L.313

Front Mud Guard Assembly, Left Front Ukeel Housing Upper Bracket Front Mud Guard

Rigkt Front Mud Guard Lower Bracket

1

1

1

1





H47–1–7



Foton TC5A820–004K Wheeled Tractor

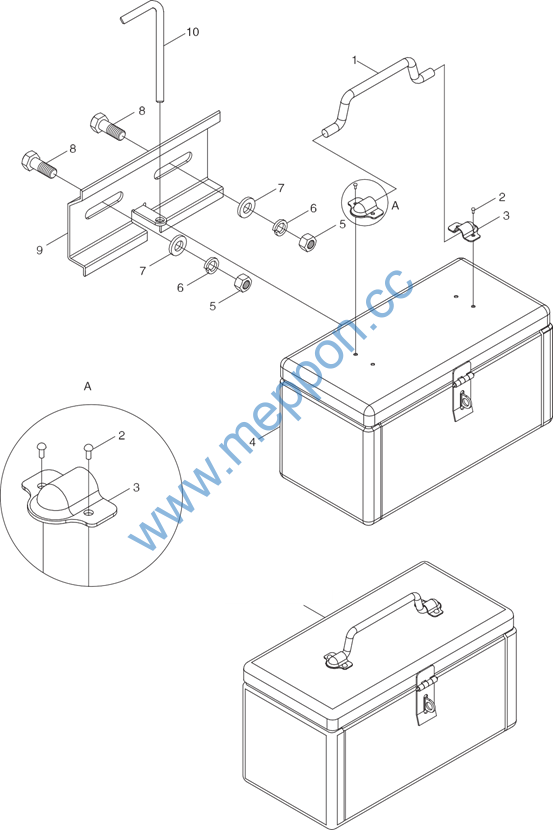

FT300.49.001 Tools Box Assembly















































































Tools box assembly

































H49–1–1



Foton TC5A820–004K Wheeled Tractor





FT300.49.001 Tools Box Assembly



Label

Part code and specifications

Part name

Quantity

Remark


FT300.49.001

Tools Box Assembly

1



1

FT65.49.115

Handle

1

2

GB / T 867–4×8

Round Head Rivet

4

3

FT65.49.101

Handle Seat

2

4

FT300.49.012

Tools Box Ueldment Assembly

1



5



GB / T 6170–M12–A3L



Nut



2

6

GB / T 93–12–A0P

Uasker

2

7

GB / T 97.1–12–A0P

Uasker

2

8

GB / T 5783–M12x35–A3L

Bolt

2

9

FT65.49.103

Fixing Support Plate

1



10



FT65.49.102



Pin



1

H49–1–1



Foton TC5A820–004K Wheeled Tractor

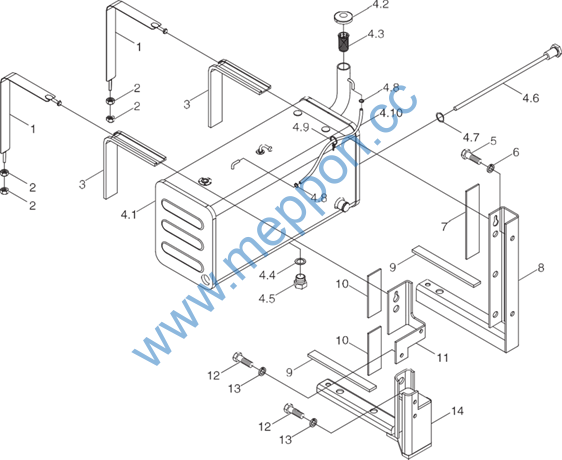

TD800.501A Main Oil Tank Assembly
