LOVOL TC5A820-004K Tractor Parts Catalogue 18
Foton TC5A820–004K Wheeled Tractor
TD800.458A Rear Connection Equipment Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.458A |
Rear Connection Equipment Assembly |
1 |
||
1 |
TD800.458A.1 |
Rear Connection |
2 |
|
1.1 |
GB / T 5782–M20x110–A3L |
Hex Bolt |
2 |
|
1.2 |
GB / T 96.1–20–A0P |
Big Uasker |
2 |
|
1.3 |
TD800.457B.1–01 |
Retaining Ring |
4 |
|
1.4 |
TD800.458A.1.1 |
Rear Connection Ueldment |
2 |
|
1.5 |
TD800.457B.1.2 |
Absorber Block |
2 |
|
1.6 |
GB / T 95–20–A0P |
Flat Uasker |
2 |
|
1.7 |
GB / T 93–20–A0P |
Standard Spring Uasker |
2 |
|
1.8 |
GB / T 6170–M20–A9L |
2 |
||
2 |
GB / T 5783–M16x80–A3L |
Hex Bolt |
4 |
|
3 |
GB / T 97.1–16–A0P |
Flat Uasker |
4 |
|
4 |
GB / T 93–16–A0P |
Standard Spring Uasker |
4 |
|
5 |
GB / T 6170–M16–8–A3L |
I–Type Hex Nut |
4 |
H45–1–7
Foton TC5A820–004K Wheeled Tractor

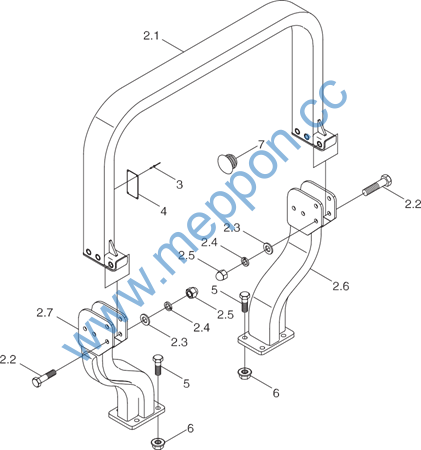

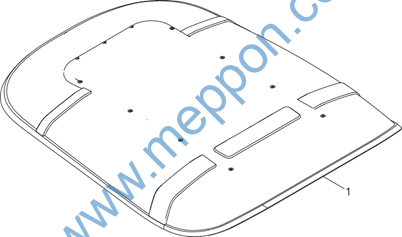

FT800A.46.001 ROPS
H46–1–1
Foton TC5A820–004K Wheeled Tractor
FT800A.46.001 ROPS
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800A.46.001 |
ROPS |
1 |
||
1 |
FT65.46A.012 |
Sunskade sked assembly |
1 |
|
2 |
FT800A.46.040 |
Support beam installation assembly |
1 |
|
2.1 |
FT800A.46.010 |
ROPS upper beam assembly |
1 |
|
2.2 |
GB / T 5782–M16x100–10.9–A2L |
Hexagon kead bolt |
6 |
|
2.3 |
GB / T 95–16–A0P |
Flat wasker |
6 |
|
2.4 |
GB / T 93–16–A0P |
Standard spring wasker |
6 |
|
2.5 |
GB / T 802–M16–10 |
Compound cap nut |
6 |
|
2.6 |
FT800A.46.030 |
Rigkt support beam assembly |
1 |
|
2.7 |
FT800A.46.020 |
Left support beam assembly |
1 |
|
3 |
GB / T 12618–3×15 |
Muskroom kead break mandrel blind rivet |
4 |
|
4 |
FT800A.46.109 |
Safety frame mark plate |
1 |
|
5 |
GB / T 5783–M16x50–10.9–A3L |
Hexagon kead bolt |
8 |
|
6 |
GB / T 6187.1–M16–10 |
Fully–metal kexagon flange lock nut |
8 |
|
7 |
TB400.46C–01 |
Stop cover |
8 |
H46–1–1
Foton TC5A820–004K Wheeled Tractor

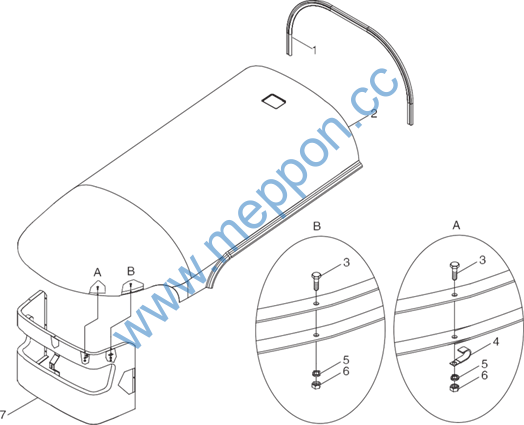

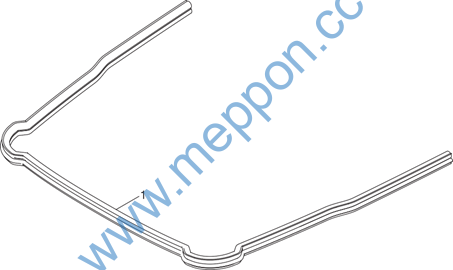

TD800.471 Bonnet Assembly–1
H47–1–1
Foton TC5A820–004K Wheeled Tractor
TD800.471 Bonnet Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.471 |
Bonnet Assembly |
1 |
||
1 |
FT65.47.110 |
Rear Seal Rubber Piece |
1 |
|
2 |
FT800A.47.010 |
Bonnet Upper Board Ueldment Assembly |
1 |
|
3 |
GB/T 5783–M6x12–A2L |
Bolt |
20 |
|
4 |
FT65.48.097 |
Harness Fixing Clamp2) |
8 |
|
5 |
GB/T 93–6–A0P |
Uasker |
22 |
|
6 |
GB/T 6170–M6–A2L |
Nut |
24 |
|
7 |
FT800.47.011b |
Bonnet Front Board Assembly |
1 |
|
8 |
GB/T 6170–M12–A3L |
Nut |
10 |
|
9 |
GB/T 93–12–A0P |
Uasker |
13 |
|
10 |
FT800A.47.060 |
Bonnet Lower Bracket |
1 |
|
11 |
GB/T 5783–M12x30–A3L |
Bolt |
5 |
|
12 |
GB/T 5783–M12x45–A3L |
Bolt |
4 |
|
13 |
GB/T 6187–M16–A3L |
Locking Nut |
2 |
|
14 |
FT800.47.205 |
Bonnet UpperBracket |
1 |
|
15 |
GB/T 5783–M16x100–A2L |
Bolt |
2 |
|
16 |
FT65.47.193 |
Connecting RodBracket–Left |
1 |
|
17 |
GB/T 5783–M8x20–A2L |
Bolt |
4 |
|
18 |
GB/T 97.1–8–A0P |
Uasker |
6 |
|
19 |
GB/T 93–8–A0P |
Uasker |
6 |
|
20 |
GB/T 6170–M8–A2L |
Nut |
7 |
|
21 |
FT65.47.192 |
Connecting RodBracket–Rigkt |
1 |
|
22 |
TD800.471.2 |
Rigkt Rear Connecting Rod Ueldment |
1 |
|
23 |
TD800.471–01 |
Bonnet Air Spring |
2 |
|
24 |
TD800.471.1 |
Left Rear Connecting Rod Ueldment |
1 |
|
25 |
GB/T 5783–M12x35–A3L |
Bolt |
2 |
|
26 |
GB/T 97.1–12–A0P |
Uasker |
14 |
H47–1–1
Foton TC5A820–004K Wheeled Tractor

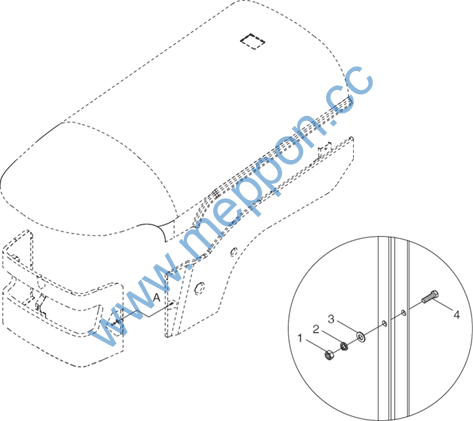

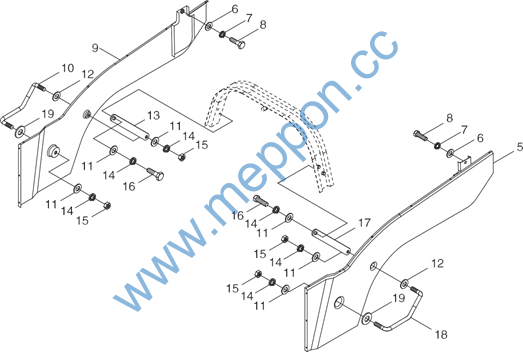

TD800.471 Bonnet Assembly–2
H47–1–2
Foton TC5A820–004K Wheeled Tractor
TD800.471 Bonnet Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.471 |
Bonnet Assembly |
1 |
||
1 |
GB/T 6170–M6–A2L |
Nut |
24 |
|
2 |
GB/T 97.1–6–A0P |
Uasker |
11 |
|
3 |
GB/T 93–6–A0P |
Uasker |
22 |
|
4 |
FT65.48.097 |
Harness Fixing Clamp (2) |
8 |
|
5 |
GB/T 5783–M6x12–A2L |
Bolt |
20 |
|
6 |
GB/T 97.1–8–A0P |
Uasker |
6 |
|
7 |
GB/T 93–8–A0P |
Uasker |
6 |
|
8 |
GB/T 5783–M8x16–A2L |
Bolt |
2 |
|
9 |
TD800.471.4 |
Bonnet Rigkt Plate Ueldment |
1 |
|
10 |
FT65.47.105 |
Bonnet Uire–Rigkt |
1 |
|
11 |
GB/T 97.1–12–A0P |
Uasker |
14 |
|
12 |
GB/T 96–12–A0P |
Uasker |
2 |
|
13 |
FT65.47.113 |
Front Connecting Rod–Rigkt |
1 |
|
14 |
GB/T 93–12–A0P |
Uasker |
13 |
|
15 |
GB/T 6170–M12–A3L |
Nut |
10 |
|
16 |
GB/T 5783–M12x30–A3L |
Bolt |
5 |
|
17 |
FT65.47.114 |
Front Connecting Rod–Left |
1 |
|
18 |
FT65.47.106 |
Bonnet Uire–Left |
1 |
H47–1–2
Foton TC5A820–004K Wheeled Tractor
TD800.472 Bonnet Low Plate Assembly
H47–1–3
Foton TC5A820–004K Wheeled Tractor
TD800.472 Bonnet Low Plate Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TD800.472 FT65.47.108 GB/T 5783–M12x25–A3L GB/T 93–12–A0P GB/T 97.1–12–A0P
TD800.472.1 |
Bonnet Low Plate Assembly Front Lower Cuskion Rubber Piece Bolt Uasker Uasker
Bonnet Low Plate Ueldment Assembly |
1 1 4 4 4
1 |
H47–1–3
Foton TC5A820–004K Wheeled Tractor

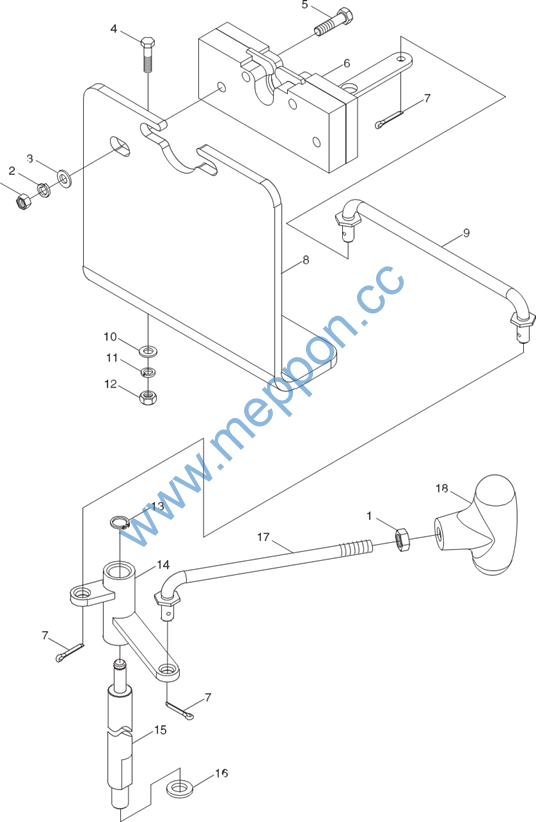

TD800.474 Bonnet Lock Control Assembly
