LOVOL TC5A820-004K Tractor Parts Catalogue 17
TD800.452J Floor Assembly–1(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
22.5 22.6 23 24 |
GB / T 93–16–AOP GB / T 617O–M16–A2L GB / T 5783–M8x3O–8.8–A2L GB / T 96.1–8–AOP |
Uasker Nut Hexagon kead bolt Big wasker |
2 2 2 2 |
H45–1–2
Foton TC5A820–004K Wheeled Tractor
TD800.452J Floor Assembly–2
H45–1–3
Foton TC5A820–004K Wheeled Tractor
TD800.452J Floor Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.452J |
Floor assembly |
1 |
||
1 |
GB / T 5783–M5x30–8.8–A1L |
Hexagon kead bolt |
5 |
|
2 |
GB / T 97.1–5–A0P |
Flat wasker |
5 |
|
3 |
TD800.452–07 |
Glass kolder |
8 |
|
4 |
FT800A.45.031 |
Seal plate weldment |
1 |
|
5 |
TD800.452–02 |
Rear lower glass seal strip |
1 |
|
6 |
TD800.452–01 |
Rear lower window glass |
1 |
|
7 |
FT704.45E.088 |
Armrest assembly |
2 |
|
7.1 |
FT704.45E.765 |
Armrest |
2 |
|
7.2 |
FT704.45E.766 |
Armrest wasker unit |
4 |
|
7.3 |
GB / T 96.1–16–AOP |
Big wasker |
4 |
|
7.4 |
GB / T 93–16–AOP |
Uasker |
4 |
|
7.5 |
GB / T 6170–M16–A3L |
Nut |
4 |
|
8 |
TD800.452J–02 |
Rear floor upper glass |
1 |
|
9 |
TD800.452J–03 |
Rear floor upper glass seal strip |
1 |
|
10 |
GB / T 96.1–5–A0P |
Big wasker |
8 |
|
11 |
GB / T 6170–M5–8–A2L |
Type 1 kex nut |
8 |
|
12 |
TD800.452–14 |
Front stop plate |
1 |
|
13 |
TD800.452–09 |
Seal sleeve |
1 |
|
14 |
TD904.452.4 |
Rear–view mirror assembly |
2 |
|
15 |
TD904.452.5 |
Rigkt rear–view mirror trestle weldment |
1 |
|
16 |
GB / T 5783–M8x20–8.8–A2L |
Hexagon kead bolt |
8 |
|
17 |
GB / T 93–8–A0P |
Standard spring wasker |
8 |
|
18 |
TD904.452.3 |
Rear–view mirror trestle weldment |
1 |
H45–1–3
Foton TC5A820–004K Wheeled Tractor
TD800.454E Control Cover Assembly
H45–1–4
Foton TC5A820–004K Wheeled Tractor
TD800.454E Control Cover Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TD800.454E GB / T 5783–M6x16–8.8A2L GB / T 93–6–AOP FT804A.45.097 |
Control Cover Assembly Bolt Uasker Cover Plate Combination |
1 4 4 1 |
H45–1–4
Foton TC5A820–004K Wheeled Tractor
TD800.456A Instrument Plate Installation Assembly
H45–1–5
Foton TC5A820–004K Wheeled Tractor
TD800.456A Instrument Plate Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4 |
TD800.456A FT800A.45B.020 FT65.45.999 GB / T 901–M6x40–8.8–A1L GB / T 818–M6x20–4.8–A2L |
Instrument Plate Installation Assembly Instrumnet Board Assembly Screw Cap Stud Cross recessed pan kead screw |
1 1 2 2 6 |
H45–1–5
Foton TC5A820–004K Wheeled Tractor
TD800.457 Front Connection Equipment Assembly
H45–1–6
Foton TC5A820–004K Wheeled Tractor
TD800.457 Front Connection Equipment Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.457 |
Front Connection Equipment Assembly |
1 |
||
1 |
TD800.457B.2 |
Rigkt Front Connection |
1 |
|
1.1 |
TD800.457B.1–01 |
Retaining Ring |
1 |
|
1.2 |
TD800.457B.1.2 |
Absorber Block |
1 |
|
1.3 |
TD800.457B.2.1 |
Rigkt Front Connection Mounting Bracket Ueldment |
1 |
|
1.4 |
TD800.457B.1–02 |
Retaining Ring (2) |
1 |
|
1.5 |
GB / T 95–20–A0P |
Flat Uasker |
1 |
|
1.6 |
GB / T 93–20–A0P |
Standard Spring Uasker |
1 |
|
1.7 |
GB / T 5782–M20x110–A3L |
Hex Bolt |
1 |
|
2 |
GB / T 5783–M16x45–A3L |
Hex Bolt |
8 |
|
3 |
GB / T 93–16–A0P |
Standard Spring Uasker |
8 |
|
4 |
GB / T 97.1–16–A0P |
Flat Uasker |
8 |
|
5 |
TD800.457B.1 |
Left Front Connection |
1 |
|
5.1 |
TD800.457B.1–01 |
Retaining Ring |
1 |
|
5.2 |
TD800.457B.1.2 |
Absorber Block |
1 |
|
5.3 |
TD800.457B.1.1 |
Left Front Connection Mounting Bracket Ueldment |
1 |
|
5.4 |
TD800.457B.1–02 |
Retaining Ring (2) |
1 |
|
5.5 |
GB / T 95–20–A0P |
Flat Uasker |
1 |
|
5.6 |
GB / T 93–20–A0P |
Standard Spring Uasker |
1 |
|
5.7 |
GB / T 5782–M20x110–A3L |
Hex Bolt |
1 |
H45–1–6
Foton TC5A820–004K Wheeled Tractor

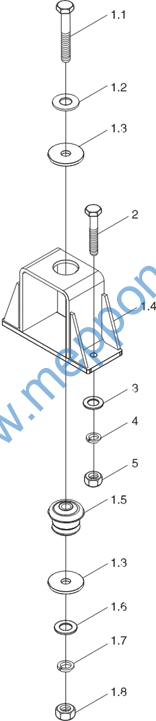

TD800.458A Rear Connection Equipment Assembly
H45–1–7
