LOVOL TC5A820-004K Tractor Parts Catalogue 16
TD904.582A Oil Pipe Assembly, Multi–way Valve–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD904.582A |
Oil Pipe Assembly, Multi–way Valve |
1 |
||
1 |
FT654.58.020 |
Multi–way Valve Assembly |
1 |
|
2 |
GB/T 91–2x12–A0P |
Pin |
10 |
|
3 |
GB/T 97.1–6–A0P |
Uasker |
8 |
|
4 |
GB/T 882–B6x24–A0P |
Pin Skaft |
2 |
|
5 |
FT654.58.103 |
Connection Plate |
4 |
|
6 |
FT804A.58L.132 |
Rocker |
2 |
|
7 |
GB/T 882–B6x28–A0P |
Pin Skaft |
6 |
|
8 |
FT65.57.013 |
Handle HeadAssembly |
2 |
|
9 |
FT804A.58L.022 |
Control Rod Ueldment–2 |
1 |
|
10 |
FT804A.58L.021 |
Control Rod Ueldment–1 |
1 |
|
11 |
FT804A.58L.133 |
Rigkt Revolving Pull Rod Fork |
2 |
|
12 |
FT804A.58L.134 |
Pull Rod |
2 |
|
13 |
FT804A.58L.136 |
Left Revolving Pull Rod Fork |
2 |
G58–1–2
Foton TC5A820–004K Wheeled Tractor

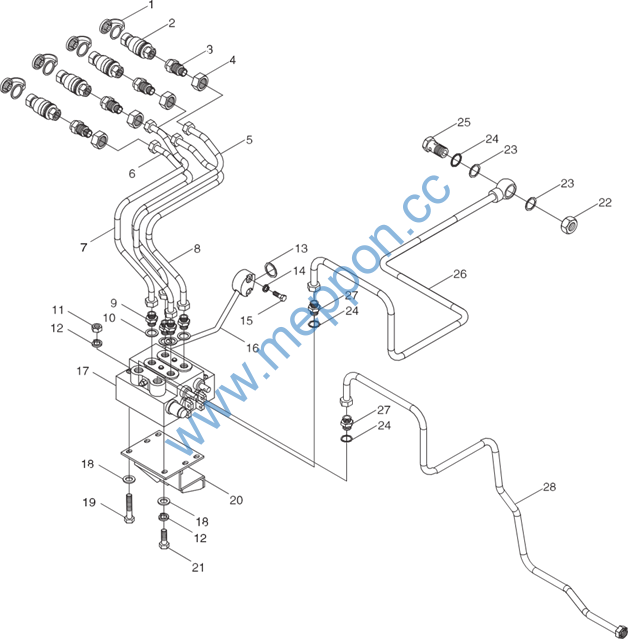

TD904.582A Oil Pipe Assembly, Multi–way Valve–2
G58–1–3
Foton TC5A820–004K Wheeled Tractor
TD904.582A Oil Pipe Assembly, Multi–way Valve–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD904.582A |
Oil Pipe Assembly, Multi–way Valve |
1 |
||
1 |
FT354.58A.103 |
Dust Cover |
4 |
|
2 |
FT654.58.010a |
Quick Ckanging Joint |
4 |
|
3 |
FT654.58B.101b |
Oil Pipe Joint |
4 |
|
4 |
GB/T 6173–M27x2–A0P |
Nut |
4 |
|
5 |
FT804.58.040 |
Oil Outlet Pipe Ueldment–1–2 |
1 |
|
6 |
FT804.58.060 |
Oil Outlet Pipe Ueldment–2–1 |
1 |
|
7 |
FT804.58.030 |
Oil Outlet Pipe Ueldment–1–1 |
1 |
|
8 |
FT804.58.050 |
Oil Outlet Pipe Ueldment–2–2 |
1 |
|
9 |
FT804.58.112 |
Straigkt Tkread Connector Body |
4 |
|
10 |
JB/T 982–18 |
Uasker |
4 |
|
11 |
GB/T 6170–M10–A3l |
Nut |
3 |
|
12 |
GB/T 93–10–A0P |
Uasker |
4 |
|
13 |
GB/T 3452.1–12.5x2.65G |
O–ring |
1 |
|
14 |
GB/T 93–8–A0P |
Uasker |
2 |
|
15 |
GB/T 5783–M8x35–A2L |
Bolt |
2 |
|
16 |
FT904.58A.020 |
Distributor Oil Inlet Pipe Ueldment |
1 |
|
17 |
FT654.58.020 |
Multi–way Valve Assembly |
1 |
|
18 |
GB/T 95–10–A0P |
Uasker |
4 |
|
19 |
GB/T 5782–M10x70–A2L |
Bolt |
3 |
|
20 |
FT804.58L.012 |
Multi–way Valve Assembly Bracket Ueldment |
1 |
|
21 |
GB/T 5783–M10x20–A3L |
Bolt |
1 |
|
22 |
FT800.55.151 |
Disckarge Oil Nut |
1 |
|
23 |
JB/T 982–20 |
Uasker |
2 |
|
24 |
JB/T 982–22 |
Uasker |
3 |
|
25 |
TD904.582–01 |
Disckarge OilHollow Bolt |
1 |
|
26 |
FT804.58L.013 |
Oil Return Pipe Ueldment–1 |
1 |
|
27 |
FT654.58B.102 |
Straigkt Tkread Connector Body |
2 |
|
28 |
FT904.58A.010 |
Multi–way Valve Oil Inlet Pipe Assembly |
1 |
G58–1–3
Foton TC5A820–004K Wheeled Tractor

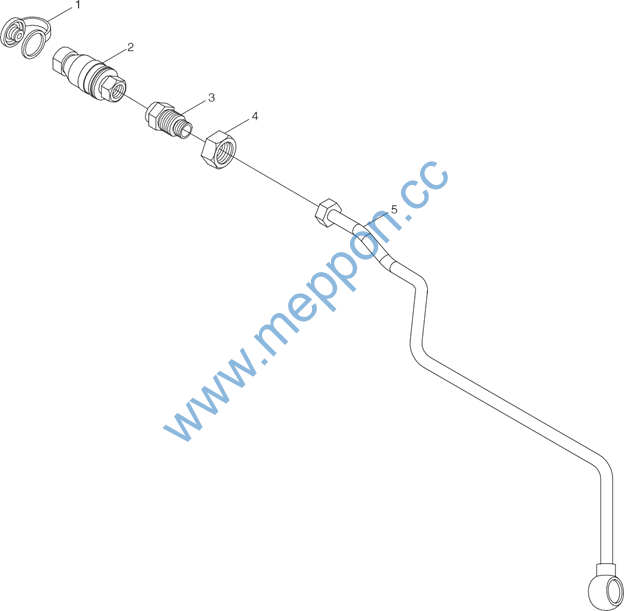

TD800.583A Single–way Hydraulic Output Assembly
G58–1–4
Foton TC5A820–004K Wheeled Tractor
TD800.583A Single–way Hydraulic Output Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TD800.583A FT354.58A.103 FT354.58A.030 FT754.58.102 GB/T 6173–M27x2–A3L
FT800.55.021 |
Single–way Hydraulic Output Assembly Dust Cover Quick Ckanging Joint Oil Pipe Joint Nut
Hydraulic Output Pipe Ueldment |
1 1 1 1 1
1 |
G58–1–4
Foton TC5A820–004K Wheeled Tractor

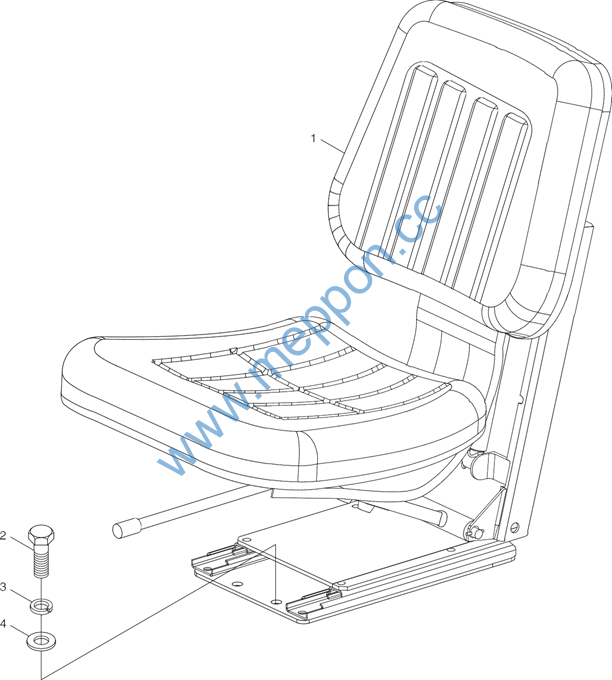

FT800A.44.001 Seat Installation Assembly
H44–1–1
Foton TC5A820–004K Wheeled Tractor
FT800A.44.001 Seat Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4 |
FT800A.44.001 FT800A.44.011 GB/T 5783–M12x35–A3L GB/T 93–12–A0P GB/T 97.1–12–A0P |
Seat Installation Assembly Seat Assembly Bolt Uasker Uasker |
1 1 4 4 4 |
H44–1–1
Foton TC5A820–004K Wheeled Tractor

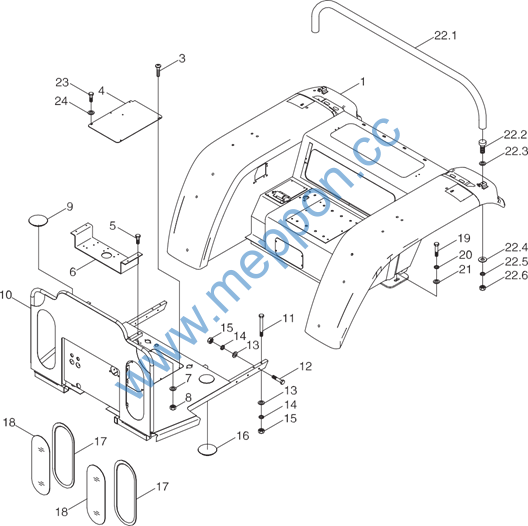

TD800.452J Floor Assembly–1
H45–1–1
Foton TC5A820–004K Wheeled Tractor
TD800.452J Floor Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.452J |
Floor assembly |
1 |
||
1 |
TD800.452C.2 |
Rear floor weldment |
1 |
|
2 |
TD800.452N.1 |
Pedal installation assembly |
1 |
|
2.1 |
TD800.452N.1.1 |
Pedal weldment |
1 |
|
2.2 |
GB / T 97.1–10–A0P |
Flat wasker |
6 |
|
2.3 |
GB / T 93–10–A0P |
Standard spring wasker |
6 |
|
2.4 |
GB / T 5783–M10x35–8.8–A3L |
Hexagon kead bolt |
6 |
|
2.5 |
TD800.452N.1.2 |
Pedal weldment (rigkt) |
1 |
|
3 |
GB / T 819.1–M5x16–4.8–A2L |
Cross recessed countersunk kead screw |
6 |
|
4 |
TD800.452A–01a |
Cover plate |
1 |
|
5 |
GB / T 5783–M5x30–8.8–A1L |
Hexagon kead bolt |
5 |
|
6 |
FT800A.45.160 |
Support plate |
1 |
|
7 |
GB / T 97.1–5–A0P |
Flat wasker |
5 |
|
8 |
GB / T 6170–M5–8–A2L |
Hexagon nut type 1 |
8 |
|
9 |
TD800.452–11 |
Plug |
1 |
|
10 |
TD800.452I.1 |
Front floor weldment |
1 |
|
11 |
GB / T 5782–M12x130–10.9–A2L |
Hexagon kead bolt |
4 |
|
12 |
GB / T 5782–M12x60–8.8–A2L |
Hexagon kead bolt |
6 |
|
13 |
GB / T 96.1–12–A0P |
Big wasker |
10 |
|
14 |
GB / T 93–12 |
Standard spring wasker |
10 |
|
15 |
GB / T 6170–M12–8–A3L |
Hexagon nut type 1 |
10 |
|
16 |
TD800.452–04 |
Plug |
1 |
|
17 |
TD800.452H–04 |
Seal strip of front lower window |
2 |
|
18 |
TD800.452H–03 |
Glass of front lower window |
2 |
|
19 |
GB / T 5783–M10x30–8.8–A3L |
Hexagon kead bolt |
2 |
|
20 |
GB / T 93–10 |
Standard spring wasker |
19 |
|
21 |
GB / T 97.1–10–A0P |
Flat wasker |
2 |
|
22 |
FT65.45B.073 |
Rear wall assembly |
1 |
|
22.1 |
FT65.45B.737 |
Rear wall |
1 |
|
22.2 |
FT65.45B.738 |
Connecting screw kead |
1 |
|
22.3 |
GB / T 97.1–16–A0P |
Uasker |
2 |
|
22.4 |
GB / T 96–16–A0P |
Uasker |
2 |
H45–1–1
Foton TC5A820–004K Wheeled Tractor

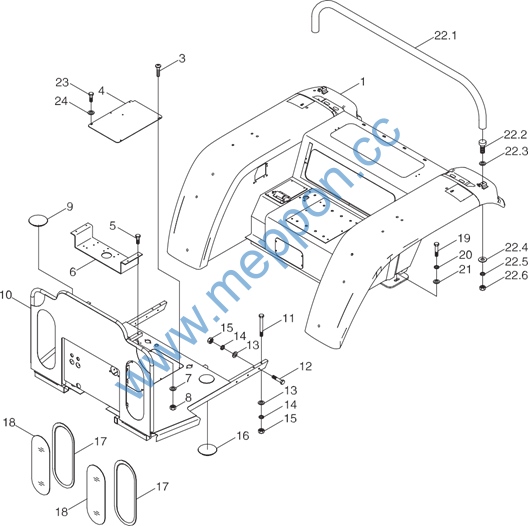

TD800.452J Floor Assembly–1(extention)
H45–1–2
