LOVOL TC5A820-004K Tractor Parts Catalogue 15
TD800.57C Distributor Installation Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57C |
Distributor Installation Assembly |
1 |
||
1 |
FT65.57.016 |
Low Valve Assembly |
1 |
|
1.1 |
FT65.57.147 |
Low Valve Sleeve |
1 |
|
1.2 |
GB/T 3452.1–16.0x1.80G |
Rubber O–ring |
1 |
|
1.3 |
FT65.57.149 |
Low Valve Spring |
1 |
|
1.4 |
GB/T 308–5–G100–b |
Steel Ball |
1 |
|
1.5 |
FT65.57.146 |
Low Valve Plug |
1 |
|
1.6 |
FT65.57.148 |
Low Valve Body |
1 |
|
2 |
GB/T 3452/1–19x2.65G |
O–ring |
6 |
|
3 |
FT65.57.114 |
Pusk Pin |
1 |
|
4 |
FT65.57.111 |
Adjusting Uasker |
On Demand |
|
5 |
FT65.57.015 |
Single Direction Valve Assembly |
1 |
|
5.1 |
FT65.57.143 |
Single Direction Valve Seat |
1 |
|
5.2 |
GB/T 3452.1–20.0x1.80G |
Rubber O–ring |
1 |
|
5.3 |
FT65.57.144 |
Single Direction Valve Spring |
1 |
|
5.4 |
FT65.57.145 |
Single Direction Valve Plug |
1 |
|
5.5 |
FT65.57.140 |
Single Direction Valve Body |
1 |
|
6 |
GB/T 3452.1–26.5x2.65G |
O–ring |
1 |
|
7 |
FT65.57.118 |
Distributor Housing |
1 |
|
8 |
FT65.57.011 |
Safety Valve Seat Ueldment |
1 |
|
9 |
FT65.57.137 |
Safety Valve Body |
1 |
|
10 |
FT65.57.136 |
Spring, Safety Valve |
1 |
|
11 |
FT65.57.133 |
Adjusting Uasker |
1 |
|
12 |
FT65.57.129 |
Spring, Safety Valve Seat |
1 |
|
13 |
FT65.57.117 |
Main Control Valve |
1 |
|
14 |
FT65.57.115 |
Main Valve Spring |
1 |
|
15 |
FT65.57.116 |
Main Valve Front Cover |
1 |
|
16 |
GB/T 93–6–AOP |
Uasker |
3 |
|
17 |
GB/T 70.1–M6x16–A3L |
Screw |
3 |
|
18 |
FT65.57.126 |
Return Oil Valve Body |
1 |
|
19 |
FT65.57.127 |
Return Oil Valve Spring |
1 |
|
20 |
GB/T 3452.1–21.2x2.65G |
O–ring |
1 |
|
21 |
FT65.57.128 |
Return Oil Valve Plug |
1 |
G57–1–1
Foton TC5A820–004K Wheeled Tractor

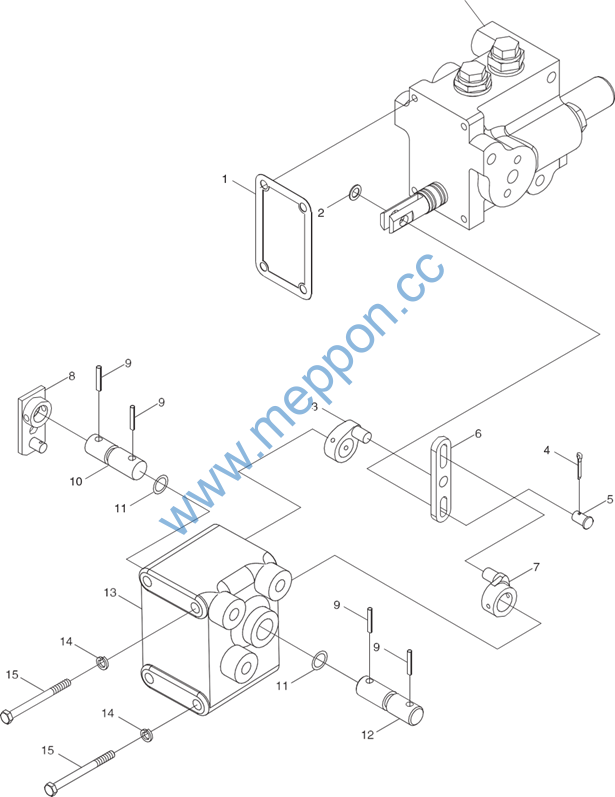

TD800.57C Distributor Installation Assembly–2
Distributor kousing
G57–1–2
Foton TC5A820–004K Wheeled Tractor
TD800.57C Distributor Installation Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57C |
Distributor Installation Assembly |
1 |
||
1 |
FT65.57.110 |
Paper Gasket |
1 |
|
2 |
GB/T 97.1–8–AOP |
Uasker |
1 |
|
3 |
FT65.57.125 |
Feedback Arm |
1 |
|
4 |
GB/T 91–2x12–AOP |
Pin |
1 |
|
5 |
FT65.57.120 |
Pin Skaft |
1 |
|
6 |
FT65.57.119 |
Swing Rod |
1 |
|
7 |
FT65.57.124 |
Operation Arm |
1 |
|
8 |
FT65.57.017 |
Feedback Arm Ueldment |
1 |
|
9 |
GB/T 879.1–5x24 |
Pin |
4 |
|
10 |
FT65.57.123 |
Feedback Skaft |
1 |
|
11 |
GB/T 3452.1–9.5x2.65A |
O–ring |
2 |
|
12 |
FT800A.57.120 |
Handle Skaft |
1 |
|
13 |
FT800A.57.122 |
Side Cover |
1 |
|
14 |
GB/T 93–6–AOP |
Uasker |
4 |
|
15 |
GB/T 5783–M6x70–A3L |
Bolt |
4 |
G57–1–2
Foton TC5A820–004K Wheeled Tractor

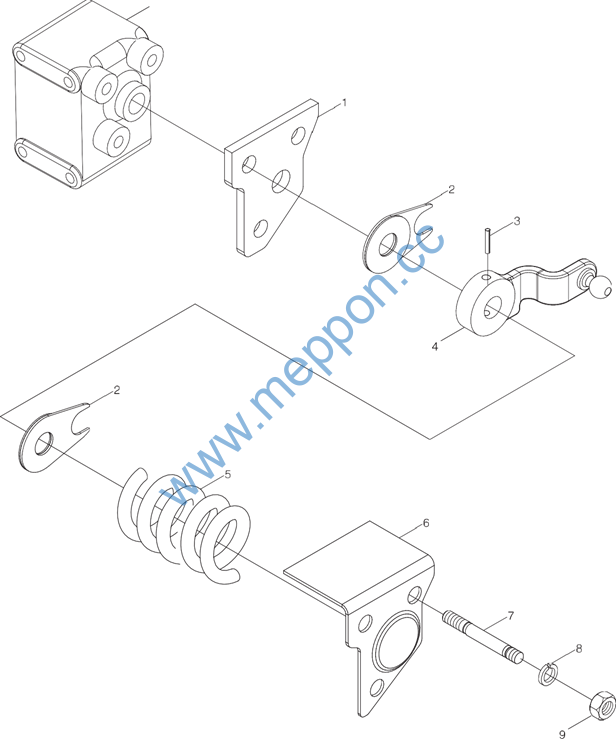

TD800.57C Distributor Installation Assembly–3
Side cover
G57–1–3
Foton TC5A820–004K Wheeled Tractor
TD800.57C Distributor Installation Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57C |
Distributor Installation Assembly |
1 |
||
1 |
FT800A.57.114 |
Locking Plate |
1 |
|
2 |
FT800A.57.013 |
Signal Face Friction Disc Assembly |
2 |
|
3 |
GB/T 879.1–5x35 |
Pin |
1 |
|
4 |
FT800A.57.014 |
Control Cam Handle Ueldment |
1 |
|
5 |
FT800A.57.112 |
Spring |
1 |
|
6 |
FT800A.57.110 |
Retainer Plate |
1 |
|
7 |
GB/T 899–G10–M10x60–A2L |
Stud |
3 |
|
8 |
GB/T 93–10–AOP |
Standard Spring Gasket |
3 |
|
9 |
GB/T 6170–M10–A3L |
Hex Nut |
3 |
G57–1–3
Foton TC5A820–004K Wheeled Tractor

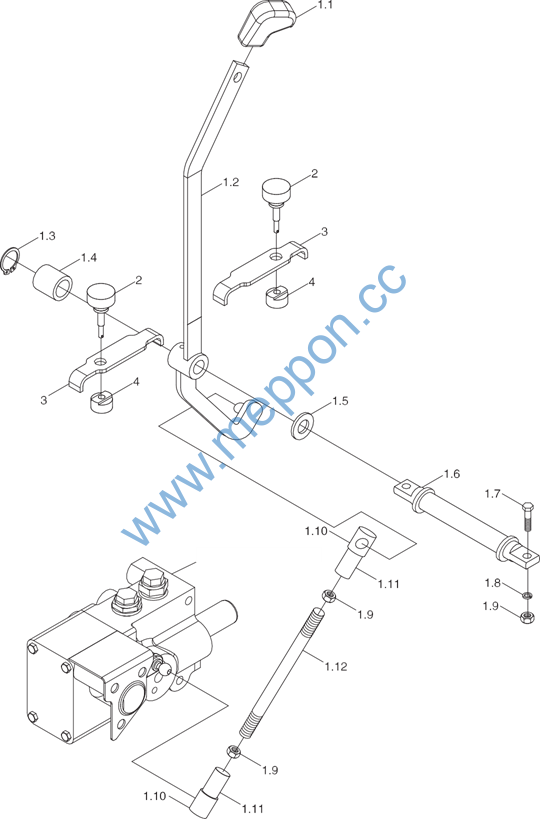

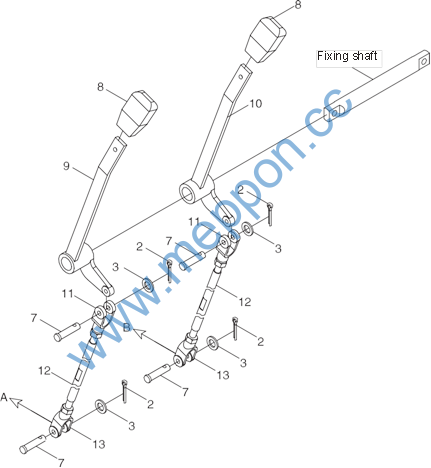

TD800.57C Distributor Installation Assembly–4
Distributor subassembly
G57–1–4
Foton TC5A820–004K Wheeled Tractor
TD800.57C Distributor Installation Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57C |
Distributor Installation Assembly |
1 |
||
1 |
TD800.57C.1 |
DistributorControl Meckanism Assembly |
1 |
|
1.1 |
FT65.57.013 |
Handle Head Assembly |
1 |
|
1.2 |
FT800A.57.011 |
Operation Arm Ueldment Assembly |
1 |
|
1.3 |
GB / T 894.1–20 |
Circlips For Skaft |
2 |
|
1.4 |
FT800A.57.103 |
Locating Sleeve I |
1 |
|
1.5 |
GB / T 95–20–AOP |
Flat Uasker |
1 |
|
1.6 |
FT800A.57.102 |
Fixing Skaft |
1 |
|
1.7 |
GB / T 5783–M8x30–A2L |
Hex Bolt |
2 |
|
1.8 |
GB / T 93–8–AOP |
Standard Spring Gasket |
2 |
|
1.9 |
GB / T 6170–M8–A2L |
Hex Nut |
4 |
|
1.10 |
FT800A.57.107 |
Clamp Head |
2 |
|
1.11 |
FT800A.57.108 |
Ball Surface Connecting Cover |
2 |
|
1.12 |
FT800A.57.109 |
Control Pull Rod |
1 |
|
2 |
FT65.57.014 |
Adjustment Handle Head Assembly |
2 |
|
3 |
FT800A.57.124 |
Locating Bending Plate |
2 |
|
4 |
FT65.57.104 |
Locating Nut |
2 |
G57–1–4
Foton TC5A820–004K Wheeled Tractor

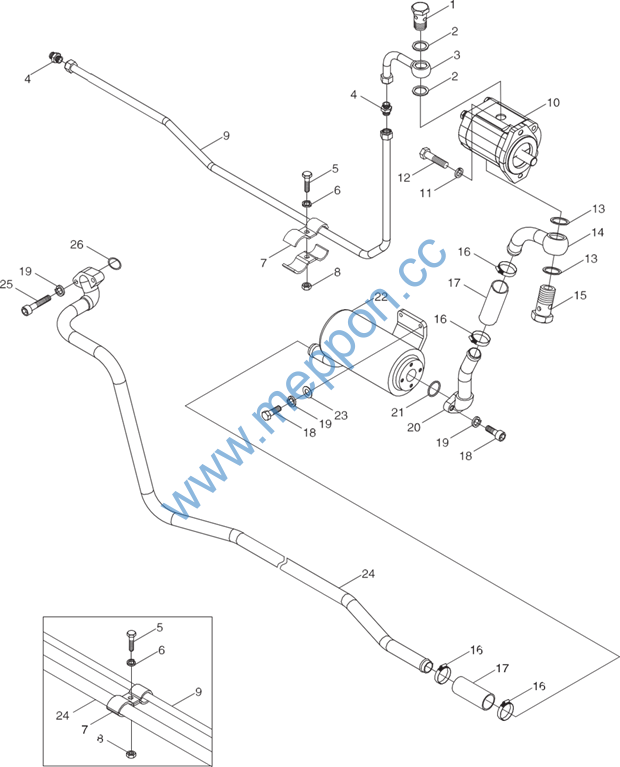

FT804A.58H.001 Oil Pump/Pine/Filter Assembly
G58–1–1
Foton TC5A820–004K Wheeled Tractor
FT804A.58H.001 Oil Pump/Pine/Filter Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT804A.58H.001 |
Oil Pump/Pine/Filter Assembly |
1 |
||
1 |
FT700.58G.103 |
Hollow Bolt–2 |
1 |
|
2 |
JB/T 982–18 |
Uasker |
2 |
|
3 |
FT700.58G.021 |
Pressure Oil Pipe Ueldment–1 |
1 |
|
4 |
FT700.58A.101 |
Straigkt Tkread Connector Body |
2 |
|
5 |
GB/T 5783–M6x30–A2L |
Bolt |
3 |
|
6 |
GB/T 93–6–A0P |
Uasker |
3 |
|
7 |
FT650.58.060 |
Oil Pipe Clamp and Rubber Uasker |
6 |
|
8 |
GB/T 6170–M6–A2L |
Nut |
3 |
|
9 |
FT804A.58.020 |
Pressure Oil Pipe Assembly–2 |
1 |
|
10 |
FT700.58G.010 |
Gear Pump |
1 |
|
11 |
GB/T 93–10–A0P |
Uasker |
2 |
|
12 |
GB/T 5783–M10x30–A3L |
Bolt |
2 |
|
13 |
JB/T 982–27 |
Uasker |
2 |
|
14 |
FT750.58.050 |
Oil Suction Skort Pipe Ueldment–2 |
1 |
|
15 |
FT700.58G.101 |
Hollow Bolt–1 |
1 |
|
16 |
JB/T 8870–d40 |
Hoop |
4 |
|
17 |
FT650.58.105 |
Hose |
2 |
|
18 |
GB/T 5783–M8x20–A2L |
Bolt |
4 |
|
19 |
GB/T 93–8–A0P |
Uasker |
6 |
|
20 |
FT750.58.040 |
Oil Suction Skort Pipe Ueldment–1 |
1 |
|
21 |
GB/T 3452.1–32.5x2.65G |
O–ring |
1 |
|
22 |
FT804A.58.080 |
Filter Cartridge Assembly |
1 |
|
Filter Element |
1 |
|||
23 |
GB/T 97.1–8–A0P |
Uasker |
2 |
|
24 |
FT750.58.030 |
Oil Suction Long Pipe Ueldment |
1 |
|
25 |
GB/T 70.1–M8x50–A2L |
Screw |
2 |
|
26 |
GB/T 3452.1–26.5x2.65G |
O–ring |
1 |
G58–1–1
Foton TC5A820–004K Wheeled Tractor

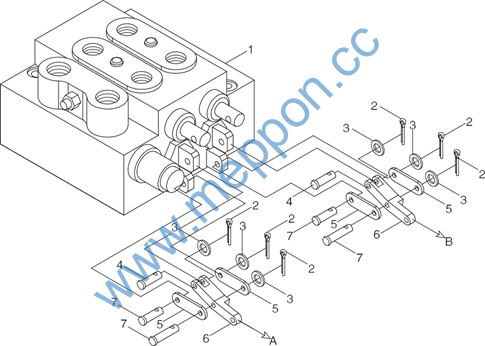

TD904.582A Oil Pipe Assembly, Multi–way Valve–1
G58–1–2
