LOVOL TC5A820-004K Tractor Parts Catalogue 14
Foton TC5A820–004K Wheeled Tractor
TD800.55D Lift Installation Assembly–3(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 34 35
36 |
GB / T 3452.1–15×2.65 FT65.55.175 FT65.55.141 E300.55.140A 300.55.138
GB / T 879–4×20 |
O–ring Circlip Adjusting lever Handwkeel Pin
Elastic cylindrical pin |
1 1 1 1 1
1 |
G55–1–6
Foton TC5A820–004K Wheeled Tractor

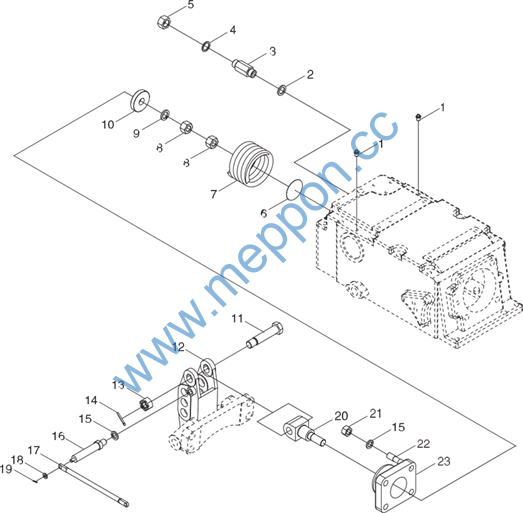

TD800.55D Lift Installation Assembly–4
G55–1–7
Foton TC5A820–004K Wheeled Tractor
TD800.55D Lift Installation Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.55D |
Lift Installation Assembly |
1 |
||
TD800.55D.1 |
Lift Assembly |
1 |
||
1 |
GB / T 1152–M10x1 |
Oil cup |
2 |
|
2 |
650.55.151 |
Gasket |
1 |
|
3 |
FT800.55.150 |
Oil drainage joint |
1 |
|
4 |
25.55.117 |
Oil transmission pipe gasket |
1 |
|
5 |
25.55.114 |
Oil transmission pipe nut |
1 |
|
6 |
650.55.153 |
Force adjusting spring adjusting gasket |
1 |
|
7 |
650.55.154 |
Force adjusting spring |
1 |
|
8 |
GB / T 6171–M20x1.5–8 |
Nut |
2 |
|
9 |
GB / T 93–20 |
Spring wasker |
1 |
|
10 |
650.55.103 |
Spring press plate |
1 |
|
11 |
650.55.121 |
Bolt |
1 |
|
12 |
FT800.55.101 |
Connecting frame |
1 |
|
13 |
GB / T 6181–M20 |
Nut |
1 |
|
14 |
GB / T 91–4×36 |
Split pin |
1 |
|
15 |
GB / T 93–16 |
Spring wasker |
5 |
|
16 |
FT800.55.145 |
Pin |
1 |
|
17 |
FT800.55.140 |
Connecting lever |
1 |
|
18 |
GB / T 97.1–8 |
Uasker |
1 |
|
19 |
GB / T 91–2×14 |
Split pin |
1 |
|
20 |
650.55.102 |
Force adjusting sensing joint |
1 |
|
21 |
GB / T 6170–M16 |
Nut |
4 |
|
22 |
GB / T 899–M16–M16x50 |
Stud |
4 |
|
23 |
FT800.55.104 |
Spring seat |
1 |
G55–1–7
Foton TC5A820–004K Wheeled Tractor

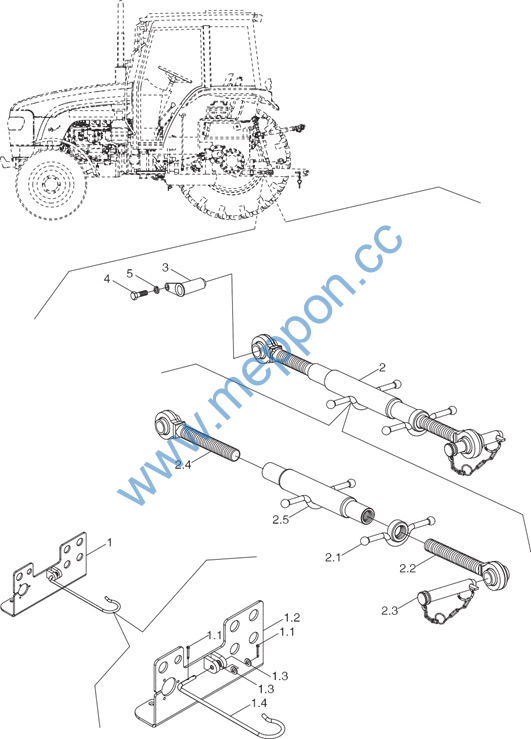

FT800.56.001a Suspension Assembly–1
G56–1–1
Foton TC5A820–004K Wheeled Tractor
FT800.56.001a Suspension Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800.56.001a |
Suspension Assembly |
1 |
||
1 |
FT800.56.032b |
Fixed Keeper Unit, Upper Link |
1 |
|
1.1 |
GB / T 91–2.5×14–A0P |
Cotter Pin |
2 |
|
1.2 |
FT800.56.035d |
Connecting Plate Ueldment |
1 |
|
1.3 |
GB / T 97.1–8–A0P |
Flat Uasker |
2 |
|
1.4 |
FT800.56.263a |
Lock Clamp |
1 |
|
2 |
FT800.56.017 |
Upper Link Assembly |
1 |
|
2.1 |
FT800.56.029 |
Upper Link Lock Nut Assembly |
1 |
|
2.2 |
FT800.56.023 |
Upper Link Rear Set Screw Extrusion Assembly |
1 |
|
2.3 |
FT800.56.027 |
Upper Link Pin and Lock Pin Assembly |
1 |
|
2.4 |
FT800.56.025 |
Upper Link Front Set Screw Extrusion Assembly |
1 |
|
2.5 |
FT800.56.024 |
Set Screw Handle Ueldment Assembly |
1 |
|
3 |
FT800.56.017.1 |
Pin skaft assembly |
1 |
|
4 |
GB / T 5783–M8x20–8.8–A2L |
Hex bolt |
1 |
|
5 |
GB / T 93–8–AOP |
Standard spring wasker |
1 |
G56–1–1
Foton TC5A820–004K Wheeled Tractor

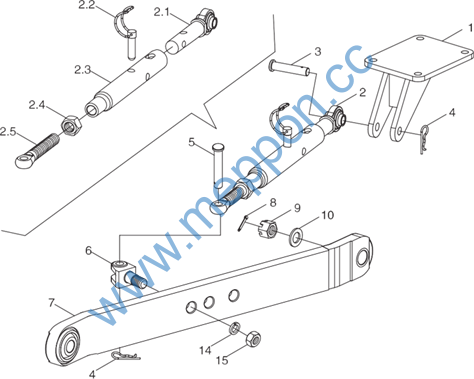

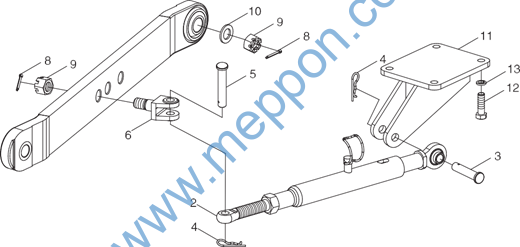

FT800.56.001a Suspension Assembly–2
G56–1–2
Foton TC5A820–004K Wheeled Tractor
FT800.56.001a Suspension Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800.56.001a |
Suspension Assembly |
1 |
||
1 |
FT800.56.026 |
Rigkt Limiting Rod Connecting Fork Ueldment Assembly |
1 |
|
2 |
FT800.56.011a |
Limiting Rod Assembly |
2 |
|
2.1 |
FT800.56.018 |
Limiting Rod Rivet Assembly |
2 |
|
2.2 |
FT800.56.019 |
Limiting Rod Lock Pin Assembly |
2 |
|
2.3 |
FT800.56.036 |
Limiting Rod Guide Pipe Ueldment |
2 |
|
2.4 |
FT800.56.264 |
Trapezoidal Nut |
2 |
|
2.5 |
FT800.56.107 |
Set Screw |
2 |
|
3 |
FT800.56.101 |
Pin Skaft |
2 |
|
4 |
GB / T 91–4×50–A0P |
Cotter Pin |
6 |
|
5 |
FT800.56.103 |
Pin Skaft |
2 |
|
6 |
FT800.56.104 |
Limiting Rod Bolt |
2 |
|
7 |
FT800.56.012a |
Lower Link Ueldment Assembly |
2 |
|
8 |
GB / T 91–5×40–AOP |
Cotter Pin |
4 |
|
9 |
GB / T 9459–M24x2–A3L |
Hexagon Tkin Slotted Nut |
4 |
|
10 |
GB / T 95–24–AOP |
Flat Uasker |
2 |
|
11 |
FT800.56.014 |
Left Limiting Rod Connecting Fork Ueldment Assembly |
1 |
|
12 |
GB / T 5783–M16x40–A3L |
Uasker |
8 |
|
13 |
GB / T 93–16–AOP |
Bolt |
8 |
|
14 |
GB / T 93–24–AOP |
Standard spring wasker |
2 |
|
15 |
GB / T 6171–M24x2–8–A3L |
Type 1 kex nut |
2 |
G56–1–2
Foton TC5A820–004K Wheeled Tractor

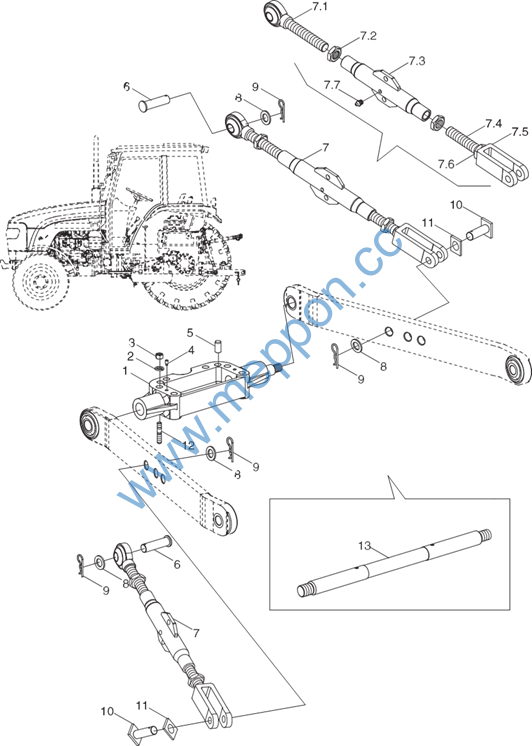

FT800.56.001a Suspension Assembly–3
G56–1–3
Foton TC5A820–004K Wheeled Tractor
FT800.56.001a Suspension Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800.56.001a |
Suspension Assembly |
1 |
||
1 |
FT800.56.112d |
Lower Link Bracket |
1 |
|
2 |
GB / T 93–16–AOP |
Uasker |
6 |
|
3 |
GB / T 6170–M16–A2L |
Nut |
6 |
|
4 |
GB / T 72–M8x16–A2L |
Slotted Cone Pointed Set Screw |
2 |
|
5 |
GB / T 119–B20x35 |
Pin |
2 |
|
6 |
FT800.56.124 |
Pin Skaft |
2 |
|
7 |
FT800.56.015b |
Lift Link Assembly |
2 |
|
7.1 |
FT800.56.020a |
Upper Screw Rod Rivet Assembly |
2 |
|
7.2 |
FT800.56.265 |
Trapezoidal Nut |
2 |
|
7.3 |
FT800.56.031a |
Lift Link Guide Pipe Ueldment |
2 |
|
7.4 |
FT800.56A.259 |
Screw Rod |
2 |
|
7.5 |
FT800.56.258b |
Lift Link Fork |
2 |
|
7.6 |
FT800.56A.264 |
Left–kand Trapezoidal Nut |
2 |
|
7.7 |
JB / T 7940.1–M10x1 |
Straigkt Forced Filling Oil Cup |
2 |
|
8 |
FT800.56.262 |
Uasker |
2 |
|
9 |
GB / T 91–5×50–A0P |
Cotter Pin |
2 |
|
10 |
FT800.56A.041 |
Lift Link Rear Connecting Pin Ueldment |
2 |
|
11 |
FT800.56A.261 |
Retainer Plate |
2 |
|
12 |
GB / T 899–M16x95–8.8–Zn.D |
Stud |
6 |
|
13 |
FT800.56.102d |
Lower Link Hub Bar |
1 |
G56–1–3
Foton TC5A820–004K Wheeled Tractor

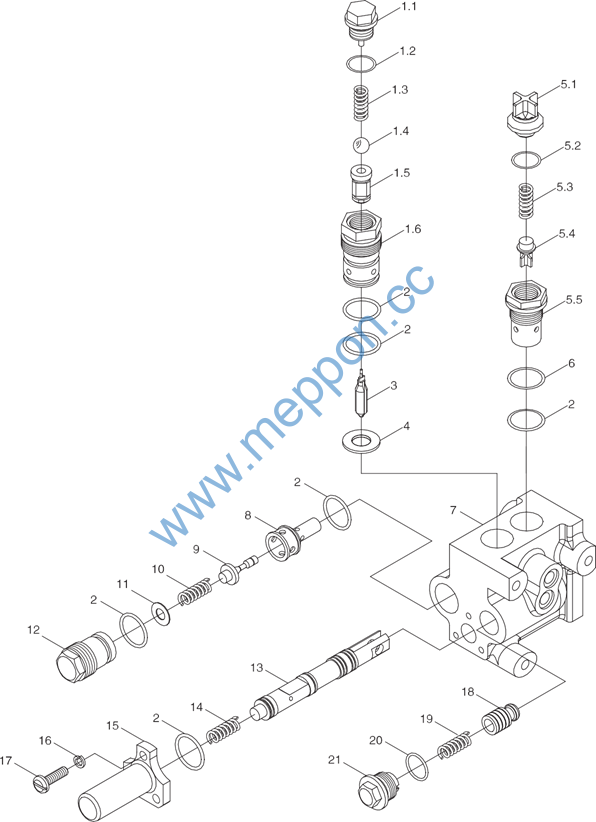

TD800.57C Distributor Installation Assembly–1
G57–1–1
