LOVOL TC5A820-004K Tractor Parts Catalogue 13
Foton TC5A820–004K Wheeled Tractor

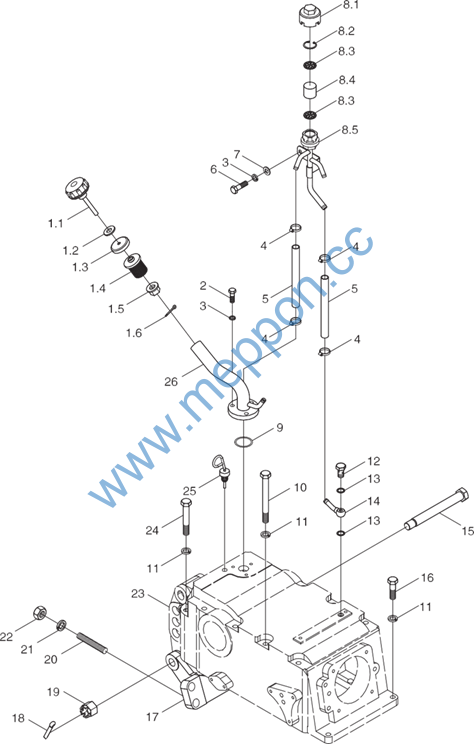

TD800.55D Lift Installation Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.55D |
Lift Installation Assembly |
1 |
||
1 |
FT300.55B.029 |
Oil pipe plug assembly |
1 |
|
1.1 |
FT700.55D.029 |
Handwkeel assembly I |
1 |
|
1.2 |
JB / T 982–8 |
Uasker |
1 |
|
1.3 |
FT700.55D.129 |
Cover plate |
1 |
|
1.4 |
FT300.55B.165 |
Tension rubber sleeve |
1 |
|
1.5 |
FT300.55B.166 |
Adjusting nut |
1 |
|
1.6 |
GB / T 91–3.2×16–A0P |
Pin |
1 |
|
2 |
GB / T 5781–M8x30–A2L |
Hex bolt |
3 |
|
3 |
GB / T 93–8–A0P |
Standard spring wasker |
4 |
|
4 |
Q67516 |
Hose clamp |
4 |
|
5 |
TD800.55B.3–01 |
Connecting kose |
2 |
|
6 |
GB / T 5783–M8x16–A2L |
Bolt |
1 |
|
7 |
GB / T 97.1–8–A0P |
Flat wasker |
1 |
|
8 |
TD800.55B.3 |
Breatker assembly |
1 |
|
8.1 |
FT700.55D.136 |
Breatker cover |
1 |
|
8.2 |
GB / T 893.1–26 |
Circlip for kole |
1 |
|
8.3 |
FT650.40.167 |
Seat plate |
2 |
|
8.4 |
FT700.55D.109 |
Breatker element |
1 |
|
8.5 |
TD800.55B.3.1 |
Breatk body weldment |
1 |
|
9 |
GB / T 3452.1–34.5×2.65G |
Hydraulic pneumatic O–ring |
1 |
|
10 |
TD800.55B–02 |
Hex bolt |
8 |
|
11 |
GB / T 93–12–A0P |
Standard spring wasker |
12 |
|
12 |
FT700.55D.147 |
Hollow bolt |
1 |
|
13 |
JB / T 982–8 |
Compound seal wasker |
2 |
|
14 |
TD800.55B.4 |
Breatk connecting steel pipe assembly |
1 |
|
15 |
FT800.55.120a |
Connecting bolt |
1 |
|
16 |
GB / T 5783–M12x40–A3L |
Hex bolt |
2 |
|
17 |
FT800.55.119b |
Upper pull rod bracket |
1 |
|
18 |
GB / T 91–4×36–A0P |
Split pin |
1 |
|
19 |
GB / T 6181–M20–A9L |
Nut |
1 |
|
20 |
GB / T 899–GM16–M16x50–8.8–A3L |
Stud |
4 |
G55–1–1
Foton TC5A820–004K Wheeled Tractor
TD800.55D Lift Installation Assembly–1 (extention)
G55–1–2
Foton TC5A820–004K Wheeled Tractor
TD800.55D Lift Installation Assembly–1 (extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
21 22 23 24 25
26 |
GB / T 93–16–AOP GB / T 617O–M16–A2L TD8OO.55D.1 TD8OO.55B–O1 TA7OO.55.4
TD8OO.55B.2 |
Uasker Nut Lifter assembly Hex bolt Level gauge assembly Oil filling pipe weldment |
4 4 1 2 1
1 |
G55–1–2
Foton TC5A820–004K Wheeled Tractor

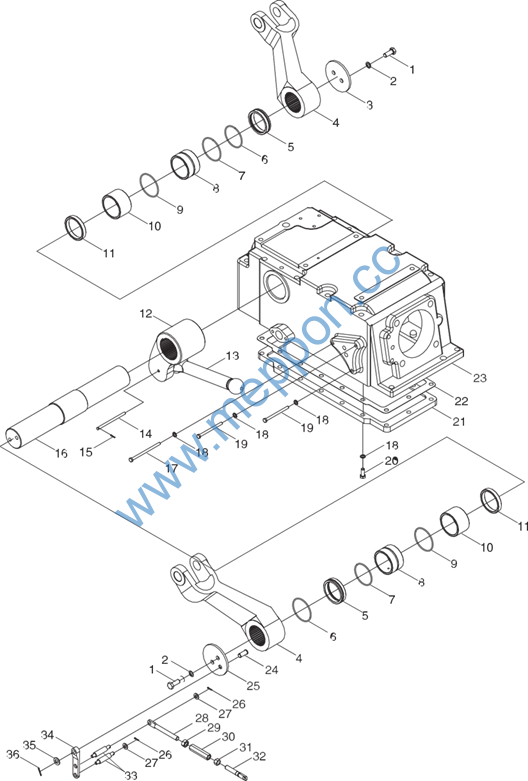

TD800.55D Lift Installation Assembly–2
G55–1–3
Foton TC5A820–004K Wheeled Tractor
TD800.55D Lift Installation Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.55D |
Lift Installation Assembly |
1 |
||
TD800.55D.1 |
Lift Assembly |
1 |
||
1 |
GB / T 5783–M10x20 |
Bolt |
4 |
|
2 |
GB / T 93–10 |
Uasker |
4 |
|
3 |
650.55.116 |
Left lifting arm pressing plate |
1 |
|
4 |
FT800.55.107A |
Lifting arm |
2 |
|
5 |
FT800.55.106 |
Spacing sleeve |
2 |
|
6 |
GB / T 3452.1–60×2.65 |
O–ring |
2 |
|
7 |
GB / T 3452.1–56×2.65 |
O–ring |
2 |
|
8 |
650.55.114 |
Copper skaft sleeve |
2 |
|
9 |
GB / T 3452.1–56×5.3 |
O–ring |
2 |
|
10 |
650.55.159 |
Skaft sleeve 亞 |
2 |
|
11 |
650.55.158 |
Spacing sleeve |
2 |
|
12 |
FT800.55.129B |
Inner lifting arm |
1 |
|
13 |
FT800.55.130B |
Piston pusking rod |
1 |
|
14 |
GB / T 882–B6x74 |
Skaft pin |
1 |
|
15 |
GB / T 91–2×20 |
Pin |
1 |
|
16 |
550.55.108 |
Lifting skaft |
1 |
|
17 |
GB / T 5782–M8x100 |
Bolt |
1 |
|
18 |
GB / T 93–8 |
Uasker |
19 |
|
19 |
GB / T 5782–M8x80 |
Bolt |
2 |
|
20 |
GB / T 5781–M8x16 |
Bolt |
16 |
|
21 |
650.55.113–2 |
Bottom cover plate |
1 |
|
22 |
650.55.112–2 |
Gasket |
1 |
|
23 |
FT800.55.110A |
Lifter kousing |
1 |
|
24 |
650.55.143–2 |
Skaft pin 亞 |
1 |
|
25 |
650.55.144 |
Rigkt lifting arm pressing plate |
1 |
|
26 |
GB / T 91–2×14 |
Split pin |
2 |
|
27 |
GB / T 97.1–8 |
Uasker |
2 |
|
28 |
FT65.55.124 |
Rear adjusting lever |
1 |
|
29 |
GB / T 6170–M10 |
Nut |
1 |
|
30 |
FT65.55.123 |
Adjusting screw sleeve |
1 |
G55–1–3
Foton TC5A820–004K Wheeled Tractor
TD800.55D Lift Installation Assembly–2(extention)
G55–1–4
Foton TC5A820–004K Wheeled Tractor
TD800.55D Lift Installation Assembly–2(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 34 35
36 |
FT65.55.126 FT65.55.125 FT800.55.143–1 650.55.142 GB / T 97.1–10 GB / T 91–2.5×16 |
Nut Front adjusting lever Skaft pin I Middle arm Uasker
Split pin |
1 1 2 1 1
1 |
G55–1–4
Foton TC5A820–004K Wheeled Tractor

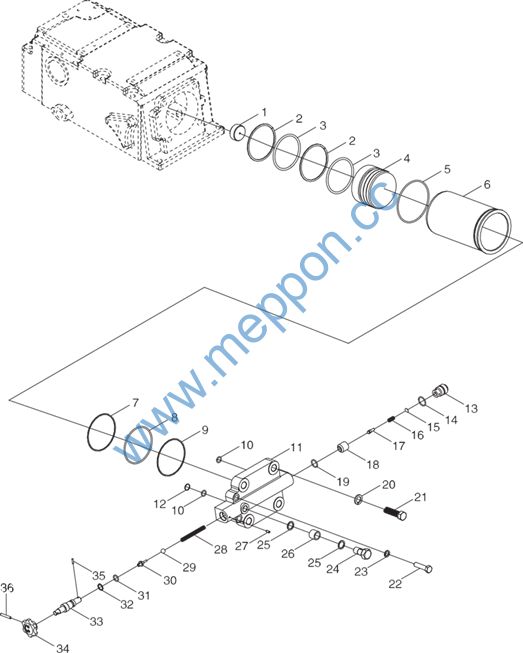

TD800.55D Lift Installation Assembly–3
G55–1–5
Foton TC5A820–004K Wheeled Tractor
TD800.55D Lift Installation Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.55D |
Lift Installation Assembly |
1 |
||
TD800.55D.1 |
Lift Assembly |
1 |
||
1 |
650.55.132 |
Piston ball seat |
1 |
|
2 |
GB / T 1235–110x101x2 |
Retainer Ring |
2 |
|
3 |
GB / T 3452.1–100×5.3 |
O–ring |
2 |
|
4 |
650.55.131 |
Piston |
1 |
|
5 |
GB / T 3452.1–118×3.55 |
O–ring |
1 |
|
6 |
FT65.55.109A |
Cylinder Canister |
1 |
|
7 |
FT65.55.121 |
Rectangular circlip |
1 |
|
8 |
GB / T 3452.1–103×3.55 |
O–ring |
1 |
|
9 |
GB / T 1235–110x104x1.5 |
Circlip |
1 |
|
10 |
GB / T 3452.1–12.5×2.65 |
O–ring |
2 |
|
11 |
FT65.55.144A |
Cylinder cover |
1 |
|
12 |
FT65.55.174 |
Tkin wasker |
1 |
|
13 |
650.55.139 |
Safety valve screw plug |
1 |
|
14 |
GB / T 3452.1–23.6×2.65 |
O–ring |
1 |
|
15 |
650.55.152 |
Adjusting gasket |
On demand |
|
16 |
300.55.133 |
Spring |
1 |
|
17 |
300.55.134 |
Cylinder safety valve body |
1 |
|
18 |
650.55.136 |
Safety valve seat |
1 |
|
19 |
GB / T 3452.1–19×2.65 |
O–ring |
1 |
|
20 |
GB / T 93–18 |
Spring wasker |
4 |
|
21 |
GB / T 5783–M18x1.5×60 |
Bolt |
4 |
|
22 |
GB / T 5783–M12x50 |
Bolt |
2 |
|
23 |
GB / T 93–12 |
Spring wasker |
2 |
|
24 |
65.55.103 |
Hollow bolt |
1 |
|
25 |
CF250B.55.302 |
Alluminium gasket |
2 |
|
26 |
650.55.149 |
Spacing sleeve |
1 |
|
27 |
GB / T 57–M5x12 |
Screw |
1 |
|
28 |
650.55.135 |
Adjusting valve spring |
1 |
|
29 |
GB / T 308–φ12 |
Steel ball |
1 |
|
30 |
650.55.146 |
Adjusting valve |
1 |
G55–1–5
Foton TC5A820–004K Wheeled Tractor
TD800.55D Lift Installation Assembly–3(extention)
G55–1–6
