LOVOL TC2A704-001K Tractor Parts Catalogue 13
Foton TC2A400-004K Wheeled Tractor
TB550.483 Harness Installation Assembly, Front Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.483 |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
TB550.483.1 |
Front lamp harness assembly |
1 |
|
2 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
3 |
|
3 |
GB/T 93-6-A0P |
Standard spring washer |
3 |
|
4 |
GB/T 97.1-6-A0P |
Flat washer |
3 |
|
5 |
FT65.48.340 |
Horn assembly |
1 |
|
6 |
GB/T 5783-M6×16-8.8-A2L |
Hex bolt |
1 |
|
7 |
GB/T 97.1-8-A0P |
Flat washer |
2 |
|
8 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
9 |
GB/T 5783-M8×16-8.8-A2L |
Hex bolt |
2 |
|
10 |
GB/T 818-M5×14-4.8-A2L |
Cross recessed pan head screw |
1 |
|
11 |
TB400.483-01 |
Harness buckle |
1 |
|
12 |
GB/T 97.1-5-A0P |
Flat washer |
1 |
|
13 |
GB/T 93-5-A0P |
Standard spring washer |
1 |
|
14 |
GB/T 6170-M5-8-A2L |
Type 1 hex nut |
1 |
|
15 |
FT65.48.097 |
Harness fixing clip (2) |
6 |
|
16 |
TB550.483.2 |
1 |
115
Foton TC2A400-004K Wheeled Tractor

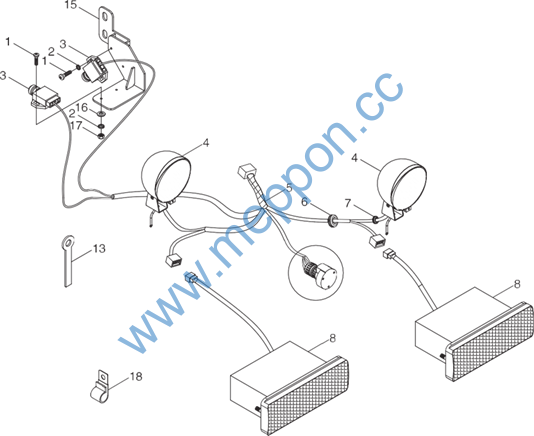

TC02484010000 Rear Lamp Wire Harness Mounting Assy
116
Foton TC2A400-004K Wheeled Tractor
TC02484010000 Rear Lamp Wire Harness Mounting Assy
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02484010000 |
Rear lamp wire harness mounting assy |
1 |
||
1 |
GB/T 818-M4×16-4.8-A2L |
Cross recessed pan head screw |
4 |
|
2 |
GB/T 93-4-A0P |
Standard spring washer |
4 |
|
3 |
TC02484010001 |
Rebound travel switch |
2 |
|
4 |
TB550.484.3 |
Rear lamp assy |
2 |
|
5 |
TB550.484.1 |
Rear lamp harness assy |
1 |
|
6 |
FT65.48.093 |
Threading rubber ring (A) |
2 |
|
7 |
FT65.48.094 |
Threading rubber ring (B) |
2 |
|
8 |
TB550.484.4 |
Rear tail lamp assy |
2 |
|
9 |
TD900.484.2 |
Rear trailer socket |
1 |
|
10 |
GB/T 818-M5×35-4.8-A1L |
Cross recessed pan head screw |
3 |
|
11 |
GB/T 97.1-5-A0P |
Flat washer |
3 |
|
12 |
GB/T 93-5-A0P |
Standard spring washer |
3 |
|
13 |
TA600.486-01 |
Wire harness fixing clamp |
2 |
|
14 |
GB/T 6170-M5-8-A2L |
Hexagon nut , Style 1 |
3 |
|
15 |
TC02484010002 |
Mounting bracket assembly, rebound travel switch |
1 |
|
16 |
GB/T 97.1-4-A0P |
Flat washer |
2 |
|
17 |
GB/T 6170-M4-8-A2L |
Hexagon nut , Style 1 |
2 |
|
18 |
FT800A.48L.106 |
Harness clip |
1 |
117
Foton TC2A400-004K Wheeled Tractor

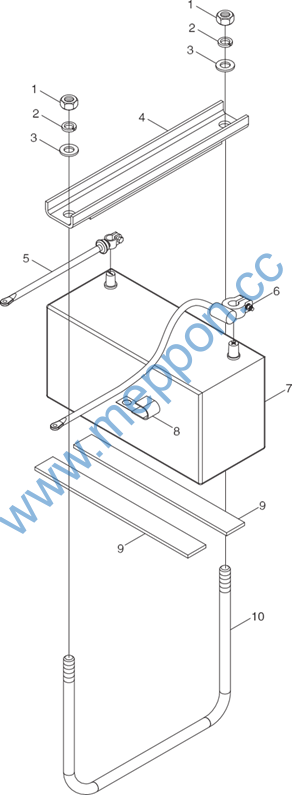

TB450.485A Battery Installation Assembly
118
Foton TC2A400-004K Wheeled Tractor
TB450.485A Battery Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170-M8-A2L |
Nut |
2 |
|
2 |
GB/T 93-8-A0P |
Washer |
2 |
|
3 |
GB/T 97.1-8-A0P |
Washer |
2 |
|
4 |
TG1204.485-02 |
Battery press plate |
1 |
|
5 |
TB400.485A.2 |
Battery bonding |
1 |
|
6 |
TB400.485A.1 |
Power source wire assembly |
1 |
|
7 |
FT450.48.010 |
Maintenance free lead acid battery |
1 |
|
8 |
FT65.48.095 |
Harness fixing clamp (1) |
1 |
|
9 |
TB450.485.1 |
Battery shock absorbing mat |
2 |
|
10 |
TG1204.485-01 |
Battery U-shape pull rod |
1 |
119
Foton TC2A400-004K Wheeled Tractor

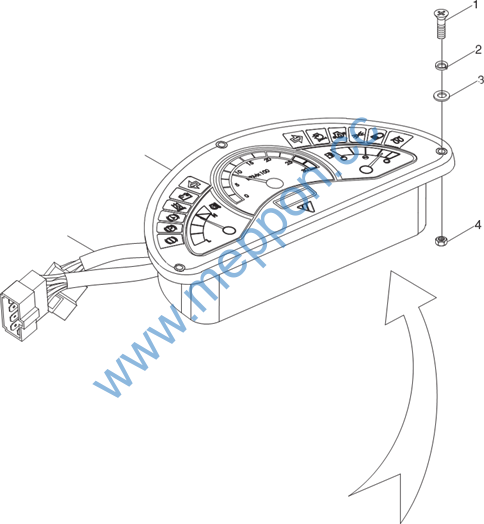

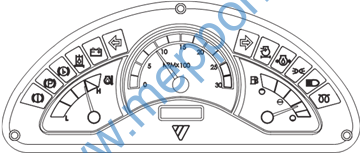

TB550.487 Compound Instrument Assembly
120
Foton TC2A400-004K Wheeled Tractor
TB550.487 Compound Instrument Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.487 |
Compound instrument assembly |
1 |
||
1 |
GB/T 818-M5×25-4.8-A2L |
Cross recessed pan head screw |
3 |
|
2 |
GB/T 93-5-A0P |
Standard spring washer |
3 |
|
3 |
GB/T 95-5-A0P |
Flat washer |
3 |
|
4 |
GB/T 6170-M5-8-A2L |
Type 1 hex nut |
3 |
|
5 |
TB450.487E.1 |
Compound instrument assembly |
1 |
|
6 |
TB550.487.1 |
Transit wire assembly |
1 |
