Label

Part code and specifications

Part name

Page code

A    Engine matching part

1

TB550.11B

Air Cleaner Assembly

2

2

TB550.13Q

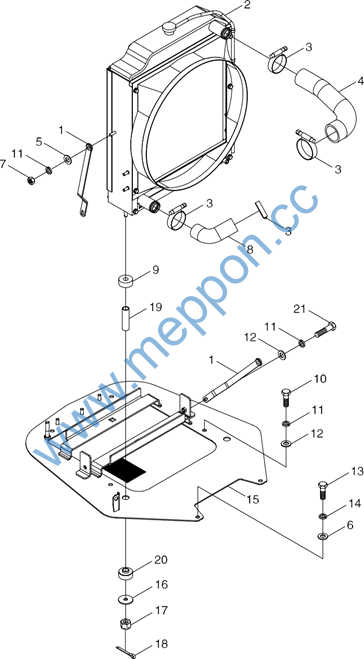

Cooling System Assembly

4

3

TB400.201F

Handle Throttle Assembly

6

4

TB400.202G

Foot Throttle Assembly

8

5

TB400.203F

Throttle Wire Assembly

10

6

TB550.22A

Exhaust System Assembly

12

B    Drive line part

7

TB550.211A

Clutch Subassembly

14

8

TB504.212

Clutch Control Mechanism Assembly

16

9

TB400.371

Gearbox Housing Assembly

18

10

TB550.372

Main Gear Assembly-1

20

11

TB550.372

Main Gear Assembly-2

22

12

TB550.373

Gearbox Assistant Gear Assembly

24

13

TB550.374B

Gearbox Control Mechanism Assembly-1

26

14

TB550.374B

Gearbox Control Mechanism Assembly-2

28

15

TB554.381

Shuttle Gearshift Assembly

30

16

TB554.382

Rear Axle Central Transmission Assembly-1

32

17

TB554.382

Rear Axle Central Transmission Assembly-2

34

18

TB554.383D

Differential Lock Control Mechanism Assembly

36

19

TB554.384

Rear Axle Housing Assembly

38

20

TB554.385

Shuttle Shift Mechanism Assembly

40

21

TB550.391

Left Final Transmission Assembly

42

22

TB550.392

Right Final Transmission Assembly

44

23

TB550.411A

PTO Gear Assembly

46

24

TB550.412

PTO Shaft Assembly

48

Label

Part code and specifications

Part name

Page code

25

TB550.413D

PTO Control Assembly

50

26

TB554.421B

Transfer Case Body Assembly

52

27

TB554.421B

Transfer Case Body Assembly(extension)

54

28

TB554.422

Transfer Case Transmission Assembly

56

29

TB554.423B

Transfer Case Control Assembly

58

C    Front axle (shaft) part

30

TC02311020000

Front Driving Axle Assembly-1

60

31

TC02311020000

Front Driving Axle Assembly-2

62

32

TC02311020000

Front Driving Axle Assembly-3

64

33

TC02311020000

Front Driving Axle Assembly-4

66

34

TC02311020000

Front Driving Axle Assembly-5

68

35

TC02311020000

Front Driving Axle Assembly-6

70

36

TB554.312

Front Bracket Assembly

72

D    Running system part

37

FT404.32F.001

Front Drive Wheel Assembly

74

38

FT550.34F.001

Rear Driving Wheel Assembly

76

E    Steering system part

39

TC04401030000

Steering Wheel and Steering Column Assembly

78

40

TC02402360000K

Fully Hydraulic Steering Pipeline Assembly-1

80

41

TC02402360000K

Fully Hydraulic Steering Pipeline Assembly-2

82

F    Braking system part

42

TB604.431

Left Brake Assembly

84

43

TB604.432

Right Brake Assembly

86

44

TB604.433

Brake Control Mechanism Assembly-1

88

45

TB604.433

Brake Control Mechanism Assembly-2

90

46

TB450.801A

Pneumatic brake valve mounting assembly

92

47

TB450.802A

Gas holder installation assembly

94

Label

Part code and specifications

Part name

Page code

48

TB550.803Q

Air transfer pipeline assembly

96

G    Hydraulic hitch and work device

49

FT300.35A.001

Towing Mechanism Assembly

98

50

FT300.53.001

Traction Equipment Assembly

100

51

TB504.551A

Lifter Device Fitting Assembly-1

102

52

TB504.551A

Lifter Device Fitting Assembly-1(extension)

104

53

TB504.551A

Lifter Device Fitting Assembly-2

106

54

TB504.551A

Lifter Device Fitting Assembly-3

108

55

TB504.552C

Lifter Control Mechanism Assembly

110

56

FT500A.56B.001

Suspension Mechanism Assembly-1

112

57

FT500A.56B.001

Suspension Mechanism Assembly-2

114

58

TC02581200000K

Oil Pipe Filter Assembly of Oil Pump

116

59

TC04582200000

Multi-way Valve Pipe and Control Mechanism Assembly-1

118

60

TC04582200000

Multi-way Valve Pipe and Control Mechanism Assembly-2

120

61

TC04582200000

Multi-way Valve Pipe and Control Mechanism Assembly-3

122

62

TB300.583A

Single-way Hydraulic Outlet Assembly 2

124

H Cab, driver’s seat, covering panel, etc

63

TB400.44G

Seat Mounting Assembly

126

64

TB600.45P

Driver’s cab assembly-1

128

65

TC02451090000K

Driver’s cab assembly-2

130

66

TC02451090000K

Driver’s cab assembly-3

132

67

TC02451090000K

Driver’s cab assembly-4

134

68

TC02451090000K

Driver’s cab assembly-5

136

69

TC02451090000K

Driver’s cab assembly-5（extension）

138

70

TB550.452H

Floor Assembly-1

140

71

TB550.452H

Floor Assembly-2

142

Label

Part code and specifications

Part name

Page code

72

TB400.457B

Front Connection Assembly

144

73

TB400.458B

Rear Connection Assembly

146

74

TC02471040000K

Bonnet Assembly

148

75

TB400B.473

Bonnet Lock Mechanism Assembly

150

76

TB550.477D

Bonnet Lengthened Plate Assembly

152

77

TB400.49

Tool Kit Assembly

154

78

TB400.50X

Fuel Tank Assembly

156

79

TA600.62

Safety Belt Assembly

158

80

FT300.74A.001

Front Ballast Frame Assembly

160

J Electrical and accessory parts

81

TC02481210000K

Harness Installation Assembly, Engine

162

82

TC02482150000K

Body Wire Harness Mounting Assembly

164

83

TB550.483

Harness Installation Assembly, Front Lamp

166

84

TC02484080000K

Rear Lamp Wire Harness Mounting Assembly

168

85

TB450.485A

Battery Installation Assembly

170

86

TC02487010000K

Combination Instrument Assembly

172

87

TB550.489B

Preheating Device Assembly

174

88

TB400.81

Heater installation assembly

176

No.

Part code and specification

Part name

Quantity

Remark

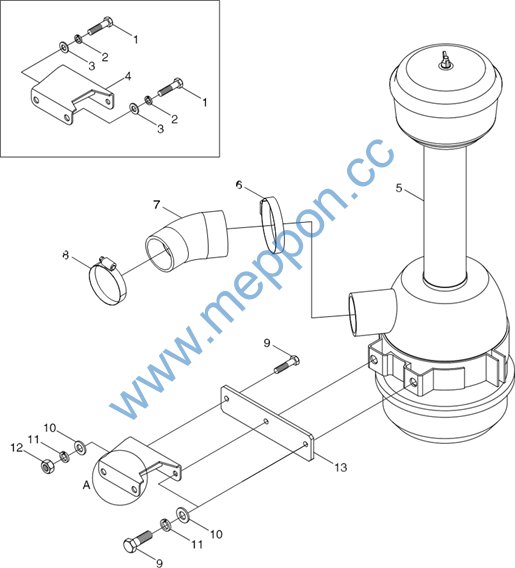

TB550.11B

Air Cleaner Assembly

1

1

GB/T 5783-M10×25-8.8-A3L

Hex bolt

2

2

GB/T 93-10-A0P

Standard spring washer

2

3

GB/T 97.1-10-A0P

Flat washer

2

4

TB550.11B.2

Air filter bracket weldment

1

5

TB550.11Q.1

Air filter assembly

1

6

Q67689

Type-B Worm Drive Hose Clamp

1

7

TB550.11Q-01

Air intake hose

1

8

Q67676

Type-B Worm Drive Hose Clamp

1

9

GB/T 5783-M8×25-8.8-A2L

Hex bolt

3

10

GB/T 97.1-8-A0P

Flat washer

3

11

GB/T 93-8-A0P

Standard spring washer

3

12

GB/T 6170-M8-8-A2L

Type 1 hex nut

1

13

TB550.11B-01

Air filter installation plate

1
