LOVOL TC2A704-001K Tractor Parts Catalogue 12
Foton TC2A400-004K Wheeled Tractor
FT300.74B.001 Front Ballast Frame Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.74B.001 |
Front ballast frame assembly |
1 |
||
1 |
GB/T 899-AM16-M16×90-8.8-A3L |
Double-headed stud |
4 |
|
2 |
GB/T 93-16-AOP |
Washer |
6 |
|
3 |
GB/T 6170-M16-AOP |
Nut |
6 |
|
4 |
GB/T 899-AM16-M16×110-8.8-A3L |
Double-headed stud |
2 |
|
5 |
FT300.74B.101 |
Ballast frame |
1 |
105
Foton TC2A400-004K Wheeled Tractor

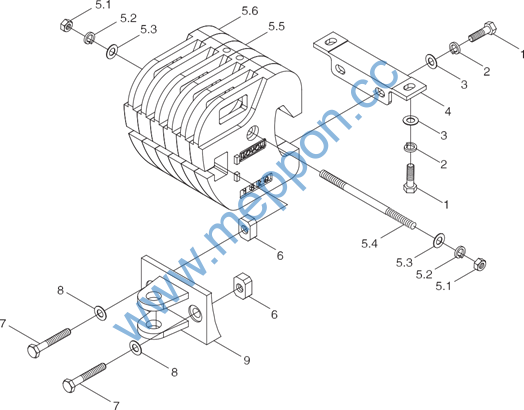

FT304.74A.002 Front counterweight assembly
106
Foton TC2A400-004K Wheeled Tractor
FT304.74A.002 Front counterweight assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT304.74A.002 |
Front counterweight assembly |
1 |
||
1 |
GB/T 5783-M16×35-8.8-A3L |
Hex head bolt |
4 |
|
2 |
GB/T 93-16-A0P |
Standard spring washer |
4 |
|
3 |
GB/T 97.1-16-A0P |
Flat washer |
4 |
|
4 |
FT300.74A.107 |
Fixing bracket |
1 |
|
5 |
FT304.74A.010 |
Front counterweight subassembly |
1 |
|
5.1 |
GB/T 6170-M16-8-A3L |
Hexagon nut , Style 1 |
2 |
|
5.2 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
|
5.3 |
GB/T 97.1-16-A0P |
Flat washer |
2 |
|
5.4 |
FT300.74A.108 |
Connecting bolt |
1 |
|
5.5 |
FT300.74A.105 |
Counterweight block |
2 |
|
5.6 |
FT300.74A.106 |
Counterweight block |
4 |
|
6 |
FT650.74.108 |
Traction nut |
2 |
|
7 |
GB/T 5785-M20×1.5×80-8.8-A3L |
Hex head bolt |
2 |
|
8 |
GB/T 97.1-20-A0P |
Flat washer |
2 |
|
9 |
FT300.74A.100 |
Traction lug |
1 |
107
Foton TC2A400-004K Wheeled Tractor

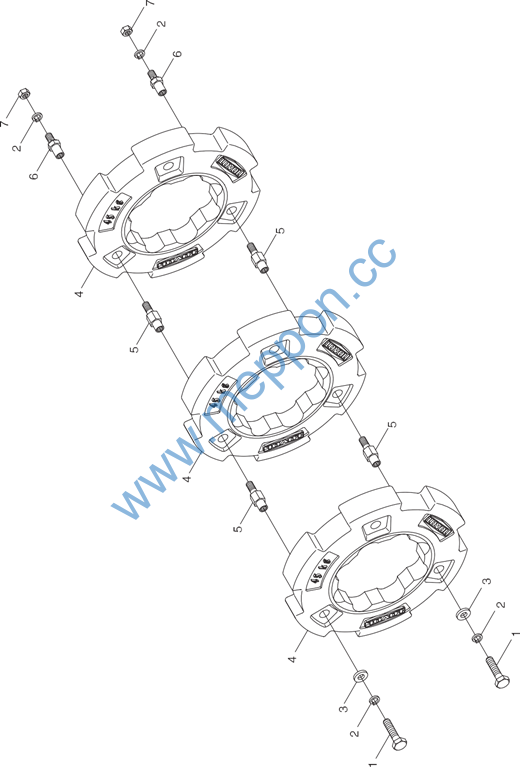

FT300.91.001 Rear Ballast Assembly
108
Foton TC2A400-004K Wheeled Tractor
FT300.91.001 Rear Ballast Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.91.001 |
Rear ballast assembly |
2 |
||
1 |
GB/T 5783-M16×45-A3L |
Bolt |
3 |
|
2 |
GB/T 93-16-AOP |
Washer |
6 |
|
3 |
FT650.34.104 |
Washer |
3 |
|
4 |
FT300.91.101 |
Rear ballast |
3 |
|
5 |
FT650.34.103 |
Rear ballast screw Ⅱ |
6 |
|
6 |
FT400.91.102 |
Rear ballast screw Ⅰ |
3 |
|
7 |
GB/T 6170-M16-A3L |
Nut |
3 |
109
Foton TC2A400-004K Wheeled Tractor

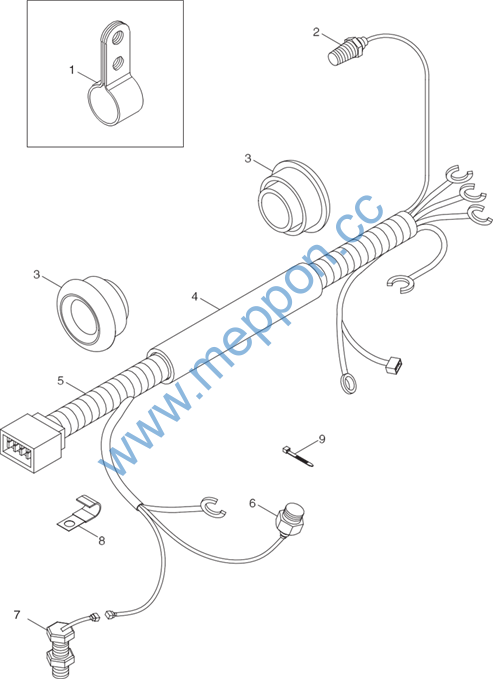

TC02481010000K Harness Installation Assembly, Engine
110
Foton TC2A400-004K Wheeled Tractor
TC02481010000K Harness Installation Assembly, Engine
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02481010000K |
Harness Installation Assembly, Engine |
1 |
||
1 |
FT800.48L.108a |
Fixing clip |
2 |
|
2 |
FT300.48.072 |
Water temperature sensor |
1 |
|
3 |
FT800.48L.107 |
Grommet |
2 |
|
4 |
FT300.48P.102 |
Wire sleeve |
1 |
|
5 |
TC02481010001K |
Engine harness assembly |
1 |
|
6 |
FT300.48.073a |
Oil pressure alarm |
1 |
|
7 |
TB550.481.2 |
Rotating speed sensor |
1 |
|
8 |
FT304.48L.203 |
Harness fastener |
2 |
|
9 |
Q67405100 |
Plastic fastening belt |
2 |
111
Foton TC2A400-004K Wheeled Tractor
TC02482120000K Harness Installation Assembly, Body
112
Foton TC2A400-004K Wheeled Tractor

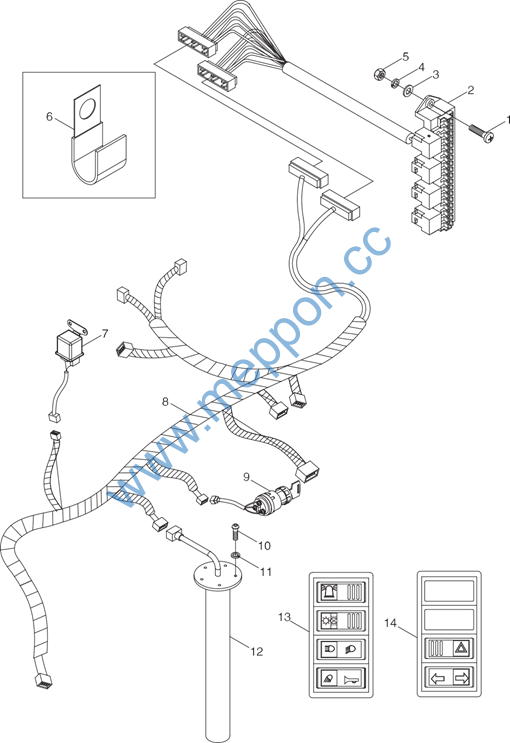

TC02482120000K Harness Installation Assembly, Body
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02482120000K |
Harness installation assembly, body |
4 |
||
1 |
GB/T 818-M6×25-4.8-A2L |
Cross recessed pan head screw |
2 |
|
2 |
TC02482100001K |
Central electric box |
1 |
|
TC02482010004K |
Warning fuse |
2 |
||
TC02482010003K |
Warning fuse |
8 |
||
TC02482010006K |
Warning fuse |
3 |
||
FT300.48D.2.2.1 |
Voltage regulator |
1 |
||
FT300.48.512 |
Main power source relay |
1 |
||
FT300.48.513 |
Electronic flasher |
1 |
||
FT300.48D.2.2.2 |
Preheating relay |
1 |
||
3 |
GB/T 97.1-6-A0P |
Plain washer |
2 |
|
4 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 6170-M6-8-A2L |
Hexagon nut, type 1 |
2 |
|
6 |
FT65.48.095 |
Harness fastener (1) |
1 |
|
7 |
TB450.482.2 |
Starting relay |
1 |
|
8 |
TC02482010001K |
Body harness assembly |
4 |
|
9 |
TB550.482.3 |
Ignition lock |
1 |
|
10 |
GB/T 818-M4×10-4.8-A2L |
Cross recessed pan head screw |
5 |
|
11 |
GB/T 93-4-A0P |
Standard spring washer |
5 |
|
12 |
FT300.48.071a |
Oil amount sensor |
1 |
|
13 |
TB450.482.4 |
Left rocker switch |
1 |
|
14 |
TB450.482N.4 |
Right rocker switch assembly |
1 |
113
Foton TC2A400-004K Wheeled Tractor

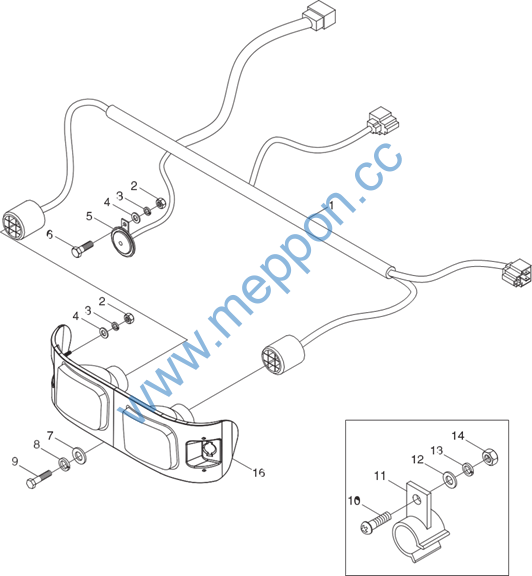

TB550.483 Harness Installation Assembly, Front Lamp
114
