LOVOL TC2A704-001K Tractor Parts Catalogue 11
TB400B.474K Front wall fender assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400B.474K |
Front wall fender assembly |
1 |
||
1 |
GB/T 818-M5×20-4.8-A2L |
Screw |
6 |
|
2 |
GB/T 93-5-A0P |
Spring washer |
6 |
|
3 |
GB/T 96.1-5-A0P |
Flat washer |
6 |
|
4 |
TB400B.474F.1 |
Instrument panel assembly |
1 |
|
5 |
TB400.456A.3 |
Rear-view mirror assembly |
2 |
|
6 |
TB400B.474A.2 |
Left bracket weldment |
1 |
|
7 |
TB400B.474K.1 |
Front wall weldment |
1 |
|
8 |
TB400B.471-30 |
Bonnet air spring |
2 |
|
9 |
TB400B.474A.3 |
Right trestle weldment |
1 |
|
10 |
GB/T 5783-M8×50-A3L |
Bolt |
4 |
|
11 |
GB/T 97.1-8-A0P |
Washer |
4 |
|
12 |
GB/T 93-8-A0P |
Washer |
4 |
|
13 |
GB/T 6170-M8-A3L |
Nut |
4 |
|
14 |
GB/T 5783-M12×30-A3L |
Bolt |
8 |
|
15 |
GB/T 93-12-A0P |
Washer |
16 |
|
16 |
GB/T 97.1-12-A0P |
Washer |
16 |
|
17 |
GB/T 5783-M12×40-A3L |
Bolt |
8 |
|
18 |
FT300.47.038 |
Right pedal assembly |
1 |
|
19 |
FT300.47.015 |
Bonnet trestle base (right) |
1 |
|
20 |
FT300.47.014 |
Bonnet trestle base (left) |
1 |
|
21 |
FT300.47.037 |
Left pedal assembly |
1 |
|
22 |
GB/T 6170-M12-A3L |
Nut |
4 |
|
23 |
GB/T 93-10-A0P |
Washer |
4 |
95
Foton TC2A400-004K Wheeled Tractor

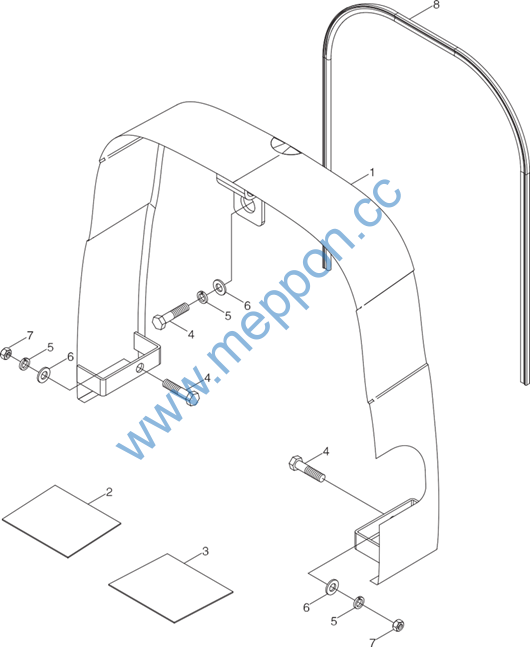

TB550.477B Bonnet Lengthened Plate Assembly
96
Foton TC2A400-004K Wheeled Tractor
TB550.477B Bonnet Lengthened Plate Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.477B |
Bonnet lengthened plate assembly |
1 |
||
1 |
TB550.477B.1 |
Bonnet lengthened plate weldment |
1 |
|
2 |
TB550.477B-01 |
Left decoration strip |
1 |
|
3 |
TB550.477B-02 |
Right decoration strip |
1 |
|
4 |
GB/T 5781-M8×30-A2L |
Bolt |
3 |
|
5 |
GB/T 93-8-A0P |
Washer |
3 |
|
6 |
GB/T 96-8-A0P |
Washer |
3 |
|
7 |
GB/T 6170-M8-A2L |
Nut |
2 |
|
8 |
TB550.477B-03 |
Lengthened plate seal strip |
1 |
97
Foton TC2A400-004K Wheeled Tractor

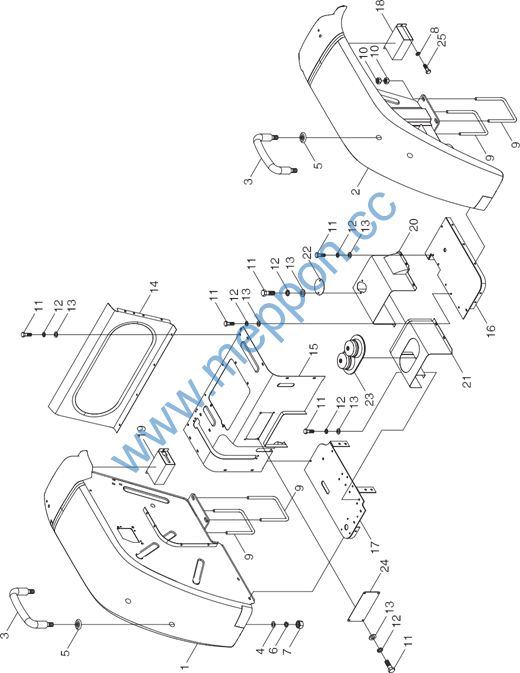

FT300.47E.002 Rear fender fitting assembly
98
Foton TC2A400-004K Wheeled Tractor
FT300.47E.002 Rear fender fitting assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.47E.002 |
Rear fender fitting assembly |
1 |
||
1 |
FT300.47E.034 |
Right fender welding assembly |
1 |
|
2 |
FT300.47E.033 |
Left fender welding assembly |
1 |
|
3 |
FT250.47.163 |
Armrest |
2 |
|
4 |
GB/T 96.1-12-A0P |
Big gasket |
4 |
|
5 |
TE250.45E.5 |
Armrest washer cluster |
4 |
|
6 |
GB/T 93-12-A0P |
Standard spring washer |
4 |
|
7 |
GB/T 6170-M12-8-A3L |
Hexagon nut , Style 1 |
4 |
|
8 |
GB/T 93-10-A0P |
Standard spring washer |
8 |
|
9 |
FT300.47.350 |
U-bolt |
4 |
|
10 |
GB/T 6170-M14-8-A3L |
Hexagon nut , Style 1 |
16 |
|
11 |
GB/T 5783-M6×16-8.8-A2L |
Hex head bolt |
41 |
|
12 |
GB/T 93-6-A0P |
Standard spring washer |
41 |
|
13 |
GB/T 97.1-6-A0P |
Flat washer |
41 |
|
14 |
FT300.47.055 |
Rear fender welding |
1 |
|
15 |
FT300.47.054b |
Seat plate weldment |
1 |
|
16 |
TB450.452A.1 |
Left floor welding assembly |
1 |
|
17 |
TB450.452A.2 |
Right floor welding assembly |
1 |
|
18 |
TB450.45A.1 |
Rear left lamp baffle weldment |
1 |
|
19 |
TB450.45A.2 |
Rear riht lamp baffle weldment |
1 |
|
20 |
FT400.45.039 |
Front U-shaped plate weldment |
1 |
|
21 |
FT300.47.310 |
U-shaped rear plate |
1 |
|
22 |
TB550.452H-25 |
U cover plate |
1 |
|
23 |
FT300.47.361 |
Control lever dust cover |
1 |
|
24 |
TB550.452H-24 |
Rear floor cover |
1 |
|
25 |
GB/T 5783-M10×25-8.8-A3L |
Hex head bolt |
8 |
99
Foton TC2A400-004K Wheeled Tractor

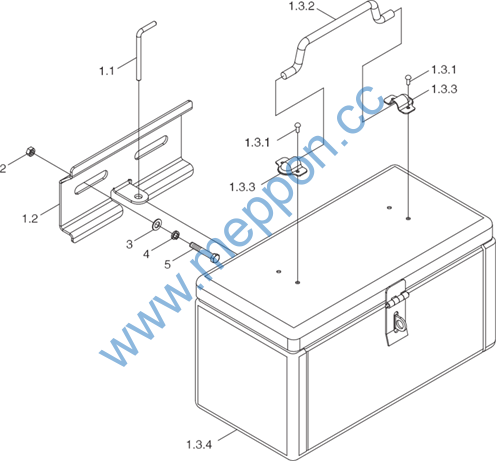

FT300.49.001 Tools Box Assembly
100
Foton TC2A400-004K Wheeled Tractor
FT300.49.001 Tools Box Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.49.001 |
Tool box assembly |
1 |
||
1 |
FT300.49.012 |
Tool box supply assembly |
1 |
|
1.1 |
FT65.49.102 |
Latch |
1 |
|
1.2 |
FT65.49.103 |
Fixing support plate |
1 |
|
1.3 |
TB400.49.1.1 |
Tool box welding and riveting assembly |
1 |
|
1.3.1 |
GB/T 867-4×8 |
Round head rivet |
4 |
|
1.3.2 |
FT65.49.115 |
Handle |
1 |
|
1.3.3 |
FT65.49.101 |
Handle seat |
2 |
|
1.3.4 |
FT300.49.012 |
Tool box welding assembly |
1 |
|
2 |
GB/T 6170-M12-8-A3L |
Type 1 hexagon nut |
2 |
|
3 |
GB/T 97.1-12-A0P |
Flat washer |
2 |
|
4 |
GB/T 93-12-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 5783-M12×35-8.8-A3L |
Hexagon head bolt |
2 |
101
Foton TC2A400-004K Wheeled Tractor

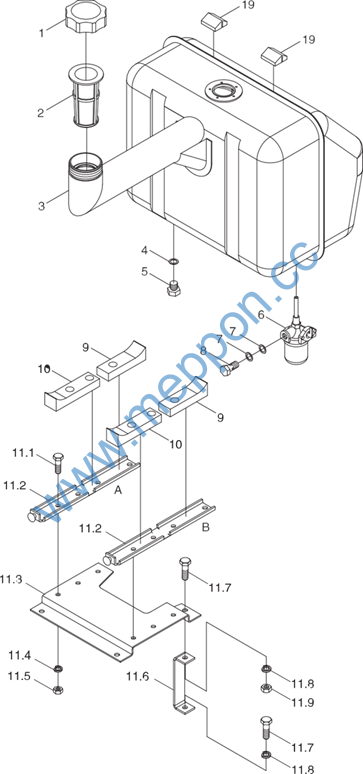

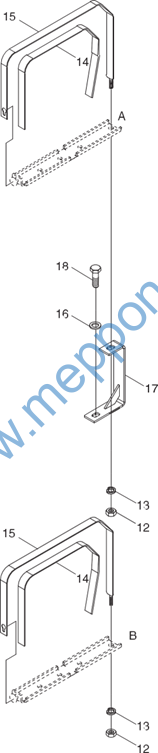

TB550.50Q Fuel Tank and Bracket Assembly
102
Foton TC2A400-004K Wheeled Tractor
TB550.50Q Fuel Tank and Bracket Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.50Q |
Fuel tank and bracket assembly |
1 |
||
1 |
TA650.502.3 |
Fuel tank cover assembly |
1 |
|
2 |
FT300.50.015 |
Filter mesh assembly |
1 |
|
3 |
TB550.50Q.1 |
Fuel tank weldment |
1 |
|
4 |
JB/T 982-16 |
Assembled seal Washer |
1 |
|
5 |
FT65.50.226 |
Oil drain plug |
1 |
|
6 |
FT65.50.033 |
Sediment bowl assembly |
1 |
|
7 |
JB/T 982-14 |
Assembled seal Washer |
2 |
|
8 |
FT65.50.106 |
Hollow bolt |
1 |
|
9 |
FT300.50.111 |
Rear rubber cushion |
2 |
|
10 |
FT300.50.110 |
Front rubber cushion |
2 |
|
11 |
TB550.50Q.2 |
Fuel tank bracket assembly |
1 |
|
11.1 |
GB/T 5783-M8×20-A2L |
Hexagonal head bolt |
6 |
|
11.2 |
TB550.50Q.2.1 |
Fuel tank supporting frame weld |
2 |
|
11.3 |
FT300.50B.124 |
Fuel tank backing plate |
1 |
|
11.4 |
GB/T 93-8-A0P |
Standard spring gasket |
6 |
|
11.5 |
GB/T 6170-M8-A2L |
Hexagon nut style I |
6 |
|
11.6 |
FT300.50.123 |
U-shaped bracket |
1 |
|
11.7 |
GB/T 5783-M10×20-A3L |
Hexagonal head bolt |
4 |
|
11.8 |
GB/T 93-8-A0P |
Standard spring gasket |
4 |
|
11.9 |
GB/T 6170-M10-A3L |
Hexagon nut style I |
1 |
|
12 |
GB/T 6170- M10-A3L |
Nut |
5 |
|
13 |
GB/T 93-10-A0P |
Washer |
5 |
|
14 |
FT404.50.114 |
Main fuel tank cuff rubber cushion |
2 |
|
15 |
TB550.50Q.3 |
Fuel tank cuff weld |
2 |
|
16 |
GB/T 97.1-10-A0P |
Washer |
1 |
|
17 |
FT300.50B.016 |
U-shaped plate weld |
1 |
|
18 |
GB/T 5783-M10×20-A3L |
Bolt |
5 |
|
19 |
FT300.50.112 |
Rubber cushion block |
2 |
103
Foton TC2A400-004K Wheeled Tractor

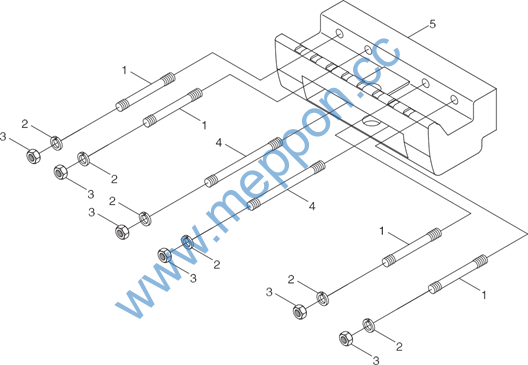

FT300.74B.001 Front Ballast Frame Assembly
