LOVOL TC2A704-001K Tractor Parts Catalogue 08
FT300.43.001 Brake assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.43.001 |
Brake assembly |
1 |
||
1 |
FT300.43.102 |
Bowl plug |
6 |
|
2 |
GB/T 308-18.000-G100-b |
Steel ball |
6 |
|
3 |
FT300.43.103 |
Left brake platen |
1 |
|
4 |
FT300.43.011 |
Brake friction disk assembly |
2 |
|
5 |
FT300.43.105 |
Baffle |
1 |
|
6 |
FT300.43.101 |
O-Ring |
1 |
|
7 |
GB/T 894.1-18 |
Shaft elastic snap ring |
1 |
|
8 |
FT300.43.109a |
Washer |
1 |
|
9 |
GB/T 3452.1-82-18.0×2.65 |
O-Ring |
1 |
|
10 |
FT300.43.012 |
Left brake housing assembly |
1 |
|
10.1 |
FT300.43.114 |
Crank shaft bush |
1 |
|
10.2 |
FT300.43.121 |
Left brake housing |
1 |
|
11 |
FT300.43.106 |
Jaw |
1 |
|
12 |
FT300.43.107 |
Distance sleeve |
1 |
|
13 |
GB/T 3452.1-82-20.0×2.65 |
O-Ring |
1 |
|
14 |
FT300.43.014 |
Left crank assembly |
1 |
|
15 |
FT300.43.153 |
Final transmission oil filling port washer |
1 |
|
16 |
FT300.43.154 |
Screw plug |
1 |
65
Foton TC2A400-004K Wheeled Tractor

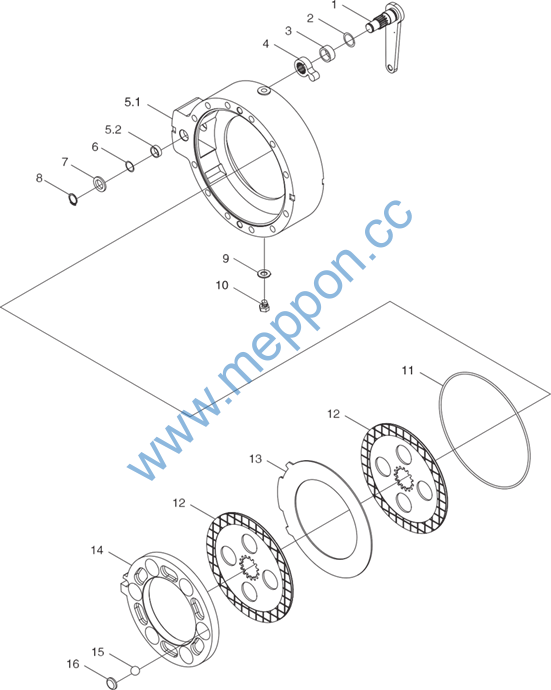

FT300.43.001 Brake assembly-2
66
Foton TC2A400-004K Wheeled Tractor
FT300.43.001 Brake assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.43.001 |
Brake assembly |
1 |
||
1 |
FT300.43.022 |
Right crank assembly |
1 |
|
2 |
GB/T 3452.1-82-20.0×2.65 |
O-Ring |
1 |
|
3 |
FT300.43.107 |
Distance sleeve |
1 |
|
4 |
FT300.43.106 |
Jaw |
1 |
|
5 |
FT300.43.013 |
Right brake housing assembly |
1 |
|
5.1 |
FT300.43.122 |
Right brake housing |
1 |
|
5.2 |
FT300.43.114 |
Crank shaft bush |
1 |
|
6 |
GB/T 3452.1-82-18.0×2.65 |
O-Ring |
1 |
|
7 |
FT300.43.109a |
Washer |
1 |
|
8 |
GB/T 894.1-18 |
Shaft elastic snap ring 18 |
1 |
|
9 |
FT300.43.153 |
Final transmission oil filling port washer |
1 |
|
10 |
FT300.43.154 |
Screw plug |
1 |
|
11 |
FT300.43.101 |
O-Ring |
1 |
|
12 |
FT300.43.011 |
Brake friction disk assembly |
2 |
|
13 |
FT300.43.105 |
Baffle |
1 |
|
14 |
FT300.43.104 |
Right brake platen |
1 |
|
15 |
GB/T 308-18.000-G100-b |
Steel ball |
6 |
|
16 |
FT300.43.102 |
Bowl plug |
6 |
67
Foton TC2A400-004K Wheeled Tractor

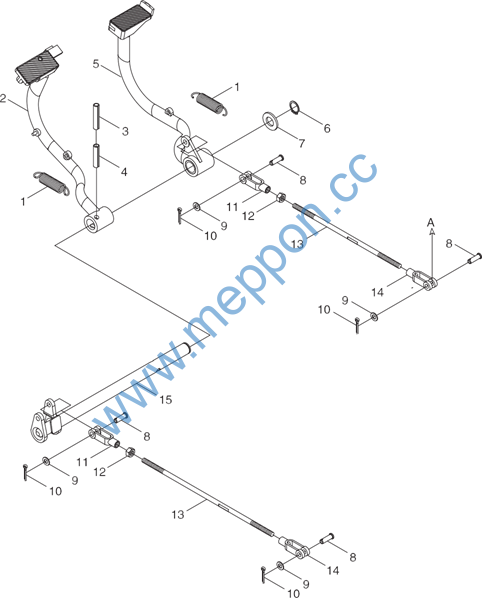

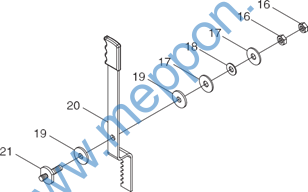

FT300.43.001 Brake assembly-3
68
Foton TC2A400-004K Wheeled Tractor
FT300.43.001 Brake assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.43.001 |
Brake assembly |
1 |
||
1 |
FT300.43.130 |
Pedal return spring |
2 |
|
2 |
FT300.43.015a |
Left brake pedal assembly |
1 |
|
3 |
GB/T 879.1-6×40 |
Elastic straight pin |
1 |
|
4 |
GB/T 879.1-10×40 |
Elastic straight pin |
1 |
|
5 |
FT300.43.016 |
Right brake pedal assembly |
1 |
|
6 |
GB/T 894.1-25 |
Shaft elastic snap ring |
1 |
|
7 |
GB/T 97.1-24-A0P |
Flat washer |
1 |
|
8 |
GB/T 882-B10×28-A0P |
Pin shaft |
4 |
|
9 |
GB/T 97.1-10-A0P |
Flat washer |
4 |
|
10 |
GB/T 91-3.2×16-A0P |
Split pin |
4 |
|
11 |
FT300.43.108 |
Tie rod front fork |
2 |
|
12 |
GB/T 6170-M10-A3L |
Hexagon nut, style I |
2 |
|
13 |
FT300.43.120 |
Tie rod |
2 |
|
14 |
FT300.43.110 |
Tie rod rear fork |
2 |
|
15 |
FT300.43.020a |
Pedal shaft assembly |
1 |
|
16 |
GB/T 6173-M12×1.5-A3L |
Hexagonal thin nut |
2 |
|
17 |
FT300.43.160 |
Large washer |
2 |
|
18 |
GB/T 955-1987-14 |
Waveform elastic washer |
1 |
|
19 |
FT300.43.159 |
Hand brake friction plate |
2 |
|
20 |
FT300.43.025a |
Brake locking plate assembly |
1 |
|
21 |
FT300.43.158 |
Connecting bolt |
1 |
69
Foton TC2A400-004K Wheeled Tractor

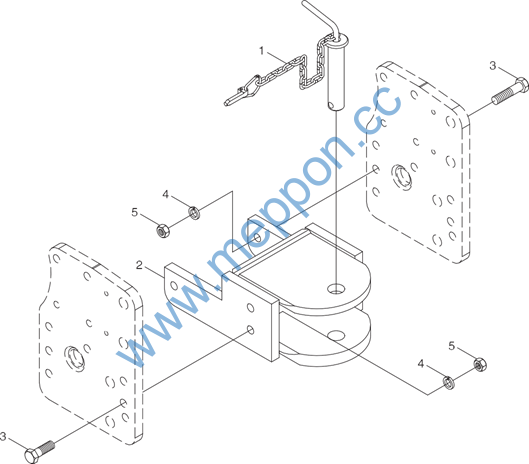

TB400.53D Tow Mechanism Assembly
70
Foton TC2A400-004K Wheeled Tractor
TB400.53D Tow Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TB400.53D TB400.53D.2 TB400.53D.1 GB/T 5783-M16×65-8.8-A3L GB/T 93-16-A0P
GB/T 6170-M16-8-A3L |
Tow mechanism assembly Tow pin and lock pin assembly Tow mechanism weldment Hex bolt Standard spring washer
Type 1 hex nut |
1 1 1 6 6
6 |
71
Foton TC2A400-004K Wheeled Tractor

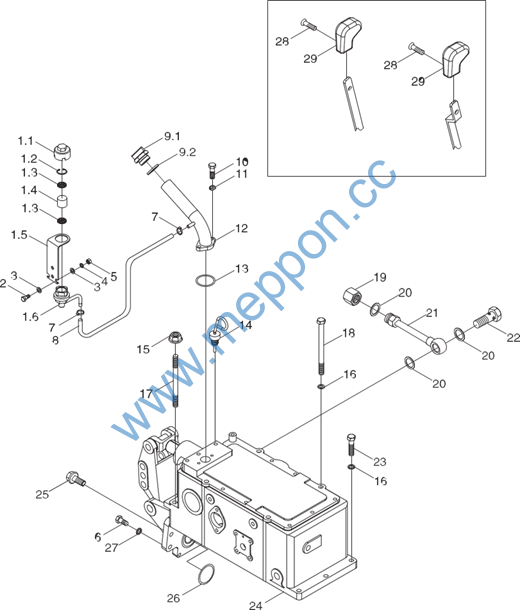

TB500A.55 Lifter device assembly – 1
72
Foton TC2A400-004K Wheeled Tractor

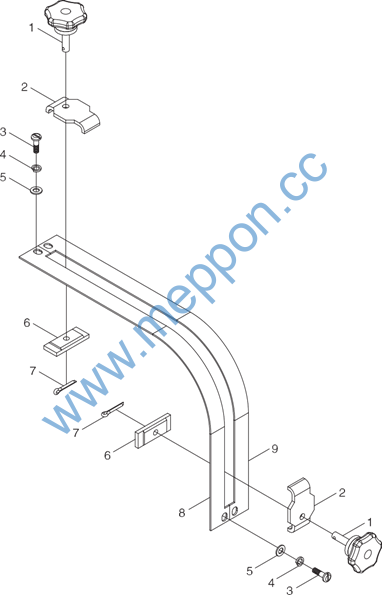

TB500A.55 Lifter device assembly – 1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500A.55 |
Lifter device assembly |
1 |
||
FT300.55B.023 |
Control handle positioning assembly |
1 |
||
1 |
FT65.57.014 |
Adjusting handle head assembly |
2 |
|
2 |
FT300.55B.133 |
Positioning bending |
2 |
|
3 |
GB/T 818-M5×16-4.8-A2L |
Cross recessed pan head screw |
4 |
|
4 |
GB/T 93-5-A0P |
Standard spring washer |
4 |
|
5 |
FT300.55B.131 |
Washer |
4 |
|
6 |
FT300.55B.132 |
Positioning nut |
2 |
|
7 |
GB/T 91-1.6×12-A0P |
Split pin |
2 |
|
8 |
FT300.55B.135 |
Force adjustment board |
1 |
|
9 |
FT300.55B.134 |
Position adjustment board |
1 |
73
Foton TC2A400-004K Wheeled Tractor
TB500A.55 Lifter device assembly – 2
74
