LOVOL TC2A704-001K Tractor Parts Catalogue 09

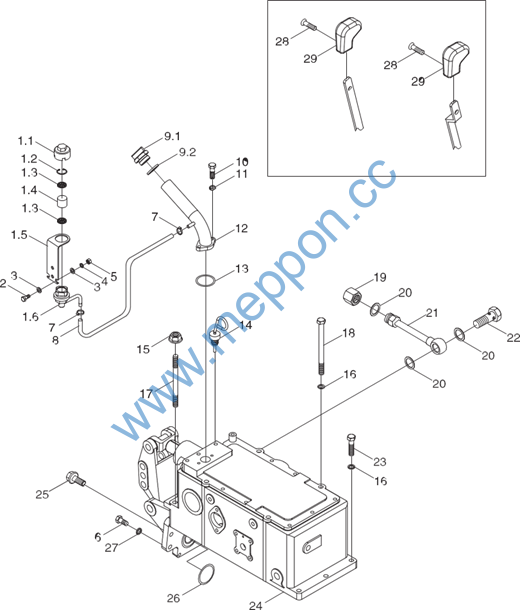

TB500A.55 Lifter device assembly – 2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500A.55 |
Lifter device assembly |
1 |
||
1 |
FT300.55B.016c |
Breather assy |
1 |
|
1.1 |
FT700.55D.136 |
Breather cover |
1 |
|
1.2 |
GB/T 893.1-26 |
Hole circlip |
1 |
|
1.3 |
FT650.40.167 |
Base plate |
2 |
|
1.4 |
FT700.55D.109 |
Breather filter element |
1 |
|
1.5 |
FT300.55B.164 |
Bracket, breather |
1 |
|
1.6 |
FT300.55B.027A |
Connecting pipe weldment, breather |
1 |
|
2 |
GB/T 5783-M10×20-8.8-A3L |
Hex head bolt |
2 |
|
3 |
GB/T 97.1-10-A0P |
Flat washer |
4 |
|
4 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
2 |
|
6 |
GB/T 5783-M8×30-10.9-A2L |
Hex head bolt |
2 |
|
7 |
Q67512 |
Worm driven hose hoop, type A |
2 |
|
8 |
FT300.55B.169 |
Connecting hose 2, breather |
1 |
|
9 |
TA700.55A.7 |
Oil filler plug assembly |
1 |
|
9.1 |
TA700.55A.7-01 |
Oil filler screw cap |
1 |
|
9.2 |
TA700.55A.7-02 |
Rubber mat |
1 |
|
10 |
GB/T 5783-M8×25-8.8-A2L |
Hex head bolt |
2 |
|
11 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
12 |
FT300.55B.026 |
Oil filler pipe weldment |
1 |
|
13 |
GB/T 3452.1-32.5×1.80G |
Hydraulic and pneumatic O-ring |
1 |
|
14 |
FT300.55B.022a |
Dipstick cluster |
1 |
|
15 |
SPL-CO-M12-10-F3 |
Hex flange nut |
2 |
|
16 |
TB404.312B-01 |
Washer |
7 |
|
17 |
GB/T 899-M12×100-10.9-A2L |
Stud |
2 |
|
18 |
FT300.55B.136 |
Bolt M12×235 |
4 |
|
19 |
FT300.55B.121a |
Delivery pipe nut |
1 |
|
20 |
JB/T 982-22 |
Combined seal gasket |
3 |
|
21 |
FT300.55B.024 |
Drain pipe welding assembly |
1 |
|
22 |
FT300.58.101 |
Hollow bolt |
1 |
|
23 |
GB/T 5783-M12×40-10.9-A3L |
Hex head bolt |
3 |
75
Foton TC2A400-004K Wheeled Tractor
TB500A.55 Lifter device assembly – 2(extension)
76
Foton TC2A400-004K Wheeled Tractor
TB500A.55 Lifter device assembly – 2(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
24 |
FT500A.55.010 |
Lifter and control assembly |
1 |
|
25 |
GB/T 16674.1-M12×35-10.9-A2L |
Hexagon flange bolt |
4 |
|
26 |
GB/T 3452.1-103×2.65G |
Rubber O-ring |
1 |
|
27 |
TB300.55-02 |
Washer |
2 |
|
28 |
GB/T 68-M4×10-4.8-A2L |
Slotted countersunk head screw |
2 |
|
29 |
TB504.552-04 |
Handle head |
2 |
77
Foton TC2A400-004K Wheeled Tractor

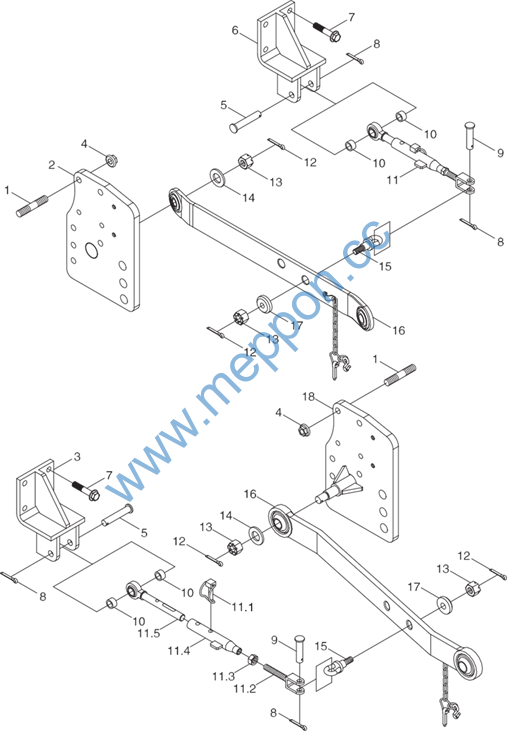

TB500.56G Hitch mechanism assembly-1
78
Foton TC2A400-004K Wheeled Tractor
TB500.56G Hitch mechanism assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500.56G |
Hitch mechanism assembly |
1 |
||
1 |
GB/T 898-AM16-M16×1.5×45-10.9-A3L |
Stud |
6 |
|
2 |
TB500.56G.2 |
Right lower pull rod bracket weldment |
1 |
|
3 |
FT300.56A.017 |
Left limitation lever bracket weldment |
1 |
|
4 |
SPL-CO-M16×1.5-10-F3 |
Nut |
6 |
|
5 |
FT300.56A.102 |
Limitation lever connecting pin |
2 |
|
6 |
FT300.56A.019 |
Right limitation lever bracket weldment |
1 |
|
7 |
GB/T 16674.1-M16×40-10.9-A3L |
Bolt |
10 |
|
8 |
GB/T 91-5×32-A0P |
Pin |
4 |
|
9 |
GB/T 882-B18×55-A0P |
Pin |
2 |
|
10 |
FT300.56A.103 |
Sleeve |
4 |
|
11 |
FT300.56A.016a |
Limitation lever assembly |
2 |
|
11.1 |
FT300.56A.023 |
Limitation lever lock pin combination |
1 |
|
11.2 |
FT300.56A.161 |
Limitation lever adjusting screw lever |
1 |
|
11.3 |
GB/T 6170-M22-A3L |
Nut |
1 |
|
11.4 |
FT300.56A.022a |
Flexible conduit weldment |
1 |
|
11.5 |
FT300.56A.021a |
Flexible lever ball head assembly |
1 |
|
12 |
GB/T 91-4×36-A0P |
Pin |
4 |
|
13 |
GB/T 6178-M20-A3L |
Nut |
4 |
|
14 |
GB/T 97.1-20-A0P |
Washer |
2 |
|
15 |
FT300.56A.110a |
Rear connecting pin of limitation lever |
2 |
|
16 |
FT500A.56.012 |
Lower pull rod assembly |
2 |
|
17 |
FT300.56A.111a |
Round plate |
2 |
|
18 |
TB500.56G.1 |
Left lower pull rod bracket weldment |
1 |
79
Foton TC2A400-004K Wheeled Tractor

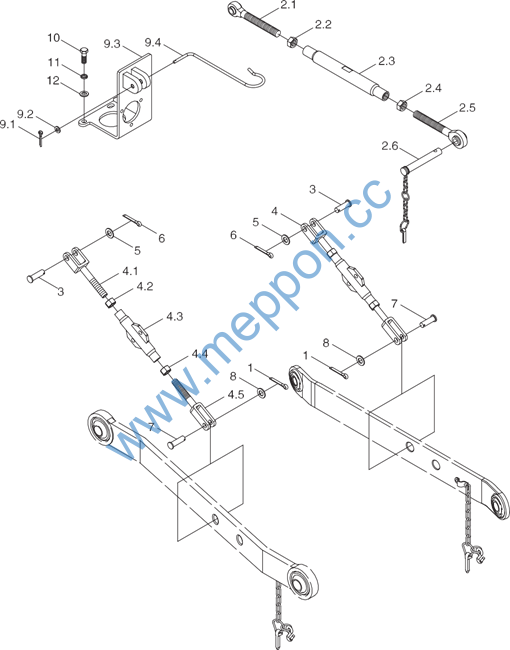

TB500.56G Hitch mechanism assembly-2
80
Foton TC2A400-004K Wheeled Tractor
TB500.56G Hitch mechanism assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB500.56G |
Hitch mechanism assembly |
1 |
||
1 |
GB/T 91-5×32 |
Pin |
2 |
|
2 |
FT500A.56.011a |
Upper pull rod assembly |
1 |
|
2.1 |
FT500A.56.026 |
Front adjusting lever assembly of upper pull rod |
1 |
|
2.2 |
GB/T 6173-M27×2-A3L |
Hexagon thin nut |
1 |
|
2.3 |
FT500A.56.130 |
Adjusting screw pipe |
1 |
|
2.4 |
GB/T 6173-M27×2-LH-A3L |
Hexagon thin nut |
1 |
|
2.5 |
FT500A.56.024 |
Rear adjusting lever assembly of upper pull rod |
1 |
|
2.6 |
FT65.56.015 |
Upper pull rod lock pin assembly |
1 |
|
3 |
FT500A.56.101 |
Upper connecting pin of lifting lever |
2 |
|
4 |
FT500A.56.013 |
Lifting lever assembly |
2 |
|
4.1 |
FT500A.56.107 |
Upper connecting fork of lifting lever |
1 |
|
4.2 |
GB/T 6171-M27×2-Zn.D |
Nut |
1 |
|
4.3 |
FT500A.56.033 |
Lifting lever screw pipe weldment |
1 |
|
4.4 |
GB/T 6171-M27×2LH-Zn.D |
Nut |
1 |
|
4.5 |
FT500A.56.108 |
Lower connecting fork of lifting lever |
1 |
|
5 |
FT500A.56.118 |
Washer |
2 |
|
6 |
GB/T 91-5×40-A0P |
Pin |
2 |
|
7 |
FT300.56A.112 |
Lower connecting pin of lifting lever |
2 |
|
8 |
GB/T 97.1-24-A0P |
Washer |
2 |
|
9 |
FT300.56A.018a |
Upper pull rod fixing clamp combination |
1 |
|
9.1 |
GB/T91 |
Cotter pin 2×10-A0P |
1 |
|
9.2 |
GB/T97.1 |
Washer 6-A0P |
1 |
|
9.3 |
FT300.56A.020a |
Seat plate weldment |
1 |
|
9.4 |
FT300.56A.216 |
Fixing clamp |
1 |
|
10 |
GB/T 5783-M8×40-8.8-A2L |
Hexagon head bolt |
2 |
|
11 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
12 |
GB/T 97.1-8-A0P |
Plain washer |
2 |
81
Foton TC2A400-004K Wheeled Tractor

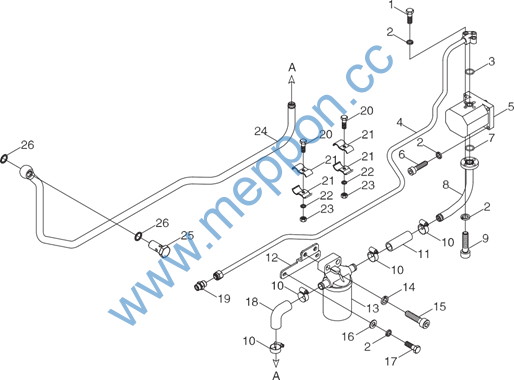

TB454.581A Oil Pump/Pipe/Filter Assembly
82
Foton TC2A400-004K Wheeled Tractor
TB454.581A Oil Pump/Pipe/Filter Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB454.581A |
Oil pump/pipe/filter assembly |
1 |
||
1 |
GB/T 5783-M8×35-8.8-A2L |
Hexagon head bolt |
3 |
|
2 |
GB/T 93-8-A0P |
Standard spring washer |
13 |
|
3 |
GB/T 3452.1-21.2×1.80G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
4 |
TB454.581A.2 |
Oil outlet pipe weldment of hydraulic pump |
1 |
|
5 |
FT304.58L.010 |
Gear pump |
1 |
|
6 |
GB/T 70.1-M8×35-8.8 |
Hexagon socket cap head screw |
4 |
|
7 |
GB/T 3452.1-18.0×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
8 |
TB504.581D.1 |
Oil suction steel pipe weldment |
1 |
|
9 |
GB/T 70.1-M8×25-8.8 |
Hexagon socket cap head screw |
4 |
|
10 |
Q67632 |
B-type worm drive hose clamp |
4 |
|
11 |
FT300.58A.104 |
Oil suction rubber pipe |
1 |
|
12 |
TB504.581D.5 |
Oil suction filter bracket weldment |
1 |
|
13 |
TB504.581D.4 |
Oil suction filter |
1 |
|
14 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
15 |
GB/T 70.1-M10×40-8.8 |
Hexagon socket cap head screw |
2 |
|
16 |
GB/T 95-8-A0P |
Plain washer |
2 |
|
17 |
GB/T 5783-M8×20-8.8-A2L |
Hexagon head bolt |
2 |
|
18 |
TB504.581D-01 |
Oil suction rubber pipe |
1 |
|
19 |
FT700.58A.101 |
Straight thread connector, body |
1 |
|
20 |
GB/T 5783-M6×30-8.8-A2L |
Hexagon head bolt |
2 |
|
21 |
FT300.58.013 |
Oil pipe clamp and rubber pad paste |
4 |
|
22 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
23 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
|
24 |
TB454.581A.1 |
Oil suction pipe weldment |
1 |
|
25 |
FT300.58.101 |
Hollow bolt |
1 |
|
26 |
JB/T 982-22 |
Compound seal washer |
2 |
83
Foton TC2A400-004K Wheeled Tractor

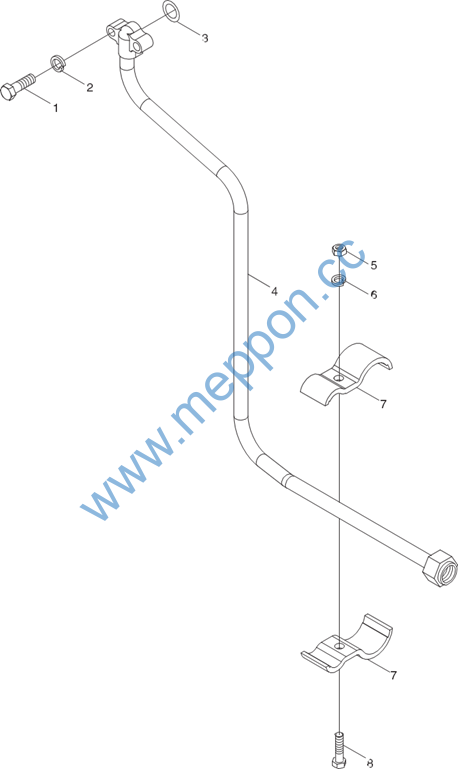

FT550A.58.002 Distributor oil inlet pipe assembly
84
