No.

Part code and specification

Part name

Quantity

Remark

1

2

3

TB500.312

GB/T 5782-M16×70-A3L GB/T 93-16-A0P TB500.312-01

Front bracket assembly Bolt

Washer Front bracket

1

6

6

1

No.

Part code and specification

Part name

Quantity

Remark

1

2

2.1

2.2

TS04320010000K FT350.32F.011 TS04320010001K GB/T 2979-6.50-16-F

GB/T 2979-6.50-16-6PR-F

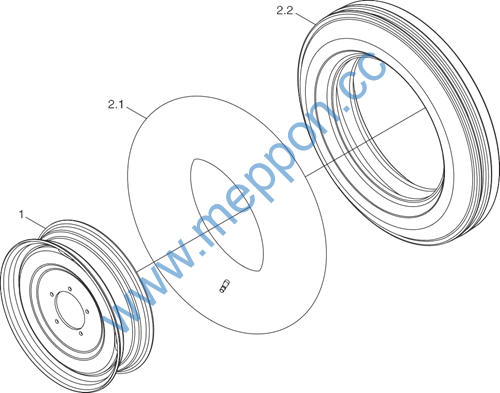

Front wheel assembly Rim weldment

Tube and tyre assembly 6.50-16 steering Tractor steering wheel tube

Tractor steering wheel tyre

1

1

1

1

1

No.

Part code and specification

Part name

Quantity

Remark

FT404.34F.001

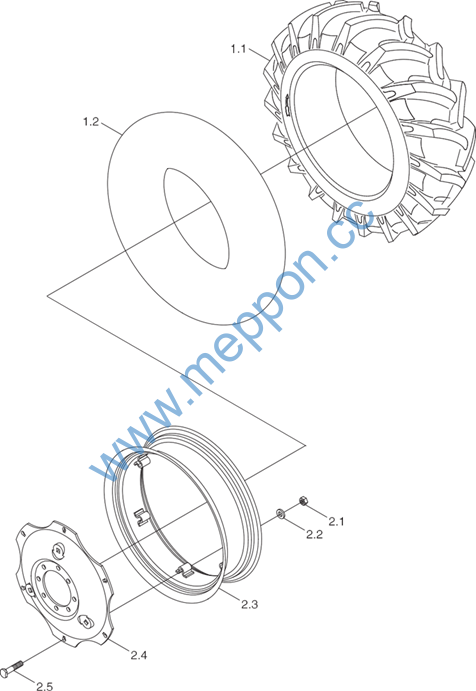

Rear driving wheel assembly

1

1

FT404.34.011

Tire and tube assembly 14.9-24

1

1.1

GB/T 2979-14.9-24-6PR-R

Diagonal tire with conventional section, tractor driving wheel

1

1.2

GB/T 2979-14.9-24-R

Tube, tractor driving wheel

1

2

FT404.34F.011

Rim disc assembly

1

2.1

GB/T 6171-M16×1.5-8-A3L

Hexagon nut, Style 1

6

2.2

FT300.34.106

Washer

6

2.3

FT404.34F.012

Rim weldment

1

2.4

FT404.34.102b

Spoke

1

2.5

FT300.34.102

Rim bolt

6

No.

Part code and specification

Part name

Quantity

Remark

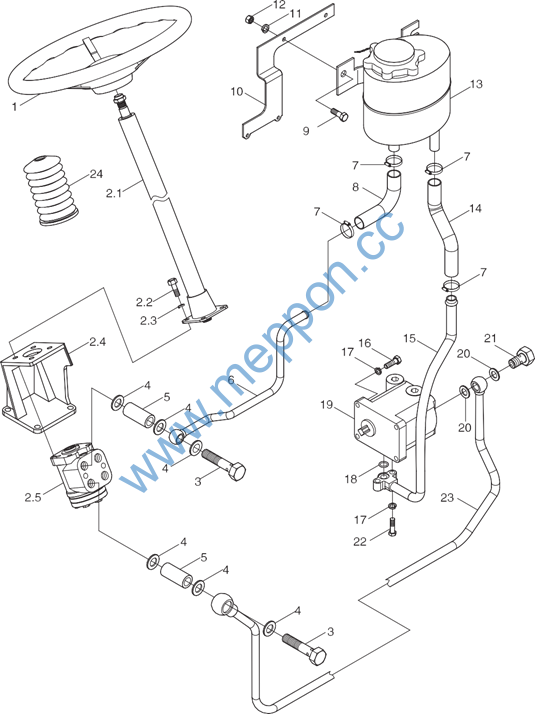

TB450.40X

Full hydraulic steering assembly

1

1

FT400.40.016

Steering wheel assembly

1

2

FT354.40C.012

Steering gear and its housing assembly

1

2.1

FT354.40C.016a

Steering column assembly

1

2.2

GB/T 5783-M10×30-A3L

Screw

4

2.3

GB/T 93-10-AOP

Washer

4

2.4

FT354.40C.111

Steering gear bracket

1

2.5

FT354.40C.015

Hydraulic steering gear assembly

1

3

FT354.40C.102

Hollow long bolt

2

4

JB/T 982-20

Assembled seal washer

6

5

FT354.40C.109

Long connecting pipe

2

6

TB450.40X.7

Oil return outlet pipe welding joint

1

7

JB/T 8870-d32

Hose clamp

4

8

FT354.40C.107

Oil return hose

1

9

GB/T 5783-M10×25-A3L

Bolt

2

10

TB450.40X-01

Steering fuel tank bracket

1

11

GB/T 93-10-A0P

Washer

2

12

GB/T 6170-M10-A3L

Nut

2

13

FT354.40C.011

Steering fuel tank and respirator assembly

1

14

FT400.40X.104

Oil absorbing hose

1

15

FT450.40Y.011

Fuel pump oil absorbing steel pipe welding joint

1

16

GB/T 5782-M8×60-A2L

Bolt

4

17

GB/T 93-8-A0P

Washer

6

18

GB/T 3452.1-19×2.65G

O-seal ring

1

19

FT354.40J.011

Permanent overflow pump

1

20

JB/T 982-18

Assembled seal washer

2

21

FT650.40.105

Bolt M18×1.5

1

22

GB/T 5783-M8×30-A2L

Bolt

2

23

FT450.40Y.020

Fuel pump oil outlet steel pipe welding joint

1

24

TB504.401-01

Steering lever protection sleeve

1

No.

Part code and specification

Part name

Quantity

Remark

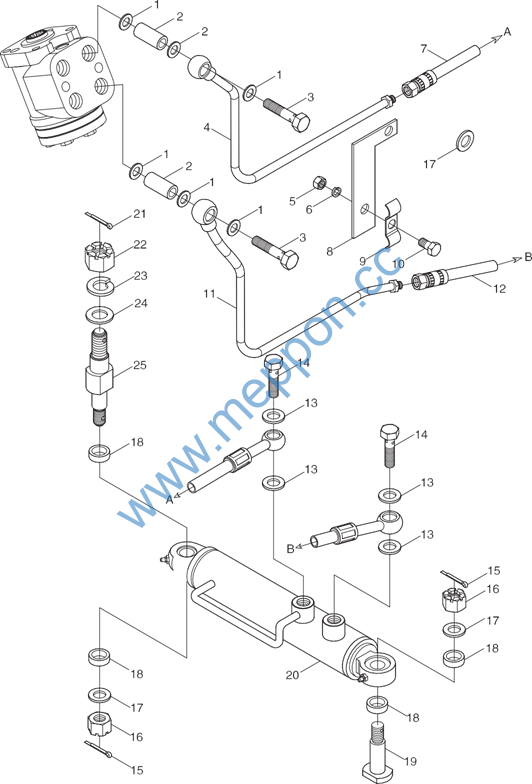

TB450.40X

Full hydraulic steering assembly

1

1

JB/T 982-20

Assembled seal washer

6

2

FT354.40C.108

Short connecting pipe

2

3

FT354.40C.119

Hollow short bolt

2

4

FT400.40X.017a

Left oil transfer pipe weldment

1

5

GB/T 6170-M6-A2L

Nut

1

6

GB/T 93-6-A0P

Washer

1

7

FT400.40C.019a

Cylinder right oil outlet hose assembly

1

8

FT304.40L.122

Oil pipe trestle

1

9

FT304.40L.121

Double hole clamp

1

10

GB/T 5783-M6×25-A2L

Bolt

1

11

FT400.40X.018

Right oil transfer pipe weldment

1

12

FT400.40C.024a

Cylinder left oil outlet hose assembly

1

13

JB/T 982-16

Assembled seal washer

4

14

FT650.40.112

Hollow bolt M16×1.5

2

15

GB/T 91-4×28-A0P

Pin

2

16

GB/T 9459-M16×1.5-A3L

Nut

2

17

GB/T 97.1-16-A0P

Washer

3

18

FT400.40C.101

Bearing sleeve

4

19

FT400.40C.103

Cylinder pin shaft (2)

1

20

TB550.40Q.1a

Steering cylinder assembly

1

21

GB/T 91-4×36-A0P

Pin

1

22

GB/T 6181-M20-A9L

Nut

1

23

GB/T 93-20-A0P

Washer

1

24

GB/T 97.1-20-A0P

Washer

1

25

FT400.40C.102

Cylinder pin shaft (1)

1
