LOVOL TC2A704-001K Tractor Parts Catalogue 06
TB550.413 PTO control assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.413 |
PTO control assembly |
1 |
||
1 |
FT300.41.015 |
PTO control handle assembly |
1 |
|
2 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
2 |
|
3 |
FT300.41.013 |
Control lever assembly, PTO |
1 |
|
3.1 |
FT300.41.014 |
Control lever welded unit, PTO |
1 |
|
3.2 |
FT300.41.127 |
Bush |
1 |
|
4 |
FT300.41.128 |
Spacer bush |
1 |
|
5 |
GB/T 882-B10×30 |
Axis pin |
2 |
|
6 |
FT300.43.108 |
Front fork, pull rod |
1 |
|
7 |
FT300.41E.112 |
Control lever |
1 |
|
8 |
FT300.41.130 |
Shaft sleeve |
1 |
|
9 |
FT300.41.129 |
Washer |
1 |
|
10 |
GB/T 93-12 |
Washer |
1 |
|
11 |
TB550.413-02 |
Bolt M12×75 |
1 |
|
12 |
GB/T 97.1-10-A0P |
Washer |
2 |
|
13 |
GB/T 91-3.2×16-A0P |
Pin |
2 |
|
14 |
GB/T 91-2.5×32-A0P |
Split pin |
1 |
|
15 |
TB550.413-03 |
Screw |
1 |
|
16 |
FT704.42B.163 |
Retaining spring, fork shaft |
1 |
|
17 |
GB/T 308-9.5-G100-b |
Steel ball |
1 |
|
18 |
TB550.413-04 |
Finger-type driving lever |
1 |
|
19 |
GB/T 3452.1-11.2×2.65G |
O-ring |
1 |
|
20 |
FT300.41E.109 |
Shift lever shaft sleeve |
1 |
|
21 |
GB/T 93-8 |
Standard spring washer |
2 |
|
22 |
GB/T 5783-M8×20-8.8-A2L |
Hex head bolt |
2 |
|
23 |
FT300.41.012 |
Gear shift lever welded unit, PTO |
1 |
|
24 |
GB/T 879.1-6×26 |
Pin |
1 |
|
25 |
GB/T 879.1-3.5×26 |
Resilient pin |
1 |
|
26 |
TB550.413-01a |
Gear shift fork, PTO |
1 |
|
27 |
FT300.41C.107a |
Fork shaft, PTO |
1 |
|
28 |
FT300.43.110 |
Rear fork, pull rod |
1 |
|
29 |
GB/T 3452.1-16.0×2.65G |
Hydraulic and pneumatic O-ring |
2 |
45
Foton TC2A400-004K Wheeled Tractor

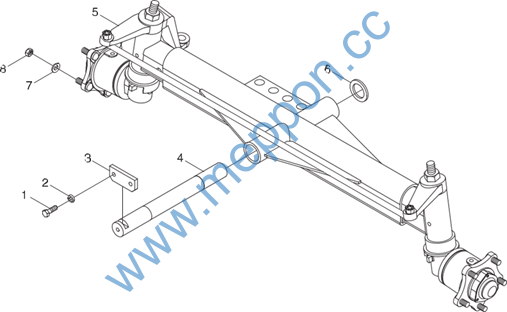

TB400.311B Front Axle Assembly-1
46
Foton TC2A400-004K Wheeled Tractor
TB400.311B Front Axle Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.311B |
Front axle assembly |
1 |
||
1 |
GB/T 5781-M10×35-A3L |
Bolt |
2 |
|
2 |
GB/T 93-10-A0P |
Washer |
2 |
|
3 |
FT400.31.142 |
Limitation plate |
1 |
|
4 |
FT400.31.105a |
Swing shaft |
1 |
|
5 |
FT400.31B.010 |
Front axle subassembly |
1 |
|
6 |
FT400.31.108 |
Gasket |
1 |
|
7 |
FT400.31B.103 |
Washer |
10 |
|
8 |
GB/T 6176-M14×1.5-10-A3L |
Nut |
10 |
47
Foton TC2A400-004K Wheeled Tractor

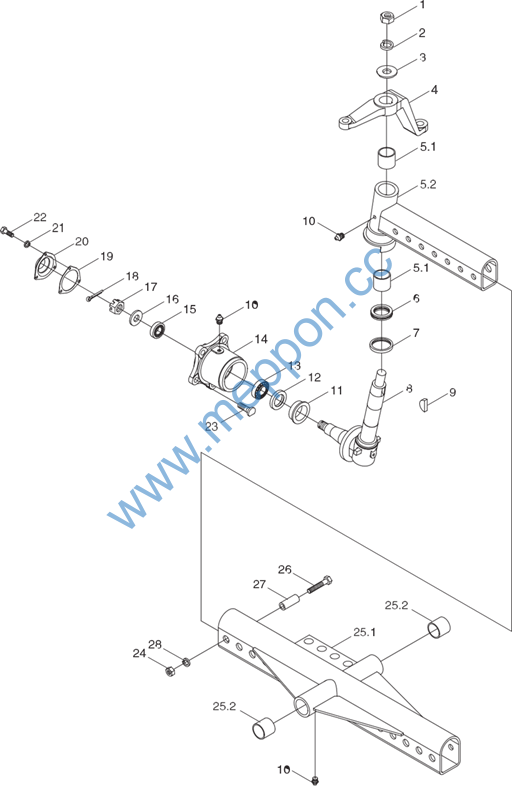

TB400.311B Front Axle Assembly-2
48
Foton TC2A400-004K Wheeled Tractor
TB400.311B Front Axle Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.311B |
Front axle assembly |
1 |
||
FT400.31B.010 |
Front axle subassembly |
1 |
||
1 |
GB/T 6171-M24×2-A3L |
Type 1 hex nut |
1 |
|
2 |
GB/T 93-24-A0P |
Standard spring washer |
1 |
|
3 |
FT650.31.115 |
Vertical shaft washer |
1 |
|
4 |
FT400.31B.102a |
Right steering arm |
1 |
|
5 |
FT400.31.012 |
Assistant sleeve assembly (right) |
1 |
|
5.1 |
FT400.31.140 |
Liner |
2 |
|
5.2 |
FT400.31.018a |
Assistant sleeve weldment (right) |
1 |
|
6 |
GB/T 301-51108 |
Thrust ball bearing |
1 |
|
7 |
FT400.31.019 |
Vertical shaft oil seal assembly |
1 |
|
8 |
FT400.31B.015 |
Steering knuckle assembly |
1 |
|
9 |
GB/T 1096-10×8×25 |
Flat key |
1 |
|
10 |
JB/T 7940.1-M10×1 |
Straight press filling oil cup |
3 |
|
11 |
FT400.31.141 |
Half axle oil seal seat |
1 |
|
12 |
GB/T 9877.1-FB55×80×8 |
Oil seal |
1 |
|
13 |
GB/T 297-32208 |
Column roller bearing |
1 |
|
14 |
FT400.31.102 |
Hub |
1 |
|
15 |
GB/T 297-32206 |
Column roller bearing |
1 |
|
16 |
FT400.31.126 |
Lock gasket |
1 |
|
17 |
FT400.31.125 |
Nut |
1 |
|
18 |
GB/T 91-5×40-A0P |
Cotter pin |
1 |
|
19 |
FT400.31.104 |
Gasket |
1 |
|
20 |
FT400.31.116 |
Bearing cover |
1 |
|
21 |
GB/T 93-6-A0P |
Standard spring washer |
3 |
|
22 |
GB/T 5781-M6×12-A2L |
Hex bolt |
3 |
|
23 |
FT650.31.111 |
Front hub bolt |
5 |
|
24 |
GB/T 6176-M16×1.5-A3L |
Type 2 hex nut |
3 |
|
25 |
FT400.31B.013a |
Sleeve assembly |
1 |
|
25.1 |
FT400.31B.016a |
Sleeve weldment |
1 |
|
25.2 |
FT400.31.140a |
Liner |
2 |
|
26 |
GB/T 5785-M16×1.5×100-A2L |
Bolt |
3 |
|
27 |
FT400.31.103a |
Mat cover |
3 |
|
28 |
GB/T 93-16-A0P |
Standard spring washer |
3 |
49
Foton TC2A400-004K Wheeled Tractor

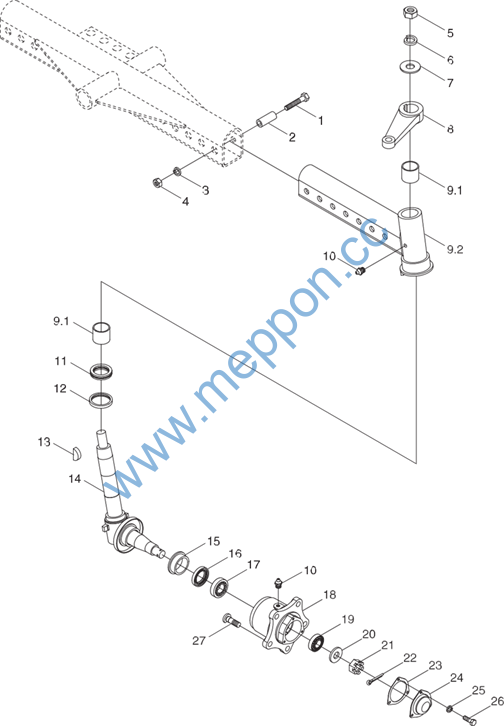

TB400.311B Front Axle Assembly-3
50
Foton TC2A400-004K Wheeled Tractor
TB400.311B Front Axle Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.311B |
Front axle assembly |
1 |
||
FT400.31B.010 |
Front axle subassembly |
1 |
||
1 |
GB/T 5785-M16×1.5×100-A2L |
Bolt |
3 |
|
2 |
FT400.31.103a |
Mat cover |
3 |
|
3 |
GB/T 93-16-A0P |
Standard spring washer |
3 |
|
4 |
GB/T 6176-M16×1.5-A3L |
Type 2 hex nut |
3 |
|
5 |
GB/T 6171-M24×2-A3L |
Type 1 hex nut |
1 |
|
6 |
GB/T 93-24-A0P |
Standard spring washer |
1 |
|
7 |
FT650.31.115 |
Vertical shaft washer |
1 |
|
8 |
FT400.31B.101 |
Left steering arm |
1 |
|
9 |
FT400.31.011 |
Auxiliary sleeve assembly (left) |
1 |
|
9.1 |
FT400.31.140 |
Liner |
2 |
|
9.2 |
FT400.31.017a |
Auxiliary sleeve weldment (left) |
1 |
|
10 |
JB/T 7940.1-M10×1 |
Straight press filling oil cup |
2 |
|
11 |
GB/T 301-51108 |
Thrust ball bearing |
1 |
|
12 |
FT400.31.019 |
Vertical shaft oil seal assembly |
1 |
|
13 |
GB/T 1096-10×8×25 |
Flat key |
1 |
|
14 |
FT400.31B.015 |
Steering knuckle assembly |
1 |
|
15 |
FT400.31.141 |
Half axle oil seal seat |
1 |
|
16 |
GB/T 9877.1-FB55×80×8 |
Oil seal |
1 |
|
17 |
GB/T 297-32208 |
Column roller bearing |
1 |
|
18 |
FT400.31.102 |
Hub |
1 |
|
19 |
GB/T 297-32206 |
Column roller bearing |
1 |
|
20 |
FT400.31.126 |
Lock gasket |
1 |
|
21 |
FT400.31.125 |
Nut |
1 |
|
22 |
GB/T 91-5×40-A0P |
Split pin |
1 |
|
23 |
FT400.31.104 |
Paper gasket |
1 |
|
24 |
FT400.31.116 |
Bearing cover |
1 |
|
25 |
GB/T 93-6-A0P |
Standard spring washer |
3 |
|
26 |
GB/T 5781-M6×12-A2L |
Hex bolt |
3 |
|
27 |
FT650.31.111 |
Front hub bolt |
5 |
51
Foton TC2A400-004K Wheeled Tractor

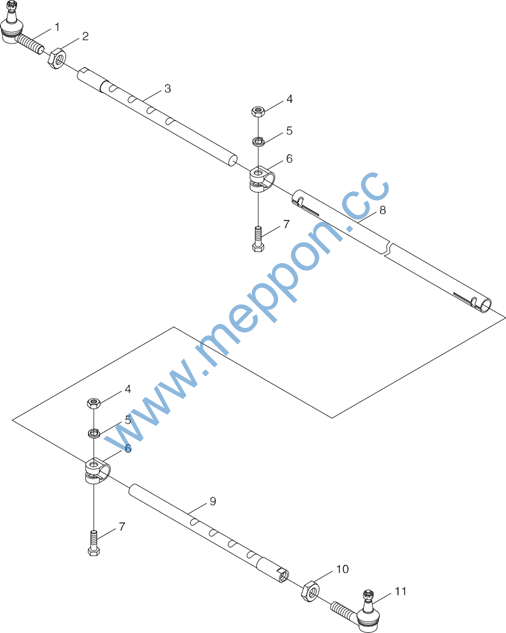

TB400.311B Front Axle Assembly-4
52
Foton TC2A400-004K Wheeled Tractor
TB400.311B Front Axle Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.311B |
Front axle assembly |
1 |
||
FT400.31.014a |
Tie rod assembly |
1 |
||
1 |
FT400.31.021 |
Steering tie rod right joint assembly |
1 |
|
2 |
GB/T 6173-M18×1.5-A3L |
Nut |
1 |
|
3 |
FT400.31.122 |
Right tie rod inner connecting pipe |
1 |
|
4 |
GB/T 6171-M12×1.5-A3L |
Nut |
2 |
|
5 |
GB/T 93-12-A0P |
Washer |
2 |
|
6 |
FT400.31.137 |
Tie rod clip |
2 |
|
7 |
GB/T 5785-M12×1.5×50-A3L |
Bolt |
2 |
|
8 |
FT400.31.120 |
Tie rod |
1 |
|
9 |
FT400.31.121 |
Left tie rod inner connecting pipe |
1 |
|
10 |
GB/T 6173-M18×1.5LH-A3L |
Nut |
1 |
|
11 |
FT400.31.020 |
Steering tie rod left joint assembly |
1 |
53
Foton TC2A400-004K Wheeled Tractor

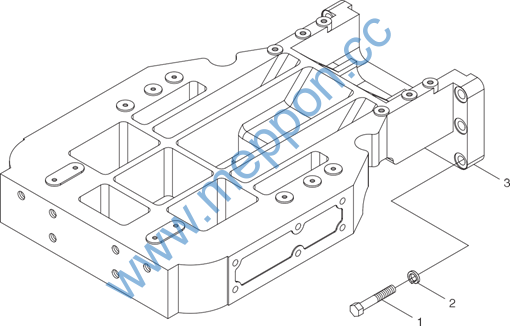

TB500.312 Front Bracket Assembly
54
